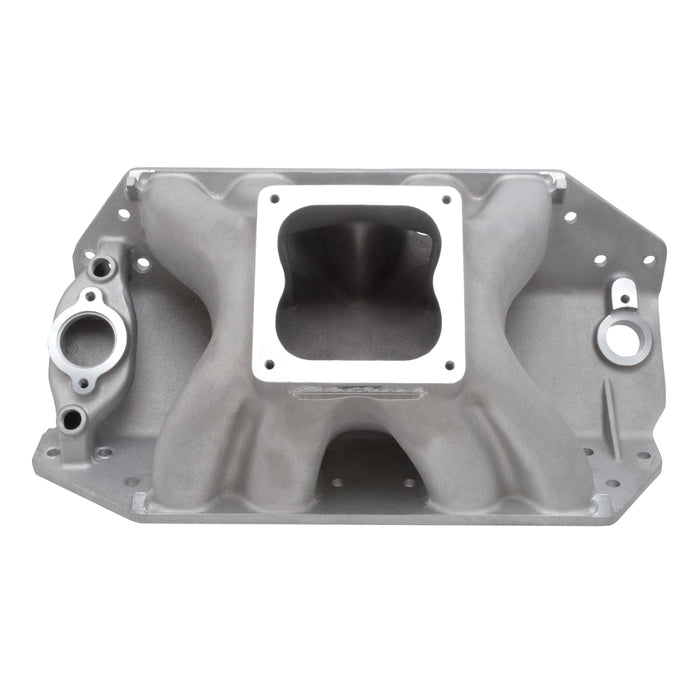

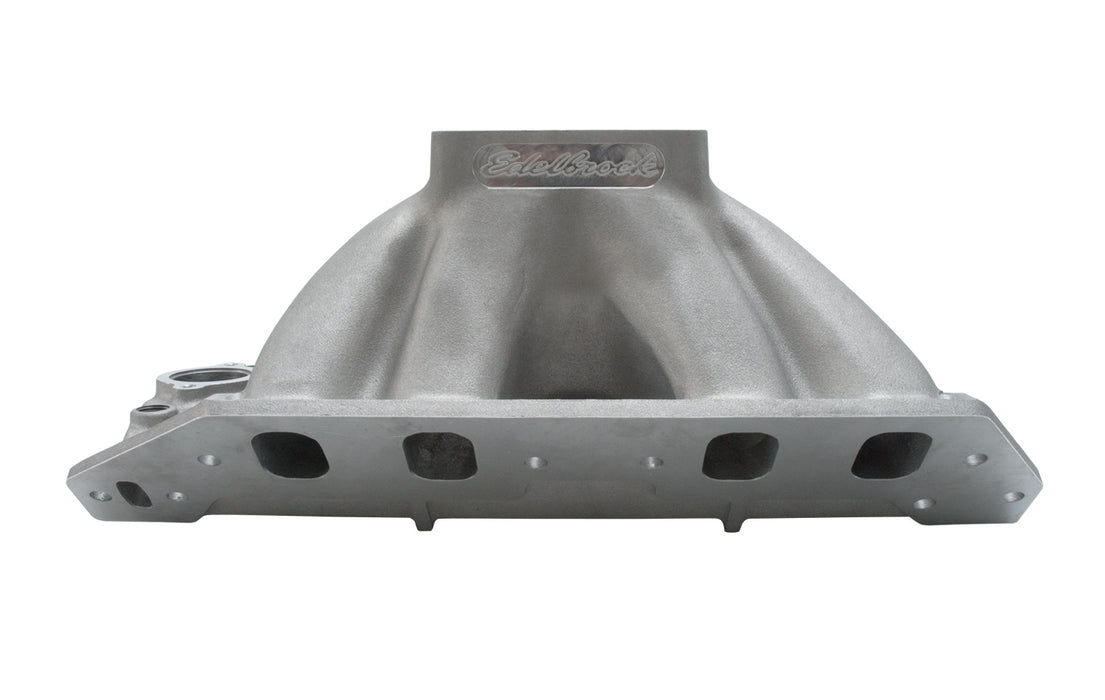

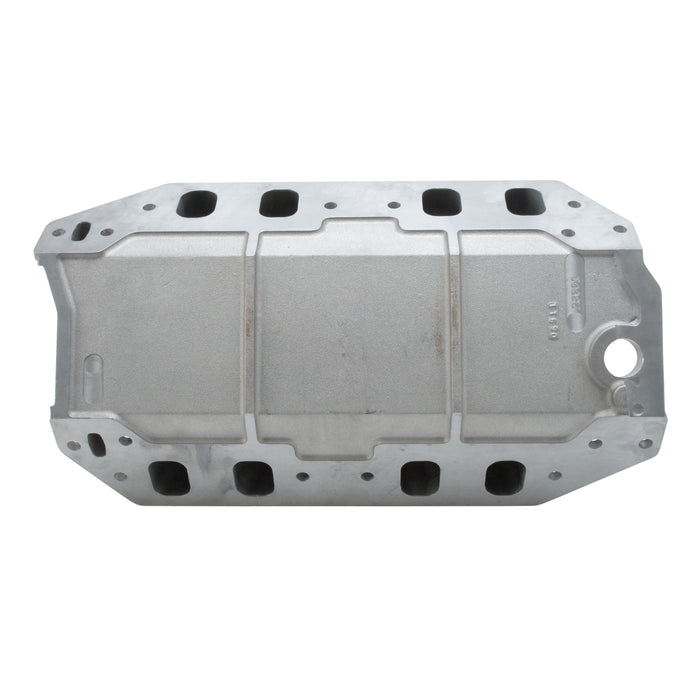

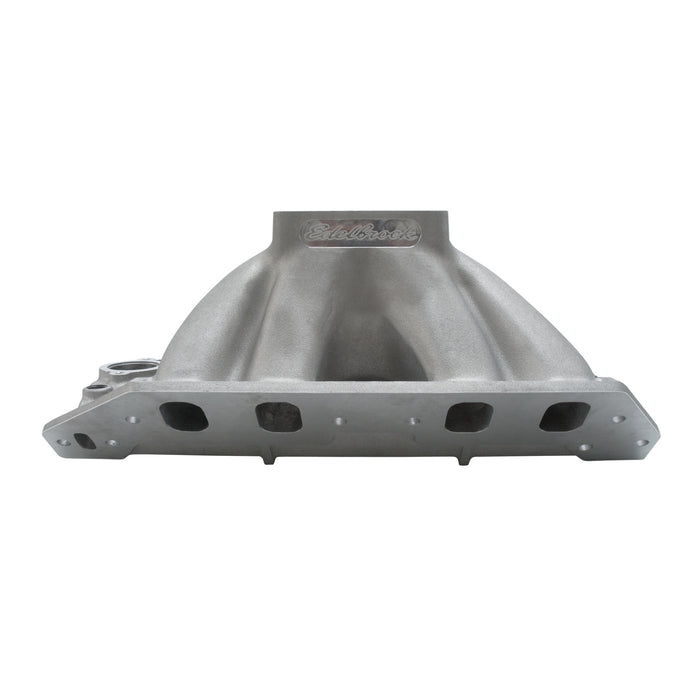

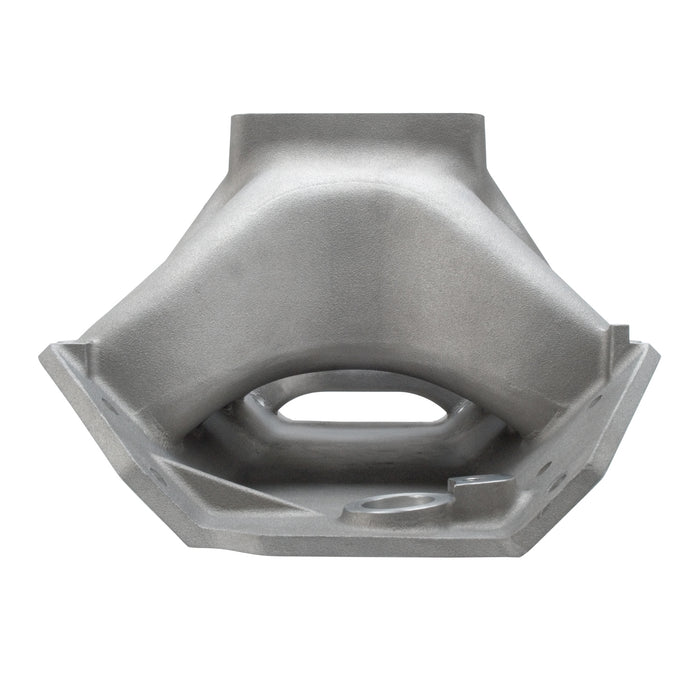

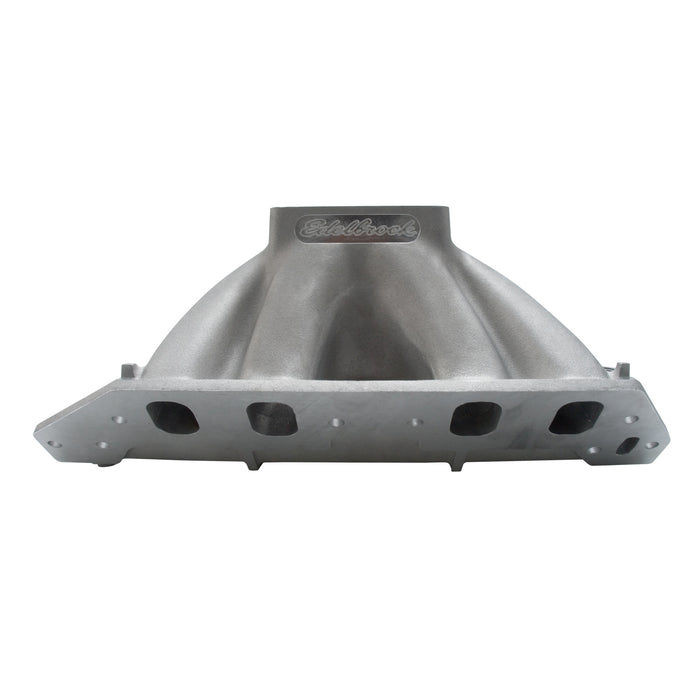

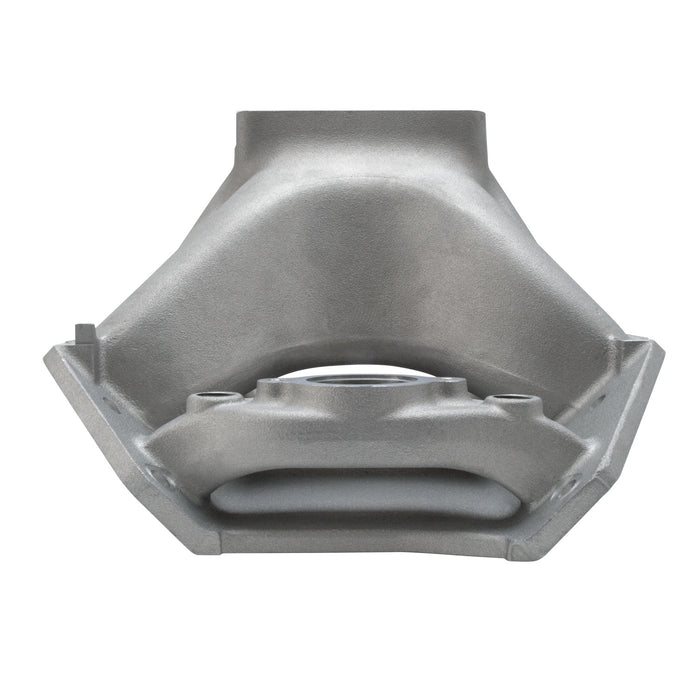

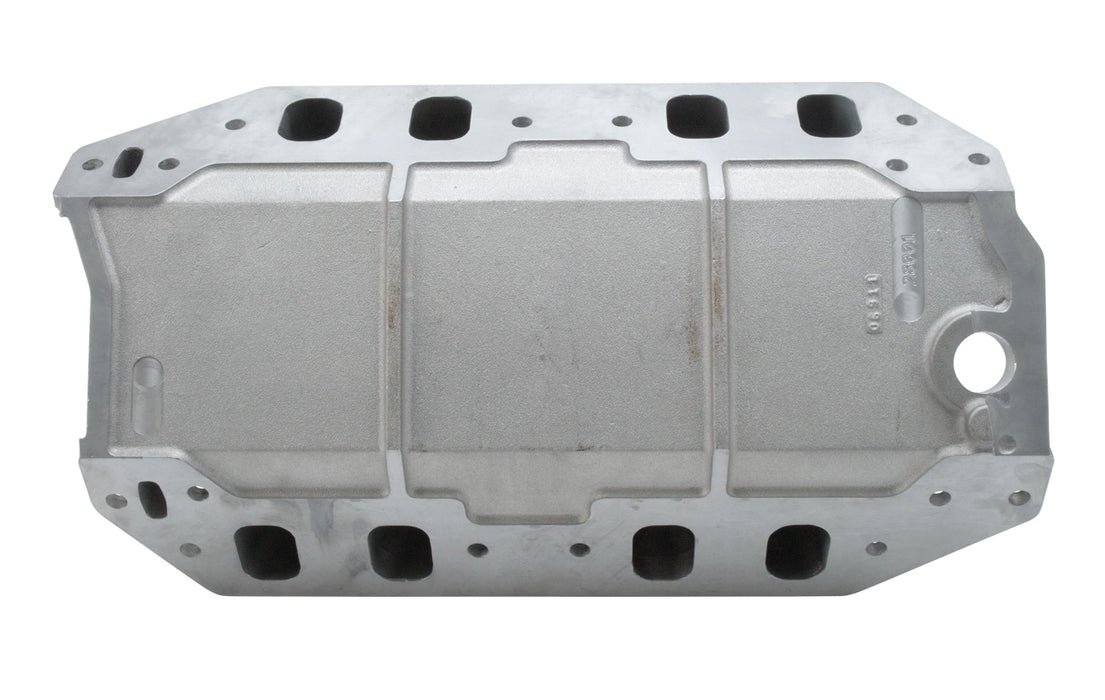

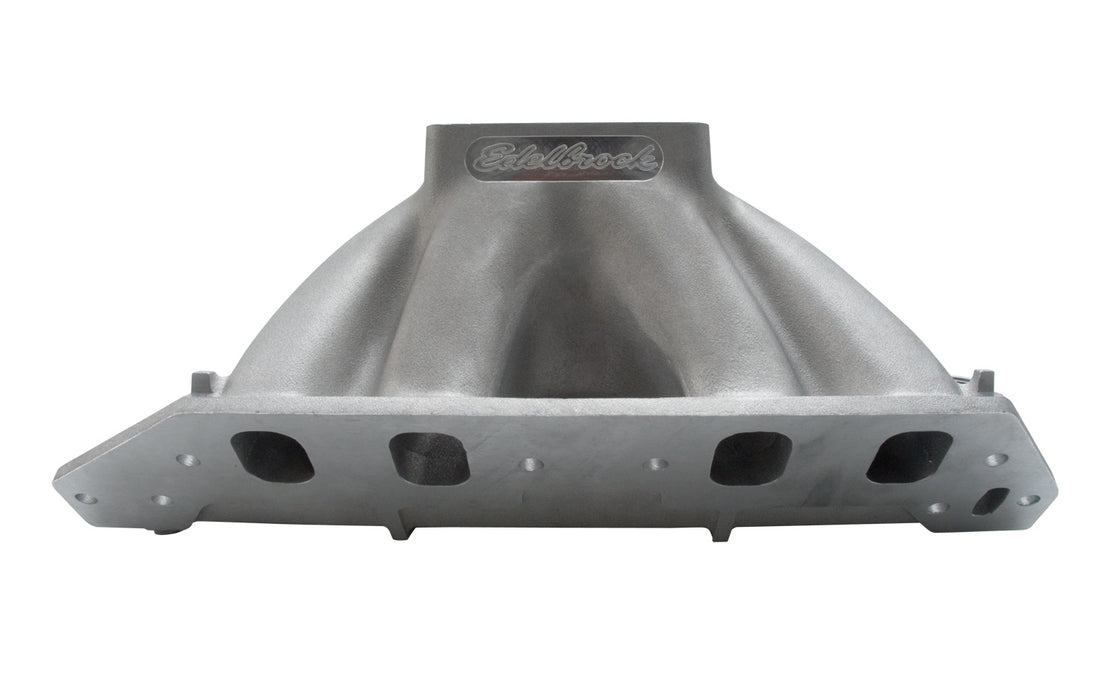

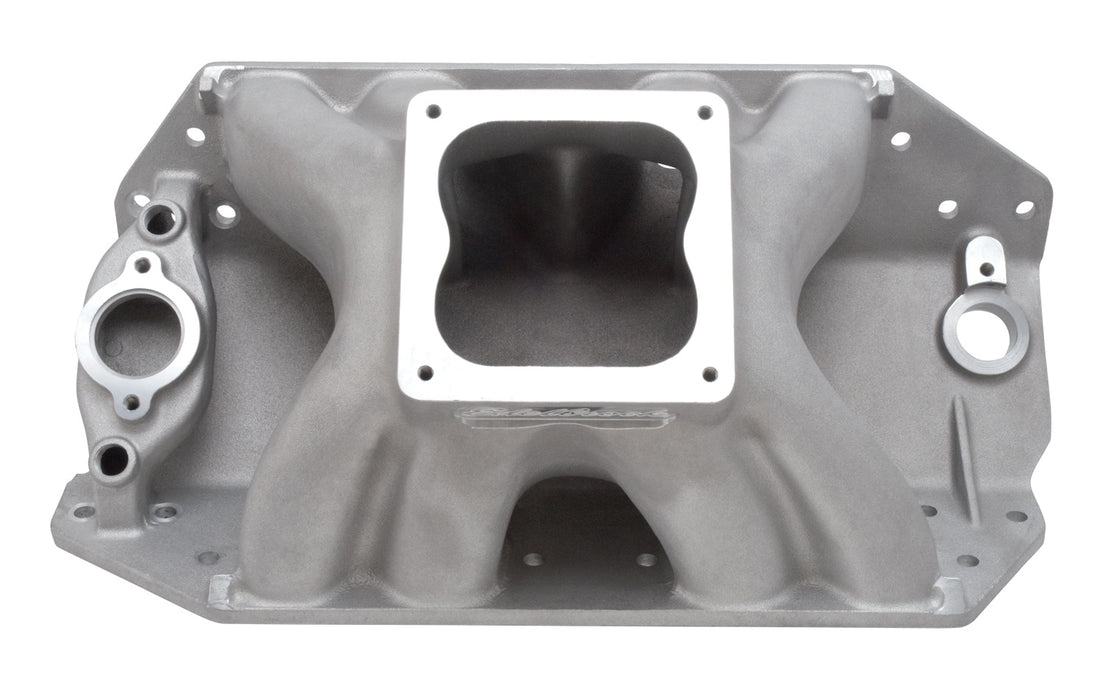

Edelbrock 28001 Edelbrock Big Victor 2 Spread-Port Intake Manifold for Big-Block Chevrolet
by Edelbrock
SKU ds_BDVJ_28001
Proudly Canadian
Albertan Owned
Secure Payments
Financing Available
Trusted Brands
Top-Quality Suppliers
Original price
$1,117.30
-
Original price
$1,117.30
Original price
$1,117.30
$1,117.30
$1,117.30
-
$1,117.30
Current price
$1,117.30
Description
Edelbrock part #28001 Big Victor 2 Spread-Port intake manifold is designed for large cubic-inch or high rpm drag racing big-blocks with Edelbrock Big Victor, Dart Big Chief or Brodix Big Duke cylinder heads, this manifold has an average runner area of approximately 4.75 sq. in. The port exits have been reduced to accommodate the wide variety of intake port sizes and require port matching. The runners have a minimum corner radius of .500" from the plenum to the exit allowing the popular oval port shape to be used. The outside runners are shorter and straighter than competitor's manifolds and the plenum is longer front to back. These features, combined with approximately 5% taper in runner cross-sectional area, give better top end horsepower while maintaining consistency and throttle response off the stop. All applications are equipped with a 4500 Series flange and will accept 2.25" throttle body butterflies without a spacer or modification.
Specifications
| Basic Operating RPM Range | 3500-8500 |
| Center Maximum Height | 9.210 |
| CNC Ported | No |
| Description_ABR | Intake Mnfld |
| Description_ASM | Chevrolet:Big-Block Race |
| Description_DEF | Engine Intake Manifold |
| Description_DES | INTAKE MANIFOLD |
| Description_EXT | Edelbrock Big Victor 2 Spread-Port Intake Manifold for Big-Block Chevrolet |
| Description_FAB | Better Top End Horsepower and Consistency |
| Description_FAB | Crisp Throttle Response off the Stop |
| Description_FAB | For 3500 to 8500 RPM High-Performance Engines |
| Description_FAB | For Large CID or High RPM Drag Racing Big Blocks |
| Description_FAB | Require Port Matching and Can Use Oval Ports |
| Description_FAB | Use Appropriate 4500-Series Carburetor |
| Description_FAB | Use for 9.8 in. Deck Height Engines |
| Description_FAB | Use with Dart Big Chief Cylinder Heads |
| Description_INV | Big Victor 2 Short Deck 9.8 |
| Description_KEY | 28001; Chevy; Chevrolet; Edelbrock; Intake Manifold; Intake; Manifold; Single-Plane; Big Victor 2 Spread-Port; Satin |
| Description_LAB | Big Victor 2 Spread-Port Intake Manifold for Big-Block Chevy |
| Description_MKT | Edelbrock part #28001 Big Victor 2 Spread-Port intake manifold is designed for large cubic-inch or high rpm drag racing big-blocks with Edelbrock Big Victor, Dart Big Chief or Brodix Big Duke cylinder heads, this manifold has an average runner area of approximately 4.75 sq. in. The port exits have been reduced to accommodate the wide variety of intake port sizes and require port matching. The runners have a minimum corner radius of .500" from the plenum to the exit allowing the popular oval port shape to be used. The outside runners are shorter and straighter than competitor's manifolds and the plenum is longer front to back. These features, combined with approximately 5% taper in runner cross-sectional area, give better top end horsepower while maintaining consistency and throttle response off the stop. All applications are equipped with a 4500 Series flange and will accept 2.25" throttle body butterflies without a spacer or modification. |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 2in.} |
| Description_TRA | Carb recommendations: Use appropriate 4500 Series racing carburetor. |
| Description_TRA | Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Description_TRA | Manifold height: A-9.21", B-9.21" |
| Description_TRA | Recommended intake gasket: Fel-Pro #1298. |
| Description_TRA | Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA | • Recommended intake gasket: Fel-Pro # 1298. • Manifold height: A-9.21in.; B-9.21in. • Carb recommendations: Use appropriate 4500 Series racing carburetor. • Use RTV sealant to properly seal end seals; such as Edelbrock High Temp Silicone sealant # 1076; DO NOT USE END SEALS GASKETS. • Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| EGR Port | No |
| finish | Satin |
| Flange Type | 4500 |
| Front Maximum Height | 9.210 |
| Gasket Or Seal Included | No |
| Grade Type | Performance |
| height | 14.5 |
| length | 24.0 |
| LTL | N |
| Material | Aluminum |
| Rear Maximum Height | 9.210 |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Series | Victor |
| Single Or Dual Plane Type | Single |
| Vehicle Model | Chevrolet |
| weight | 37.4 |
| width | 14.75 |
