Edelbrock 28235 Edelbrock Super Victor LSR Dominator Carburetor GM LS Engines
by Edelbrock
SKU ds_BDVJ_28235
Proudly Canadian
Albertan Owned
Secure Payments
Financing Available
Trusted Brands
Top-Quality Suppliers
Sold out
Original price
$2,074.56
-
Original price
$2,074.56
Original price
$2,074.56
$2,074.56
$2,074.56
-
$2,074.56
Current price
$2,074.56
Description

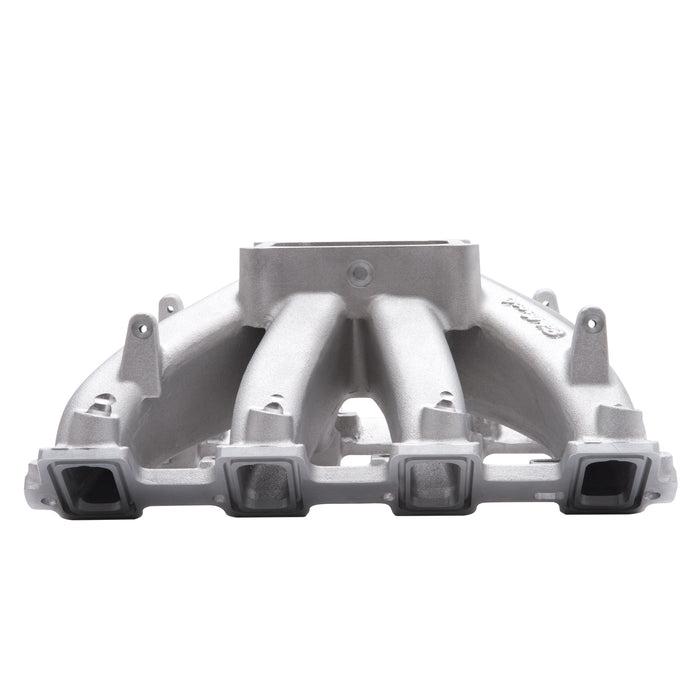

Edelbrock part #28235 Super Victor LS-R EFI two-piece manifold is intended for LS-R high performance race applications operating in the 8,000 rpm range utilizing Edelbrock LS-R CNC cylinder heads #770468. The single plane design features a 4500 series throttle body flange and is capable of producing near 1,000 hp. This Manifold features machined fuel injector bosses for EFI applications. LS-R fuel rail kit, #3510, is available separately. Port exits are tipped 6.5 degrees.
Specifications
| Basic Operating RPM Range | 4000-8500 |
| Center Maximum Height | 9.930 |
| CNC Ported | No |
| Description_ABR | Intake Mnfld |
| Description_ASM | Chevrolet:Gen IV Race:- |
| Description_ASM | Chevrolet:Small-Block Gen III Race:- |
| Description_ASM | Chevrolet:Small-Block Gen III Race:-;Chevrolet:Gen IV Race:- |
| Description_DEF | Engine Intake Manifold |
| Description_DES | MANIFOLD |
| Description_EXT | Edelbrock Super Victor LSR Dominator Carburetor GM LS Engines |
| Description_FAB | High Performance Race Applications |
| Description_FAB | Operating In 8000 RMP Range |
| Description_FAB | Single-Plane Design |
| Description_INV | Super Victor LSR Dominator EFI |
| Description_KEY | 28235; Chevy; Chevrolet; Edelbrock; Intake Manifold; Intake; Manifold; Single-Plane; Super Victor; Satin; EFI |
| Description_LAB | Super Victor Small Block Chevy LSR Dominator EFI intake manifold |
| Description_MKT | Edelbrock part #28235 Super Victor LS-R EFI two-piece manifold is intended for LS-R high performance race applications operating in the 8,000 rpm range utilizing Edelbrock LS-R CNC cylinder heads #770468. The single plane design features a 4500 series throttle body flange and is capable of producing near 1,000 hp. This Manifold features machined fuel injector bosses for EFI applications. LS-R fuel rail kit, #3510, is available separately. Port exits are tipped 6.5 degrees. |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 2in.} |
| Description_TRA | 4500 Series carb flange. |
| Description_TRA | Carb pad height: 6.02", Carb height for this manifold is measured from the valley cover flange to the carb pad. |
| Description_TRA | Fuel Rail: Edelbrock 3510 (designed for standard injectors measure 2.50" from the o-ring center to o-ring enter). |
| Description_TRA | Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Description_TRA | Manifold Dimensions: R-1.20", F-.99", H-2.19". |
| Description_TRA | Recommended intake gasket: Edelbrock #7290. |
| Description_TRA | Throttle body recommendations: Edelbrock #38783 |
| Description_TRA | • Recommended intake gasket: Edelbrock # 7290. • 4500 Series carb flange. • Throttle body recommendations: Edelbrock # 38783 • Fuel Rail: Edelbrock 3510 (designed for standard injectors measure 2.50in. from the o-ring center to o-ring enter). • Manifold Dimensions: R-1.20in.; F-.99in.; H-2.19in. • Carb pad height: 6.02in.; Carb height for this manifold is measured from the valley cover flange to the carb pad. • Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| EGR Port | No |
| finish | Satin |
| Flange Type | 4500 |
| Front Maximum Height | 9.930 |
| Gasket Or Seal Included | No |
| Grade Type | Performance |
| height | 5.7 |
| length | 22.5 |
| Material | Aluminum |
| Rear Maximum Height | 9.930 |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Series | Victor |
| Single Or Dual Plane Type | Single |
| Vehicle Model | Chevrolet |
| weight | 19.25 |
| width | 10.5 |
