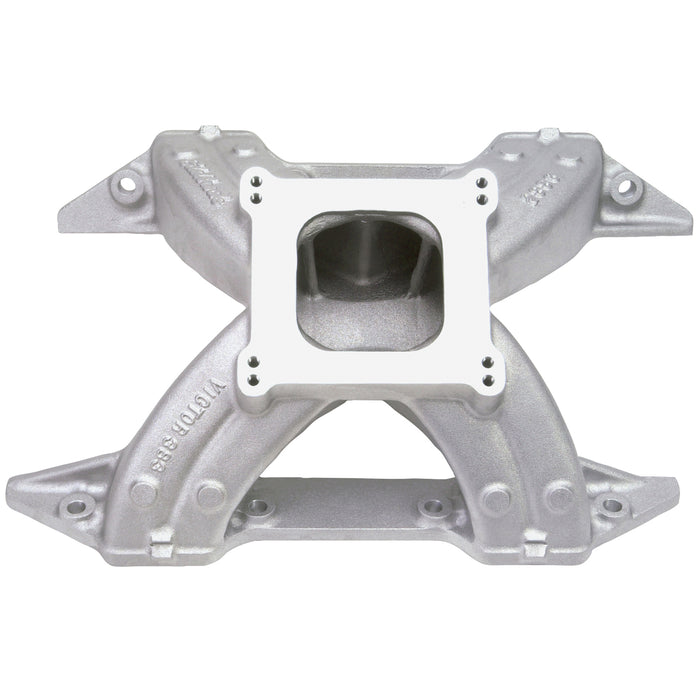

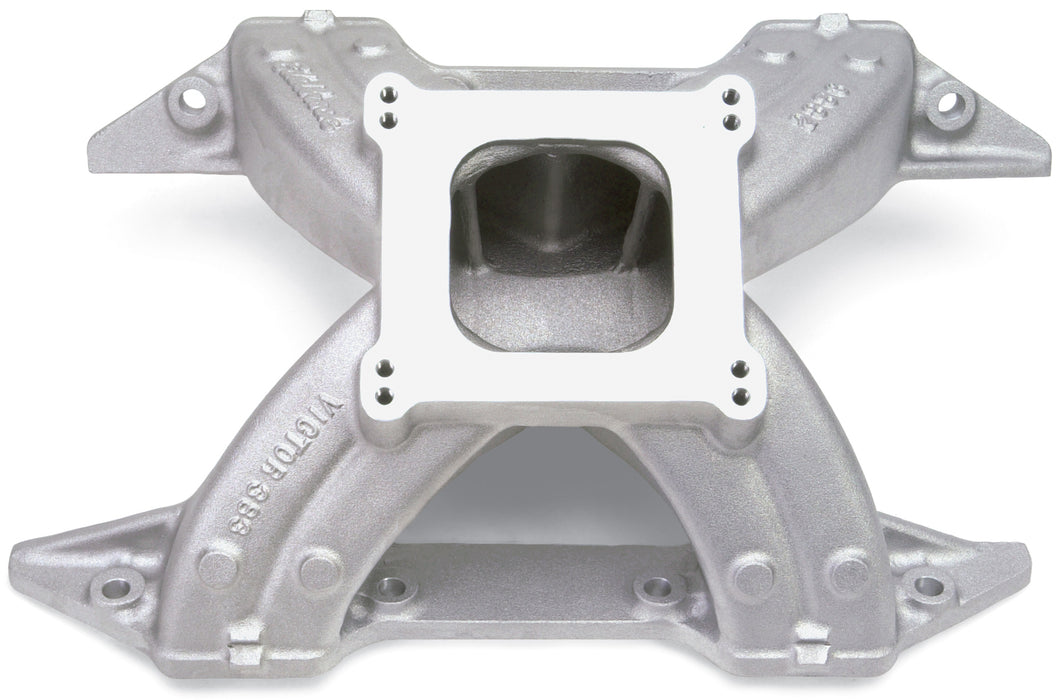

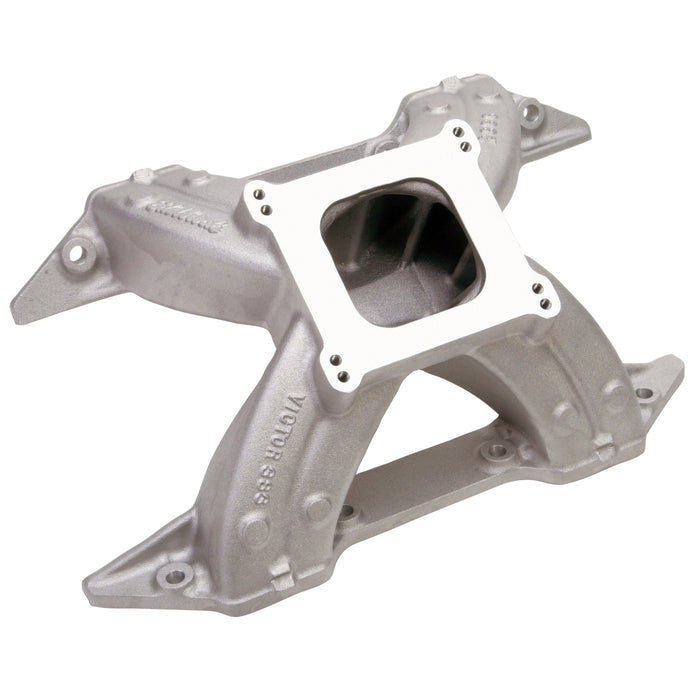

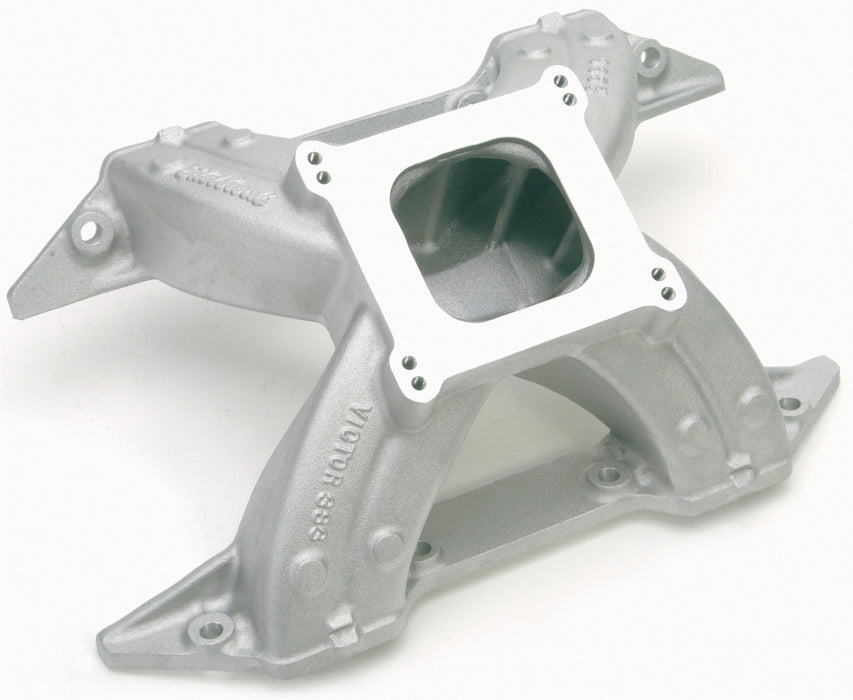

Edelbrock 2886 Edelbrock Victor 383 Intake Manifold for Chrysler 361-383-400 Big-Block V8
by Edelbrock
SKU ds_BDVJ_2886
Proudly Canadian
Albertan Owned
Secure Payments
Financing Available
Trusted Brands
Top-Quality Suppliers
Original price
$590.22
-
Original price
$590.22
Original price
$590.22
$590.22
$590.22
-
$590.22
Current price
$590.22
Description
Edelbrock part #2886 Victor 383 intake manifold is available for competition Chrysler B Series Wedge 361-383-400 c.i.d. engines. The computer-generated runners easily handle the high airflow requirements demanded by large displacement low-deck engines. This extra tall single plane manifold combines a long runner, "line of sight" layout, and extended divider walls to maximize torque, power and fuel distribution throughout the mid and upper rpm range. We've added extra material to the square bore carburetor pad and included the inside bolt pattern so it can be easily opened up for Thermo-Quad applications. Match with Edelbrock Performer RPM or Victor aluminum cylinder heads for even higher performance potential. Edelbrock part #7799 valley cover is required when used with Edelbrock Victor series cylinder heads.
Specifications
| Basic Operating RPM Range | 3500-7500 |
| Center Maximum Height | 6.130 |
| CNC Ported | No |
| Description_ABR | Intake Mnfld |
| Description_ASM | Chrysler:Big-Block B-Series:361 (5.9L)/383 (6.3L)/400 (6.6L) |
| Description_DEF | Engine Intake Manifold |
| Description_DES | INTAKE MANIFOLD |
| Description_EXT | Edelbrock Victor 383 Intake Manifold for Chrysler 361-383-400 Big-Block V8 |
| Description_FAB | Accepts both Square or Thermoquad Carburetor |
| Description_FAB | All-New Runner Design for Maximum Power |
| Description_FAB | Can Use 1 Or 2 in. Spacers To Tune Performance |
| Description_FAB | For 3500 to 7500 RPM High-Performance Engines |
| Description_FAB | For High-Performance Street to Drag/Circle Racing |
| Description_FAB | Includes Nitrous Bosses on Runners |
| Description_FAB | Low Profile Works Well w/Limited Hood Clearance |
| Description_FAB | Single-Plane High-Rise Intake |
| Description_INV | Victor 383 Chrysler Intake manifold |
| Description_KEY | 2886; Chrysler; Edelbrock; Intake Manifold; Intake; Manifold; Single-Plane; Victor; Satin |
| Description_LAB | Victor 383 Intake Manifold Chrysler B Block |
| Description_MKT | Edelbrock part #2886 Victor 383 intake manifold is available for competition Chrysler B Series Wedge 361-383-400 c.i.d. engines. The computer-generated runners easily handle the high airflow requirements demanded by large displacement low-deck engines. This extra tall single plane manifold combines a long runner, "line of sight" layout, and extended divider walls to maximize torque, power and fuel distribution throughout the mid and upper rpm range. We've added extra material to the square bore carburetor pad and included the inside bolt pattern so it can be easily opened up for Thermo-Quad applications. Match with Edelbrock Performer RPM or Victor aluminum cylinder heads for even higher performance potential. Edelbrock part #7799 valley cover is required when used with Edelbrock Victor series cylinder heads. |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 2in.} |
| Description_TRA | Carb recommendations: Use appropriate Racing carburetor |
| Description_TRA | Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Description_TRA | Manifold height: A-6.13", B-6.13" |
| Description_TRA | Port exit dimensions: 1.15" x 2.17" |
| Description_TRA | Recommended intake gasket: #7225. |
| Description_TRA | Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA | • Recommended intake gasket: # 7225. • Manifold height: A-6.13in.; B-6.13in. • Port exit dimensions: 1.15in. x 2.17in. • Carb recommendations: Use appropriate Racing carburetor • Use RTV sealant to properly seal end seals; such as Edelbrock High Temp Silicone sealant # 1076; DO NOT USE END SEALS GASKETS. • Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| EGR Port | No |
| finish | Satin |
| Flange Type | 4150 |
| Front Maximum Height | 6.130 |
| Gasket Or Seal Included | No |
| Grade Type | Performance |
| height | 9.5 |
| length | 24.25 |
| LTL | N |
| Material | Aluminum |
| Rear Maximum Height | 6.130 |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Series | Victor |
| Single Or Dual Plane Type | Single |
| Vehicle Model | Chrysler |
| weight | 15.6 |
| width | 16.5 |
