Availability:
Only 3 left!
Edelbrock 2901 { Sellable : Yes }
by Edelbrock
SKU ds_BDVJ_2901
Proudly Canadian
Albertan Owned
Secure Payments
Financing Available
Trusted Brands
Top-Quality Suppliers
Original price
$636.69
-
Original price
$636.69
Original price
$636.69
$636.69
$636.69
-
$636.69
Current price
$636.69
Description

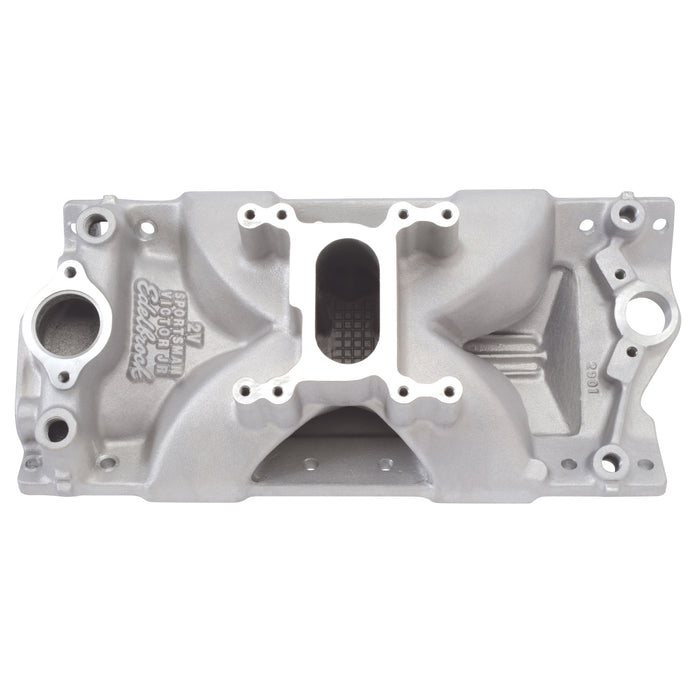

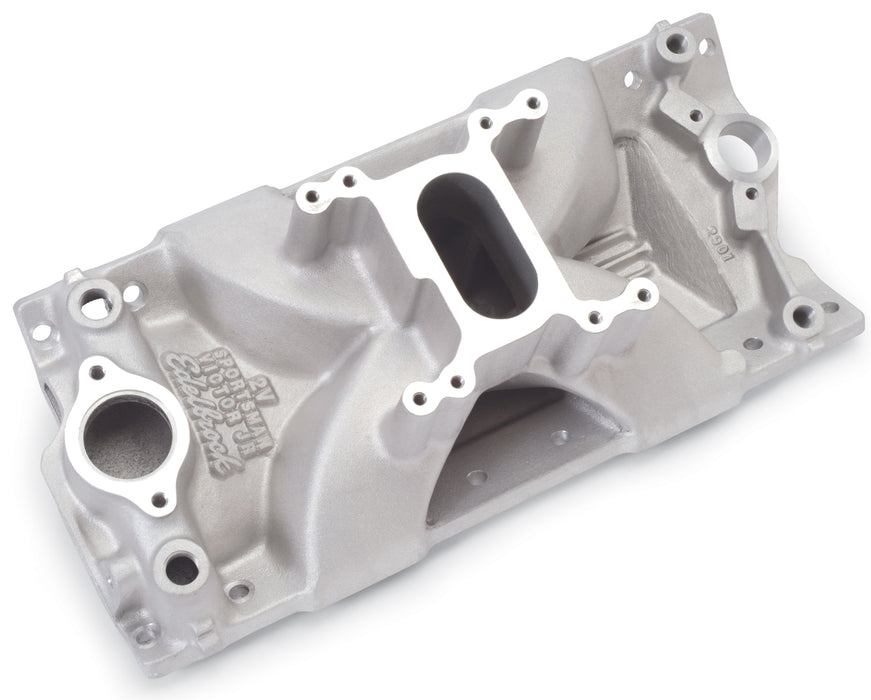

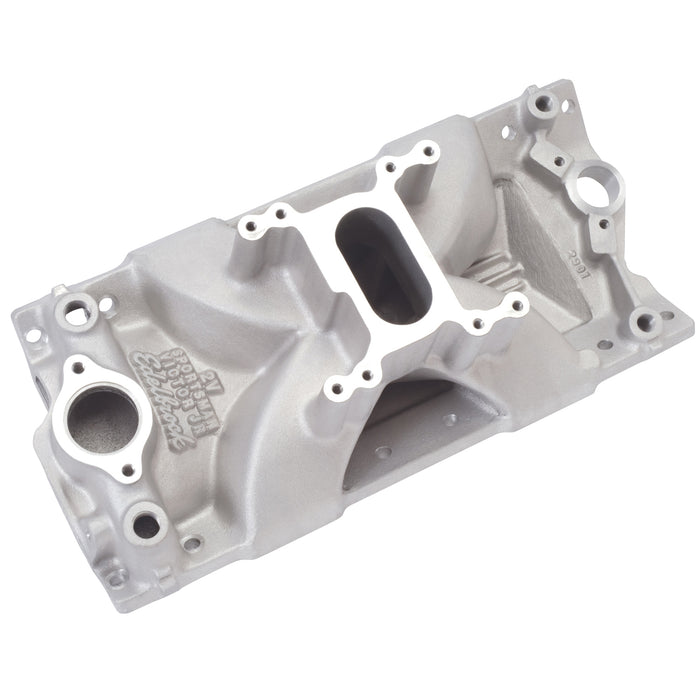

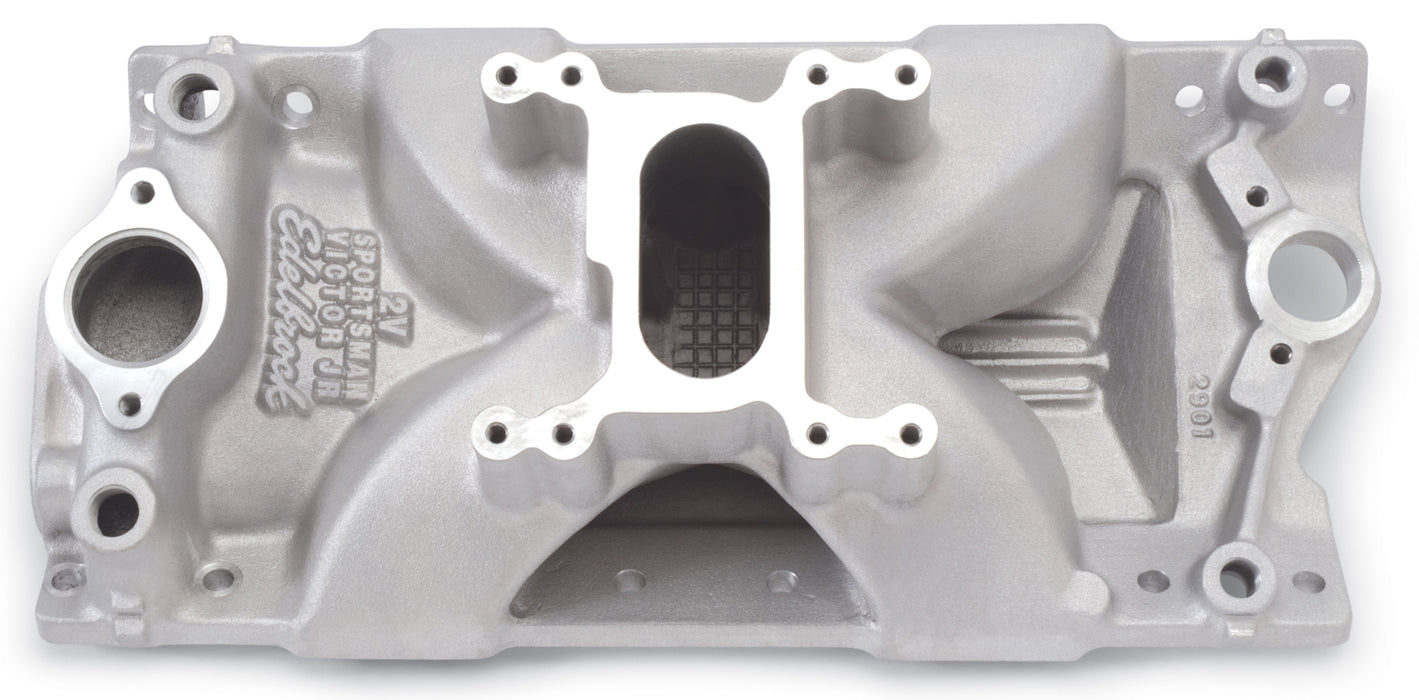

Edelbrock part #2901 Victor Jr. Sportsman 2V intake manifold is a dedicated design for the 2V racer and provides outstanding performance from 3500 to 7000 rpm. The runners are sized especially for 2V racing engines for the ultimate combination of torque and horsepower with better fuel distribution. An extra tall carburetor pad eliminates the need for spacers, and rear water outlets allow for a four corner coolant flow path if desired. It features dual distributor clamp locations, and port exits are sized to match cast iron Chevrolet Bowtie heads. Manifold accept standard restrictor plates and carb adapters. This manifold is a single-plane, high-rise intake designed for maximum race-winning power at higher engine speeds.
Specifications
| Basic Operating RPM Range | 3500-7000 |
| Center Maximum Height | 5.950 |
| CNC Ported | No |
| Description_ABR | Intake Mnfld |
| Description_ASM | Chevrolet:Small-Block Gen I:262 (4.3L)/265 (4.3L)/267 (4.4L)/283 (4.6L)/302 (4.9L)/305 (5.0L)/307 (5.0L)/327 (5.4L)/350 (5.7L)/400 (6.6L) |
| Description_DEF | Engine Intake Manifold |
| Description_DES | INTAKE MANIFOLD |
| Description_EXT | Edelbrock Victor Jr. Sportsman 2V 23 Degree Intake Manifold For Chevrolet 262-400 Small-Block V8 |
| Description_FAB | Dedicated Design for 2V Carburetor |
| Description_FAB | For Performance in 3500 to 7500 RPM Range |
| Description_FAB | Race-Winning Design For All Types Of Competition |
| Description_FAB | Rear Water Outlets for Four Corner Coolant |
| Description_FAB | Runners Feature Extra Material for Custom Porting |
| Description_FAB | Runners Sized to Match Bowtie Heads |
| Description_FAB | Single-Plane Maximizes Torque And Horsepower |
| Description_FAB | Tall Carburetor Pad Eliminates Need for Spacer |
| Description_INV | Victor Jr Sportsman 2V SBC Intake |
| Description_KEY | 2901; Chevy; Chevrolet; Edelbrock; Intake Manifold; Intake; Manifold; Single-Plane; Victor JR.; Satin |
| Description_LAB | Victor Jr. Sportsman 2V 23 Degree Intake Manifold Small-Block Chevy |
| Description_MKT | Edelbrock part #2901 Victor Jr. Sportsman 2V intake manifold is a dedicated design for the 2V racer and provides outstanding performance from 3500 to 7000 rpm. The runners are sized especially for 2V racing engines for the ultimate combination of torque and horsepower with better fuel distribution. An extra tall carburetor pad eliminates the need for spacers, and rear water outlets allow for a four corner coolant flow path if desired. It features dual distributor clamp locations, and port exits are sized to match cast iron Chevrolet Bowtie heads. Manifold accept standard restrictor plates and carb adapters. This manifold is a single-plane, high-rise intake designed for maximum race-winning power at higher engine speeds. |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 2in.} |
| Description_TRA | Carb recommendations: Holley #0-4412 (500 cfm) |
| Description_TRA | Carburetor pad height = 5.98" |
| Description_TRA | Each intake runner should be matched to the cylinder head port size or Fel-Pro gasket #1206 on all four sides of runner exit. |
| Description_TRA | Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Description_TRA | Manifold comes with special carb gasket matching plenum flange. |
| Description_TRA | No provisions for exhaust heated chokes or EGR. |
| Description_TRA | NPT/Pipe thread fittings require the use of Teflon tape or paste on threads to ensure proper seal. |
| Description_TRA | Proper installation is the responsibility of the installer. Improper installation will void your warranty and may result in poor performance and engine or vehicle damage. |
| Description_TRA | Recommended intake gasket: Edelbrock #7217 or Fel-Pro #1206 |
| Description_TRA | Sealant must be used on intake bolt threads if the threads extend into lifter valley or coolant passage. |
| Description_TRA | To ensure maximum performance and a proper seal, Edelbrock gaskets which are specifically designed and manufactured for use with Edelbrock parts must be used. |
| Description_TRA | Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA | • Recommended intake gasket: Edelbrock # 7217 or Fel-Pro # 1206 • Carburetor pad height = 5.98in. • Carb recommendations: Holley # 0-4412 (500 cfm) • No provisions for exhaust heated chokes or EGR. • Use RTV sealant to properly seal end seals; such as Edelbrock High Temp Silicone sealant # 1076; DO NOT USE END SEALS GASKETS. • Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. • Sealant must be used on intake bolt threads if the threads extend into lifter valley or coolant passage. • NPT/Pipe thread fittings require the use of Teflon tape or paste on threads to ensure proper seal. • To ensure maximum performance and a proper seal; Edelbrock gaskets which are specifically designed and manufactured for use with Edelbrock parts must be used. • Proper installation is the responsibility of the installer. Improper installation will void your warranty and may result in poor performance and engine or vehicle damage. • Each intake runner should be matched to the cylinder head port size or Fel-Pro gasket # 1206 on all four sides of runner exit. • Manifold comes with special carb gasket matching plenum flange. |
| EGR Port | No |
| finish | Satin |
| Flange Type | 2-Barrel 4-Bolt |
| Front Maximum Height | 5.950 |
| Gasket Or Seal Included | No |
| Grade Type | Performance |
| height | 9.5 |
| length | 24.0 |
| LTL | N |
| Material | Aluminum |
| Rear Maximum Height | 5.950 |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Series | Victor |
| Single Or Dual Plane Type | Single |
| Vehicle Model | Chevrolet |
| weight | 24.0 |
| width | 16.0 |
