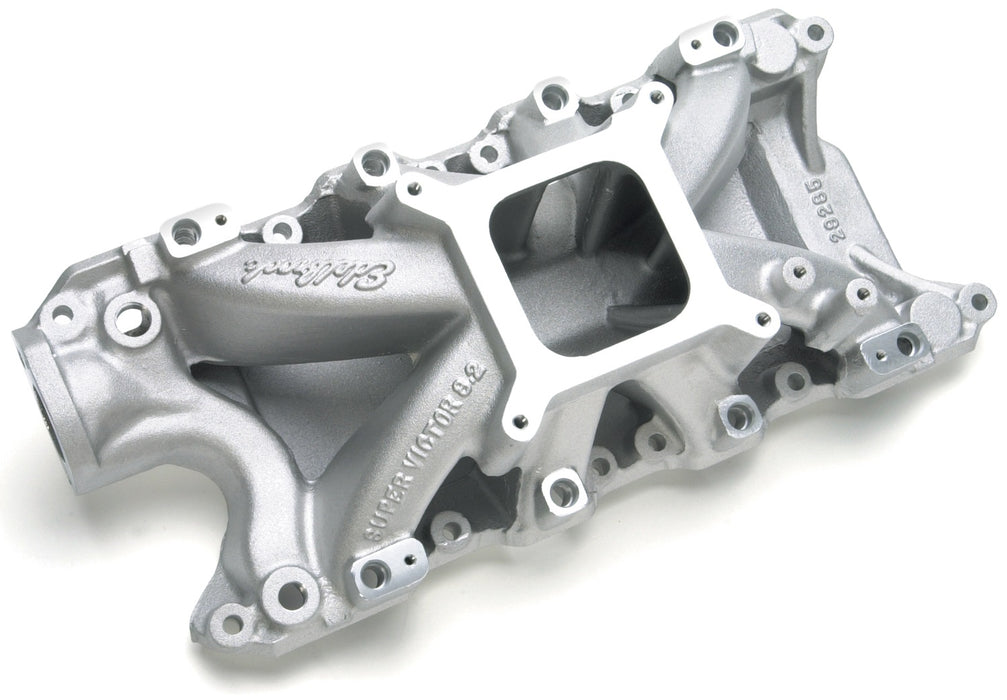

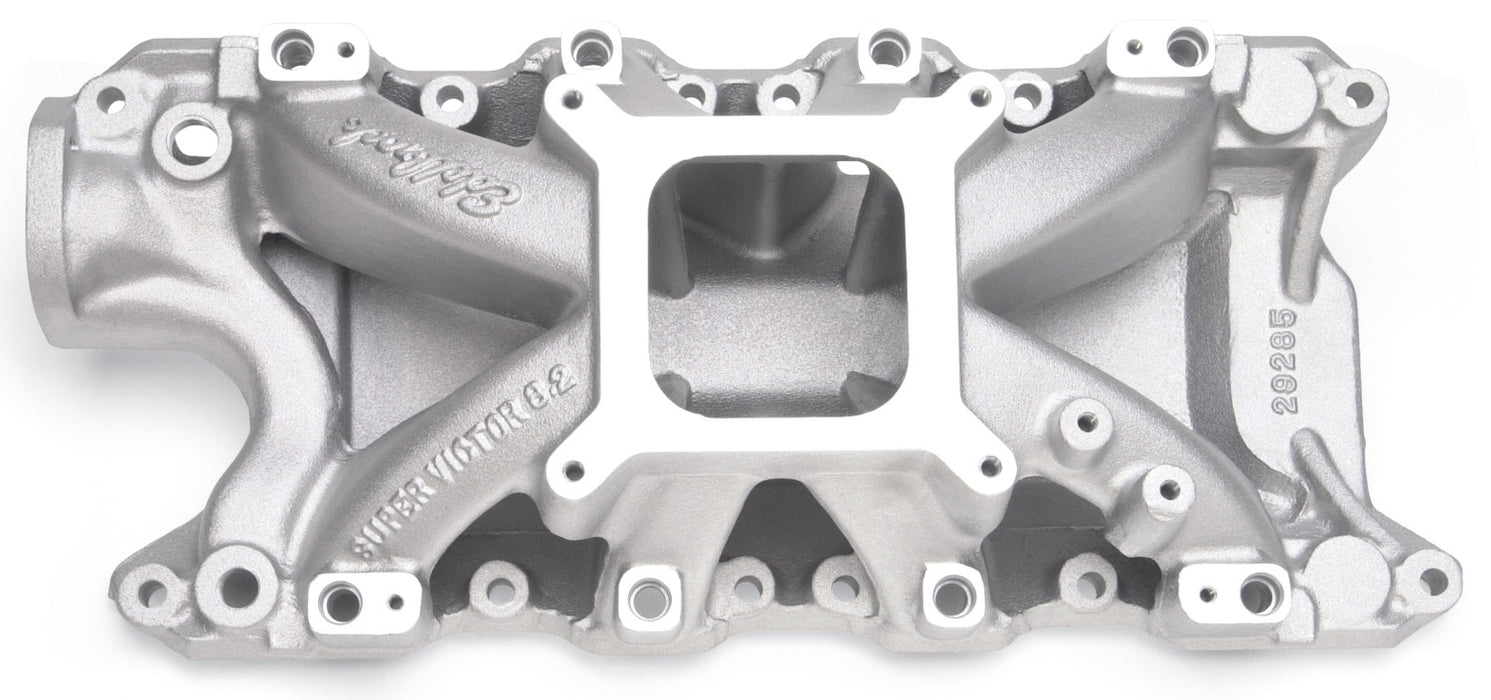

Edelbrock 29285 Edelbrock Super Victor 8.2 EFI Intake Manifold for Ford 289-347 Small-Block V8
by Edelbrock
SKU ds_BDVJ_29285
Proudly Canadian
Albertan Owned
Secure Payments
Financing Available
Trusted Brands
Top-Quality Suppliers
Original price
$948.50
-
Original price
$948.50
Original price
$948.50
$948.50
$948.50
-
$948.50
Current price
$948.50
Description
Edelbrock part #29285 Super Victor 8.2 EFI intake manifold is designed for high-rpm and competition 302-347 engines with aftermarket Windsor-style racing cylinder heads such as the Edelbrock Victor heads #77219 or Victor Jr. heads #77169. The Super Victor 8.2 is for engines with a standard 8.2" deck height and features a single-plane, high-rise intake design for maximum race-winning power. This intake manifold is ideal for use with large displacement drag racing engines. It delivers big power gains from 4500 to 8500 rpm and includes rear cooling water bosses. The square-bore carburetor pad stands .850" taller than the Edelbrock Victor Jr. #2921.
Specifications
| Basic Operating RPM Range | 4500-9000 |
| Center Maximum Height | 6.350 |
| CNC Ported | No |
| Description_ABR | Intake Mnfld |
| Description_ASM | Ford:Small-Block Windsor:260 (4.3L)/289 (4.7L)/302 (5.0L) |
| Description_DEF | Engine Intake Manifold |
| Description_DES | INTAKE MANIFOLD |
| Description_EXT | Edelbrock Super Victor 8.2 EFI Intake Manifold for Ford 289-347 Small-Block V8 |
| Description_FAB | Delivers Big Power Gains |
| Description_FAB | Excellent For Large Displacement Drag Racing Eng. |
| Description_FAB | For 4500 To 9000 RPM High-Performance Engines |
| Description_FAB | Single-Plane Race Manifold |
| Description_INV | EFI Super Victor 8.2 Deck intake Manfld |
| Description_KEY | 29285; Ford; Edelbrock; Intake Manifold; Intake; Manifold; Single-Plane; Super Victor; Satin |
| Description_LAB | Super Victor 8.2 Small Block Ford EFI Intake Manifold |
| Description_MKT | Edelbrock part #29285 Super Victor 8.2 EFI intake manifold is designed for high-rpm and competition 302-347 engines with aftermarket Windsor-style racing cylinder heads such as the Edelbrock Victor heads #77219 or Victor Jr. heads #77169. The Super Victor 8.2 is for engines with a standard 8.2" deck height and features a single-plane, high-rise intake design for maximum race-winning power. This intake manifold is ideal for use with large displacement drag racing engines. It delivers big power gains from 4500 to 8500 rpm and includes rear cooling water bosses. The square-bore carburetor pad stands .850" taller than the Edelbrock Victor Jr. #2921. |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 2in.} |
| Description_TRA | Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Description_TRA | Manifold height: A-6.35", B-6.35" |
| Description_TRA | Recommended intake gasket: Fel-Pro #1262 or #1262R |
| Description_TRA | Throttle body recommendations: Edelbrock #38783 4150 style 4V throttle body or #3849 EFI elbow and #3818 90mm throttle body. |
| Description_TRA | Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA | • Recommended intake gasket: Fel-Pro # 1262 or # 1262R • Manifold height: A-6.35in.; B-6.35in. • Throttle body recommendations: Edelbrock # 38783 4150 style 4V throttle body or # 3849 EFI elbow and # 3818 90mm throttle body. • Use RTV sealant to properly seal end seals; such as Edelbrock High Temp Silicone sealant # 1076; DO NOT USE END SEALS GASKETS. • Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| EGR Port | No |
| finish | Satin |
| Flange Type | 4150 |
| Front Maximum Height | 6.350 |
| Gasket Or Seal Included | No |
| Grade Type | Performance |
| height | 7.5 |
| length | 23.62 |
| LTL | N |
| Material | Aluminum |
| Rear Maximum Height | 6.350 |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Series | Victor |
| Single Or Dual Plane Type | Single |
| Vehicle Model | Ford |
| weight | 21.5 |
| width | 14.75 |
