Description

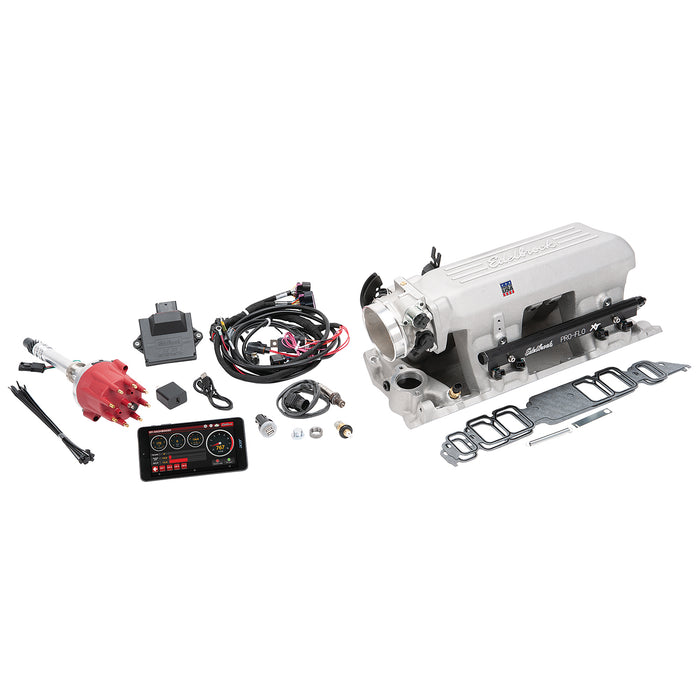

The Edelbrock Pro-Flo 4 XT EFI Kit #35880 for rectangular-port Big-Block Chevrolet engines is a complete bolt-on electronic fuel injection system featuring a satin-finished XT intake manifold with large plenum and long tapered runners that comes ready to run with high-flow injectors, fuel rails and 90mm throttle body preassembled for you at the Edelbrock factory. This kit is rated at a maximum 825 horsepower with 60 lb/hr injectors and includes all supporting sensors, a wide-band O2 sensor, wire harnesses and Android-based tablet. Also included is a single-connection distributor designed to work specifically with Pro-Flo 4 providing fully sequential port injection and infinite control over ignition and fuel events under all conditions. Key Pro-Flo 4 advancements are its Self-Calibrating Fuel Map Technology, Wide-Band O2 Closed Loop Mixture Control, and new low-profile ECU with faster processor and upgraded Bluetooth chip for reliable connectivity with the E-Tuner app that comes preinstalled on the tablet. The E-Tuner includes a Setup Wizard to guide you through setup and provides fuel and spark adjustability for complete control over the system. Pro-Flo 4 EFI #35880 for the Big-Block Chevy requires no laptop tuning. Minimal setup and tuning adjustments are required with base calibrations provided in the software. The ECU is self-learning and will continually adjust the fuel injection calibration for maximum performance by maintaining a specified target air-fuel ratio as you drive. The E-Tuner provides the ability to fine-tune air-fuel ratios, ignition curve, idle speed, acceleration fuel, fans, rev-limiter and more. Multiple displays let you monitor engine performance in real-time from inside or outside of the vehicle while retaining the simplicity that Pro-Flo 4 systems are known for.
Specifications
| Bore Diameter | 90 |
| Description_ABR | ProFlo4 EFI |
| Description_ASM | Chevrolet:Big-Block Mark IV:396 (6.6L)/402 (6.6L)/427 (7.0L)/454 (7.4L) |
| Description_DEF | Fuel Injection System |
| Description_DES | FUEL INJECTION |
| Description_EXT | Edelbrock Pro-Flo 4 XT EFI Kit #35880 with Satin Finish for rectangular-port Big-Block Chevrolet engines is a complete bolt-on electronic fuel injection system featuring a satin-finished XT intake manifold. |
| Description_EXT | Edelbrock Pro-Flo 4 XT EFI System #35880 with Satin Finish for rectangular-port Big-Block Chevrolet engines is a complete bolt-on electronic fuel injection system featuring a satin-finished XT intake manifold. |
| Description_FAB | Complete Engineered System For The Ultimate In Performance |
| Description_FAB | New ECU Preloaded w/80 Dyno-Tuned Calibrations |
| Description_FAB | Self Learning EFI System |
| Description_INV | Pro-Flo 4 XT EFI #35880 Satin for BBC |
| Description_KEY | Edelbrock; EFI; Pro-Flo 4; Pro-Flo 4 XT; EFI; Fuel Injection; Electronic Fuel Injection; Chevy; Chevrolet; Big-Block; Rat motor; Rectangular-Port; 396 Chevy; 427 Chevy; 454 Chevy; 502 Chevy; Edelbrock EFI; Edelbrock intake manifolds |
| Description_LAB | Pro-Flo 4 EFI XT-Style Kit #35880 For Chevrolet Big-Block Rectangle Port |
| Description_LAB | Pro-Flo 4 EFI XT-Style Kit #35880 For Chevy Big-Block Rectangle Port |
| Description_MKT | The Edelbrock Pro-Flo 4 XT EFI Kit #35880 for Big-Block Chevy Rectangle Port engines has the latest in technology and features. The EFI system comes complete with a Pro-Flo XT intake manifold and 60 Lb/Hr injectors capable of 825 HP. Also included is a plug and play single connection distributor designed to work specifically with Pro-Flo 4 and a made in the USA fully terminated high-quality harness with clearly labeled connections for a hassle-free installation. The new Pro-Flo 4 EFI systems feature an all-new ECU with a faster processor, a water proof design and is half the depth of the previous ECU. It also has an upgraded Bluetooth chip that is faster, more reliable and will not drop connection. We've added more features for the advanced tuner giving you control over air-fuel ratios, ignition curve, idle speed, acceleration fuel, coolant fans, Rev limiter while retaining the simplicity Pro-Flo is known for. The key to the system is our exclusive E-Tuner 4 app with dyno developed base calibrations. The E-Tuner 4 app uses a Bluetooth wireless connection to communicate with the ECU's self-learning capability to continually adjust the calibration to get the maximize performance. E-Tuner 4 app features a simple and easy to use setup wizard to help you get started as well as multiple dash displays so you can monitor your engines vitals. The exclusive Edelbrock E-Tuner 4 app is Free and Available for Android and IOS based smart phone or tablet. |
| Description_MKT | The Edelbrock Pro-Flo 4 XT EFI Kit #35880 for rectangular-port Big-Block Chevrolet engines is a complete bolt-on electronic fuel injection system featuring a satin-finished XT intake manifold with large plenum and long tapered runners that comes ready to run with high-flow injectors, fuel rails and 90mm throttle body preassembled for you at the Edelbrock factory. This kit is rated at a maximum 825 horsepower with 60 lb/hr injectors and includes all supporting sensors, a wide-band O2 sensor, wire harnesses and Android-based tablet. Also included is a single-connection distributor designed to work specifically with Pro-Flo 4 providing fully sequential port injection and infinite control over ignition and fuel events under all conditions. Key Pro-Flo 4 advancements are its Self-Calibrating Fuel Map Technology, Wide-Band O2 Closed Loop Mixture Control, and new low-profile ECU with faster processor and upgraded Bluetooth chip for reliable connectivity with the E-Tuner app that comes preinstalled on the tablet. The E-Tuner includes a Setup Wizard to guide you through setup and provides fuel and spark adjustability for complete control over the system. Pro-Flo 4 EFI #35880 for the Big-Block Chevy requires no laptop tuning. Minimal setup and tuning adjustments are required with base calibrations provided in the software. The ECU is self-learning and will continually adjust the fuel injection calibration for maximum performance by maintaining a specified target air-fuel ratio as you drive. The E-Tuner provides the ability to fine-tune air-fuel ratios, ignition curve, idle speed, acceleration fuel, fans, rev-limiter and more. Multiple displays let you monitor engine performance in real-time from inside or outside of the vehicle while retaining the simplicity that Pro-Flo 4 systems are known for. |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 9in.} |
| Description_SLA | Our Pro-Flo 4 XT EFI Kit #35880 for rectangular-port Big-Block Chevrolet engines is a complete bolt-on electronic fuel injection system featuring a satin-finished XT intake manifold with large plenum and long tapered runners that comes ready to run with high-flow injectors, fuel rails and 90mm throttle body preassembled for you at the Edelbrock factory. We've rated this kit at a maximum 825 horsepower with 60 lb/hr injectors and it includes all supporting sensors, a wide-band O2 sensor, wire harnesses and Android-based tablet. Also included is a single-connection distributor designed to work specifically with Pro-Flo 4 providing fully sequential port injection and infinite control over ignition and fuel events under all conditions. Key Pro-Flo 4 advancements are its Self-Calibrating Fuel Map Technology, Wide-Band O2 Closed Loop Mixture Control, and new low-profile ECU with faster processor and upgraded Bluetooth chip for reliable connectivity with the E-Tuner app that comes preinstalled on the tablet. Our E-Tuner app includes an easy-to-use Setup Wizard to guide you through setup and provides fuel and spark adjustability for complete control over the system. Pro-Flo 4 EFI #35880 for the Big-Block Chevy requires no laptop tuning. Minimal setup and tuning adjustments are required with base calibrations provided in the software. The ECU is self-learning and will continually adjust the fuel injection calibration for maximum performance by maintaining a specified target air-fuel ratio as you drive. The E-Tuner provides the ability to fine-tune air-fuel ratios, ignition curve, idle speed, acceleration fuel, fans, rev-limiter and more. Multiple displays let you monitor engine performance in real-time from inside or outside of the vehicle while retaining the simplicity that all of our Pro-Flo 4 systems are known for. |
| Description_SLA | Our Pro-Flo 4 XT EFI Kit #35880 for rectangular-port Big-Block Chevrolet engines is a complete bolt-on electronic fuel injection system featuring a satin-finished XT intake manifold with large plenum and long tapered runners that comes ready to run with high-flow injectors; fuel rails and 90mm throttle body preassembled for you at the Edelbrock factory. We ve rated this kit at a maximum 825 horsepower with 60 lb/hr injectors and it includes all supporting sensors; a wide-band O2 sensor; wire harnesses and Android-based tablet. Also included is a single-connection distributor designed to work specifically with Pro-Flo 4 providing fully sequential port injection and infinite control over ignition and fuel events under all conditions. Key Pro-Flo 4 advancements are its Self-Calibrating Fuel Map Technology; Wide-Band O2 Closed Loop Mixture Control; and new low-profile ECU with faster processor and upgraded Bluetooth chip for reliable connectivity with the E-Tuner app that comes preinstalled on the tablet. Our E-Tuner app includes an easy-to-use Setup Wizard to guide you through setup and provides fuel and spark adjustability for complete control over the system. Pro-Flo 4 EFI #35880 for the Big-Block Chevy requires no laptop tuning. Minimal setup and tuning adjustments are required with base calibrations provided in the software. The ECU is self-learning and will continually adjust the fuel injection calibration for maximum performance by maintaining a specified target air-fuel ratio as you drive. The E-Tuner provides the ability to fine-tune air-fuel ratios; ignition curve; idle speed; acceleration fuel; fans; rev-limiter and more. Multiple displays let you monitor engine performance in real-time from inside or outside of the vehicle while retaining the simplicity that all of our Pro-Flo 4 systems are known for. |
| Description_TRA | This kit will require a high-pressure EFI fuel delivery system. Fuel delivery systems are available and sold separately. For the height dimensions of all Edelbrock manifolds please visit the Manifold Reference Dimensions page. |
| Distributor Cap Included | Yes |
| finish | Satin |
| Flange Type | XT-Style |
| Fuel Injector Type | 60 lb/hr |
| Fuel Pressure Port | 1/8-27 NPT |
| Gasket Or Seal Included | Yes |
| height | 10.31 |
| length | 30.19 |
| LTL | N |
| Manifold Height | A-9.8 in, B-10.0 in, C-17.8 in, D-0.0 in, E-10 Degrees |
| Maximum Horsepower | 825 |
| Quantity | Kit |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| System Type | XT-Style Kit |
| Throttle Body Type | Single Blade |
| weight | 45.0 |
| width | 25.25 |
| Wire Harness Included | Yes |
| Wiring Harness Included | Yes |
