Edelbrock 35900 { Sellable : Yes }

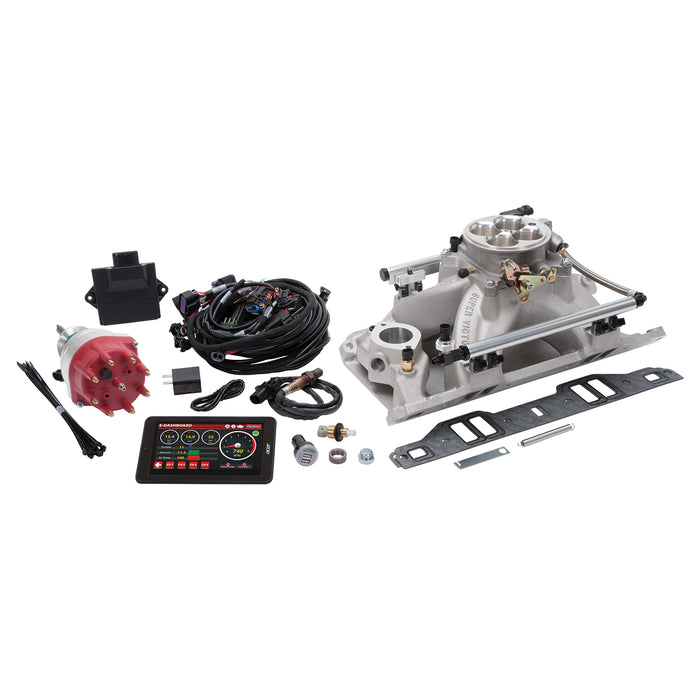

The Edelbrock part #35900 Pro-Flo 4 EFI System for Small-Block Chrysler 318-360 C.I. engines is equipped with the latest in technology and features. The EFI system comes complete with a traditional 4150-Style satin finish single plane intake manifold and 35 Lb/Hr injectors capable of 550 HP with 58 p.s.i. fuel pressure. Also included is a plug and play single connection distributor designed to work specifically with Pro-Flo 4 and a made in the USA fully terminated high-quality harness with clearly labeled connections to ensure a hassle-free installation. The new Pro-Flo 4 EFI systems feature an all-new ECU with a faster processor, a water proof design and measures half the depth of the previous ECU. It also has an upgraded Bluetooth chip that is faster, more reliable and will not drop connection. We've added more features for the advanced tuner giving you control over air-fuel ratios, ignition curve, idle speed, acceleration fuel, coolant fans, Rev limiter while retaining the simplicity Pro-Flo is known for. The key to the system is our exclusive E-Tuner 4 app with dyno developed base calibrations. The E-Tuner 4 app uses a Bluetooth wireless connection to communicate with the ECU's self-learning capability to continually adjust the calibration to get maximum performance. E-Tuner 4 features a simple and easy to use setup wizard to help you get started. Best of all, the E-Tuner 4 app is free and can be downloaded from the Google Play Store, allowing you to use your personal Android based smart phone or tablet. If you don't have a compatible device, then we also offer kits that include a 7" Android tablet with the E-Tuner 4 app pre-installed. Multiple dash displays are included to allow you to monitor engine vitals with an Android smart phone or tablet. Pro-Flo 4 does not require laptop tuning. PLEASE NOTE: #35900 will only work on 318 CID engines when using 340-360 cylinder heads.

Installation Instructions

Installation Instructions

Bore Diameter	1.75
Description_ABR	EFI System
Description_ASM	Chrysler:Small-Block LA-Series:318 (5.2L)/340 (5.6L)/360 (5.9L)
Description_DEF	Fuel Injection System
Description_DES	FUEL INJECTION
Description_EXT	Edelbrock Pro-Flo 4 EFI System for Small-Block Chrysler 318-360 C.I. engines. The EFI system comes complete with a 4150-Style satin finish single plane intake manifold and 35 Lb/Hr injectors capable of 550 HP with 58 p.s.i. fuel pressure.
Description_EXT	Edelbrock Pro-Flo 4 EFI System for Small-Block Chrysler 318-360 CID engines. The EFI System comes with a satin 4150-Style single plane intake manifold and 35 Lb/Hr injectors capable of 550 HP with 58 p.s.i. fuel pressure.
Description_FAB	Complete Engineered System For The Ultimate In Performance
Description_FAB	New ECU Preloaded w/80 Dyno-Tuned Calibrations
Description_FAB	Self Learning EFI System
Description_INV	Edelbrock Pro-Flo 4 EFI System 318/ 360
Description_INV	Edelbrock Pro-Flo 4 EFI System 318/360
Description_KEY	Edelbrock; EFI; Pro-Flo; Pro-Flo XT; EFI; Fuel Injection; Electronic Fuel Injection; Chrysler; Small-Block; 35900
Description_LAB	Pro-Flo 4 EFI Traditional 4150-Style #35900 Chrysler Small-Block 318-360 C.I.D.
Description_LAB	Pro-Flo 4 EFI Traditional 4150-Style Kit #35900 For Chrysler SB 318-360 CID
Description_MKT	The Edelbrock part #35900 Pro-Flo 4 EFI System for Small-Block Chrysler 318-360 C.I. engines is equipped with the latest in technology and features. The EFI system comes complete with a traditional 4150-Style satin finish single plane intake manifold and 35 Lb/Hr injectors capable of 550 HP with 58 p.s.i. fuel pressure. Also included is a plug and play single connection distributor designed to work specifically with Pro-Flo 4 and a made in the USA fully terminated high-quality harness with clearly labeled connections to ensure a hassle-free installation. The new Pro-Flo 4 EFI systems feature an all-new ECU with a faster processor, a water proof design and measures half the depth of the previous ECU. It also has an upgraded Bluetooth chip that is faster, more reliable and will not drop connection. We've added more features for the advanced tuner giving you control over air-fuel ratios, ignition curve, idle speed, acceleration fuel, coolant fans, Rev limiter while retaining the simplicity Pro-Flo is known for. The key to the system is our exclusive E-Tuner 4 app with dyno developed base calibrations. The E-Tuner 4 app uses a Bluetooth wireless connection to communicate with the ECU's self-learning capability to continually adjust the calibration to get maximum performance. E-Tuner 4 features a simple and easy to use setup wizard to help you get started. Best of all, the E-Tuner 4 app is free and can be downloaded from the Google Play Store, allowing you to use your personal Android based smart phone or tablet. If you don't have a compatible device, then we also offer kits that include a 7" Android tablet with the E-Tuner 4 app pre-installed. Multiple dash displays are included to allow you to monitor engine vitals with an Android smart phone or tablet. Pro-Flo 4 does not require laptop tuning. PLEASE NOTE: #35900 will only work on 318 CID engines when using 340-360 cylinder heads.
Description_MKT	The Edelbrock Pro-Flo 4 XT EFI Kit #35900 Pro-Flo 4 EFI System for Small-Block Chrysler 318-360 C.I. engines is equipped with the latest technology and features. The EFI system comes complete with a traditional 4150-Style single plane intake manifold and 35 Lb/Hr injectors capable of 550 HP with 58 p.s.i. fuel pressure. Also included is a plug and play single connection distributor designed to work specifically with Pro-Flo 4 and a made in the USA fully terminated high-quality harness with clearly labeled connections to ensure a hassle-free installation. The new Pro-Flo 4 EFI systems feature an all-new ECU with a faster processor, a water proof design and measures half the depth of the previous ECU. It also has an upgraded Bluetooth chip that is faster, more reliable and will not drop connection. We've added features for the advanced tuner giving you control over air-fuel ratios, ignition curve, idle speed, acceleration fuel, coolant fans, Rev limiter while retaining the simplicity Pro-Flo is known for. The key to the system is our exclusive E-Tuner 4 app with dyno developed base calibrations. The E-Tuner 4 app uses a Bluetooth wireless connection to communicate with the ECU's self-learning capability to continually adjust the calibration to get the maximize performance. E-Tuner 4 features a simple and easy to use setup wizard to help you get started as well as multiple dash displays so you can monitor your engines vitals. The exclusive Edelbrock E-Tuner 4 app is Free and Available for Android and IOS based smart phone or tablet.
Description_SHO	{ Sellable : Yes }
Description_SHP	{ eo : 7in.}
Description_TRA	This kit will require a high pressure EFI fuel delivery system. Fuel delivery systems are available and sold separately. 35900 manifold height: 6.30". Throttle body height: 2.530" #35900 will only work on 318 CID engines when using 340-360 cylinder heads.
Description_TRA	This kit will require a high pressure EFI fuel delivery system. Fuel delivery systems are available and sold separately. 35900 manifold height: 6.30in. Throttle body height: 2.530in. #35900 will only work on 318 CID engines when using 340-360 cylinder heads.
Distributor Cap Included	Yes
finish	Satin
Flange Type	4150
Fuel Injector Type	35 lb/hr
Fuel Pressure Port	1/8-27 NPT
Gasket Or Seal Included	Yes
height	10.31
length	30.19
LTL	N
Manifold Height	6.30
Maximum Horsepower	550
Quantity	Kit
RGL	WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
System Type	Traditional 4150-Style Kit
Throttle Body Type	4 Barrel
weight	45.0
width	25.25
Wire Harness Included	Yes
Wiring Harness Included	Yes
