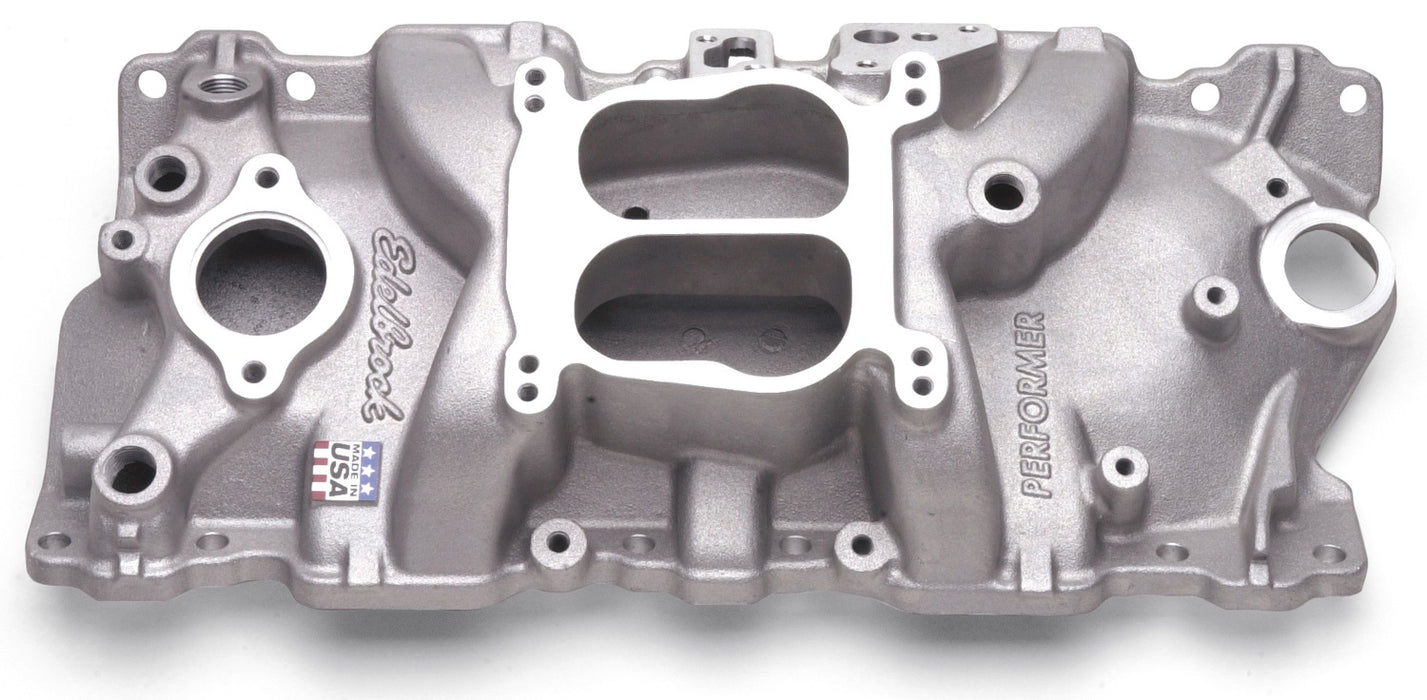

Edelbrock 3701 Edelbrock Performer Intake Manifold For Chevrolet 262-400 Small-Block V8
by Edelbrock
SKU ds_BDVJ_3701
Proudly Canadian
Albertan Owned
Secure Payments
Financing Available
Trusted Brands
Top-Quality Suppliers
Original price
$493.84
-
Original price
$493.84
Original price
$493.84
$493.84
$493.84
-
$493.84
Current price
$493.84
Description
Edelbrock part #3701 Performer EGR intake manifold is designed for street 1955-86 small-block Chevys. This manifold accepts late-model choke, water neck, air-conditioning, alternator and H.E.I. Has provisions to add oil fill tube. Not for 1987 and later cast iron or Chevy Bowtie heads. Will fit 1987 and later stock aluminum heads.
Specifications
| Basic Operating RPM Range | Idle-5500 |
| Center Maximum Height | 4.050 |
| CNC Ported | No |
| Description_ABR | Intake Mnfld |
| Description_ASM | Chevrolet:Small-Block Gen I:262 (4.3L)/267 (4.4L)/302 (4.9L)/305 (5.0L)/307 (5.0L)/350 (5.7L)/400 (6.6L) |
| Description_DEF | Engine Intake Manifold |
| Description_DES | INTAKE MANIFOLD |
| Description_EXT | Edelbrock Performer Intake Manifold For Chevrolet 262-400 Small-Block V8 |
| Description_FAB | 50-State Street Legal if Correct Carburetor Used |
| Description_FAB | Accepts A/C And Alternator |
| Description_FAB | Accepts Exhaust Heated Chokes and Accepts EGR |
| Description_FAB | Accepts Late-Model Choke; Water Neck; And HEI |
| Description_FAB | Dual-Plane Low-Rise Intake w/180 Deg. Firing Order |
| Description_FAB | Excellent Throttle Response and Mid-Range Power |
| Description_FAB | For Idle to 5500 RPM Street-Driven Performance |
| Description_FAB | Patented Runner Design Ensures Broad Torque Curve |
| Description_INV | Performer EGR SBC Intake Manifold |
| Description_KEY | 3701; Chevy; Chevrolet; Edelbrock; Intake Manifold; Intake; Manifold; Dual-Plane; Performer; Satin |
| Description_LAB | Performer Intake Manifold Small-Block Chevy |
| Description_MKT | Edelbrock part #3701 Performer EGR intake manifold is designed for street 1955-86 small-block Chevys. This manifold accepts late-model choke, water neck, air-conditioning, alternator and H.E.I. Has provisions to add oil fill tube. Not for 1987 and later cast iron or Chevy Bowtie heads. Will fit 1987 and later stock aluminum heads. |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 9in.} |
| Description_TRA | ? Manifold ht: A-3.50in.; B-4.60in. ? Carb pad height: 4.05in. ? Carb recommendations: OEM 4-Bbl; use choke rod # 9171. Edelbrock AVS2 or Performer Series 500-650 cfm. Use bracket # 8031 or # 8036 for 1972-78 ? Port exit dimensions: 1.14in. x 1.88in. ? Recommended intake gasket: Edelbrock # 7201. ? Use RTV sealant to properly seal end seals; such as Edelbrock High Temp Silicone sealant # 1076; DO NOT USE END SEALS GASKETS. ? Sealant must be used on intake bolt threads if the threads extend into lifter valley or coolant passage. ? NPT/Pipe thread fittings require the use of Teflon tape or paste on threads to ensure proper seal. ? DO NOT OVERTIGHTEN NPT/Pipe fittings; this may cause the aluminum to crack around the fitting boss. NPT/Pipe thread is a tapered thread. ? Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. ? Edelbrock Choke plate # 8901 included ? See Edelbrock adapter # 8035 for clamp-on EGR valve. ? With Edelbrock carb # 1400 # 3701; EGR spacer # 1476 is required. ? Edelbrock # 1476 is required with # 3701 on center bolt heads with 1986 earlier bolt pattern. ? Edelbrock choke plate # 8901 included ? Even though manifolds are compatible with EGR systems; this does not mean they are legal for use on emissions controlled vehicles. Check local laws for legality. ? Proper installation is the responsibility of the installer. Improper installation will void your warranty and may result in poor performance and engine or vehicle damage. |
| Description_TRA | Carb pad height: 4.05" |
| Description_TRA | Carb recommendations: OEM 4-Bbl, use choke rod #9171. Edelbrock AVS2 or Performer Series 500-650 cfm. Use bracket #8031 or #8036 for 1972-78 |
| Description_TRA | Manifold ht: A-3.50", B-4.60" |
| Description_TRA | Port exit dimensions: 1.14" x 1.88" |
| Description_TRA | Recommended intake gasket: Edelbrock #7201. Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. Sealant must be used on intake bolt threads if the threads extend into lifter valley or coolant passage. NPT/Pipe thread fittings require the use of Teflon tape or paste on threads to ensure proper seal. DO NOT OVERTIGHTEN NPT/Pipe fittings, this may cause the aluminum to crack around the fitting boss. NPT/Pipe thread is a tapered thread. Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. Edelbrock Choke plate #8901 included. See Edelbrock adapter #8035 for clamp-on EGR valve. With Edelbrock carb #1400 & #3701, EGR spacer #1476 is required. Edelbrock #1476 is required with #3701 on center bolt heads with 1986 & earlier bolt pattern. Edelbrock choke plate #8901 included. Even though manifolds are compatible with EGR systems, this does not mean they are legal for use on emissions controlled vehicles. Check local laws for legality. Proper installation is the responsibility of the installer. Improper installation will void your warranty and may result in poor performance and engine or vehicle damage. |
| EGR Port | Yes |
| finish | Satin |
| Flange Type | 4150 |
| Front Maximum Height | 3.500 |
| Gasket Or Seal Included | No |
| Grade Type | Performance |
| height | 5.6 |
| length | 22.5 |
| LTL | N |
| Material | Aluminum |
| Rear Maximum Height | 4.600 |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Series | Performer |
| Single Or Dual Plane Type | Dual |
| Vehicle Model | Chevrolet |
| weight | 16.35 |
| width | 10.7 |
