Description

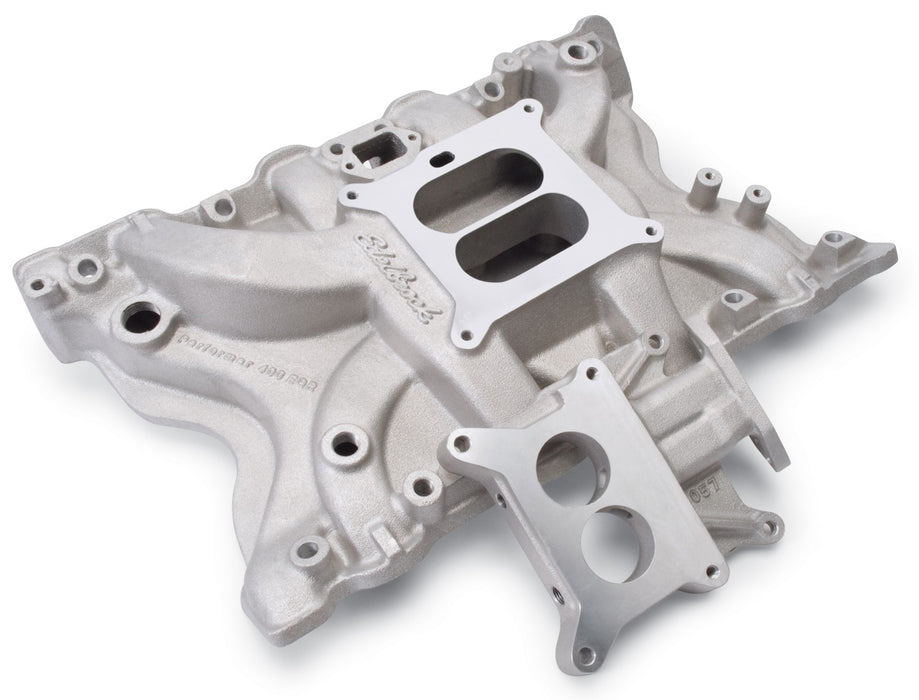

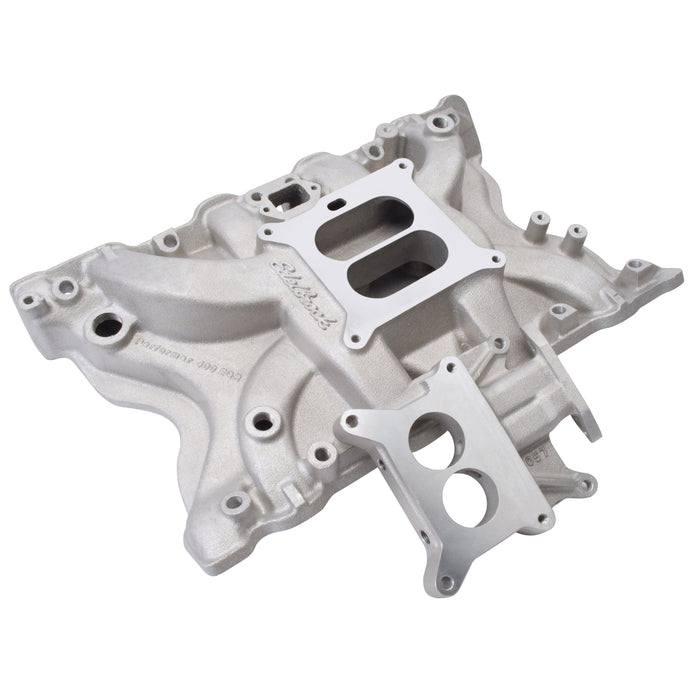

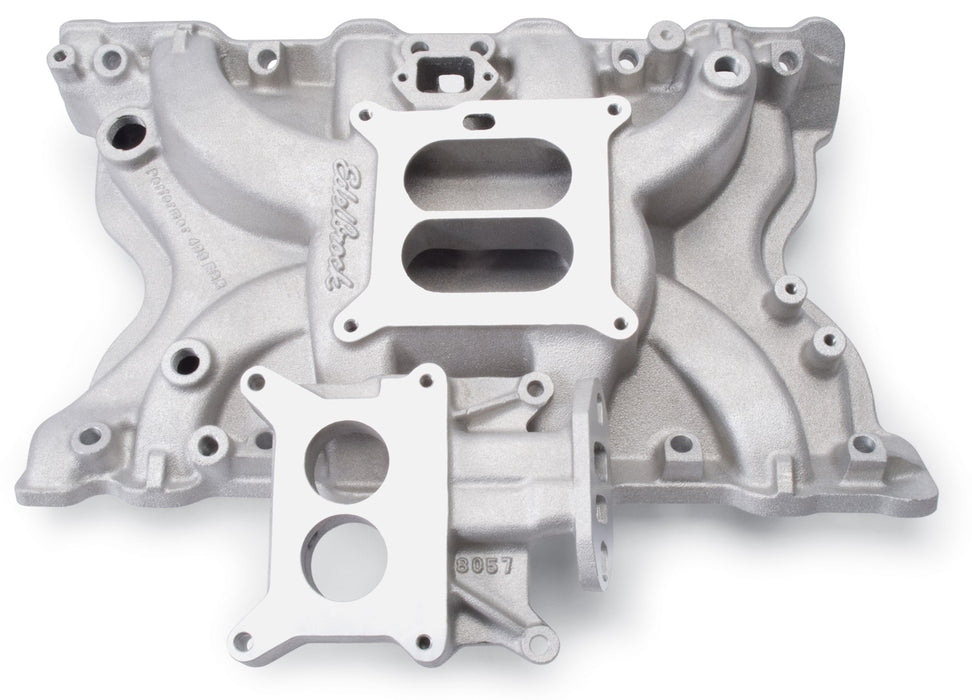

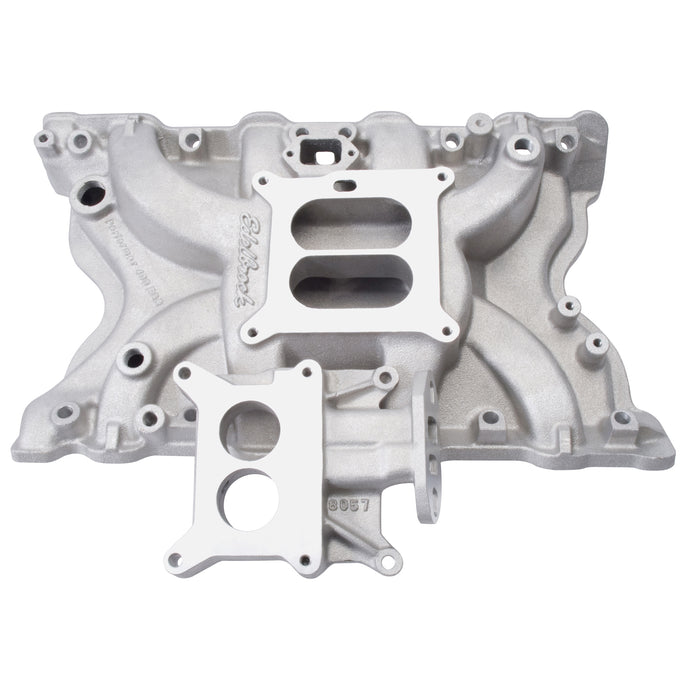

Edelbrock part #3771 Performer 400 EGR intake manifold is designed for 351M/400 Fords in one of the three following configurations: 1) OEM 2V carb and EGR system with supplied 2V EGR spacer; 2) 4V EGR system with either an Edelbrock #8053 4V EGR spacer, or an Edelbrock #8017 and Ford #E4ZZ9A-589E 4V EGR spacer; 3) For off-highway use, non-EGR 4V system with an Edelbrock #8714 4V spacer.
Specifications
| Basic Operating RPM Range | Idle-5500 |
| Center Maximum Height | 4.170 |
| CNC Ported | No |
| Cylinder Head Type | Standard |
| Description_ABR | Intake Mnfld |
| Description_ASM | Ford:Small-Block Modified:351 (5.8L)/400 (6.6L) |
| Description_DEF | Engine Intake Manifold |
| Description_DES | INTAKE MANIFOLD |
| Description_EXT | Edelbrock Performer 400 EGR Intake Manifold for Ford 351/400 Modified Small-Block V8 |
| Description_FAB | 50-State Street Legal if Correct Carburetor Used |
| Description_FAB | Accepts Late-Model Choke And Water Neck |
| Description_FAB | Dual-Plane Low-Rise Intake w/180 Deg. Firing Order |
| Description_FAB | Excellent Throttle Response and Mid-Range Power |
| Description_FAB | For Idle to 5500 RPM Street-Driven Performance |
| Description_FAB | Patented Runner Design Ensures Broad Torque Curve |
| Description_INV | Performer 400 2V EGR Intake Manifold |
| Description_KEY | 3771; Ford; Edelbrock; Intake Manifold; Intake; Manifold; Dual-Plane; Performer; Satin |
| Description_LAB | Performer Ford 400 EGR Intake Manifold |
| Description_MKT | 2) 4V EGR system with either an Edelbrock #8053 4V EGR spacer, or an Edelbrock #8017 and Ford #E4ZZ9A-589E 4V EGR spacer |
| Description_MKT | 3) For off-highway use, non-EGR 4V system with an Edelbrock #8714 4V spacer. |
| Description_MKT | Edelbrock part #3771 Performer 400 EGR intake manifold is designed for 351M/400 Fords in one of the three following configurations: 1) OEM 2V carb and EGR system with supplied 2V EGR spacer |
| Description_MKT | Edelbrock part #3771 Performer 400 EGR intake manifold is designed for 351M/400 Fords in one of the three following configurations: 1) OEM 2V carb and EGR system with supplied 2V EGR spacer; 2) 4V EGR system with either an Edelbrock #8053 4V EGR spacer, or an Edelbrock #8017 and Ford #E4ZZ9A-589E 4V EGR spacer; 3) For off-highway use, non-EGR 4V system with an Edelbrock #8714 4V spacer. |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 5in.} |
| Description_TRA | Carb pad height: 4.17" |
| Description_TRA | Carb recommendations: 2V OEM 2-Bbl off highway, Non EGR. 4V: Edelbrock AVS2 or Performer Series 600-650 cfm. For automatic transmissions use #1483 and #1493 or #1844 |
| Description_TRA | For non-EGR, off-road applications, use #8714 4V spacer |
| Description_TRA | Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Description_TRA | Intake gasket: Fel-Pro #MS96020 |
| Description_TRA | Manifold height: A-3.60", B-4.75" (without EGR plates installed) |
| Description_TRA | Port exit dimensions: 1.16" x 1.66" |
| Description_TRA | Replacement EGR plate gaskets: Edelbrock #3896 & #3897 |
| Description_TRA | Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA | • Intake gasket: Fel-Pro # MS96020 • For non-EGR; off-road applications; use # 8714 4V spacer • Replacement EGR plate gaskets: Edelbrock #3896 #3897 • Manifold height: A-3.60in.; B-4.75in. (without EGR plates installed) • Carb pad height: 4.17in. • Carb recommendations: 2V OEM 2-Bbl off highway; Non EGR. 4V: Edelbrock AVS2 or Performer Series 600-650 cfm. For automatic transmissions use # 1483 and # 1493 or # 1844 • Port exit dimensions: 1.16in. x 1.66in. • Use RTV sealant to properly seal end seals; such as Edelbrock High Temp Silicone sealant # 1076; DO NOT USE END SEALS GASKETS. • Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| EGR Port | Yes - 2V Or 4V Off-Road |
| Emission | With EGR |
| Engine Make/Size | Ford 351M-400 |
| finish | Satin |
| Flange Type | 4150 |
| Front Maximum Height | 3.600 |
| Gasket Or Seal Included | No |
| Grade Type | Performance |
| height | 7.5 |
| length | 23.62 |
| LTL | N |
| Material | Aluminum |
| Number of Carbs | One |
| Position | N/A |
| Rear Maximum Height | 4.750 |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| RPM Range | Idle -5500 |
| Series | Performer |
| Single Or Dual Plane Type | Dual |
| Usage | Street/Hi-Performance |
| Vehicle Model | Ford |
| WARNING CA Proposition 65 | Yes |
| WARNING CA Proposition 65 Message | WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov. |
| weight | 22.4 |
| width | 14.75 |
