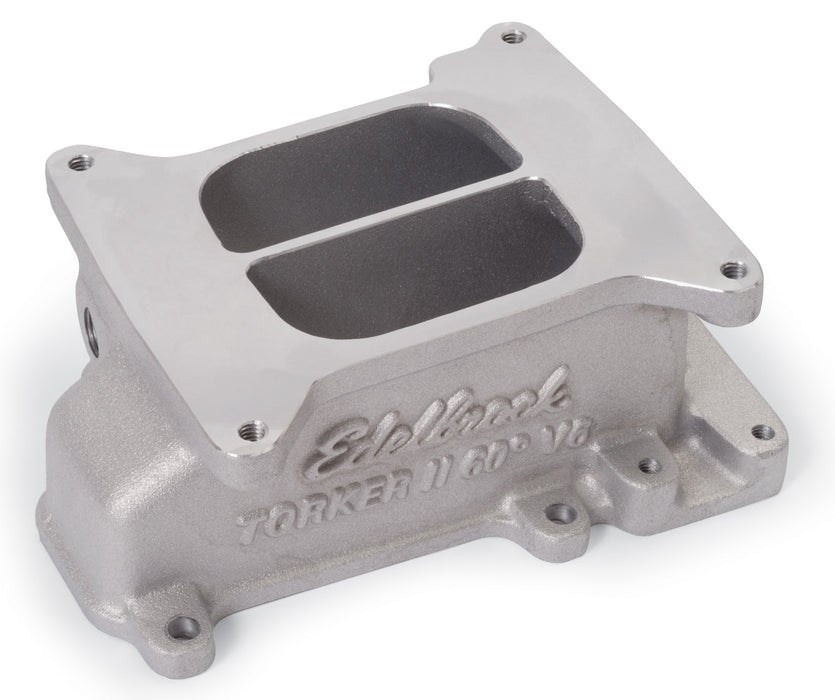

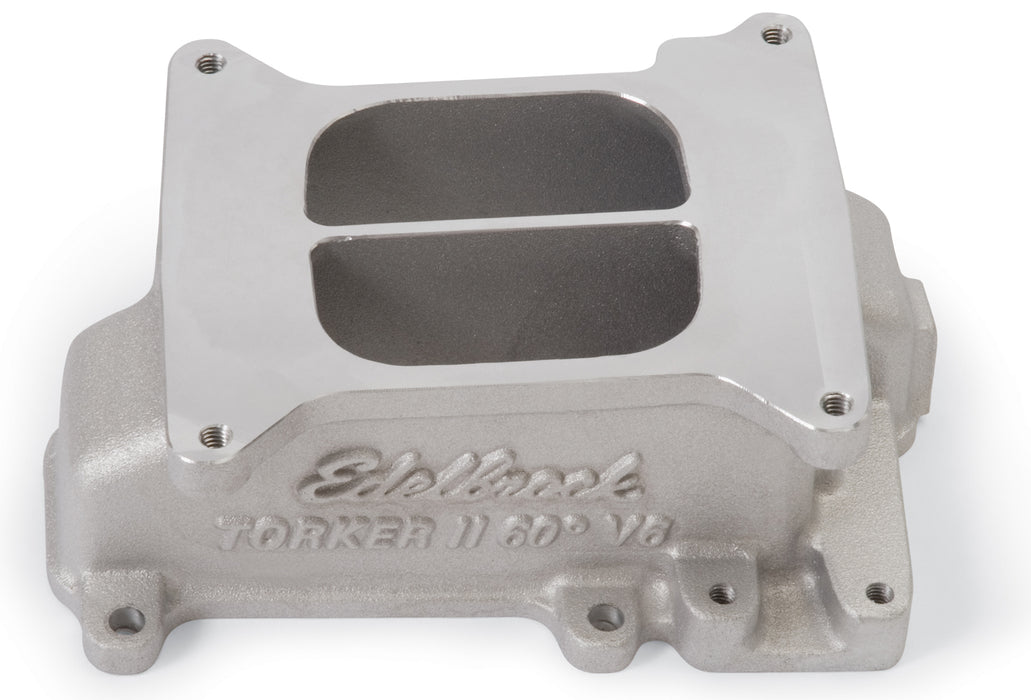

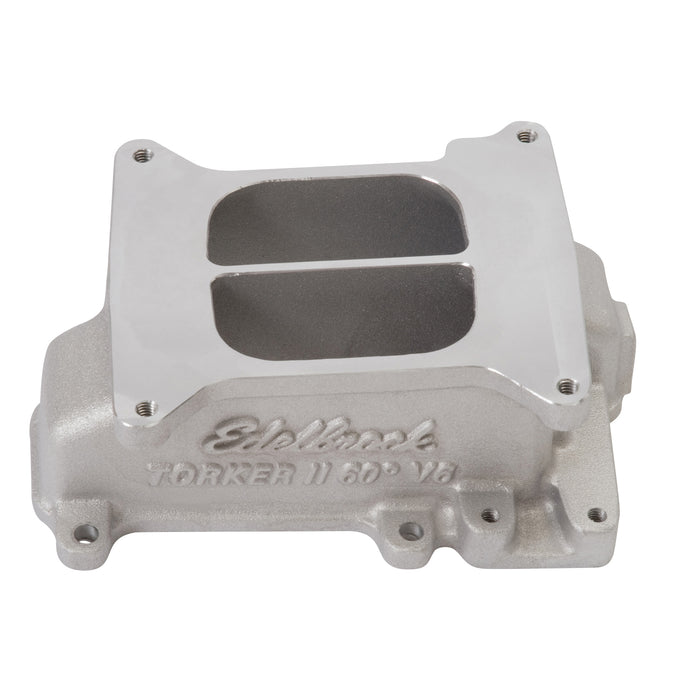

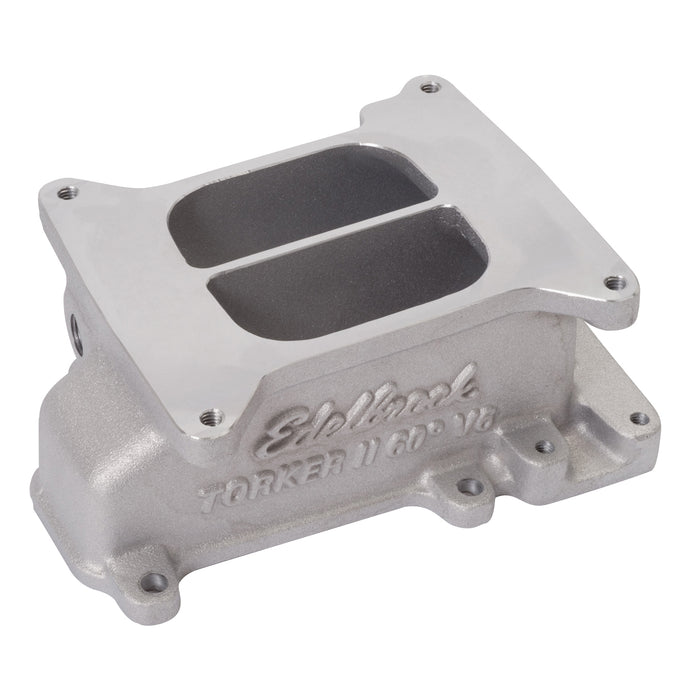

Edelbrock 3789 Edelbrock Performer Top GM V6 4V Intake Manifold
by Edelbrock
SKU ds_BDVJ_3789
Availability:
4+ in stock
Original price
$332.14
-
Original price
$332.14
Original price
$332.14
$332.14
$332.14
-
$332.14
Current price
$332.14
Description
Edelbrock part #3789 Performer 4V 60-degree intake manifold top is designed for use with the Performer 2V 60 degree #3785 base on 1982-85 2.8L 60-degree V6 Chevy longitudinal-mount engines. Edelbrock Signature Series chrome valve covers #4488 are available for this engine.
Specifications
| Basic Operating RPM Range | Idle-6000 |
| Center Maximum Height | 0.010 |
| CNC Ported | No |
| Description_ABR | Intake Mnfld |
| Description_ASM | Chevrolet:Small-Block 60 Deg V6:173 (2.8L) |
| Description_DEF | Engine Intake Manifold |
| Description_DES | INTAKE MANIFOLD |
| Description_EXT | Edelbrock Performer Top GM V6 4V Intake Manifold |
| Description_FAB | Contains Necessary Linkage And Bracketry |
| Description_FAB | Dual-Plane Low-Rise Intake w/180 Deg. Firing Order |
| Description_FAB | Match With Edelbrock Valve Covers Pan[4488] |
| Description_FAB | Matching Top For Edelbrock Base Intake PN[3785] |
| Description_INV | Performer Top 4V Intake Manifold |
| Description_KEY | 3789; Chevy; Chevrolet; Edelbrock; Intake Manifold; Intake; Manifold; Performer; Satin |
| Description_LAB | Performer Top Small-Block Chevy 4V Intake Manifold |
| Description_MKT | Edelbrock part #3789 Performer 4V 60-degree intake manifold top is designed for use with the Performer 2V 60 degree #3785 base on 1982-85 2.8L 60-degree V6 Chevy longitudinal-mount engines. Edelbrock Signature Series chrome valve covers #4488 are available for this engine. |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 5in.} |
| Description_TRA | Carb pad height: 5.42" |
| Description_TRA | Carb recommendations: Holley #0-8007 (390 cfm) |
| Description_TRA | Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Description_TRA | Linkage and bracketry come with top. |
| Description_TRA | Manifold height: A-4.90", B-5.95" |
| Description_TRA | Port exit dimensions: 1.00" x 1.28"/1.00" x 1.71". |
| Description_TRA | Recommended intake gasket: Fel-Pro #1270 or #MS91022. |
| Description_TRA | Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA | • Recommended intake gasket: Fel-Pro # 1270 or # MS91022. • Carb recommendations: Holley # 0-8007 (390 cfm) • Linkage and bracketry come with top. • Port exit dimensions: 1.00in. x 1.28in./1.00in. x 1.71in. • Manifold height: A-4.90in.; B-5.95in.; Carb pad height: 5.42in. • Use RTV sealant to properly seal end seals; such as Edelbrock High Temp Silicone sealant # 1076; DO NOT USE END SEALS GASKETS. • Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| EGR Port | No |
| finish | Satin |
| Flange Type | 4150 |
| Front Maximum Height | 0.010 |
| Gasket Or Seal Included | No |
| Grade Type | Performance |
| height | 6.25 |
| length | 11.75 |
| LTL | N |
| Material | Aluminum |
| Rear Maximum Height | 0.010 |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Series | Performer |
| Single Or Dual Plane Type | Dual |
| Vehicle Model | Chevrolet |
| weight | 4.9 |
| width | 3.88 |
