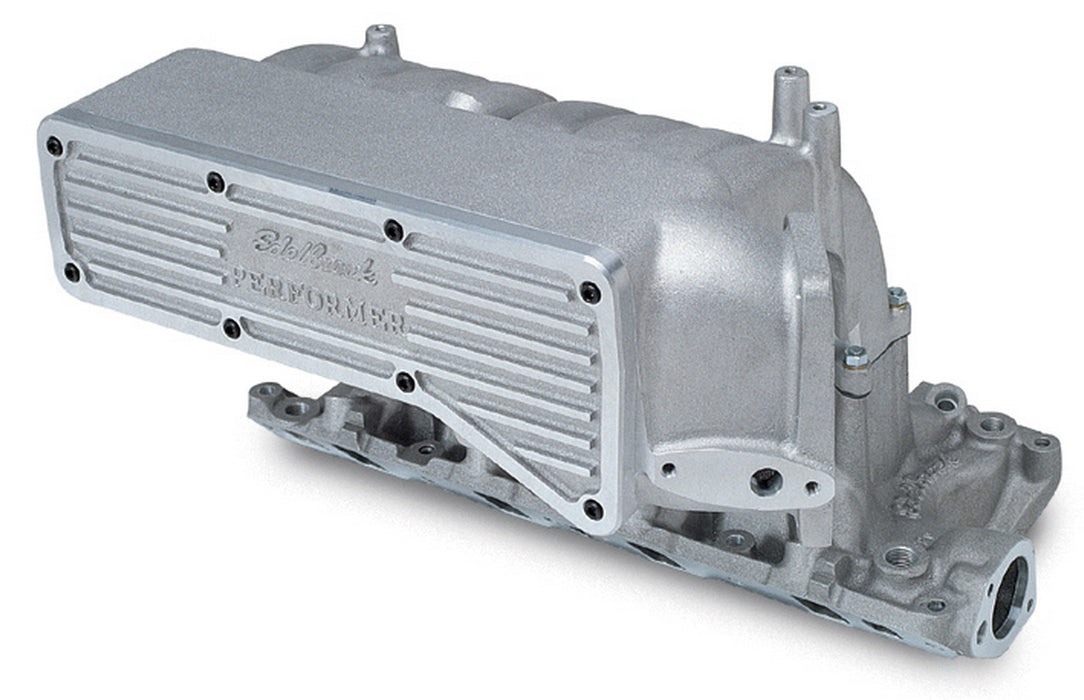

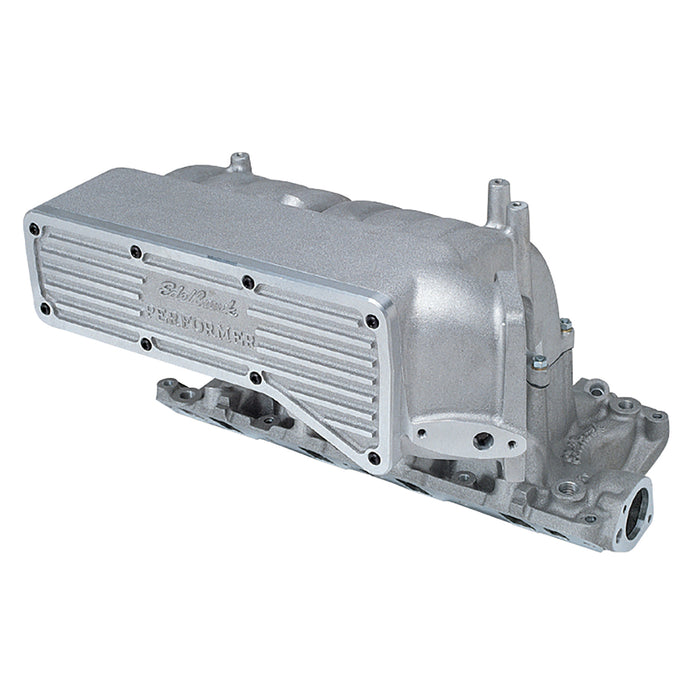

Edelbrock 3841 Edelbrock Performer Truck 5.0L Intake Manifold for Ford 5.0 Small-Block V8
by Edelbrock
SKU ds_BDVJ_3841
Proudly Canadian
Albertan Owned
Secure Payments
Financing Available
Trusted Brands
Top-Quality Suppliers
Original price
$1,719.66
-
Original price
$1,719.66
Original price
$1,719.66
$1,719.66
$1,719.66
-
$1,719.66
Current price
$1,719.66
Description
Edelbrock part #3841 Performer Truck 5.0 EFI intake manifold fits 1987-96 Ford 5.0L EFI V8 truck engines. The modular design incorporates the latest air flow technology for maximum torque gains in the mid-range where trucks need it most. The upper and plenum cover are powder-coated light titanium gray. The base is satin aluminum and not powder-coated. Features include: broad power range from idle to 5500 rpm; removable plenum cover that allows access to runners for modification; base manifold is CNC port matched to upper manifold for maximum performance. This manifold accepts all stock hardware. Use with stock or stock replacement twin throttle body.
Specifications
| Basic Operating RPM Range | Idle-5500 |
| Center Maximum Height | 13.250 |
| CNC Ported | No |
| Cylinder Head Type | Standard |
| Description_ABR | Intake Mnfld |
| Description_ASM | Ford:Small-Block Windsor:302 (5.0L) |
| Description_DEF | Engine Intake Manifold |
| Description_DES | INTAKE MANIFOLD |
| Description_EXT | Edelbrock Performer Truck 5.0L Intake Manifold for Ford 5.0 Small-Block V8 |
| Description_FAB | 50-State Street Legal Tor 1987 To 96 5.0L Engine |
| Description_FAB | Accepts All Stock Hardware |
| Description_FAB | Base Manifold is CNC Matched to Upper Manifold |
| Description_FAB | Dual-Plane Low-Rise Intake w/180 Deg. Firing Order |
| Description_FAB | For Idle to 5500 RPM Street-Driven Performance |
| Description_FAB | Match w/Other Power Packages for More Performance |
| Description_FAB | Upper Manifold; Cover Powder-Coated Titanium Gray |
| Description_FAB | Use With Stock Replacement Twin Throttle Body |
| Description_INV | Performer 5.0L Ford Truck Intake Manfld |
| Description_KEY | 3841; Ford; Edelbrock; Intake Manifold; Intake; Manifold; Cross-Ram; Performer; Satin; EFI; SBF |
| Description_LAB | Performer Truck 5.0L Intake Manifold Small-Block Ford |
| Description_MKT | base manifold is CNC port matched to upper manifold for maximum performance. This manifold accepts all stock hardware. Use with stock or stock replacement twin throttle body. |
| Description_MKT | Edelbrock part #3841 Performer Truck 5.0 EFI intake manifold fits 1987-96 Ford 5.0L EFI V8 truck engines. The modular design incorporates the latest air flow technology for maximum torque gains in the mid-range where trucks need it most. The upper and plenum cover are powder-coated light titanium gray. The base is satin aluminum and not powder-coated. Features include: broad power range from idle to 5500 rpm |
| Description_MKT | Edelbrock part #3841 Performer Truck 5.0 EFI intake manifold fits 1987-96 Ford 5.0L EFI V8 truck engines. The modular design incorporates the latest air flow technology for maximum torque gains in the mid-range where trucks need it most. The upper and plenum cover are powder-coated light titanium gray. The base is satin aluminum and not powder-coated. Features include: broad power range from idle to 5500 rpm; removable plenum cover that allows access to runners for modification; base manifold is CNC port matched to upper manifold for maximum performance. This manifold accepts all stock hardware. Use with stock or stock replacement twin throttle body. |
| Description_MKT | removable plenum cover that allows access to runners for modification |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 5in.} |
| Description_TRA | Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Description_TRA | Overall height: 13.25" |
| Description_TRA | Port exit dimensions: 1.02" x 1.85" |
| Description_TRA | Recommended intake gasket: Edelbrock #7220 |
| Description_TRA | Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA | • Recommended intake gasket: Edelbrock # 7220 • Port exit dimensions: 1.02in. x 1.85in. • Overall height: 13.25in. • Use RTV sealant to properly seal end seals; such as Edelbrock High Temp Silicone sealant # 1076; DO NOT USE END SEALS GASKETS. • Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| EGR Port | Yes |
| Emission | With EGR |
| Engine Make/Size | Ford 5.0L/302 |
| finish | Satin |
| Flange Type | Throttle Body |
| Front Maximum Height | 13.250 |
| Gasket Or Seal Included | No |
| Grade Type | Performance |
| height | 7.5 |
| length | 23.62 |
| LTL | N |
| Material | Aluminum |
| Number of Carbs | None; For Fuel Injection |
| Position | N/A |
| Rear Maximum Height | 13.250 |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| RPM Range | Idle -5500 |
| Series | Performer |
| Single Or Dual Plane Type | Single |
| Usage | Street/Hi-Performance |
| Vehicle Model | Ford |
| WARNING CA Proposition 65 | Yes |
| WARNING CA Proposition 65 Message | WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov. |
| weight | 52.95 |
| width | 14.75 |
