Availability:
4+ in stock
Edelbrock 3847 { Sellable : Yes }
by Edelbrock
SKU ds_BDVJ_3847
Proudly Canadian
Albertan Owned
Secure Payments
Financing Available
Trusted Brands
Top-Quality Suppliers
Original price
$292.74
-
Original price
$292.74
Original price
$292.74
$292.74
$292.74
-
$292.74
Current price
$292.74
Description

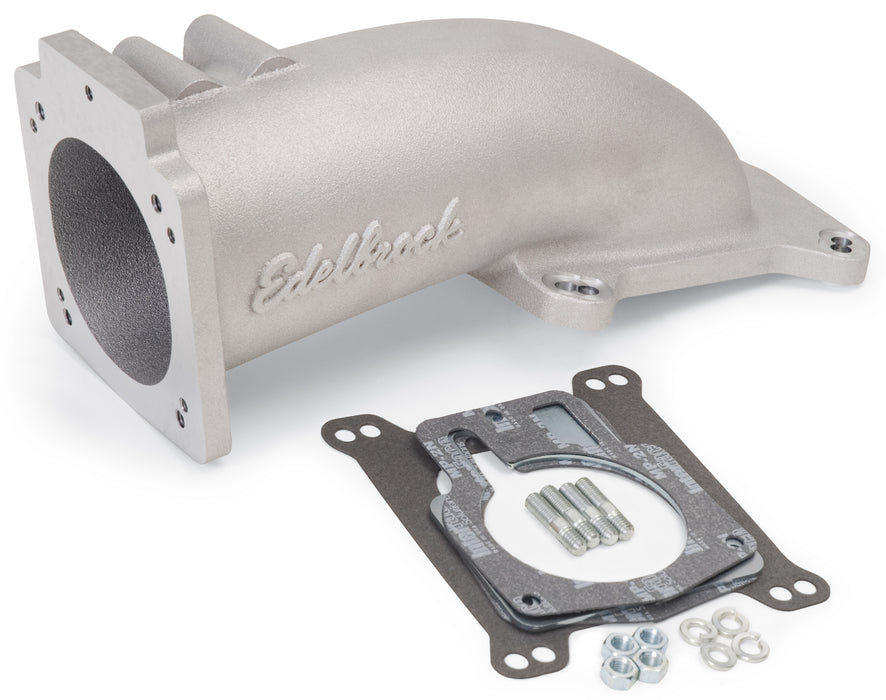

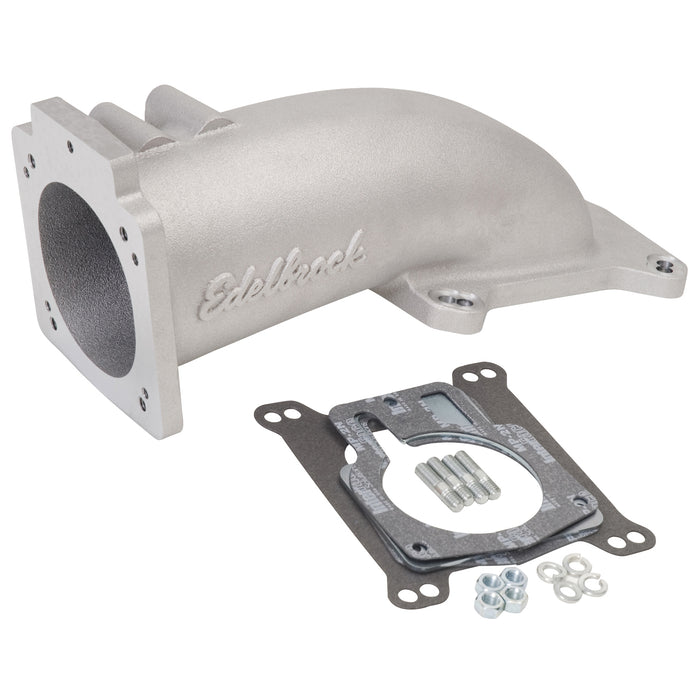

The Edelbrock 3847 Elbow can be used in square bore (4150 style) manifold applications. It can be mounted forward, backward, or sideways on our Victor EFI square bore (4150) style manifolds, when fuel rail or waterneck clearance permits. Because of its low profile, it will not fit Chevy manifolds in the forward mount configuration as it will hit the water neck. It accommodates LS1 80 mm or Edelbrock PN 3864 LS2 (90mm 4-bolt) or Ford style 75mm throttle bodies. The 3847 adaptor features: 1) Bolt pattern fits LS1, LS2 and Ford 5.0l based throttle bodies. 2) Adapts to standard (4150 style) square bore manifolds.3) Fits manifold either in a forwards, backward, or sideways configuration (user determines clearance). 4) The throttle bore center sits 9.00" forward and only .56" up from the manifold 4150 flange. The throttle body flange points down on a 12 Deg angle.5) Internal divider optimizes flow quantity and distribution into the manifold.6) The PN 3848 Low Profile elbow will also be available. It's throttle body bore is 7.00" forward and 2.00" above the manifold flange.
Specifications
| Description_ABR | Adapter |
| Description_DEF | Engine Air Intake Deceleration Elbow |
| Description_DES | INTAKE ELBOW |
| Description_EXT | The Edelbrock 3847 Elbow can be used in square bore (4150 style) manifold applications. It accommodates LS1 80 mm or Edelbrock PN 3864 LS2 (90mm 4-bolt) or Ford style 75mm throttle bodies. |
| Description_FAB | 95mm Throttle Body To Square Bore Flange |
| Description_FAB | As-Cast Finish |
| Description_FAB | Internal Divider |
| Description_FAB | Ultra Low Profile |
| Description_INV | Ultra Low Intake Elbow |
| Description_KEY | Edelbrock; Throttle Body; EFI; Manifold; Elbow; 70mm; 75mm; 80mm; 85mm; 90mm; Ford; Chevy; Honda; LS; 5.0; 5.7; T.B.; 4150; Victor; Jr.; Low; Ultra Low; Big Block; Small Block; Acura; Bracket; Adaptor; 3835; 3845; 3848; 38112; 38353; 38453; 38483 |
| Description_LAB | Throttle Body Intake Elbow #3847 Ultra Low Profile, 90mm Opening, Satin Finish |
| Description_LAB | Throttle Body Intake Elbow #3847 Ultra Low Profile; 90mm Opening; Satin Finish |
| Description_MKT | The Edelbrock 3847 Elbow can be used in square bore (4150 style) manifold applications. It can be mounted forward, backward, or sideways on our Victor EFI square bore (4150) style manifolds, when fuel rail or waterneck clearance permits. Because of its low profile, it will not fit Chevy manifolds in the forward mount configuration as it will hit the water neck. It accommodates LS1 80 mm or Edelbrock PN 3864 LS2 (90mm 4-bolt) or Ford style 75mm throttle bodies. The 3847 adaptor features: 1) Bolt pattern fits LS1, LS2 and Ford 5.0l based throttle bodies. 2) Adapts to standard (4150 style) square bore manifolds.3) Fits manifold either in a forwards, backward, or sideways configuration (user determines clearance). 4) The throttle bore center sits 9.00" forward and only .56" up from the manifold 4150 flange. The throttle body flange points down on a 12 Deg angle.5) Internal divider optimizes flow quantity and distribution into the manifold.6) The PN 3848 Low Profile elbow will also be available. It's throttle body bore is 7.00" forward and 2.00" above the manifold flange. |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 2in.} |
| finish | Satin |
| Flange Angle | 102 |
| Gasket Or Seal Included | Yes |
| height | 6.7 |
| length | 13.5 |
| length | 9.0 |
| LTL | N |
| Material | Aluminum |
| Overall Height | 3.62 |
| Quantity | Sold Individually |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Size | 90 |
| Type | Ultra Low Profile |
| weight | 6.7 |
| width | 7.0 |
