Availability:
Out of stock
Edelbrock 38483 { Sellable : Yes }
by Edelbrock
SKU ds_BDVJ_38483
Proudly Canadian
Albertan Owned
Secure Payments
Financing Available
Trusted Brands
Top-Quality Suppliers
Sold out
Original price
$309.64
-
Original price
$309.64
Original price
$309.64
$309.64
$309.64
-
$309.64
Current price
$309.64
Description

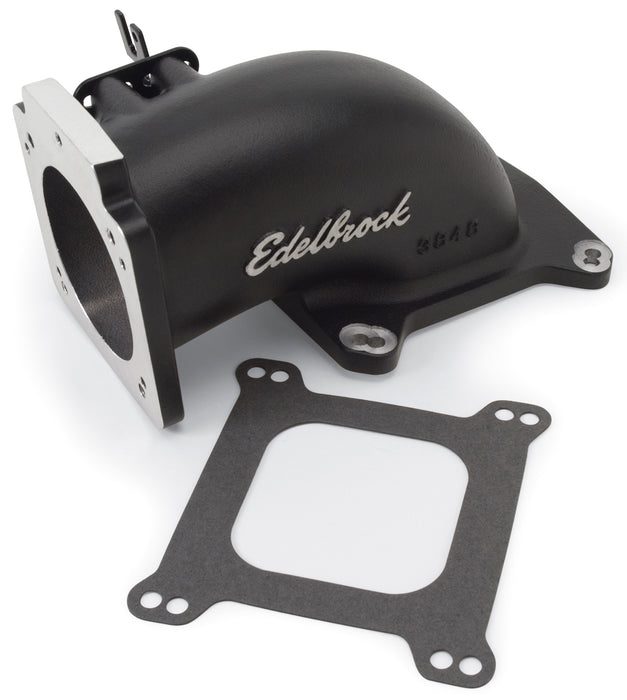

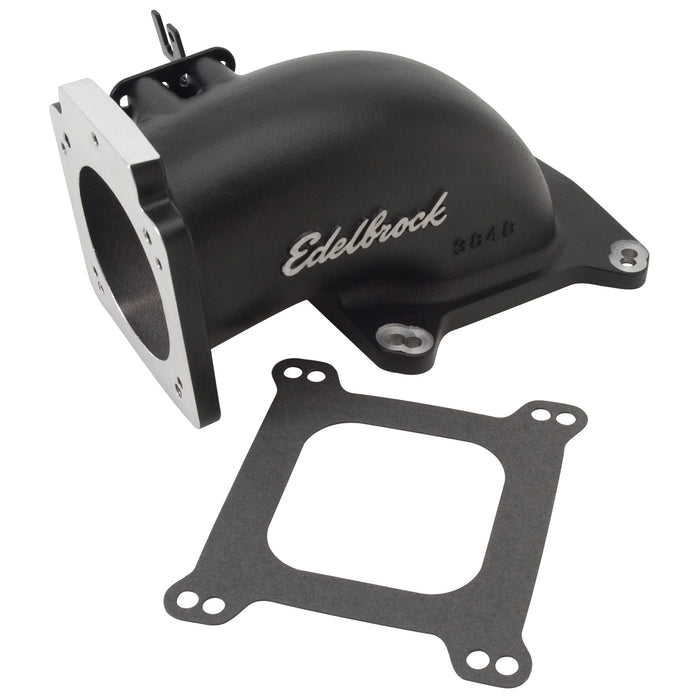

This Edelbrock Low Profile elbow was designed for limited hood clearance applications. This adaptor can be used with our 29085 Victor Jr LS1 but cowl trimming and an SS hood are required. The 38483 Elbow can be used in other square bore (4150 style) manifold applications as well. It can be mounted forward, backward, or sideways on any of our Victor EFI Square bore (4150) style manifolds. Because of its low profile a one inch spacer is required for small or Big Block Chevy forward mount configurations to clear the water neck. It can be used with an LS1 80 mm (must use PN 2737 adaptor) or Edelbrock PN 3869 90mm Universal, or Ford style 75mm throttle bodies. The 3848 adaptor features: Bolt pattern fits LS1, LS2 and Ford 5.0l based throttle bodies, adapts to standard (4150 style) square bore manifolds, Fits manifold either in a forwards, backward, or sideways configuration, The throttle bore center sits 7.00" forward and only 2.00" up from the manifold 4150 flange, The throttle body points downward on a 5 Deg angle. For ultra-low applications out PN 3847 elbow sits 9.00" forward and only .56" above the flange, with a 12 Deg downward throttle body angle.
Specifications
| Description_ABR | Adapter |
| Description_DEF | Engine Air Intake Deceleration Elbow |
| Description_DES | INTAKE ELBOW |
| Description_EXT | The Edelbrock PN 38483 ? EFI Elbow Low Profile Universal 75/85/90mm TB to 4150 Flange |
| Description_EXT | The Edelbrock PN 38483 EFI Elbow Low Profile Universal 75/85/90mm TB to 4150 Flange |
| Description_FAB | 90mm Throttle Body To Square Bore Flange |
| Description_FAB | Black Finish |
| Description_FAB | Internal Divider |
| Description_FAB | Low-Profile Design |
| Description_INV | Throttle Body Adapter |
| Description_KEY | Edelbrock; Throttle Body; EFI; Manifold; Elbow; 70mm; 75mm; 80mm; 85mm; 90mm; Ford; Chevy; Honda; LS; 5.0; 5.7; T.B.; 4150; Victor; Jr.; Low; Ultra Low; Big Block; Small Block; Acura; Bracket; Adaptor; 3835; 3845; 3848; 38112; 38353; 38453; 38483 |
| Description_LAB | Throttle Body Intake Elbow #38483 Low Profile, 90mm Opening, Black Powder Coated |
| Description_LAB | Throttle Body Intake Elbow #38483 Low Profile; 90mm Opening; Black Powder Coated |
| Description_MKT | This Edelbrock Low Profile elbow was designed for limited hood clearance applications. This adaptor can be used with our 29085 Victor Jr LS1 but cowl trimming and an SS hood are required. The 38483 Elbow can be used in other square bore (4150 style) manifold applications as well. It can be mounted forward, backward, or sideways on any of our Victor EFI Square bore (4150) style manifolds. Because of its low profile a one inch spacer is required for small or Big Block Chevy forward mount configurations to clear the water neck. It can be used with an LS1 80 mm (must use PN 2737 adaptor) or Edelbrock PN 3869 90mm Universal, or Ford style 75mm throttle bodies. The 3848 adaptor features: Bolt pattern fits LS1, LS2 and Ford 5.0l based throttle bodies, adapts to standard (4150 style) square bore manifolds, Fits manifold either in a forwards, backward, or sideways configuration, The throttle bore center sits 7.00" forward and only 2.00" up from the manifold 4150 flange, The throttle body points downward on a 5 Deg angle. For ultra-low applications out PN 3847 elbow sits 9.00" forward and only .56" above the flange, with a 12 Deg downward throttle body angle. |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 2in.} |
| finish | Black Powder Coated |
| Flange Angle | 95 |
| Gasket Or Seal Included | Yes |
| height | 6.5 |
| length | 13.5 |
| length | 7.0 |
| LTL | N |
| Material | Aluminum |
| Overall Height | 5.04 |
| Quantity | Sold Individually |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Size | 90 |
| Type | Low Profile |
| WARNING CA Proposition 65 | Yes |
| WARNING CA Proposition 65 Message | WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov. |
| weight | 5.92 |
| width | 6.81 |
