Description

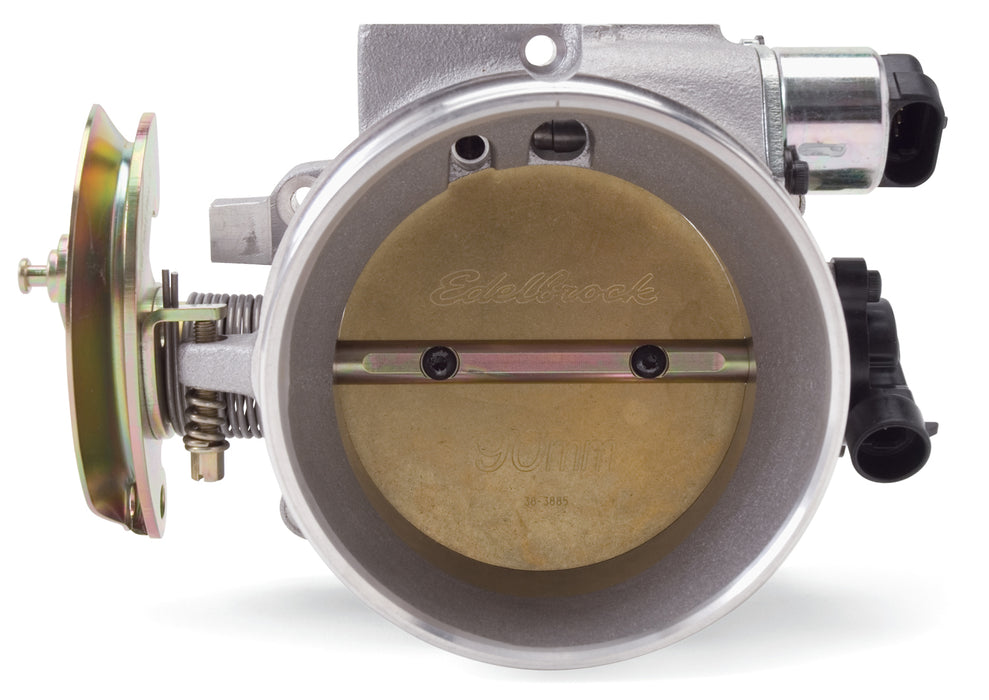

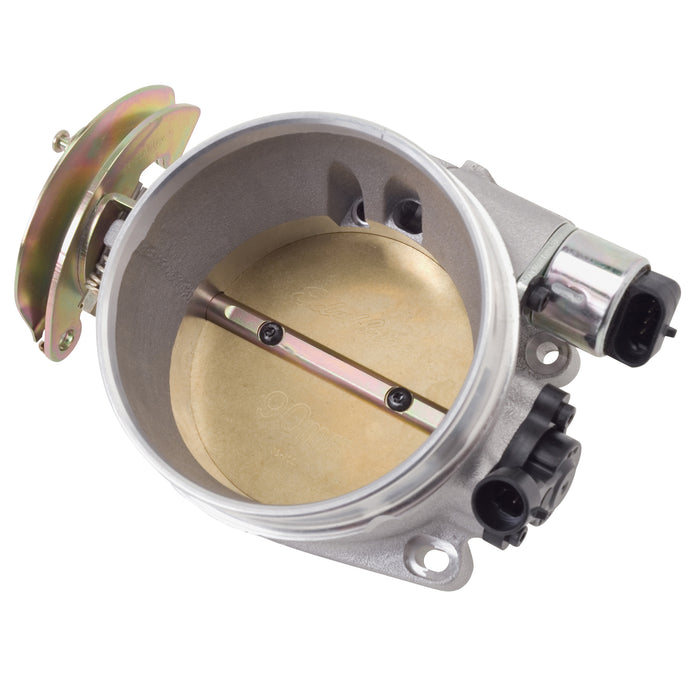

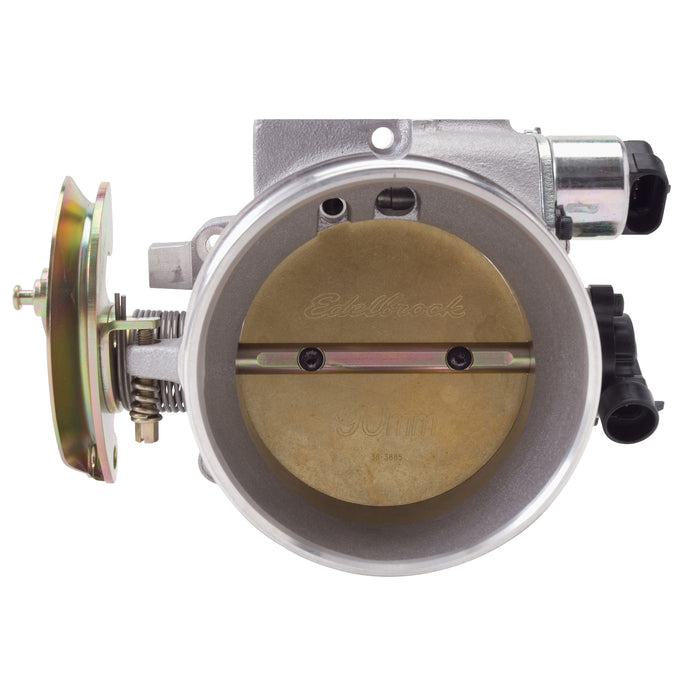

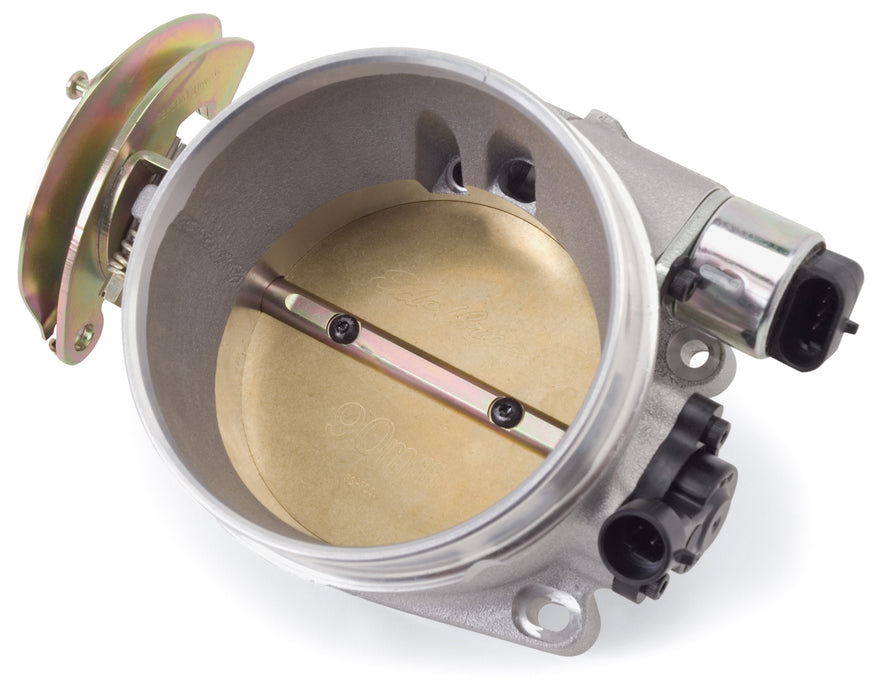

The Edelbrock #3864 Victor LS Series 90mm Throttle Body is Designed for modified Gen III-IV engines in high-performance's street or competition applications. Throttle body #3864 includes a LS1 stock-style TPS and IAC. Extra idle control is provided with the addition of an idle bleed screw. They have an LS1/LS2 flange that can be mounted on aftermarket LS1 manifolds with a 90mm opening as well as LS2/LS7 factory manifolds. They do not retain the lower water tube and are perfect for enthusiasts who want to use an LS2 or LS7 in an older vehicle with no fly-by-wire throttle. Satin Finish
Specifications
| Bore Diameter | 90 |
| Description_ABR | ThrottleBody |
| Description_DEF | Fuel Injection Throttle Body |
| Description_DES | THROTTLE BODY |
| Description_EXT | The Edelbrock Victor LS Series 90mm Throttle Body is Designed for modified Gen III-IV engines in high-performance s street or competition applications. Throttle body #3864 includes a LS1 stock-style TPS and IAC. Satin Finish |
| Description_EXT | The Edelbrock Victor LS Series 90mm Throttle Body is Designed for modified Gen III-IV engines in high-performance's street or competition applications. Throttle body #3864 includes a LS1 stock-style TPS and IAC. Satin Finish |
| Description_FAB | 90mm Size |
| Description_FAB | Designed For Modified Gen III/IV Engines |
| Description_FAB | Extra Idle Control Is Provided |
| Description_FAB | For High Performance Street Or Competition |
| Description_FAB | Increased Flow And Horsepower |
| Description_INV | Victor LS Series 90mm Throttle Body |
| Description_KEY | Edelbrock; Edelbrock #3864; Victor LS; LS Throttle Body; Throttle Body; 90mm; 1100cfm; LS1; LS2; LS7; 4.8L; 5.3L; 5.7L; 6.0L; DBC; Drive-by-Cable; Throttle Cable |
| Description_LAB | Throttle Body #3864 For Victor LS |
| Description_MKT | The Edelbrock #3864 Victor LS Series 90mm Throttle Body is Designed for modified Gen III-IV engines in high-performance's street or competition applications. Throttle body #3864 includes a LS1 stock-style TPS and IAC. Extra idle control is provided with the addition of an idle bleed screw. They have an LS1/LS2 flange that can be mounted on aftermarket LS1 manifolds with a 90mm opening as well as LS2/LS7 factory manifolds. They do not retain the lower water tube and are perfect for enthusiasts who want to use an LS2 or LS7 in an older vehicle with no fly-by-wire throttle. Satin Finish |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 6in.} |
| finish | Satin |
| Gasket Or Seal Included | Yes |
| height | 5.5 |
| length | 10.2 |
| LTL | N |
| Material | Aluminum |
| Quantity | Sold Individually |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Series | Victor LS |
| Type | Single Blade |
| WARNING CA Proposition 65 | Yes |
| WARNING CA Proposition 65 Message | WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov. |
| weight | 3.51 |
| width | 10.2 |
