Edelbrock 46750 { Sellable : Yes }
by Edelbrock
SKU ds_BDVJ_46750
Proudly Canadian
Albertan Owned
Secure Payments
Financing Available
Trusted Brands
Top-Quality Suppliers
Sold out
Original price
$48,031.21
-
Original price
$48,031.21
Original price
$48,031.21
$48,031.21
$48,031.21
-
$48,031.21
Current price
$48,031.21
Description

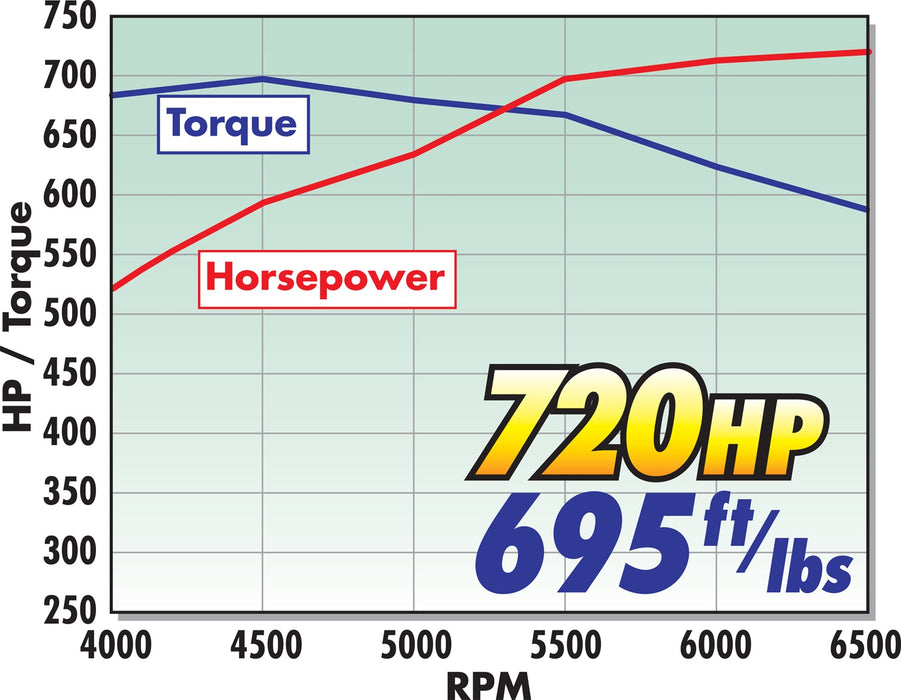

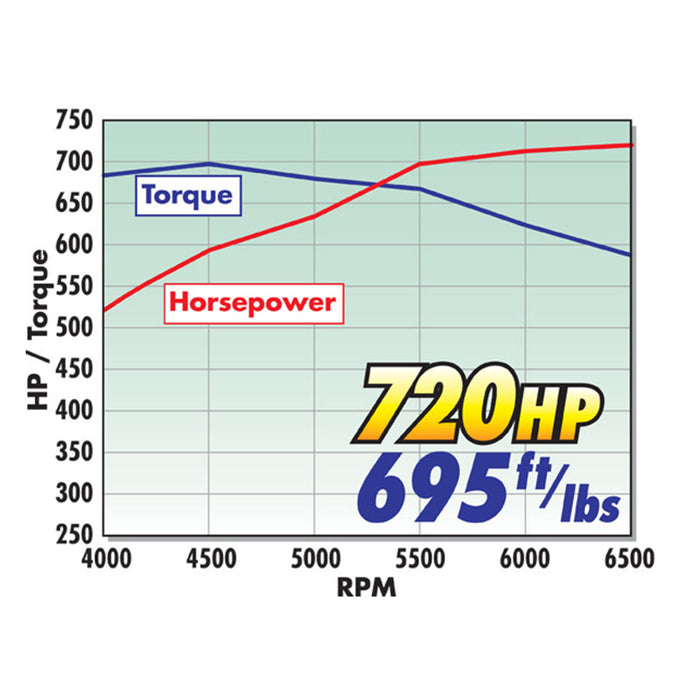

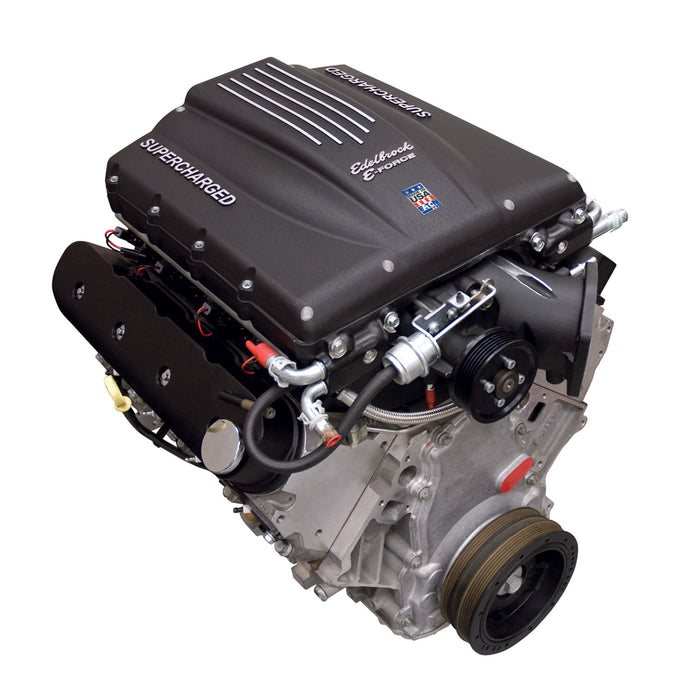

Edelbrock part #46750 Supercharged LS 416 crate engine produces an astounding 720 horsepower and 695 ft-lbs. of torque. The foundation of this engine is a brand new, aluminum LS3 block with a forged and balanced Manley crankshaft, forged Manley H-Beam connecting rods and Manley forged aluminum pistons.This engine features an Edelbrock E-Force supercharger with Eaton TVS 2300cc/rev rotors. Also included are the essential supercharger kit components, such as the electric intercooler water pump, intercooler plumbing and intercooler recovery tank, as well as fuel rails, 60 lb./hr. fuel injectors, mass air flow sensor (MAFS) housing and re-usable air filter. The supercharger equipped on this engine features a driver's side throttle body orientation for ease of intake routing and a Corvette belt offset. Pair with universal heat exchangers for a complete installation.Engine Specifications: - Displacement: 416 c.i.d.- Bore: 4.065"- Stroke: 4.000"- Horsepower: 720 hp- Torque: 695 ft-lbs.- Compression: 9.5:1- Block: LS3 Aluminum- Crankshaft: Forged 4340- Pistons: Forged Aluminum - 18cc- Rods: Forged H-Beam- Camshafts: 215 Deg /247 Deg , .629/.656, 121 LSA- Rocker Arms: LS3, 1.7 ratio- Induction: E-Force Supercharger System #1540- Cylinder Heads: GM with Edelbrock Valve Springs #5768- Finish: Black powder coated- Warranty: 2-year / Unlimited mileage- Suggested Fuel: 91 octane pump gas.
Specifications
| Calibration | Yes |
| Camshaft Type | 215deg/247deg, .629/.656, 121 LSA |
| Carburetor Type | Not Included |
| Compression Ratio | 9.5:1 |
| Construction Type | Assembled |
| Cylinder Head Type | GM LSA With Edelbrock Valve Springs #5768 |
| Description_ABR | CRATE ENGINE |
| Description_ASM | Chevrolet:Small-Block Gen IV LS3:416 (6.8L) |
| Description_DEF | Engine Complete Assembly |
| Description_DES | CRATE ENGINE |
| Description_EXT | Edelbrock part #46750 Supercharged LS 416 crate engine is a complete 416 c.i.d. supercharged, LS engine, that produces an astounding 720 horsepower and 695 ft-lbs. of torque, on 91 octane pump gas |
| Description_EXT | Edelbrock part #46750 Supercharged LS 416 crate engine is a complete 416 c.i.d. supercharged; LS engine; that produces an astounding 720 horsepower and 695 ft-lbs. of torque; on 91 octane pump gas |
| Description_FAB | 702 HP And 658 ft./lbs. Of Torque On 91-Octane |
| Description_FAB | Black Powder-Coat Finish |
| Description_FAB | Forged 4340 Crankshaft |
| Description_FAB | Forged Manley H-Beam Connecting Rods/Mahle Forged Alum. Pistons |
| Description_FAB | New LS3 Aluminum Block |
| Description_INV | Supercharged LS 416 crate engine EFI |
| Description_KEY | Edelbrock; crate engine; crate motor; 2 year warranty; new engine; intake manifold; distributor; valve covers; small-block Chevy LS; oil pan; timing cover; camshaft; unlimited mileage warranty; 46750 |
| Description_LAB | Crate Engine #46750 GM LS3 Gen V 416, Supercharged, 720 HP, 695 ft-lbs |
| Description_LAB | Supercharged LS 416 Crate Engine |
| Description_MKT | 4340 |
| Description_MKT | Block: LS3 Aluminum Crankshaft: Forged |
| Description_MKT | Bore: 4.065in |
| Description_MKT | Camshafts: 215 Deg /247 Deg , .629/.656, 121 LSA |
| Description_MKT | Compression: 9.5:1 |
| Description_MKT | Cylinder Heads: GM with Edelbrock Valve Springs #5768 |
| Description_MKT | Edelbrock part #46750 Supercharged LS 416 crate engine produces an astounding 720 horsepower and 695 ft-lbs. of torque. The foundation of this engine is a brand new, aluminum LS3 block with a forged and balanced Manley crankshaft, forged Manley H-Beam connecting rods and Manley forged aluminum pistons. This engine features an Edelbrock supercharger with Eaton TVS 2300cc/rev rotors. Also included are the essential supercharger kit components, such as the electric intercooler water pump, intercooler plumbing and intercooler recovery tank, as well as fuel rails, 60 lb./hr. fuel injectors, mass air flow sensor (MAFS) housing and re-usable air filter. The supercharger equipped on this engine features a driver's side throttle body orientation for ease of intake routing and a Corvette belt offset. Pair with universal heat exchangers for a complete installation. Engine Specifications: Displacement: 416 c.i.d. |
| Description_MKT | Edelbrock part #46750 Supercharged LS 416 crate engine produces an astounding 720 horsepower and 695 ft-lbs. of torque. The foundation of this engine is a brand new, aluminum LS3 block with a forged and balanced Manley crankshaft, forged Manley H-Beam connecting rods and Manley forged aluminum pistons.This engine features an Edelbrock E-Force supercharger with Eaton TVS 2300cc/rev rotors. Also included are the essential supercharger kit components, such as the electric intercooler water pump, intercooler plumbing and intercooler recovery tank, as well as fuel rails, 60 lb./hr. fuel injectors, mass air flow sensor (MAFS) housing and re-usable air filter. The supercharger equipped on this engine features a driver's side throttle body orientation for ease of intake routing and a Corvette belt offset. Pair with universal heat exchangers for a complete installation.Engine Specifications: - Displacement: 416 c.i.d.- Bore: 4.065"- Stroke: 4.000"- Horsepower: 720 hp- Torque: 695 ft-lbs.- Compression: 9.5:1- Block: LS3 Aluminum- Crankshaft: Forged 4340- Pistons: Forged Aluminum - 18cc- Rods: Forged H-Beam- Camshafts: 215 Deg /247 Deg , .629/.656, 121 LSA- Rocker Arms: LS3, 1.7 ratio- Induction: E-Force Supercharger System #1540- Cylinder Heads: GM with Edelbrock Valve Springs #5768- Finish: Black powder coated- Warranty: 2-year / Unlimited mileage- Suggested Fuel: 91 octane pump gas. |
| Description_MKT | Finish: Black powder coated |
| Description_MKT | Horsepower: 720 hp |
| Description_MKT | Induction: Supercharger System #1540 |
| Description_MKT | Pistons: Forged Aluminum - 18cc |
| Description_MKT | Rocker Arms: LS3, 1.7 ratio |
| Description_MKT | Rods: Forged H-Beam |
| Description_MKT | Stroke: 4.000 in |
| Description_MKT | Suggested Fuel: 91 octane pump gas. |
| Description_MKT | Torque: 695 ft-lbs. |
| Description_MKT | Warranty: 2-year / Unlimited mileage |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 8in.} |

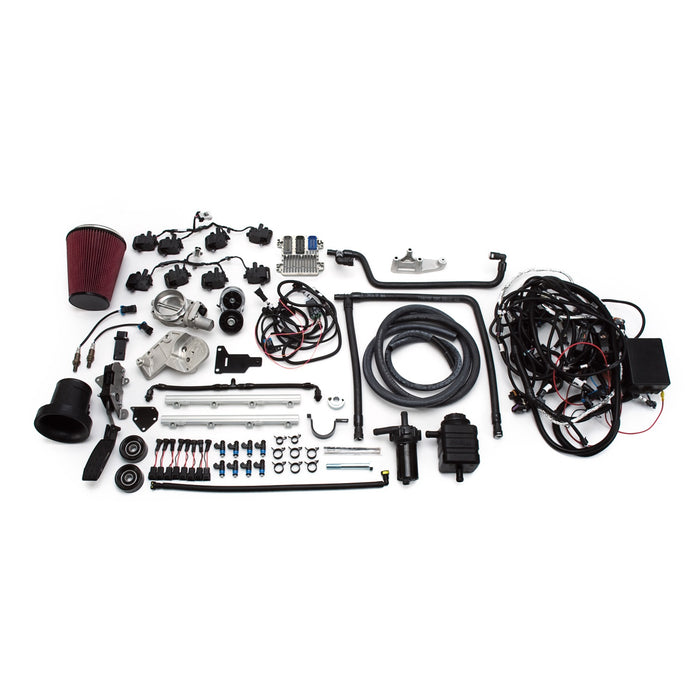

| Description_TRA | This engine package includes an Edelbrock prepped long block supercharger, complete engine wiring harness, pre-programmed ECU, electronic throttle pedal, MAFS, throttle body, ignition coils and heated oxygen sensors. This engine is tuned and ready to run right-out-of-the-crate, making it ideal for any project vehicle desiring an LS3 high Performance solution. Your engine is supplied with Edelbrock Break-In Oil. Before starting engine, you will need to prime the oil system. Do not turn engine over with starter motor for priming. |
| Description_TRA | This engine package includes an Edelbrock prepped long block; E-Force supercharger; complete engine wiring harness; pre-programmed ECU; electronic throttle pedal; MAFS; throttle body; ignition coils and heated oxygen sensors. This engine is tuned and ready to run right-out-of-the-crate; making it ideal for any project vehicle desiring an LS3 high performance solution. • Your engine is supplied with Edelbrock Break-In Oil. Before starting engine; you will need to prime the oil system. Do not turn engine over with starter motor for priming. |
| Flywheel Included | No |
| Grade Type | Performance |
| Hardware Included | Yes |
| height | 35.75 |
| Horsepower | 720 |
| Intake Manifold Type | EFI |
| length | 36.5 |
| LTL | N |
| Manifold Material | Aluminum |
| Outside Pulley Diameter | Stock |
| Pulley Belt Width | Stock |
| Quantity | Sold Individually |
| RGL | WARNING: This product can expose you to Chromium, Lead, and Zinc which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Rocker Arm Ratio | 1.7:1 |
| Rocker Arm Type | LS3 |
| Rotor Type | Eaton TVS 2300, Black Powder Coated |
| Spark Plugs Included | No |
| Torque | 695 |
| Type | GM LS3 Gen V |
| Universal Or Specific Fit | Specific Fit |
| Valve Cover Type | OEM, Black Powder Coated |
| weight | 477.0 |
| width | 38.5 |
| Wire Harness Included | Yes |
