Edelbrock 505651 Edelbrock Torker II EFI Pontiac Intake Manifold for Pontiac 326-455 V8
by Edelbrock
SKU ds_BDVJ_505651
Proudly Canadian
Albertan Owned
Secure Payments
Financing Available
Trusted Brands
Top-Quality Suppliers
Sold out
Original price
$1,239.11
-
Original price
$1,239.11
Original price
$1,239.11
$1,239.11
$1,239.11
-
$1,239.11
Current price
$1,239.11
Description

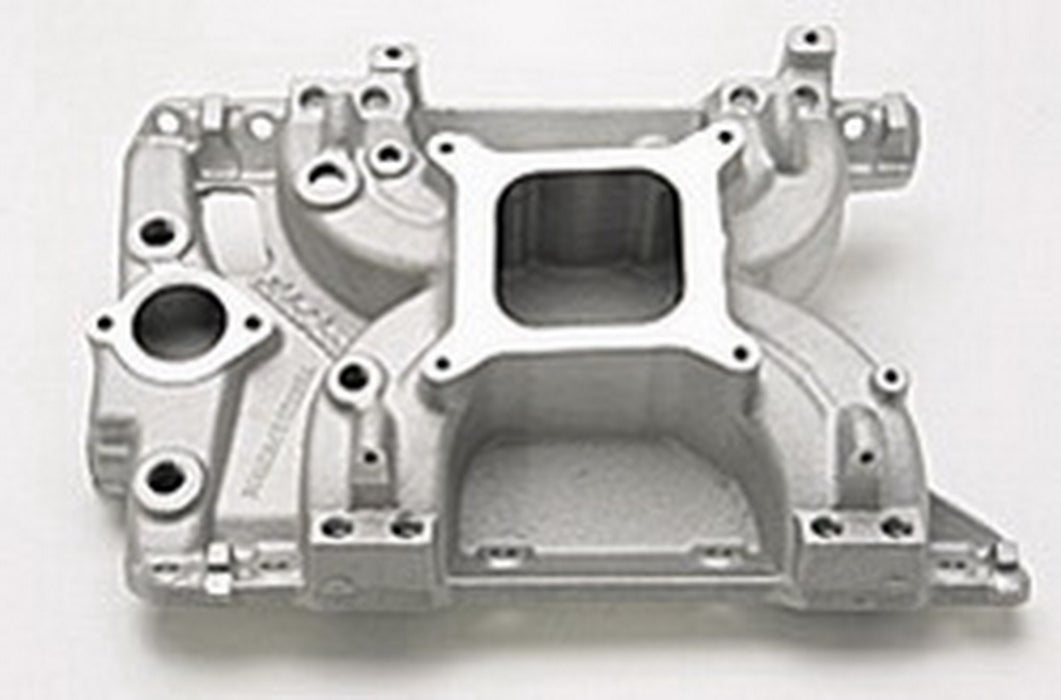

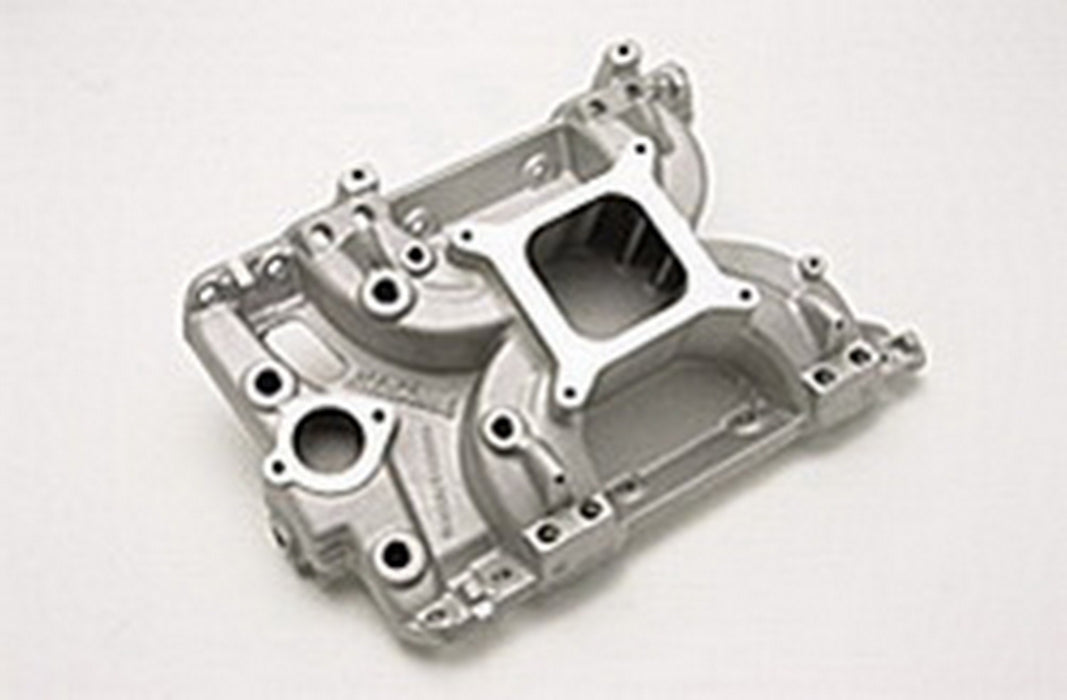

Edelbrock part #505651 Torker II Pontiac EFI intake manifold is designed for 1965-79 street 389-455 c.i.d. Pontiac V8's. Can be used with Ram Air IV heads. Will not fit Ram Air V and 265/301 V8's or under Trans Am Shaker hood. This manifold offers a polished finish for a brilliant shine and classic look.
Specifications
| Basic Operating RPM Range | 2500-6500 |
| Center Maximum Height | 6.590 |
| CNC Ported | No |
| Color | Polished |
| Cylinder Head Type | Standard |
| Description_ABR | Intake Mnfld |
| Description_ASM | Pontiac:-:326 (5.3L)/350 (5.7L)/389 (6.4L)/400 (6.6L)/421 (6.9L)/428 (7.0L)/455 (7.4) |
| Description_DEF | Engine Intake Manifold |
| Description_DES | INTAKE MANIFOLD |
| Description_EXT | Edelbrock Torker II EFI Pontiac Intake Manifold for Pontiac 326-455 V8 |
| Description_FAB | For 2500 to 6500 RPM High-Performance Engines |
| Description_FAB | Has Deeper And Larger Plenum Than Victor Jr. |
| Description_FAB | Polished Finish |
| Description_INV | Polished EFI Torker 2 Pontiac Intake |
| Description_KEY | 505651; Pontiac; Edelbrock; Intake Manifold; Intake; Manifold; Dual-Plane; Torker 2; Polished |
| Description_LAB | Torker II EFI Pontiac Intake Manifold |
| Description_MKT | Edelbrock part #505651 Torker II Pontiac EFI intake manifold is designed for 1965-79 street 389-455 c.i.d. Pontiac V8's. Can be used with Ram Air IV heads. Will not fit Ram Air V and 265/301 V8's or under Trans Am Shaker hood. This manifold offers a polished finish for a brilliant shine and classic look. |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 7in.} |
| Description_TRA | For 1968-71 use Edelbrock #8015 throttle bracket |
| Description_TRA | Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Description_TRA | Manifold height: 1-1/4" taller than stock, A-6.88", B-8.00" measured to engine block |
| Description_TRA | Port exit dimensions: 1.10" x 2.06" |
| Description_TRA | Recommended intake gasket: Edelbrock #7280 |
| Description_TRA | Throttle body pad height: 7.45" |
| Description_TRA | Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA | • Recommended intake gasket: Edelbrock #7280 • Manifold height: 1-1/4in. taller than stock; A-6.88in.; B-8.00in. measured to engine block • Throttle body pad height: 7.45in. • Port exit dimensions: 1.10in. x 2.06in. • For 1968-71 use Edelbrock #8015 throttle bracket • Use RTV sealant to properly seal end seals; such as Edelbrock High Temp Silicone sealant #1076; DO NOT USE END SEALS GASKETS. • Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| EGR Port | No |
| Emission | Without EGR |
| Engine Make/Size | Pontiac 326-455 |
| Flange Type | 4150 |
| Front Maximum Height | 6.030 |
| Gasket Or Seal Included | No |
| Grade Type | Performance |
| height | 7.5 |
| length | 23.62 |
| LTL | N |
| Material | Aluminum |
| Number of Carbs | None; For Fuel Injection |
| Position | N/A |
| Rear Maximum Height | 7.150 |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| RPM Range | 2500-6500 |
| Series | Torker/Torker II |
| Single Or Dual Plane Type | Single |
| Usage | Racing |
| Vehicle Model | Pontiac |
| WARNING CA Proposition 65 | Yes |
| WARNING CA Proposition 65 Message | WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov. |
| weight | 18.25 |
| width | 14.75 |
