Availability:
Only 4 left!
Edelbrock 5073 { Sellable : Yes }
by Edelbrock
SKU ds_BDVJ_5073
Proudly Canadian
Albertan Owned
Secure Payments
Financing Available
Trusted Brands
Top-Quality Suppliers
Original price
$1,863.59
-
Original price
$1,863.59
Original price
$1,863.59
$1,863.59
$1,863.59
-
$1,863.59
Current price
$1,863.59
Description

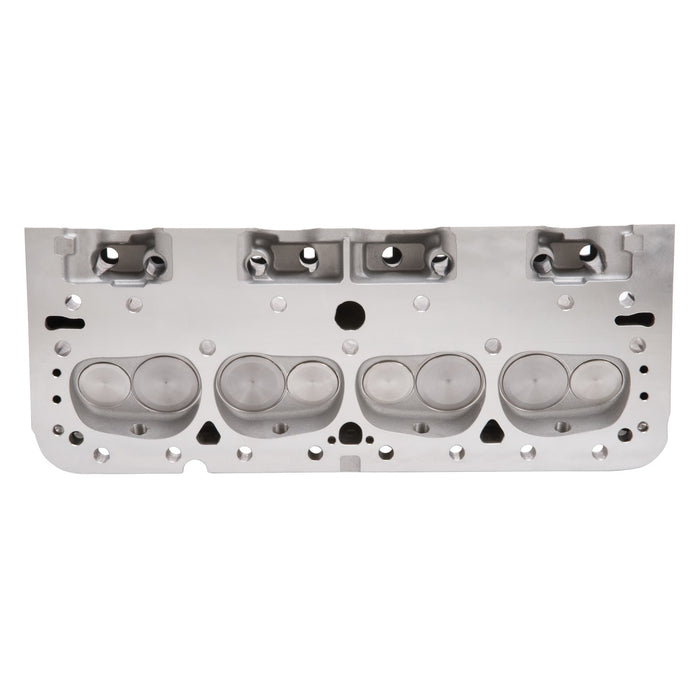

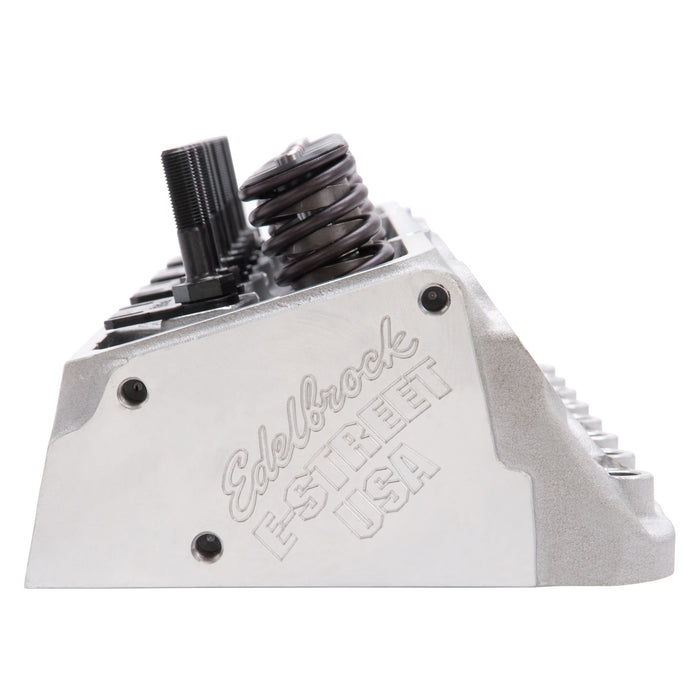

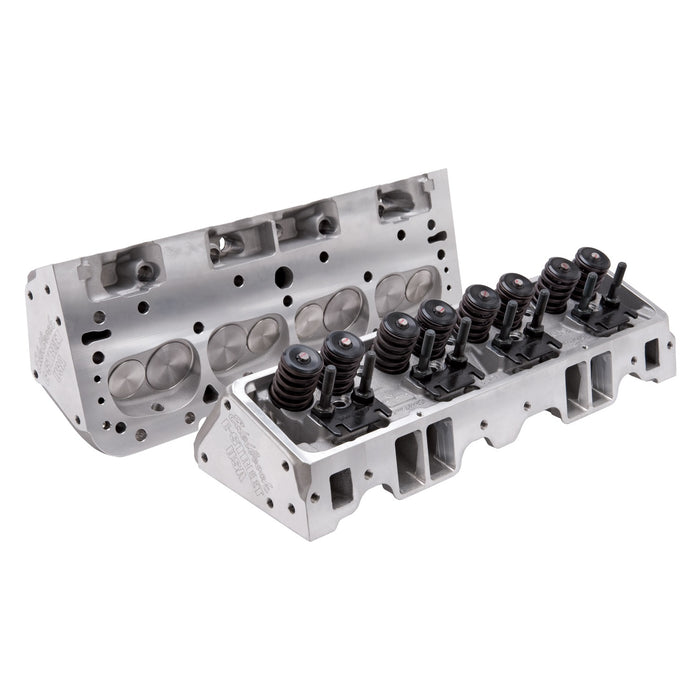

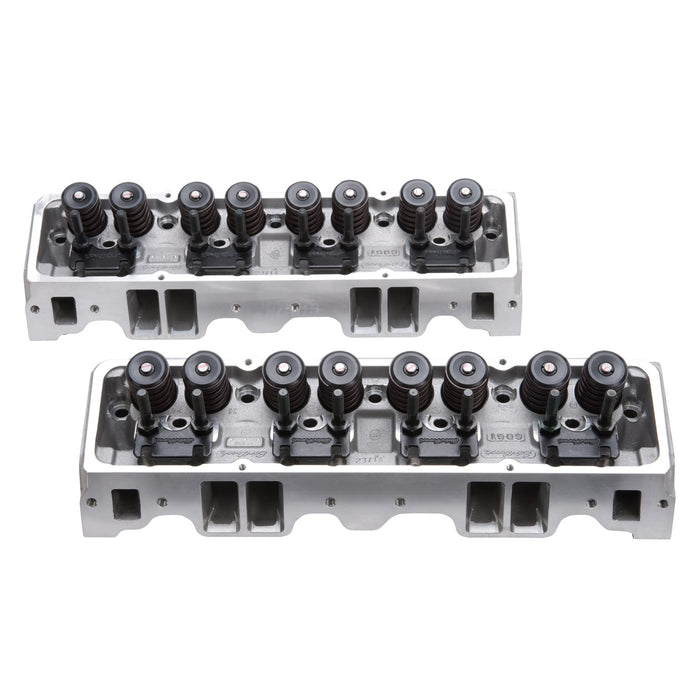

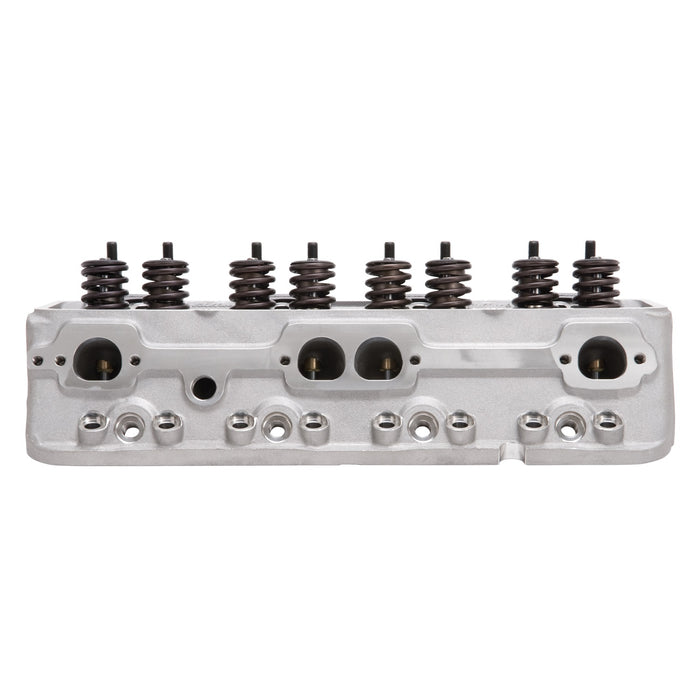

The Edelbrock #5073 E-Street cylinder heads are designed for use with 1955-1986 Small-Block Chevy applications. The Edelbrock E-Street cylinder heads offer American made quality and affordable performance. E-Street cylinder heads feature as-cast ports and are designed for entry-level street performance applications operating in the idle-to-5500 rpm range. The modern combustion chamber designs improve the combustion process and larger than stock intake and exhaust ports move more air through your engine for improve efficiency. For use on pre-pollution controlled vehicles only.
Specifications
| Camshaft Type | Flat Tappet |
| CNC Ported | No |
| Combustion Chamber Volume | 70 |
| Construction Type | Complete |
| Cylinder Head Type | Standard |
| Deck Thickness | 0.5625 |
| Description_ABR | Cyl. Head |
| Description_ASM | Chevrolet:Small-Block Gen I:302 (4.9L)/327 (5.4L)/350 (5.7L)/400 (6.6L) |
| Description_DEF | Engine Cylinder Head |
| Description_DES | CYLINDER HEAD |
| Description_EXT | The Edelbrock #5073 E-Street cylinder heads are designed for use with 1955-1986 Small-Block Chevy applications. E-Street cylinder heads feature as-cast ports and are designed for entry-level street performance applications. |
| Description_FAB | A356 Aluminum |
| Description_FAB | Affordable Price |
| Description_FAB | Edelbrock Quality And Performance |
| Description_FAB | Entry Level Street Performance Upgrade |
| Description_FAB | Made In U.S.A. |
| Description_FAB | Sold As A Pair |
| Description_INV | Edelbrock SBC Cylinder Head |
| Description_KEY | Edelbrock; SBC Head; 70cc; Pair idle to 5500; V8; Cylinder Heads; 5073 |
| Description_LAB | Small-Block Chevy E-Street Cylinder Head 70cc Pair |
| Description_MKT | The Edelbrock #5073 E-Street cylinder heads are designed for use with 1955-1986 Small-Block Chevy applications. The Edelbrock E-Street cylinder heads offer American made quality and affordable performance. E-Street cylinder heads feature as-cast ports and are designed for entry-level street performance applications operating in the idle-to-5500 rpm range. The modern combustion chamber designs improve the combustion process and larger than stock intake and exhaust ports move more air through your engine for improve efficiency. For use on pre-pollution controlled vehicles only. |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 3in.} |
| Description_TRA | All E-Street Cylinder Heads are sold in pairs |
| Description_TRA | Designed for use with hydraulic flat tappet camshafts only, not compatible with hydraulic roller camshafts |
| Description_TRA | Dyno tests showed a gain of 16 hp and 11 ft-lbs of torque over our overseas competitor |
| Description_TRA | Recommended spark plugs are Champion RC12YC or equivalent 14mm x 3/4" reach with flat gasket seat. |
| Description_TRA | Requires hardened pushrods. Not legal for sale or use on pollution controlled motor vehicles. |
| Description_TRA | Use with Hydraulic Flat Tappet Camshafts .550" max lift. (NOT Compatible with Hydraulic Roller Camshafts) |
| Description_TRA | • Designed for use with hydraulic flat tappet camshafts only; not compatible with hydraulic roller camshafts • Use with Hydraulic Flat Tappet Camshafts .550in. max lift. (NOT Compatible with Hydraulic Roller Camshafts) • Recommended spark plugs are Champion RC12YC or equivalent 14mm x 3/4in. reach with flat gasket seat. • Requires hardened pushrods. Not legal for sale or use on pollution controlled motor vehicles. • All E-Street Cylinder Heads are sold in pairs • Dyno tests showed a gain of 16 hp and 11 ft-lbs of torque over our overseas competitor |
| EGR Port | No |
| Emission | Non-Emissions |
| Engine Make/Size | Chevy Small Block (262-400) |
| Exhaust Port Location | Standard |
| Exhaust Runner Volume | 60 |
| Exhaust Valve Diameter | 1.60 |
| Family | E-Street |
| finish | Polished |
| Grade Type | Performance |
| Guide Material | Manganese Bronze |
| Guide Plate Material | Hardened Steel |
| Guide Plates Included | Yes |
| Head Casting Number | N/A |
| height | 9.0 |
| Horsepower | 300-400 |
| Intake Runner Volume | 185 |
| Intake Valve Diameter | 2.02 |
| length | 24.5 |
| LTL | N |
| Material | Aluminum |
| Preparation | Bolt On (Not Required) |
| Push Rod Diameter | (Suggested) 0.3125 |
| Quantity | Set of 2 |
| Retainer Included | Yes |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Rotor Center Bore Inside Diameter | Straight |
| Seat Angle | Exhaust 45 deg/Intake 45 |
| Seat Material | Ductile Iron |
| Series | E-Street |
| Type | Complete |
| Usage | Street/Performance |
| Valve Angle | 23 |
| Valve Included | Yes |
| Valve Spring Diameter | 1.46 |
| Valve Spring Maximum Lift | 0.550 |
| Valve Springs Included | Yes |
| Valve Stem Diameter | 0.3438 |
| WARNING CA Proposition 65 | Yes |
| WARNING CA Proposition 65 Message | WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov. |
| weight | 59.8 |
| width | 12.0 |
