Availability:
Out of stock
Edelbrock 5762 { Sellable : Yes }
by Edelbrock
SKU ds_BDVJ_5762
Proudly Canadian
Albertan Owned
Secure Payments
Financing Available
Trusted Brands
Top-Quality Suppliers
Sold out
Original price
$158.15
-
Original price
$158.15
Original price
$158.15
$158.15
$158.15
-
$158.15
Current price
$158.15
Description

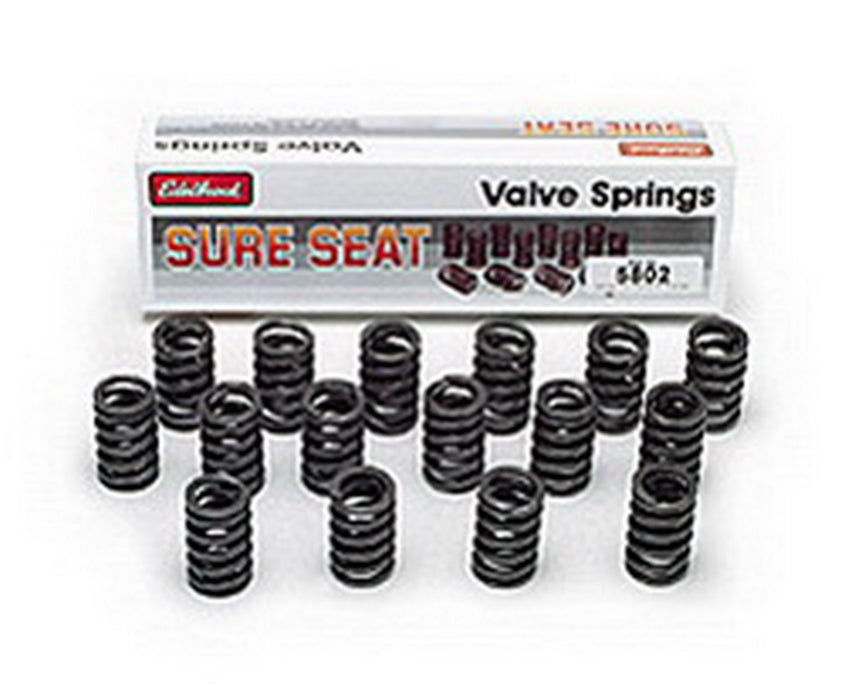

The Edelbrock #5762 Sure Seat Valve Spring for Big-Block Chevy 396-402-427-454 V8 O.E Cast iron cylinder heads are made of highest quality spring wire and precision wound to close tolerances, our Sure Seat Valve Spring sets are for use on original equipment heads when installing Edelbrock Performer-Plus, Performer RPM and Torker-Plus camshafts. These are the same high-performance'springs used on Edelbrock Performer and RPM cylinder heads. For camshaft warranty compliance, use only the springs recommended by Edelbrock for each camshaft application.
Specifications
| Camshaft Type | Hydraulic Flat Tappet |
| Camshaft Type | Mechanical |
| Coil Bind Height | 1.150 |
| Coil Bind Height | 1.340 in. |
| Damper Spring Included | No |
| Description_ABR | Valve Sprng |
| Description_ASM | Chevrolet:Big-Block Mark IV:396 (6.6L)/402 (6.6L)/427 (7.0L)/454 (7.4L)/502 (8.2L) |
| Description_DEF | Engine Valve Spring Kit |
| Description_DES | VALVE SPRING |
| Description_EXT | The Edelbrock #5762 Sure Seat Valve Spring for Big-Block Chevy 396-402-427-454 V8 O.E Cast iron cylinder heads are for use on original equipment heads when installing Edelbrock Performer-Plus, Performer RPM and Torker-Plus camshafts. |
| Description_EXT | The Edelbrock #5762 Sure Seat Valve Spring for Big-Block Chevy 396-402-427-454 V8 O.E Cast iron cylinder heads are for use on original equipment heads when installing Edelbrock Performer-Plus; Performer RPM and Torker-Plus camshafts. |
| Description_FAB | For Use With Cast-Iron Heads |
| Description_FAB | Springs Made of Highest Quality Spring Wire |
| Description_FAB | Springs Precision Wound To Close Tolerances |
| Description_FAB | Use with Original Equipment Heads Only |
| Description_INV | Edelbrock Sure Seat Valve Springs |
| Description_KEY | Edelbrock; Valve springs; Cylinder heads; sure seat valve springs; Performer; Performer RPM; E-Street; installed height; coil bind; closed pressure; open pressure; Non-Rotator; Rotator; Camshaft; 5762 |
| Description_LAB | Sure Seat Valve Springs for Big-Block Chevy 396-402-427-454 V8 |
| Description_MKT | The Edelbrock #5762 Sure Seat Valve Spring for Big-Block Chevy 396-402-427-454 V8 O.E Cast iron cylinder heads are made of highest quality spring wire and precision wound to close tolerances, our Sure Seat Valve Spring sets are for use on original equipment heads when installing Edelbrock Performer-Plus, Performer RPM and Torker-Plus camshafts. These are the same high-performance springs used on Edelbrock Performer and RPM cylinder heads. For camshaft warranty compliance, use only the springs recommended by Edelbrock for each camshaft application. |
| Description_MKT | The Edelbrock #5762 Sure Seat Valve Spring for Big-Block Chevy 396-402-427-454 V8 O.E Cast iron cylinder heads are made of highest quality spring wire and precision wound to close tolerances, our Sure Seat Valve Spring sets are for use on original equipment heads when installing Edelbrock Performer-Plus, Performer RPM and Torker-Plus camshafts. These are the same high-performance'springs used on Edelbrock Performer and RPM cylinder heads. For camshaft warranty compliance, use only the springs recommended by Edelbrock for each camshaft application. |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 0in.} |
| Description_TRA | head must be machined for PC type seals |
| Description_TRA | Inner spring will not clear stock valve seal |
| Description_TRA | Non-Rotator springs |
| Description_TRA | Recommended Edelbrock Cams: All Performer, RPM & Torker cams |
| Description_TRA | • Non-Rotator springs • Recommended Edelbrock Cams: All Performer; RPM Torker cams • Inner spring will not clear stock valve seal; head must be machined for PC type seals |
| height | 2.25 |
| Inside Diameter | 0.800 |
| Inside Diameter | 0.800 in. |
| Installed Height | 1.880 |
| Installed Height | 1.880 in. |
| Installed Pressure | 100 |
| Installed Pressure | 100 lbs. |
| length | 12.25 |
| Material | Chromium Silicon |
| Open Height | 1.880 in. |
| Open Pressure | 300 |
| Outside Diameter | 1.440 |
| Outside Diameter | 1.440 in. |
| Position | Exhaust or Intake |
| Quantity | Set of 16 |
| RGL | WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Spring Rate (lbs./in.) | N/A |
| Spring Type | Cylindrical |
| Spring Type | Single |
| Springs Per Valve | Dual |
| Tubing Length | 300 |
| WARNING CA Proposition 65 | Yes |
| WARNING CA Proposition 65 Message | WARNING: This product can expose you to Chromium; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov. |
| weight | 4.0 |
| width | 3.38 |
