Description

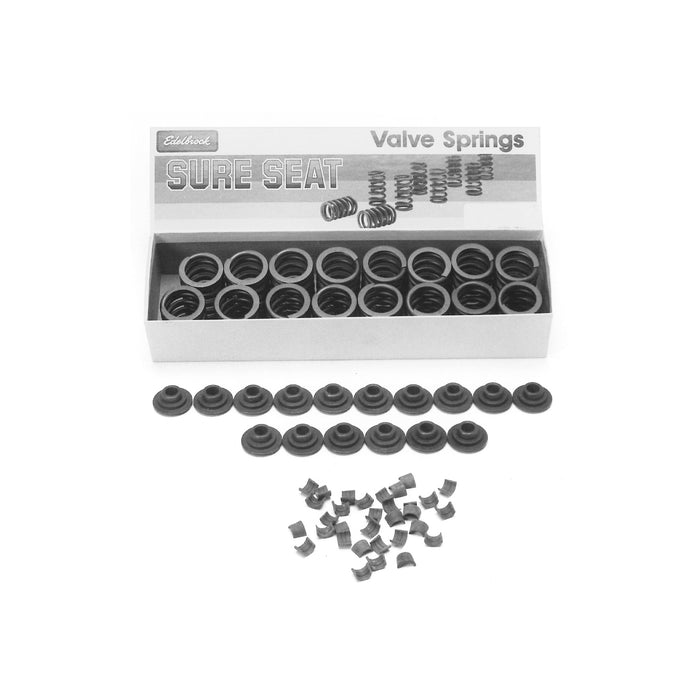

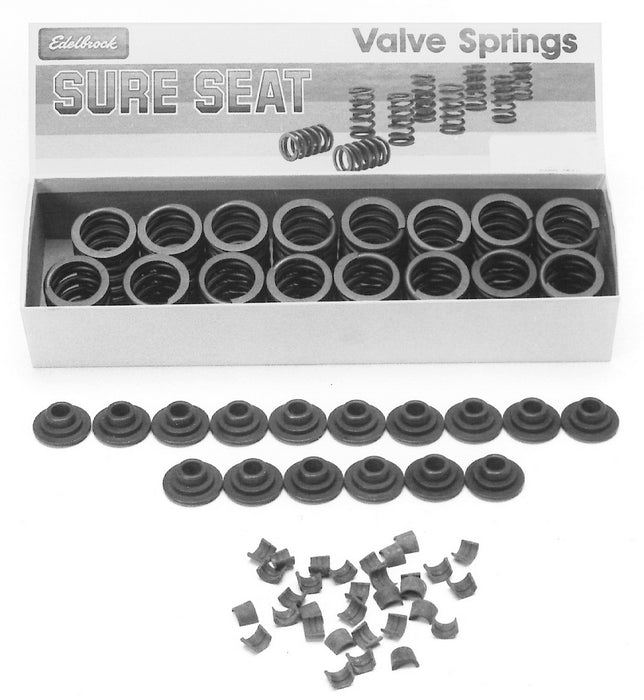

Edelbrock part #5794 Sure Seat Valve Spring Kit is designed for Small-Block Chevy O.E Cast Iron Heads. Made of highest quality spring wire and precision wound to close tolerances. This Sure Seat Valve Spring set is for use on original equipment heads when installing Edelbrock Performer-Plus camshafts. The valve springs are designed for use with OEM valve rotators. For camshaft warranty compliance, use only the springs recommended by Edelbrock for each camshaft application. Set of 16.Valve Spring Specifications:Type: Non-Rotator Seat Pressure: 110 lbs.Installed Height: 1.700"Open Pressure: 285 lbs. @ 0.490"Outside Diameter: 1.265"Inside Diameter: 1.060"Coil Bind: 1.160"
Specifications
| Camshaft Type | Hydraulic |
| Coil Bind Height | 1.160 in. |
| Description_ABR | Valve Spring |
| Description_ASM | Chevrolet:Small-Block Gen I:302 (4.9L)/327 (5.4L)/350 (5.7L)/400 (6.6L) |
| Description_DEF | Engine Valve Spring Kit |
| Description_DES | VALVE SPRING |
| Description_EXT | Edelbrock part #5794 Sure Seat Valve Spring Kit is designed for Small-Block Chevy O.E Cast Iron Heads. Made of highest quality spring wire and precision wound to close tolerances. Set of 16. |
| Description_FAB | Complete Kit: Includes Retainers And Locks |
| Description_FAB | Great Match to Edelbrock Camshaft Kit |
| Description_FAB | High-Quality Alloy For Long Life |
| Description_FAB | Includes 7 Deg. Heat-Treated Valve Stem Locks |
| Description_FAB | Includes Superior Quality Steel Retainers |
| Description_FAB | Non-Rotator Style: Dyno-Tested And Street-Proven |
| Description_FAB | Retainers and Locks Black Oxide Coated |
| Description_FAB | Springs Precision Wound To Close Tolerances |
| Description_INV | Edelbrock Engine Valve Spring Kit |
| Description_KEY | Edelbrock; 5794; sure seat; valve spring; kit; single; 1.265; outside diameter; steel retainers; steel locks; 7 degree; kit |
| Description_LAB | Complete Sure Seat Valve Spring Kit for Chevy 262-400 V8 1957-95 |
| Description_MKT | Edelbrock part #5794 Sure Seat Valve Spring Kit is designed for Small-Block Chevy O.E Cast Iron Heads. Made of highest quality spring wire and precision wound to close tolerances. This Sure Seat Valve Spring set is for use on original equipment heads when installing Edelbrock Performer-Plus camshafts. The valve springs are designed for use with OEM valve rotators. For camshaft warranty compliance, use only the springs recommended by Edelbrock for each camshaft application. Set of 16. Valve Spring Specifications: Type: Non-Rotator Seat Pressure: 110 lbs. Installed Height: 1.700" Open Pressure: 285 lbs. @ 0.490" Outside Diameter: 1.265" Inside Diameter: 1.060" Coil Bind: 1.160" |
| Description_MKT | Edelbrock part #5794 Sure Seat Valve Spring Kit is designed for Small-Block Chevy O.E Cast Iron Heads. Made of highest quality spring wire and precision wound to close tolerances. This Sure Seat Valve Spring set is for use on original equipment heads when installing Edelbrock Performer-Plus camshafts. The valve springs are designed for use with OEM valve rotators. For camshaft warranty compliance, use only the springs recommended by Edelbrock for each camshaft application. Set of 16.Valve Spring Specifications:Type: Non-Rotator Seat Pressure: 110 lbs.Installed Height: 1.700"Open Pressure: 285 lbs. @ 0.490"Outside Diameter: 1.265"Inside Diameter: 1.060"Coil Bind: 1.160" |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 0in.} |
| Description_TRA | Proper installation is the responsibility of the installer. Improper installation will void your warranty and may result in poor performance and engine or vehicle damage. |
| Description_TRA | • Proper installation is the responsibility of the installer. Improper installation will void your warranty and may result in poor performance and engine or vehicle damage. |
| height | 2.25 |
| Inside Diameter | 0.875 in. |
| Installed Height | 1.700 in. |
| Installed Pressure | 110 lbs. |
| length | 12.25 |
| LTL | N |
| Open Height | 1.700 in. |
| Outside Diameter | 1.265 in. |
| Spring Type | Single |
| Tubing Length | 285 |
| WARNING CA Proposition 65 | Yes |
| WARNING CA Proposition 65 Message | WARNING: This product can expose you to Chromium; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov. |
| weight | 4.2 |
| width | 3.38 |
