Description

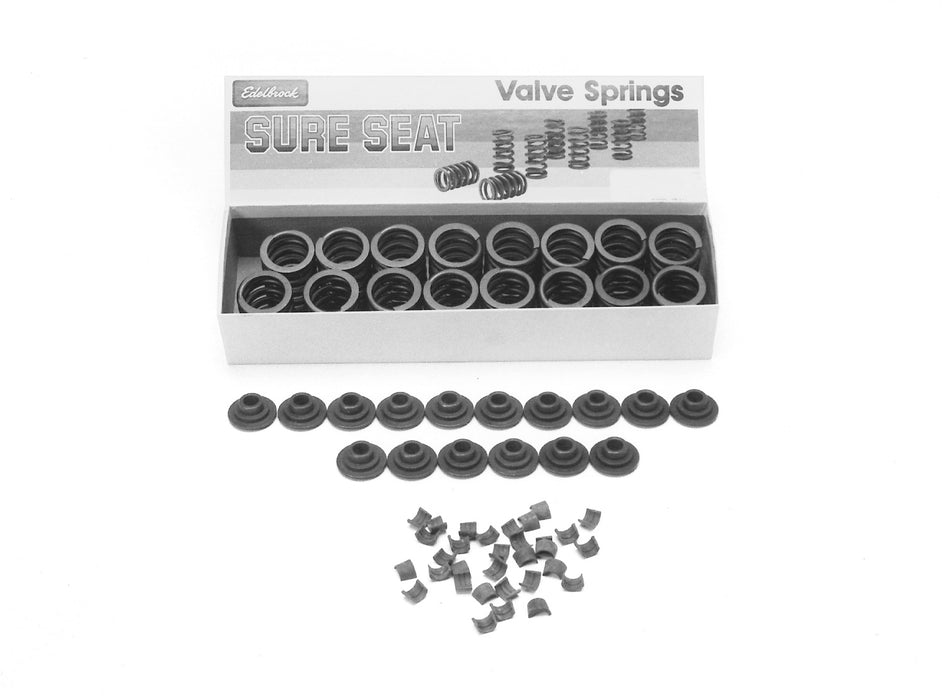

Edelbrock part #5795 Sure Seat Valve Spring Kit is designed for 396-402-427-454 V-8 Big-Block Chevy O.E Cast Iron Heads. Made of highest quality spring wire and precision wound to close tolerances. This Sure Seat Valve Spring set is for use on original equipment heads when installing Edelbrock Performer, RPM & Torker Series camshafts. The valve springs are designed for use with OEM valve rotators. For camshaft warranty compliance, use only the springs recommended by Edelbrock for each camshaft application. Set of 16.Valve Spring Specifications:Type: Non-Rotator Seat Pressure: 100 lbs.Installed Height: 1.880"Open Pressure: 300 lbs. @ 0.580"Outside Diameter: 1.440"Inside Diameter: 0.800"Coil Bind: 1.340"
Specifications
| Camshaft Type | Hydraulic Flat Tappet |
| Coil Bind Height | 1.340 |
| Damper Spring Included | Yes |
| Description_ABR | Valve Spring |
| Description_ASM | Chevrolet:Big-Block Mark IV:396 (6.6L)/402 (6.6L)/427 (7.0L)/454 (7.4L)/502 (8.2L) |
| Description_DEF | Engine Valve Spring Kit |
| Description_DES | VALVE SPRING |
| Description_EXT | Edelbrock part #5795 Sure Seat Valve Spring Kit is designed for 396-402-427-454 V-8 Big-Block Chevy O.E Cast Iron Heads. Made of highest quality spring wire and precision wound to close tolerances. Set of 16. |
| Description_FAB | Complete Kit: Includes Retainers And Locks |
| Description_FAB | Great Match to Edelbrock Camshaft Kit |
| Description_FAB | Includes 7 Deg. Heat-Treated Valve Stem Locks |
| Description_FAB | Includes Superior Quality Steel Retainers |
| Description_FAB | Non-Rotator Style: Dyno-Tested And Street-Proven |
| Description_FAB | Retainers and Locks Black Oxide Coated |
| Description_FAB | Springs Made of Highest Quality Spring Wire |
| Description_FAB | Springs Precision Wound To Close Tolerances |
| Description_INV | Edelbrock Engine Valve Spring Kit |
| Description_KEY | Edelbrock; 5795; sure seat; valve spring; kit; single; 1.440; outside diameter; steel retainers; steel locks; 7 degree; kit |
| Description_LAB | Complete Sure Seat Valve Spring Kit for Chevy 396-402-427-454 V8 |
| Description_MKT | Edelbrock part #5795 Sure Seat Valve Spring Kit is designed for 396-402-427-454 V-8 Big-Block Chevy O.E Cast Iron Heads. Made of highest quality spring wire and precision wound to close tolerances. This Sure Seat Valve Spring set is for use on original equipment heads when installing Edelbrock Performer, RPM & Torker Series camshafts. The valve springs are designed for use with OEM valve rotators. For camshaft warranty compliance, use only the springs recommended by Edelbrock for each camshaft application. Set of 16. Valve Spring Specifications: Type: Non-Rotator Seat Pressure: 100 lbs. Installed Height: 1.880" Open Pressure: 300 lbs. @ 0.580" Outside Diameter: 1.440" Inside Diameter: 0.800" Coil Bind: 1.340" |
| Description_MKT | Edelbrock part #5795 Sure Seat Valve Spring Kit is designed for 396-402-427-454 V-8 Big-Block Chevy O.E Cast Iron Heads. Made of highest quality spring wire and precision wound to close tolerances. This Sure Seat Valve Spring set is for use on original equipment heads when installing Edelbrock Performer, RPM & Torker Series camshafts. The valve springs are designed for use with OEM valve rotators. For camshaft warranty compliance, use only the springs recommended by Edelbrock for each camshaft application. Set of 16.Valve Spring Specifications:Type: Non-Rotator Seat Pressure: 100 lbs.Installed Height: 1.880"Open Pressure: 300 lbs. @ 0.580"Outside Diameter: 1.440"Inside Diameter: 0.800"Coil Bind: 1.340" |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 0in.} |
| Description_TRA | Proper installation is the responsibility of the installer. Improper installation will void your warranty and may result in poor performance and engine or vehicle damage. |
| Description_TRA | • Proper installation is the responsibility of the installer. Improper installation will void your warranty and may result in poor performance and engine or vehicle damage. |
| height | 5.5 |
| Inside Diameter | 0.800 |
| Installed Height | 1.880 |
| Installed Pressure | 100 |
| length | 13.0 |
| Locks Included | Yes |
| Material | Chromium Silicon |
| Open Pressure | 300 |
| Outside Diameter | 1.440 |
| Quantity | Kit |
| Retainers Included | Yes |
| RGL | WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Spring Type | Cylindrical |
| Springs Per Valve | Single |
| weight | 56.15 |
| width | 18.25 |
