Availability:
Only 3 left!
Edelbrock 5824 { Sellable : Yes }
by Edelbrock
SKU ds_BDVJ_5824
Proudly Canadian
Albertan Owned
Secure Payments
Financing Available
Trusted Brands
Top-Quality Suppliers
Original price
$189.34
-
Original price
$189.34
Original price
$189.34
$189.34
$189.34
-
$189.34
Current price
$189.34
Description

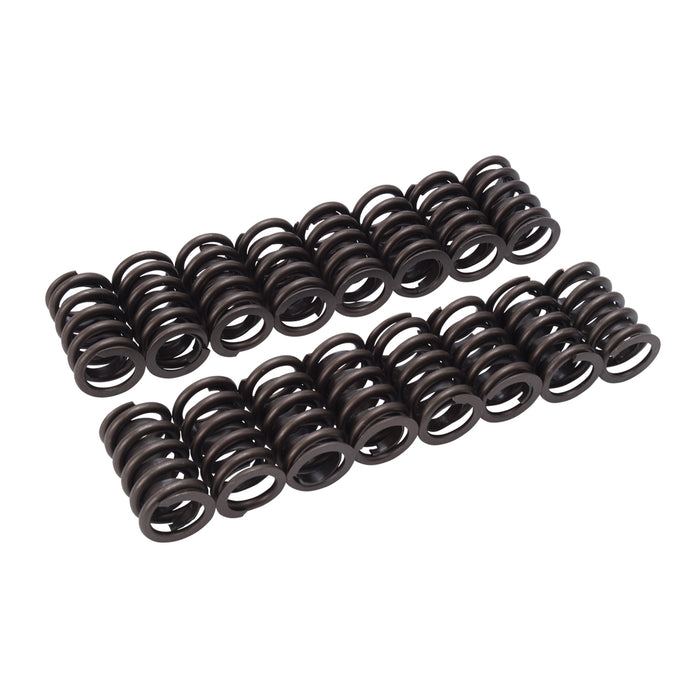

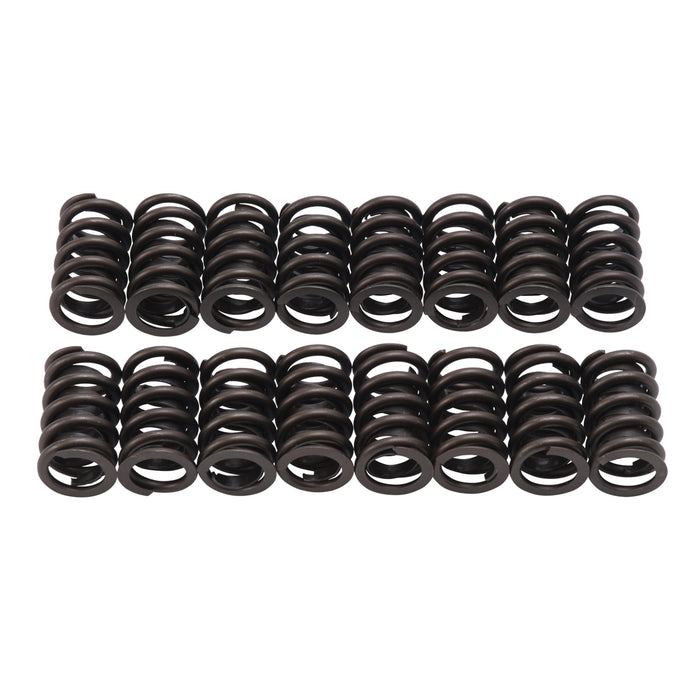

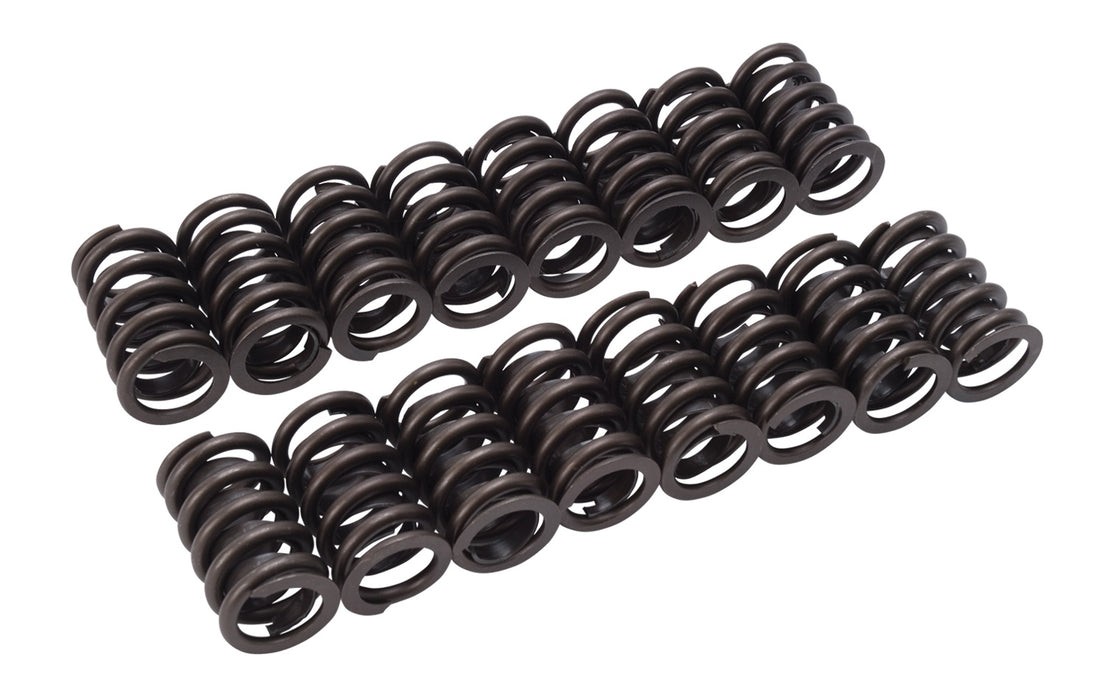

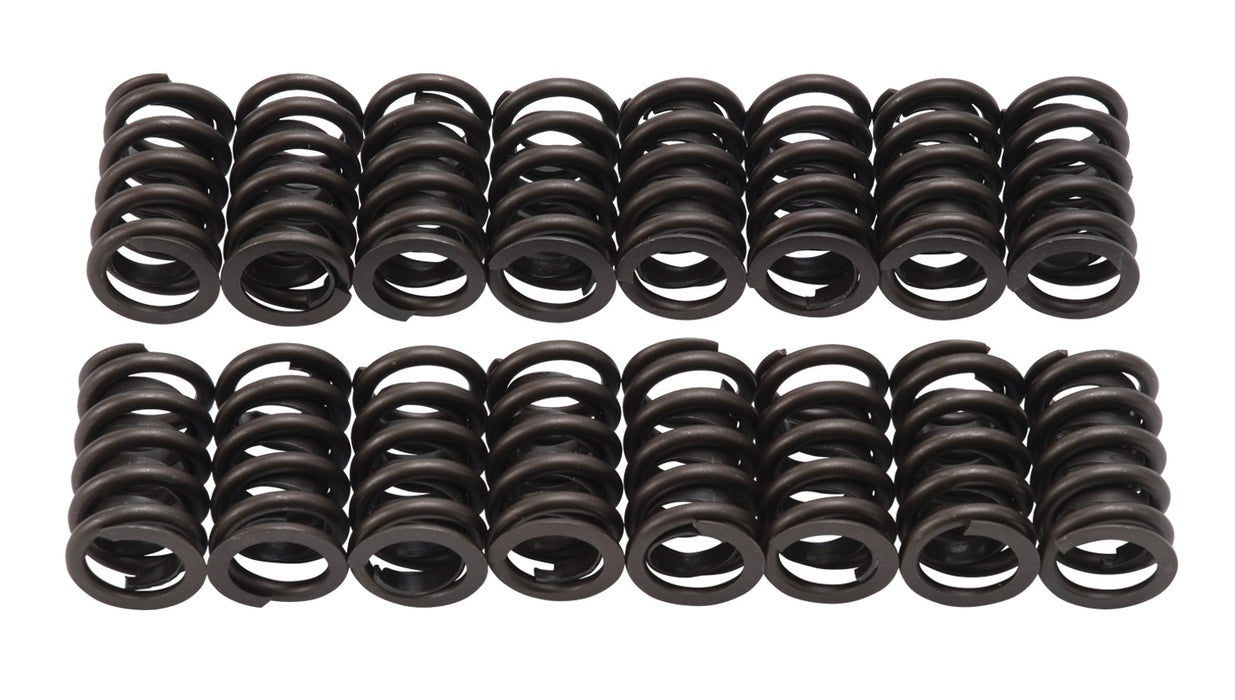

Edelbrock part #5824 Sure Seat Valve Spring Kit are replacement valve springs for early E-Street Cylinder heads with 1.250" dia. Valve springs. Made of highest quality spring wire and precision wound to close tolerances. For camshaft warranty compliance, use only the springs recommended by Edelbrock for each camshaft application. Set of 16.Valve Spring Specifications:Type: Non-Rotator Seat Pressure: 90 lbs.Installed Height: 1.750"Outside diameter: 1.250"Open Pressure: 325 lbs. @ 0.550"Coil Bind: 1.150"
Specifications
| Description_ABR | Valve Spring |
| Description_DEF | Engine Valve Spring Kit |
| Description_DES | VALVE SPRING |
| Description_EXT | Edelbrock part #5824 Sure Seat Valve Spring Kit are replacement valve springs for early E-Street Cylinder heads with 1.250" dia. Valve springs. Made of highest quality spring wire and precision wound to close tolerances. Set of 16. |
| Description_EXT | Edelbrock part #5824 Sure Seat Valve Spring Kit are replacement valve springs for early E-Street Cylinder heads with 1.250in. dia. Valve springs. Made of highest quality spring wire and precision wound to close tolerances. Set of 16. |
| Description_FAB | For Use With Cast-Iron Heads |
| Description_FAB | Springs Made of Highest Quality Spring Wire |
| Description_FAB | Springs Precision Wound To Close Tolerances |
| Description_INV | Edelbrock Engine Valve Spring Kit |
| Description_KEY | Edelbrock; 5824; sure seat; valve spring; kit; single; 1.250; outside diameter; steel retainers; steel locks; set; set of 16; 1.150 coil bind height; non-rotator |
| Description_LAB | Complete Sure Seat Valve Spring Kit for Chevy & Ford Edelbrock Heads |
| Description_LAB | Complete Sure Seat Valve Spring Kit for Chevy Ford Edelbrock Heads |
| Description_MKT | Edelbrock part #5824 Sure Seat Valve Spring Kit are replacement valve springs for early E-Street Cylinder heads with 1.250" dia. Valve springs. Made of highest quality spring wire and precision wound to close tolerances. For camshaft warranty compliance, use only the springs recommended by Edelbrock for each camshaft application. Set of 16. Valve Spring Specifications: Type: Non-Rotator Seat Pressure: 90 lbs. Installed Height: 1.750" Outside diameter: 1.250" Open Pressure: 325 lbs. @ 0.550" Coil Bind: 1.150" |
| Description_MKT | Edelbrock part #5824 Sure Seat Valve Spring Kit are replacement valve springs for early E-Street Cylinder heads with 1.250" dia. Valve springs. Made of highest quality spring wire and precision wound to close tolerances. For camshaft warranty compliance, use only the springs recommended by Edelbrock for each camshaft application. Set of 16.Valve Spring Specifications:Type: Non-Rotator Seat Pressure: 90 lbs.Installed Height: 1.750"Outside diameter: 1.250"Open Pressure: 325 lbs. @ 0.550"Coil Bind: 1.150" |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 0in.} |
| Description_TRA | Proper installation is the responsibility of the installer. Improper installation will void your warranty and may result in poor performance and engine or vehicle damage. |
| Description_TRA | • Proper installation is the responsibility of the installer. Improper installation will void your warranty and may result in poor performance and engine or vehicle damage. |
| height | 3.5 |
| length | 12.5 |
| LTL | N |
| weight | 3.2 |
| width | 2.5 |
