Availability:
Out of stock
Edelbrock 5895 { Sellable : Yes }
by Edelbrock
SKU ds_BDVJ_5895
Proudly Canadian
Albertan Owned
Secure Payments
Financing Available
Trusted Brands
Top-Quality Suppliers
Original price
$389.59
-
Original price
$389.59
Original price
$389.59
$389.59
$389.59
-
$389.59
Current price
$389.59
Description

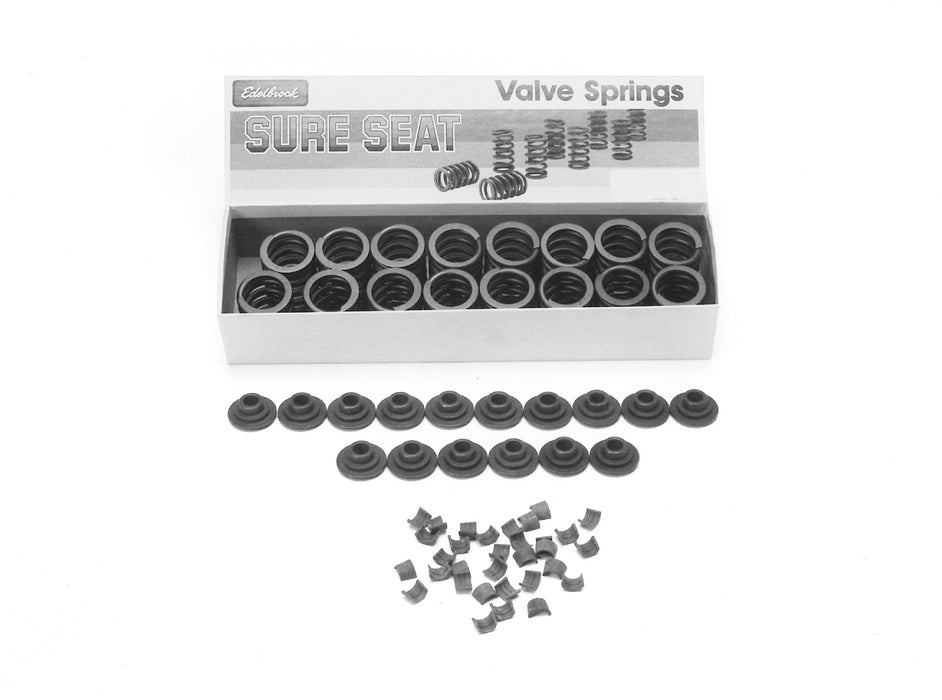

Edelbrock part #5895 Sure Seat Valve Spring Kit is designed for Big-Block Chevy 396-402-427-454 V8 engines with O.E Cast Iron Heads. Made of highest quality spring wire and precision wound to close tolerances. This Sure Seat Valve Spring set is for use on original equipment heads when installing Edelbrock Performer-Plus camshafts. The valve springs are supplied with retainers and lock kit. For camshaft warranty compliance, use only the springs recommended by Edelbrock for each camshaft application. Set of 16.Valve Spring Specifications:Type: Non-Rotator Seat Pressure: 90 lbs.Installed Height: 1.880"Open Pressure: 220 lbs. @ 0.420"Outside Diameter: 1.500"Inside Diameter: 1.082"Coil Bind: 1.340"
Specifications
| Camshaft Type | Hydraulic |
| Camshaft Type | Hydraulic Flat Tappet |
| Coil Bind Height | 1.340 |
| Coil Bind Height | 1.340 in. |
| Damper Spring Included | Yes |
| Description_ABR | Valve Spring |
| Description_ASM | Chevrolet:Big-Block Mark IV:396 (6.6L)/402 (6.6L)/427 (7.0L)/454 (7.4L)/502 (8.2L) |
| Description_DEF | Engine Valve Spring Kit |
| Description_DES | VALVE SPRING |
| Description_EXT | Edelbrock part #5895 Sure Seat Valve Spring Kit is designed for Big-Block Chevy 396-402-427-454 V8 engines with O.E Cast Iron Heads. Made of highest quality spring wire and precision wound to close tolerances. Set of 16. |
| Description_FAB | Complete Kit: Includes Retainers And Locks |
| Description_FAB | Dyno-Tested And Street-Proven |
| Description_FAB | Great Match to Edelbrock Camshaft Kit |
| Description_FAB | Includes 7 Deg. Heat-Treated Valve Stem Locks |
| Description_FAB | Includes Superior Quality Steel Retainers |
| Description_FAB | Retainers and Locks Black Oxide Coated |
| Description_FAB | Springs Made of Highest Quality Spring Wire |
| Description_FAB | Springs Precision Wound To Close Tolerances |
| Description_INV | Edelbrock Engine Valve Spring Kit |
| Description_KEY | Edelbrock; 5895; sure seat; valve spring; kit; single; 1.500; outside diameter; steel retainers; steel locks; 7 degree; kit |
| Description_LAB | Complete Sure Seat Valve Spring Kit for Chevy 396-402-427-454 V8 |
| Description_MKT | Edelbrock part #5895 Sure Seat Valve Spring Kit is designed for Big-Block Chevy 396-402-427-454 V8 engines with O.E Cast Iron Heads. Made of highest quality spring wire and precision wound to close tolerances. This Sure Seat Valve Spring set is for use on original equipment heads when installing Edelbrock Performer-Plus camshafts. The valve springs are supplied with retainers and lock kit. For camshaft warranty compliance, use only the springs recommended by Edelbrock for each camshaft application. Set of 16. Valve Spring Specifications: Type: Non-Rotator Seat Pressure: 90 lbs. Installed Height: 1.880" Open Pressure: 220 lbs. @ 0.420" Outside Diameter: 1.500" Inside Diameter: 1.082" Coil Bind: 1.340" |
| Description_MKT | Edelbrock part #5895 Sure Seat Valve Spring Kit is designed for Big-Block Chevy 396-402-427-454 V8 engines with O.E Cast Iron Heads. Made of highest quality spring wire and precision wound to close tolerances. This Sure Seat Valve Spring set is for use on original equipment heads when installing Edelbrock Performer-Plus camshafts. The valve springs are supplied with retainers and lock kit. For camshaft warranty compliance, use only the springs recommended by Edelbrock for each camshaft application. Set of 16.Valve Spring Specifications:Type: Non-Rotator Seat Pressure: 90 lbs.Installed Height: 1.880"Open Pressure: 220 lbs. @ 0.420"Outside Diameter: 1.500"Inside Diameter: 1.082"Coil Bind: 1.340" |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 0in.} |
| Description_TRA | Proper installation is the responsibility of the installer. Improper installation will void your warranty and may result in poor performance and engine or vehicle damage. |
| Description_TRA | • Proper installation is the responsibility of the installer. Improper installation will void your warranty and may result in poor performance and engine or vehicle damage. |
| height | 2.3 |
| Inside Diameter | 1.082 |
| Inside Diameter | 1.082 in. |
| Installed Height | 1.880 |
| Installed Height | 1.880 in. |
| Installed Pressure | 90 |
| Installed Pressure | 90 lbs. |
| length | 12.6 |
| Locks Included | Yes |
| LTL | N |
| Material | Chromium Silicon |
| Open Height | 1.880 in. |
| Open Pressure | 220 |
| Outside Diameter | 1.005 in. |
| Outside Diameter | 1.500 |
| Quantity | Kit |
| Retainers Included | Yes |
| RGL | WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Spring Type | Cylindrical |
| Spring Type | Single |
| Springs Per Valve | Single |
| Tubing Length | 220 |
| WARNING CA Proposition 65 | Yes |
| WARNING CA Proposition 65 Message | WARNING: This product can expose you to Chromium; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov. |
| weight | 5.76 |
| width | 3.6 |
