Description

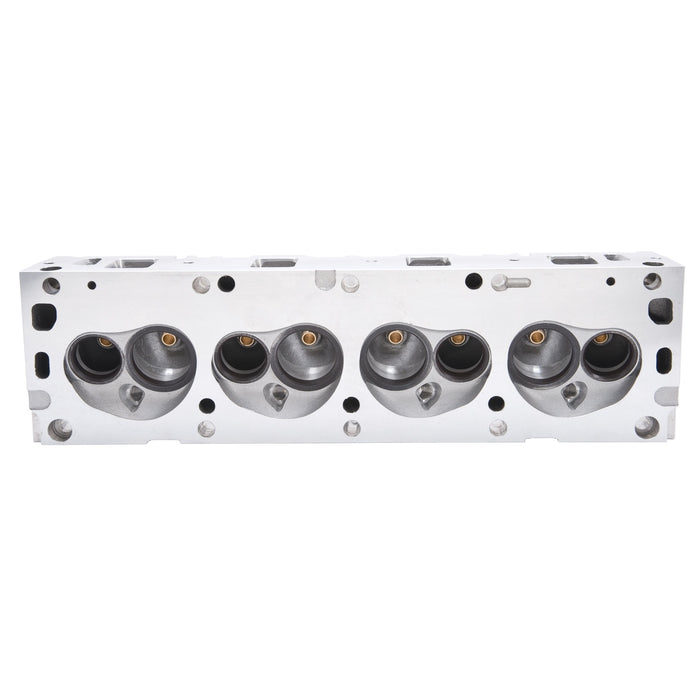

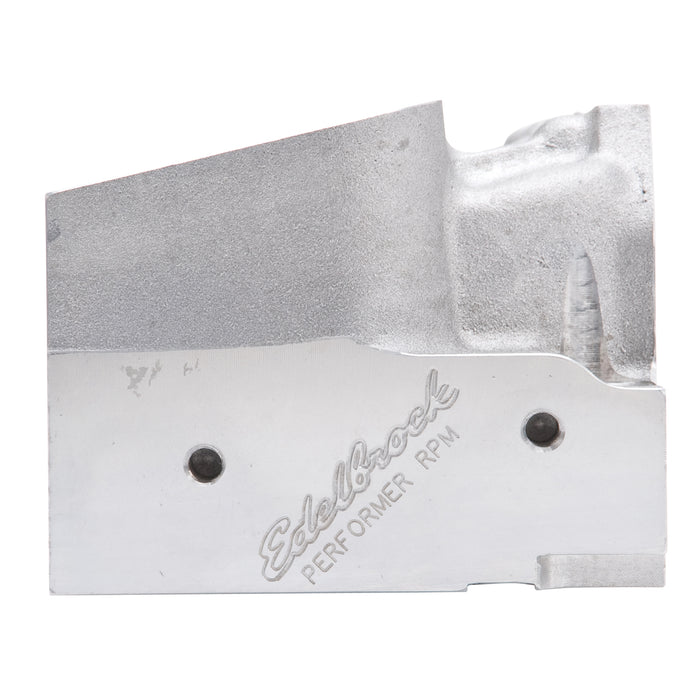

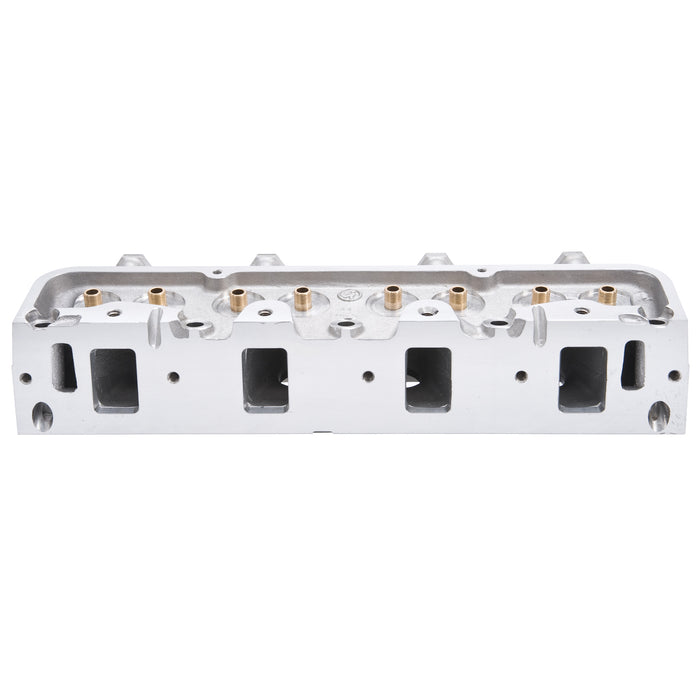

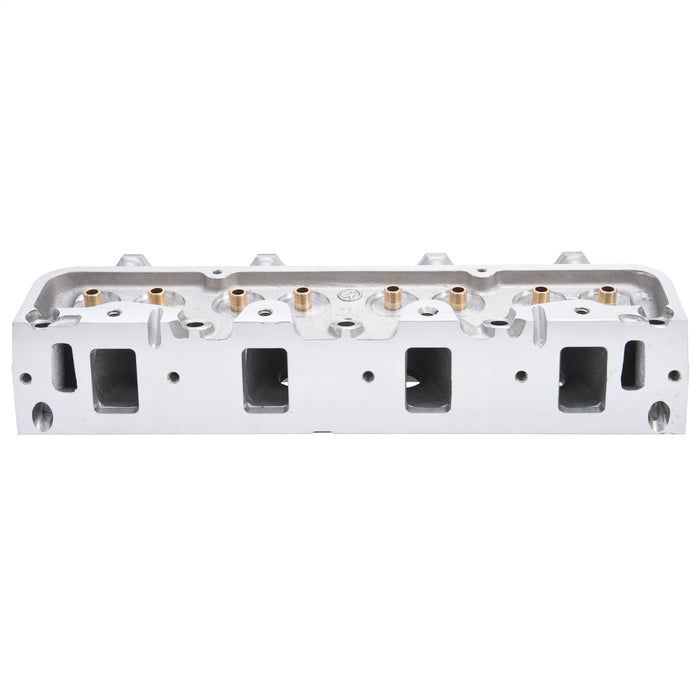

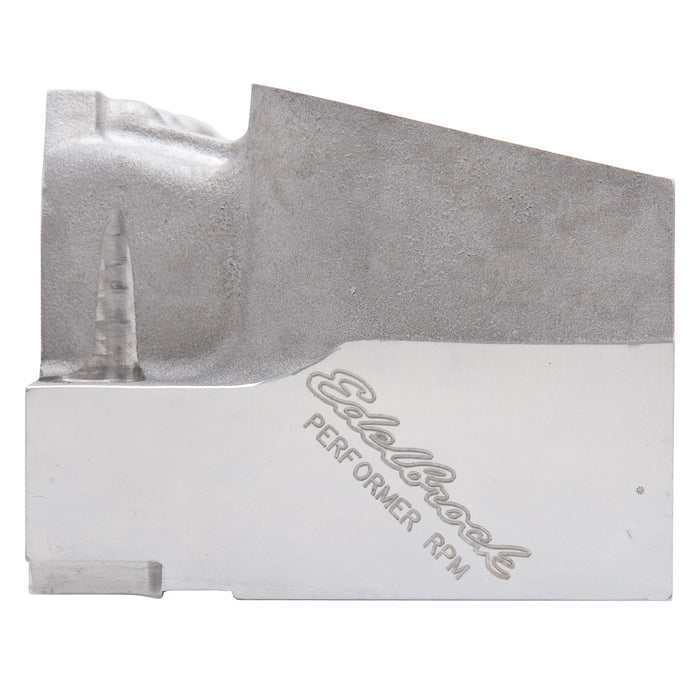

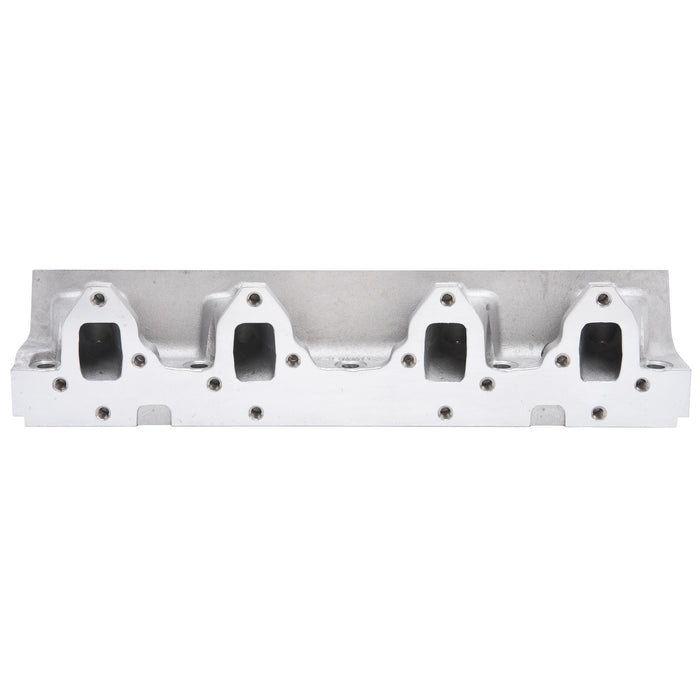

The Edelbrock #60059 Performer RPM Bare cylinder head is designed for use with 1961-76 390-427-428 Ford applications. Edelbrock Performer RPM head is perfect for street performance, daily drivers, street rods and muscle cars where seat-of-the-pants performance is needed. This cylinder head delivers great throttle response and power from 1500 to 6500 rpm. They also feature the highest quality intake and exhaust valves and valve springs. For use on pre-pollution controlled vehicles only.
Specifications
| CNC Ported | No |
| Combustion Chamber Volume | 72 |
| Construction Type | Bare |
| Cylinder Head Type | Standard |
| Deck Thickness | 0.625 |
| Description_ABR | Cyl. Head |
| Description_ASM | Ford:FE:332 (5.4L)/352 (5.8L)/360 (5.9L)/390 (6.4L)/406 (6.6L)/410 (6.7L)/427 (7.0L)/428 (7.0L) |
| Description_DEF | Engine Cylinder Head |
| Description_DES | CYLINDER HEAD |
| Description_EXT | The Edelbrock #60059 Performer RPM Bare Cylinder Heads are designed for use with 1961-76 390-427-428 Ford applications. Performer RPM heads are perfect for street performance, daily drivers and muscle cars where more performance is needed. |
| Description_EXT | The Edelbrock #60059 Performer RPM Bare Cylinder Heads are designed for use with 1961-76 390-427-428 Ford applications. Performer RPM heads are perfect for street performance; daily drivers and muscle cars where more performance is needed. |
| Description_FAB | Hand-Blended Intake and Exhaust Bowls |
| Description_FAB | Out-of-the-Box Bolt-On Performance |
| Description_INV | Edelbrock Ford FE Cylinder Head |
| Description_KEY | Edelbrock; Ford; 390; 428; 1961-76; V8; Cylinder Heads; 60057; Bare |
| Description_LAB | RPM Ford FE 390/428 Cylinder Head |
| Description_MKT | The Edelbrock #60059 Performer RPM Bare cylinder head is designed for use with 1961-76 390-427-428 Ford applications. Edelbrock Performer RPM head is perfect for street performance, daily drivers, street rods and muscle cars where seat-of-the-pants performance is needed. This cylinder head delivers great throttle response and power from 1500 to 6500 rpm. They also feature the highest quality intake and exhaust valves and valve springs. For use on pre-pollution controlled vehicles only. |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 2in.} |
| Description_TRA | 390 GT exhaust will not fit |
| Description_TRA | 428 Cobra Jet-sized valves promote excellent flow for streetable power |
| Description_TRA | Bare heads will have valve guides and seats installed, but will require final sizing and a valve job to match the valves you will be using |
| Description_TRA | Match with Edelbrock head gasket sets |
| Description_TRA | Recommended spark plugs are Champion RC12YC or equivalent 14mm x 3/4" reach with flat gasket seat. Deck thickness: 5/8" |
| Description_TRA | Rocker shaft stud kit #6009 provides better rocker shaft retention and is highly recommended for use with Edelbrock FE heads. It eliminates wearing of the threads and the possibility of bottoming the rocker shaft bolts in the head |
| Description_TRA | • 428 Cobra Jet-sized valves promote excellent flow for streetable power • Rocker shaft stud kit #6009 provides better rocker shaft retention and is highly recommended for use with Edelbrock FE heads. It eliminates wearing of the threads and the possibility of bottoming the rocker shaft bolts in the head. • Match with Edelbrock head gasket sets. • 390 GT exhaust will not fit. • Bare heads will have valve guides and seats installed; but will require final sizing and a valve job to match the valves you will be using. • Recommended spark plugs are Champion RC12YC or equivalent 14mm x 3/4in. reach with flat gasket seat. Deck thickness: 5/8in. |
| EGR Port | No |
| Emission | Non-Emissions |
| Engine Make/Size | Ford 390-428 |
| Exhaust Port Location | Standard |
| Exhaust Runner Volume | 125 |
| Family | Performer RPM |
| finish | Cast Aluminum |
| Grade Type | Performance |
| Guide Material | Manganese Bronze |
| Guide Plates Included | No |
| Head Casting Number | N/A |
| height | 9.0 |
| Intake Runner Volume | 170 |
| length | 25.8 |
| LTL | N |
| Material | Aluminum |
| Preparation | Requires Professional Preparation (Bare) |
| Quantity | Sold Individually |
| Retainer Included | No |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Seat Angle | Exhaust 45 deg/Intake 60 |
| Seat Material | Ductile Iron |
| Series | Performer RPM |
| Type | Bare |
| Usage | Street/Performance |
| Valve Angle | 13 |
| Valve Included | No |
| Valve Springs Included | No |
| WARNING CA Proposition 65 | Yes |
| WARNING CA Proposition 65 Message | WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov. |
| weight | 25.95 |
| width | 11.3 |
