Availability:
4+ in stock
Edelbrock 60119 { Sellable : Yes }
by Edelbrock
SKU ds_BDVJ_60119
Proudly Canadian
Albertan Owned
Secure Payments
Financing Available
Trusted Brands
Top-Quality Suppliers
Original price
$2,059.70
-
Original price
$2,059.70
Original price
$2,059.70
$2,059.70
$2,059.70
-
$2,059.70
Current price
$2,059.70
Description

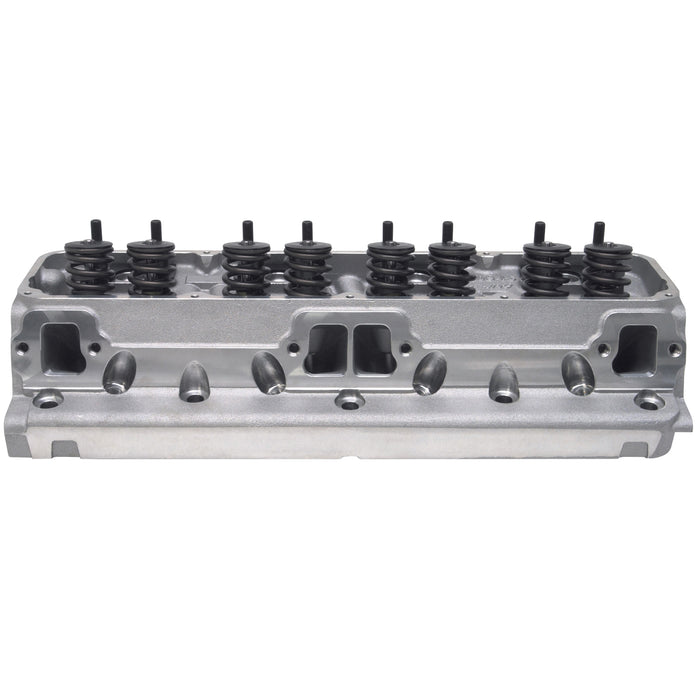

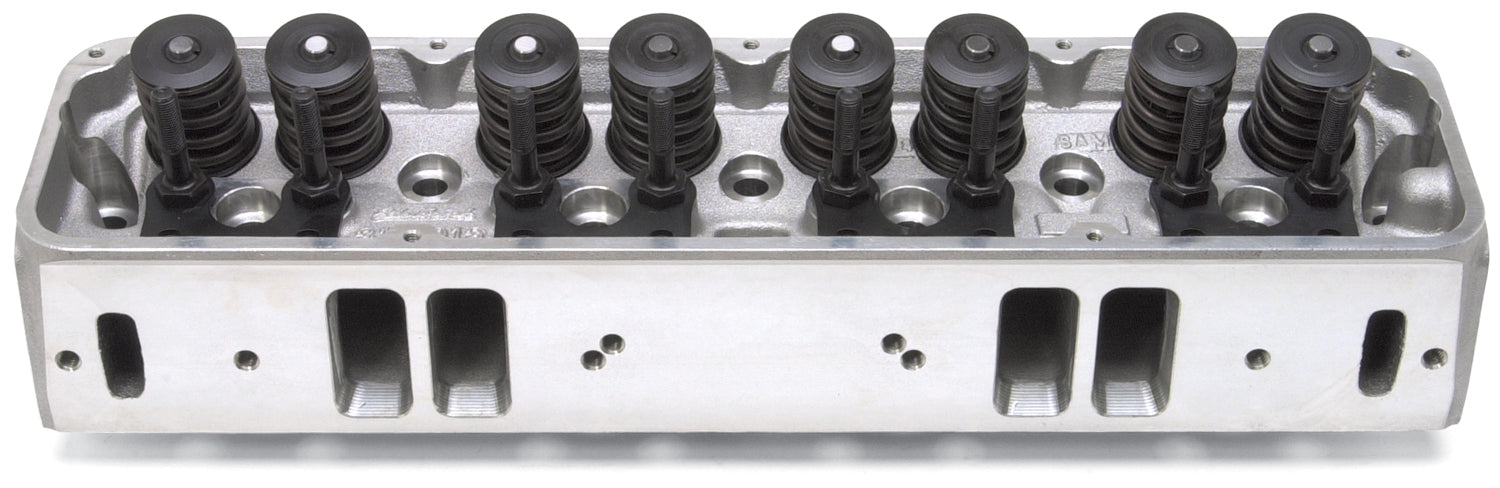

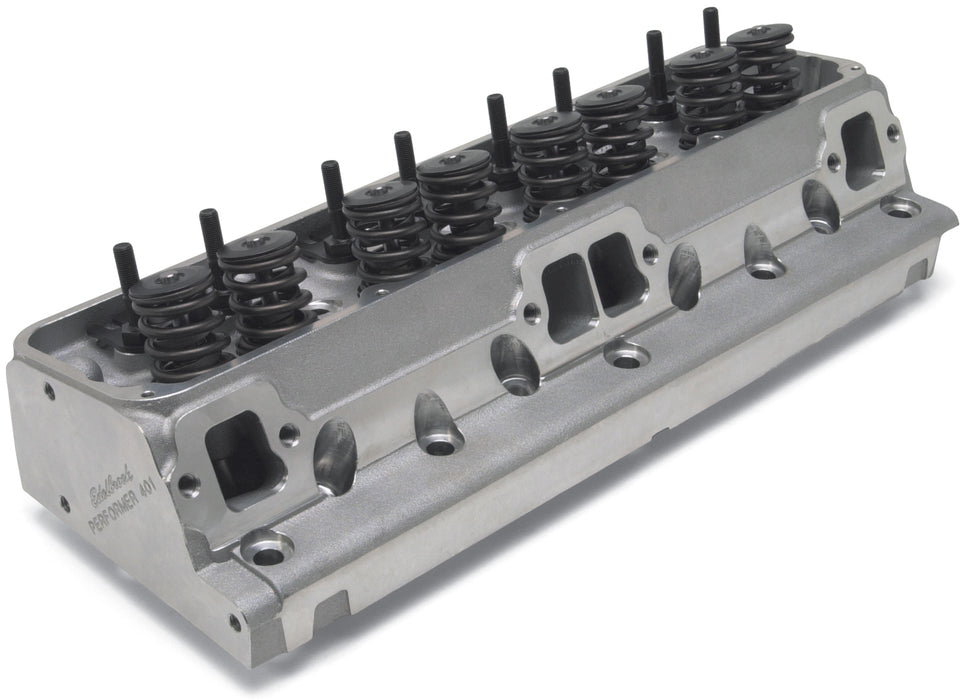

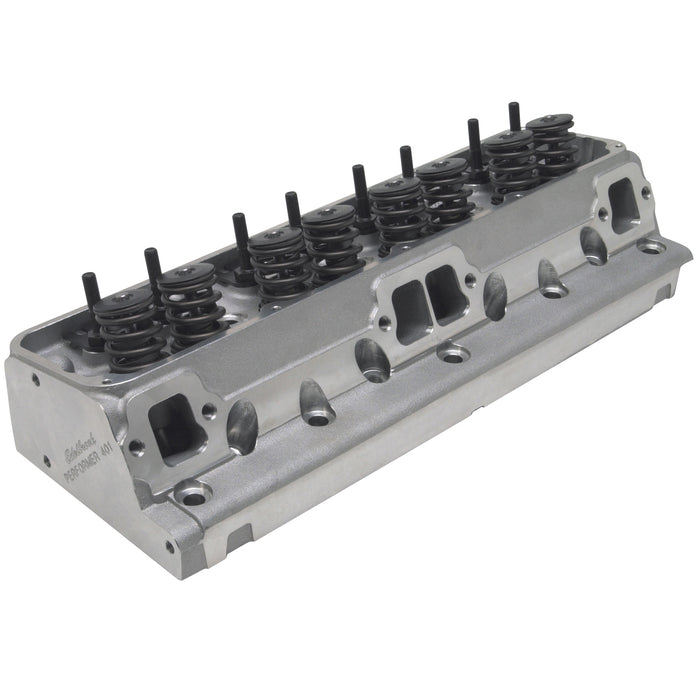

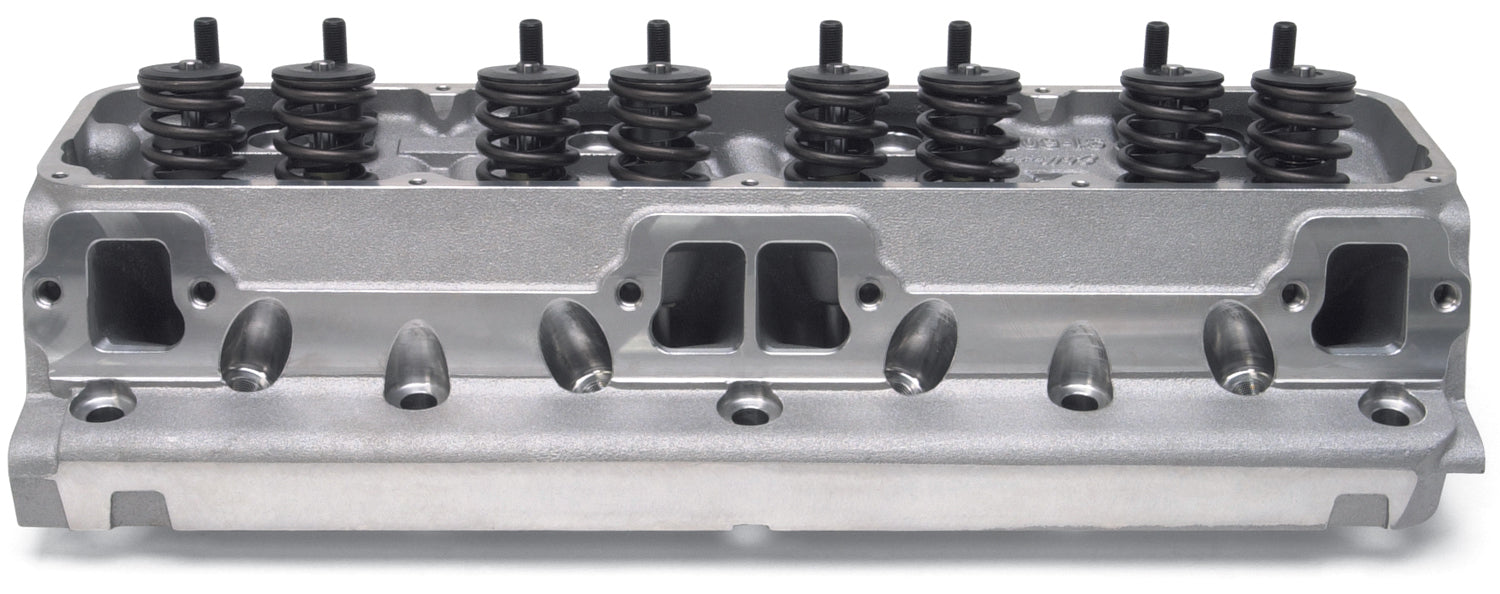

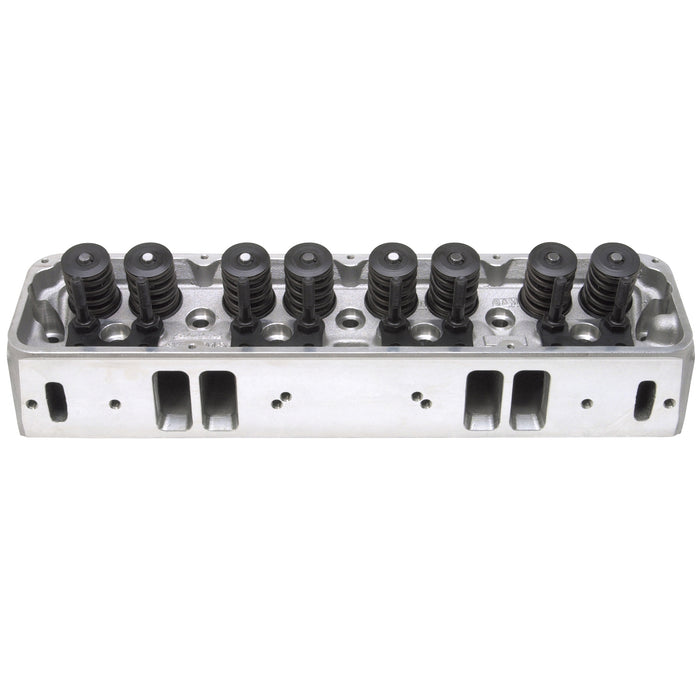

The Edelbrock #60119 Performer RPM cylinder head is designed as a bolt-on performance upgrade for any 1967-91 AMX, Javelin or Jeep with a 343, 360, 390 or 401 AMC V8 engine. They include adjustable rocker studs and guide plates set-up for use with small-block Ford style adjustable 1.6:1 ratio rockers. The intake flange is dual-drilled to accommodate early and late model intake bolt patterns, covering 1967-91. A Complete head includes larger than- stock valve springs to handle most high-lift cams. They feature stock location ports for compatibility with standard manifolds and headers. A direct bolt-on for 1970 and later engines with 1/2" head bolts, This head includes step-dowel pins for pre-1970 engines. Their dual-quench combustion chambers produce approximately 9.5:1 compression in 401 V8 engines. The 45deg intake seat angle offers improved mid- to high-lift flow over the stock 30deg angle.
Specifications
| Description_ABR | Cyl. Head |
| Description_ASM | AMC:-:290 (4.7L)/304 (5.0L)/360 (5.9L)/390 (6.4L)/401 (6.6L) |
| Description_DEF | Engine Cylinder Head |
| Description_DES | CYLINDER HEAD |
| Description_EXT | The Edelbrock #60119 Performer RPM Cylinder Heads are designed as a bolt-on performance upgrade for any 1967-91 AMX, Javelin or Jeep with a 343, 360, 390 or 401 AMC V8 engine. |
| Description_EXT | The Edelbrock #60119 Performer RPM Cylinder Heads are designed as a bolt-on performance upgrade for any 1967-91 AMX; Javelin or Jeep with a 343; 360; 390 or 401 AMC V8 engine. |

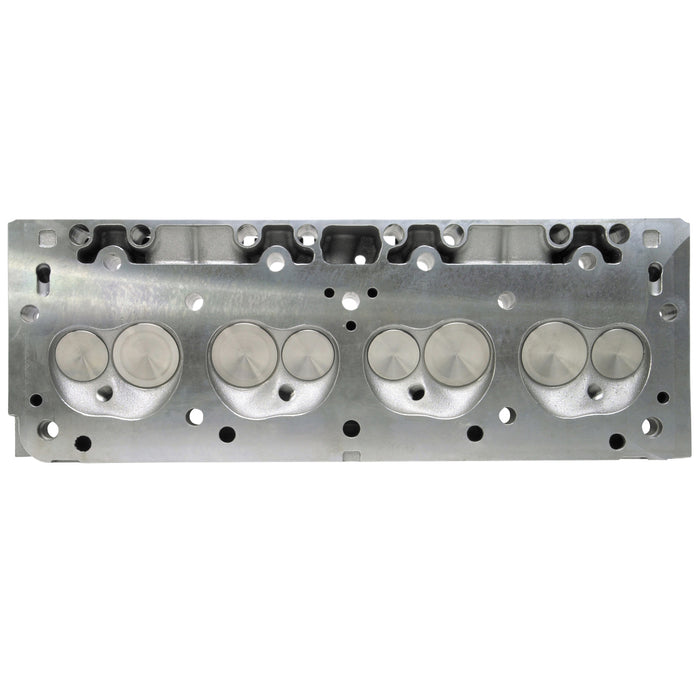

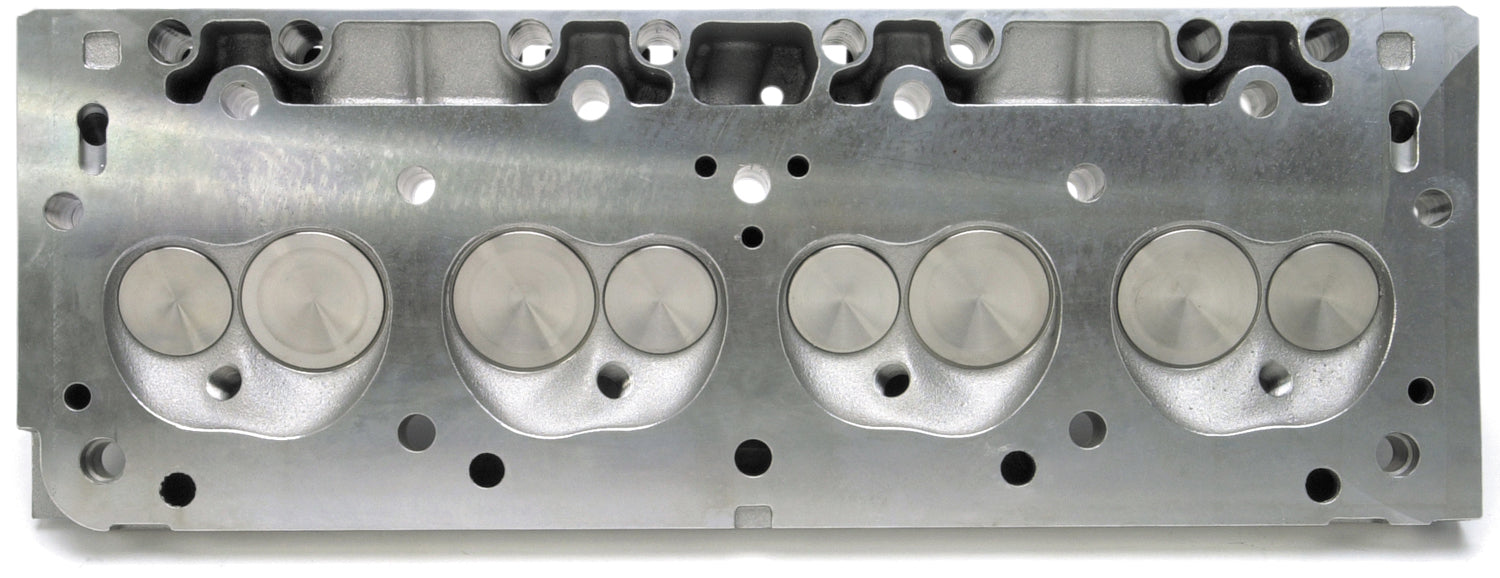

| Description_FAB | 54cc Dual-Quench Combustion Chamber |
| Description_FAB | CNC-Matched Intake/Exhaust Ports in Std Location |
| Description_FAB | Ideal Choice w/Edelbrock Air Gap Intake PN[7577] |
| Description_FAB | Offers Improved Mid To High-Lift Flow |
| Description_FAB | Out-of-the-Box Bolt-On Performance |
| Description_FAB | Thicker Deck Surfaces Than Other Brands |
| Description_INV | Edelbrock AMC Cylinder Head |
| Description_KEY | Edelbrock; AMC; Small-Block AMC V8; Cylinder Heads; 60119 |
| Description_LAB | RPM AMC/ Jeep Cylinder Head No Crossover Complete |
| Description_LAB | RPM AMC/Jeep Cylinder Head No Crossover Complete |
| Description_MKT | The Edelbrock #60119 Performer RPM cylinder head is designed as a bolt-on performance upgrade for any 1967-91 AMX, Javelin or Jeep with a 343, 360, 390 or 401 AMC V8 engine. They include adjustable rocker studs and guide plates set-up for use with small-block Ford style adjustable 1.6:1 ratio rockers. The intake flange is dual-drilled to accommodate early and late model intake bolt patterns, covering 1967-91. A Complete head includes larger than- stock valve springs to handle most high-lift cams. They feature stock location ports for compatibility with standard manifolds and headers. A direct bolt-on for 1970 and later engines with 1/2" head bolts, This head includes step-dowel pins for pre-1970 engines. Their dual-quench combustion chambers produce approximately 9.5:1 compression in 401 V8 engines. The 45deg intake seat angle offers improved mid- to high-lift flow over the stock 30deg angle. |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 5in.} |
| Description_TRA | Deck thickness: 5/8" |
| Description_TRA | Match with Edelbrock head gasket sets. |
| Description_TRA | Pushrod diameter: 5/16" (width of slot in guide plate). |
| Description_TRA | Recommended spark plugs are Champion RC12YC or equivalent 14mm x 3/4" reach with flat gasket seat. |
| Description_TRA | Rocker stud diameter: 3/8" |
| Description_TRA | Use Edelbrock Step Washer Kit #9693 on 1967-69 engines with 7/16" head bolts. |
| Description_TRA | • Match with Edelbrock head gasket sets. • Recommended spark plugs are Champion RC12YC or equivalent 14mm x 3/4in. reach with flat gasket seat. • Use Edelbrock Step Washer Kit #9693 on 1967-69 engines with 7/16in. head bolts. • Deck thickness: 5/8in. • Rocker stud diameter: 3/8in. • Pushrod diameter: 5/16in. (width of slot in guide plate). |
| height | 8.5 |
| length | 25.8 |
| LTL | N |
| weight | 33.3 |
| width | 11.0 |
