Description

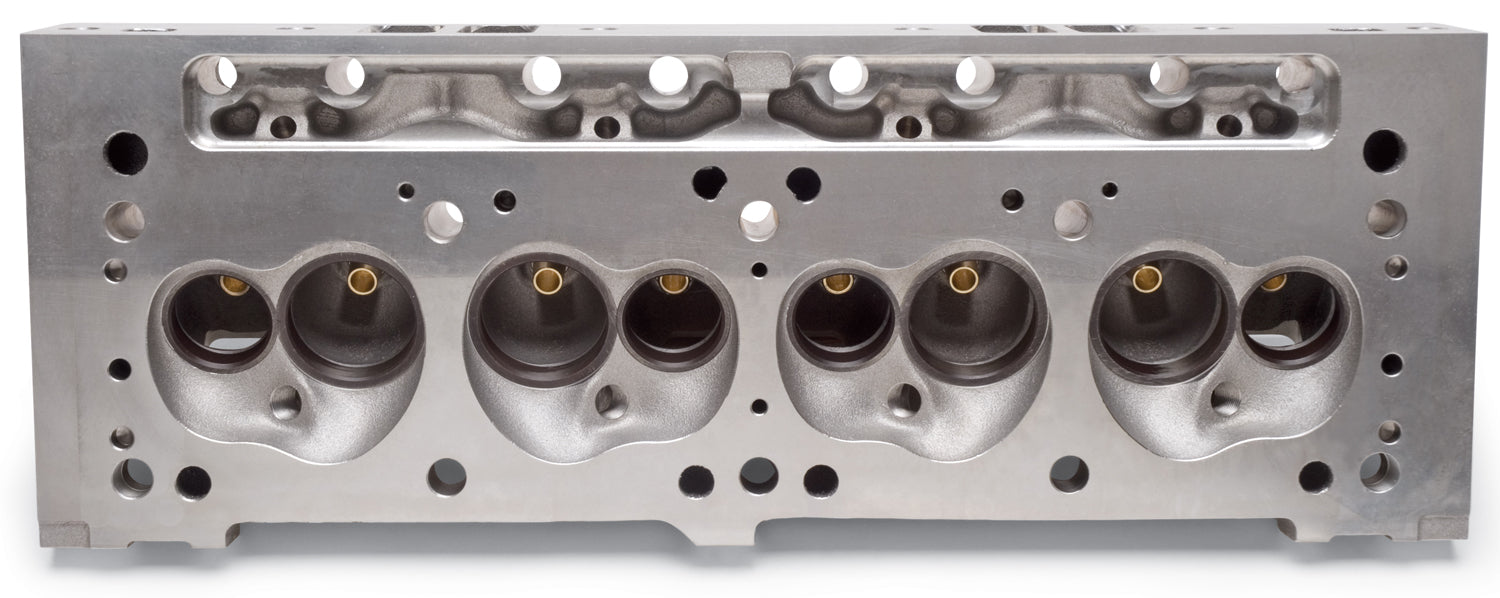

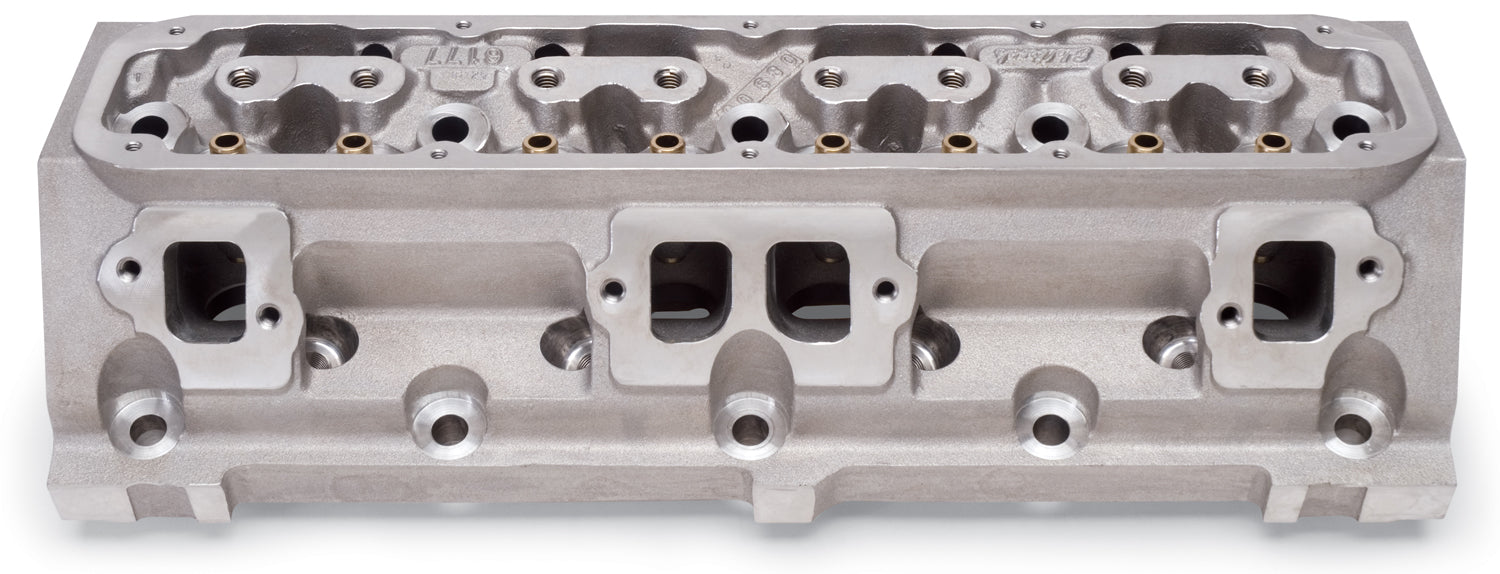

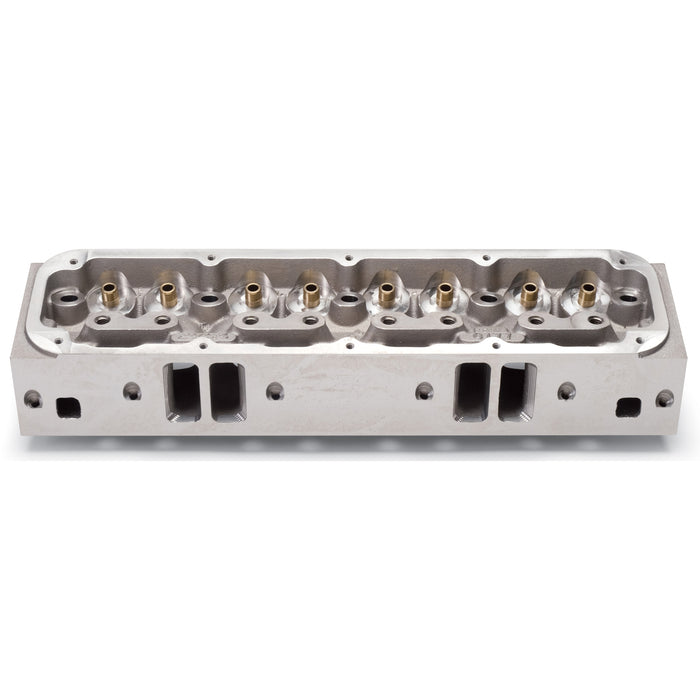

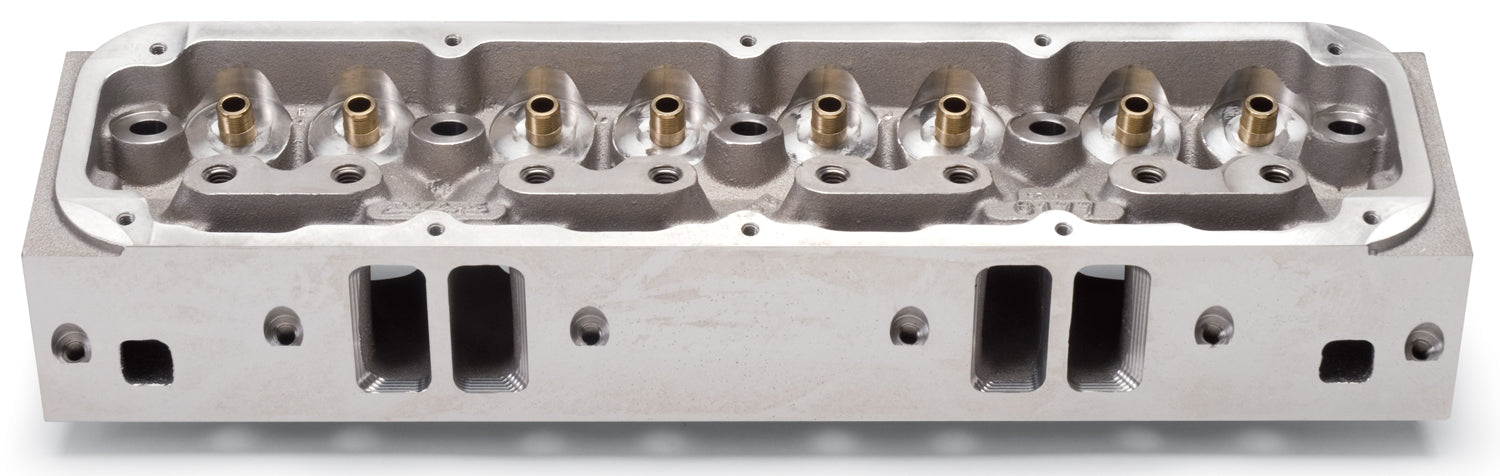

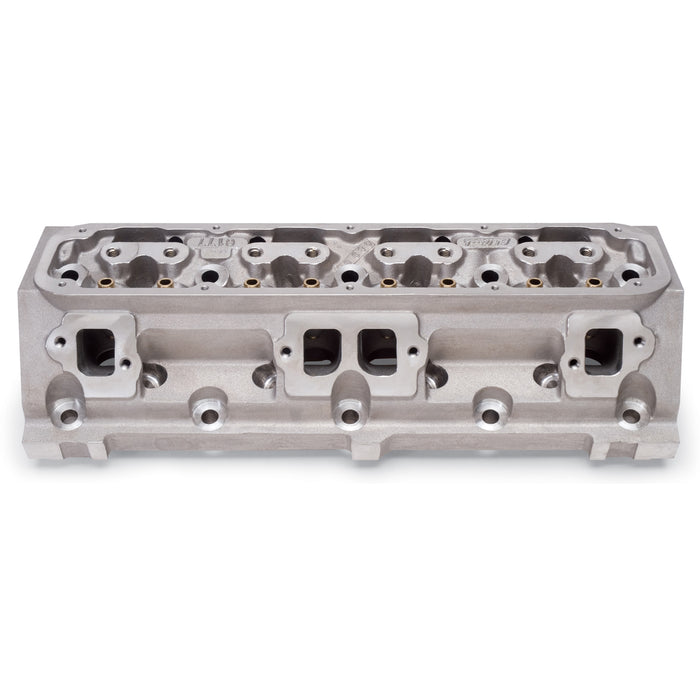

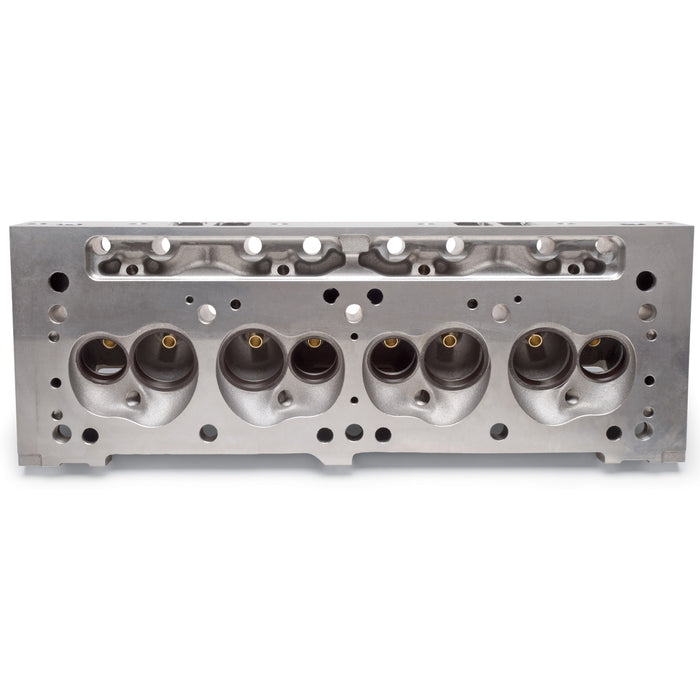

The Edelbrock #60769 Performer RPM Bare cylinder head is designed for use with non-emission 1968-91 Chrysler 318-340-360 c.i.d. engine applications. The Edelbrock #60769 Performer RPM head is perfect for street performance, daily drivers, street rods and muscle cars where seat-of-the-pants performance is needed. This cylinder head delivers great throttle response and power from 1500 to 6500 rpm. For use on pre-pollution controlled vehicles only.
Specifications
| CNC Ported | No |
| Combustion Chamber Volume | 63 |
| Construction Type | Bare |
| Deck Thickness | 0.625 |
| Description_ABR | Cyl. Head |
| Description_ASM | Chrysler:Small-Block:273 (4.5L)/318 (5.2L)/340 (5.6L)/360 (5.9L) |
| Description_DEF | Engine Cylinder Head |
| Description_DES | CYLINDER HEAD |
| Description_EXT | The Edelbrock #60769 Performer RPM Bare cylinder heads are designed for use with non-emission 1968-91 Chrysler 318-340-360 engines. These are perfect for street performance, daily drivers and muscle cars where more performance is needed. |
| Description_EXT | The Edelbrock #60769 Performer RPM Bare cylinder heads are designed for use with non-emission 1968-91 Chrysler 318-340-360 engines. These are perfect for street performance; daily drivers and muscle cars where more performance is needed. |
| Description_FAB | CNC-Matched Intake/Exhaust Ports in Std Location |
| Description_FAB | Hand-Blended Intake and Exhaust Bowls |
| Description_FAB | Out-of-the-Box Bolt-On Performance |
| Description_FAB | Thicker Deck Surfaces Than Other Brands |
| Description_INV | Edelbrock SB Chrysler Cylinder Head |
| Description_KEY | Edelbrock; Small Block Chrysler; 318; 340; 360; V8; Cylinder Heads; 60769; Flat Tappet |
| Description_LAB | RPM Small-Block Chrysler LA Cylinder Head Bare |
| Description_MKT | The Edelbrock #60769 Performer RPM Bare cylinder head is designed for use with non-emission 1968-91 Chrysler 318-340-360 c.i.d. engine applications. The Edelbrock #60769 Performer RPM head is perfect for street performance, daily drivers, street rods and muscle cars where seat-of-the-pants performance is needed. This cylinder head delivers great throttle response and power from 1500 to 6500 rpm. For use on pre-pollution controlled vehicles only. |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 5in.} |
| Description_TRA | Bare heads will have valve guides and seats installed, but will require final sizing and a valve job to match the valves you will be using. |
| Description_TRA | Deck thickness: 5/8" |
| Description_TRA | Delivers outstanding performance in non-emission 1967-91 Chrysler 318-340-360 c.i.d. engines |
| Description_TRA | Make 417 horsepower and 397 ft-lbs. of torque on pump gas with an Edelbrock Performer RPM intake manifold and matching camshaft |
| Description_TRA | Pushrod diameter: 5/16" |
| Description_TRA | Recommended spark plugs are Champion RC12YC or equivalent 14mm x 3/4" reach with flat gasket seat. |
| Description_TRA | The special valvetrain in the 1970 340 T/A is not compatible with these cylinder heads. Match with Edelbrock head gasket sets. |
| Description_TRA | • Bare heads will have valve guides and seats installed; but will require final sizing and a valve job to match the valves you will be using. • Delivers outstanding performance in non-emission 1967-91 Chrysler 318-340-360 c.i.d. engines • Make 417 horsepower and 397 ft-lbs. of torque on pump gas with an Edelbrock Performer RPM intake manifold and matching camshaft • The special valvetrain in the 1970 340 T/A is not compatible with these cylinder heads. Match with Edelbrock head gasket sets. • Recommended spark plugs are Champion RC12YC or equivalent 14mm x 3/4in. reach with flat gasket seat. • Deck thickness: 5/8in. • Pushrod diameter: 5/16in. |
| EGR Port | No |
| Exhaust Port Location | Standard |
| Exhaust Runner Volume | 63 |
| Family | Performer RPM |
| Grade Type | Performance |
| Guide Material | Manganese Bronze |
| Guide Plates Included | No |
| Head Casting Number | N/A |
| height | 8.6 |
| Intake Runner Volume | 171 |
| length | 26.0 |
| LTL | N |
| Material | Aluminum |
| Quantity | Sold Individually |
| Retainer Included | No |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Seat Angle | Exhaust 45 deg/Intake 45 |
| Seat Material | Ductile Iron |
| Series | Performer RPM |
| Valve Angle | 18 |
| Valve Included | No |
| Valve Springs Included | No |
| weight | 27.45 |
| width | 11.0 |
