Description

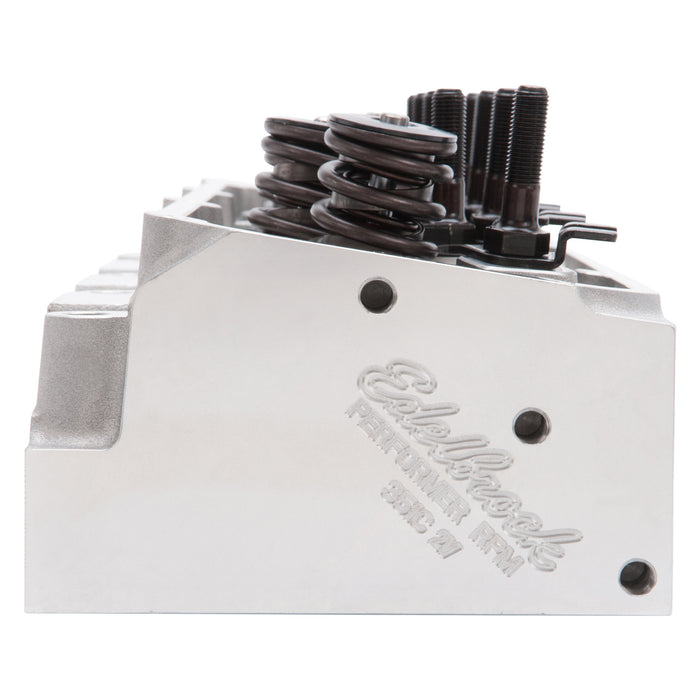

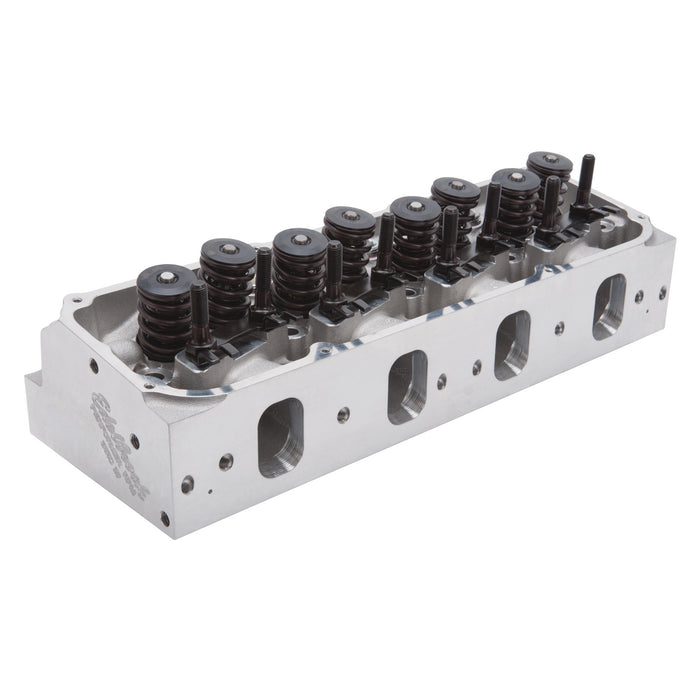

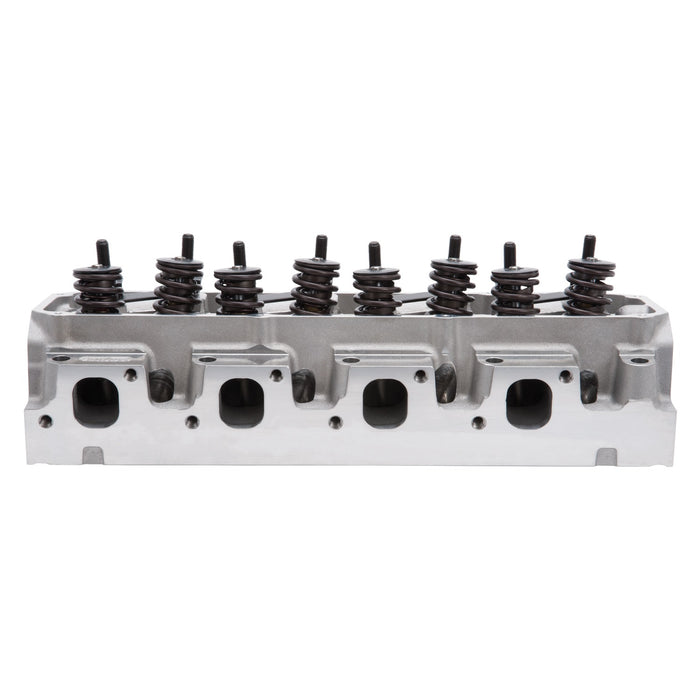

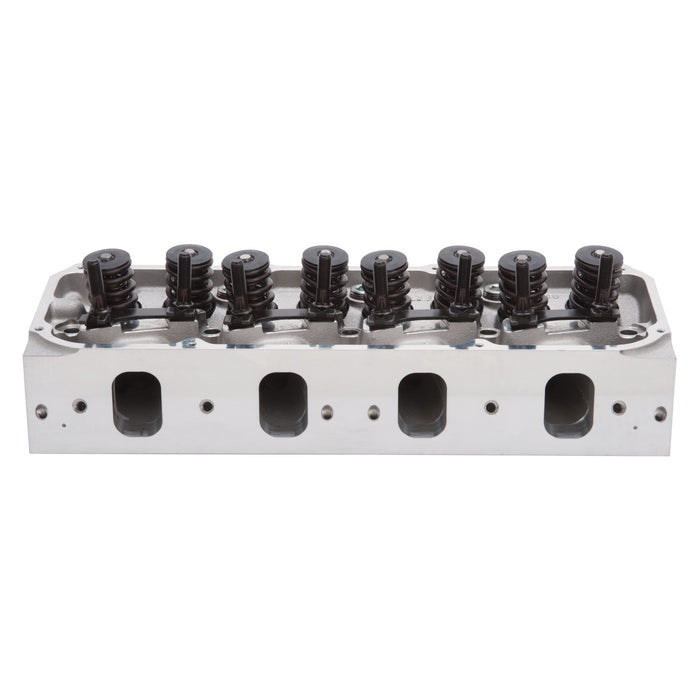

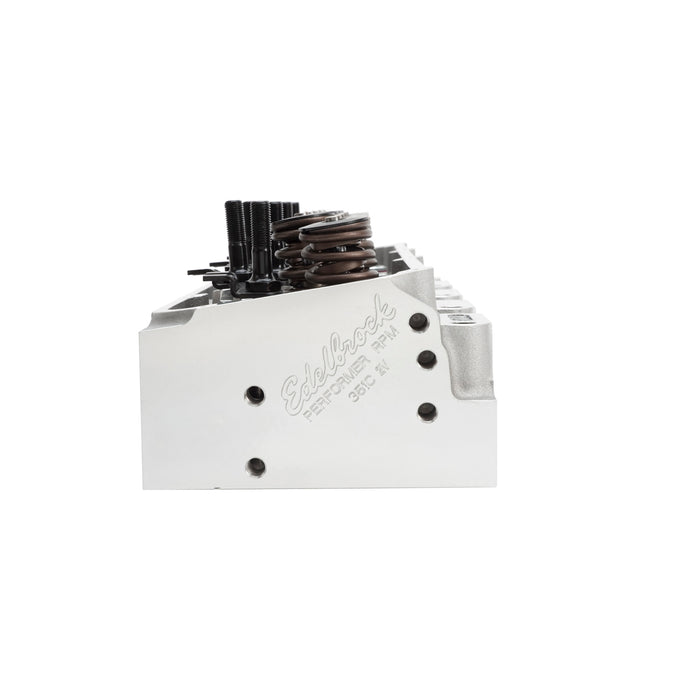

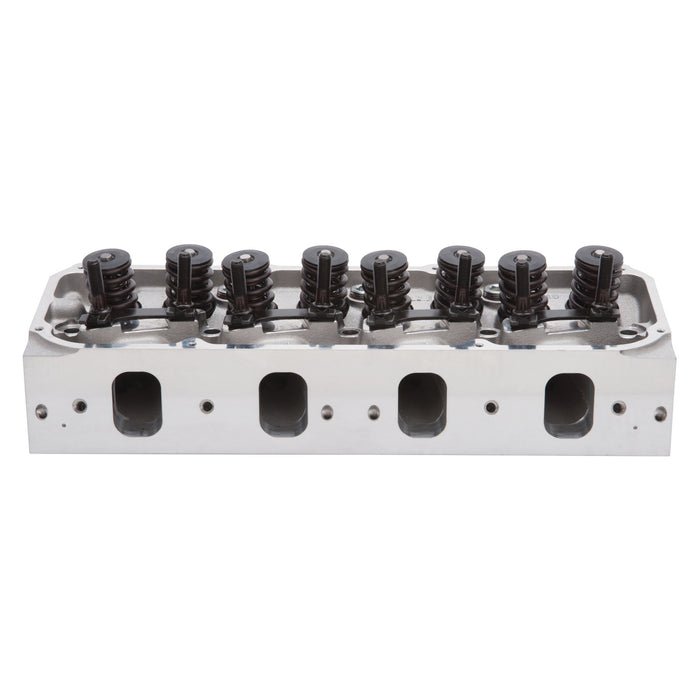

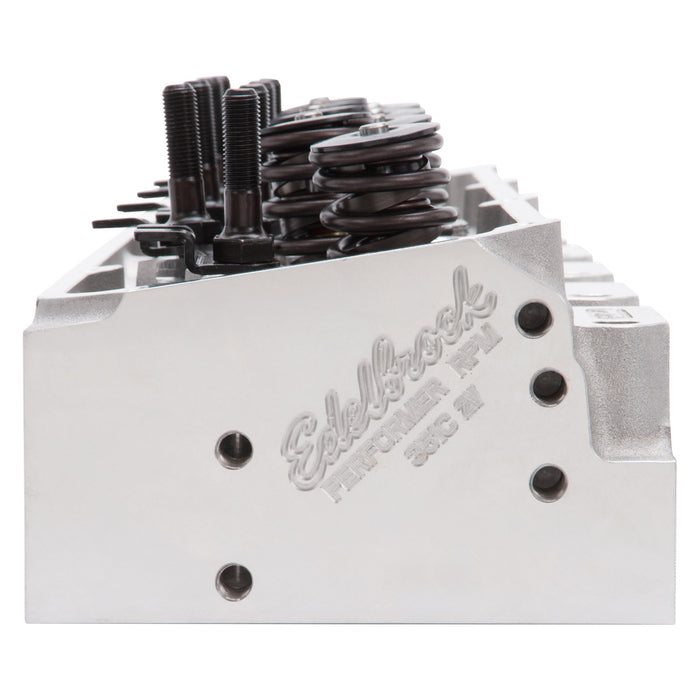

The Edelbrock #61625 Performer RPM cylinder head is designed for use with 351C, 351M & 400M Ford engine applications. The Edelbrock #61625 Performer RPM head is perfect for street performance, daily drivers, street rods and muscle cars where seat-of-the-pants performance is needed. This cylinder head delivers great throttle response and power from 1500 to 6500 rpm. They also feature the highest quality intake and exhaust valves and valve springs. For use on pre-pollution controlled vehicles only.
Specifications
| Camshaft Type | Hydraulic Roller |
| CNC Ported | No |
| Combustion Chamber Volume | 60 |
| Construction Type | Complete |
| Deck Thickness | 0.625 |
| Description_ABR | Cyl. Head |
| Description_ASM | Ford:Small-Block Cleveland:351 (5.8L) |
| Description_DEF | Engine Cylinder Head |
| Description_DES | CYLINDER HEAD |
| Description_EXT | Edelbrock part #61625 Performer RPM cylinder heads are designed for use with 351C, 351M & 400M Ford engine applications. |
| Description_EXT | Edelbrock part #61625 Performer RPM cylinder heads are designed for use with 351C; 351M 400M Ford engine applications. |
| Description_FAB | Maximum Performance From Idle through Mid-Range |
| Description_FAB | Out-of-the-Box Bolt-On Performance |
| Description_INV | Edelbrock SBF Cleveland Cylinder Head |
| Description_KEY | Edelbrock; SBF; Head; 351c; Cleveland; Cylinder Head; Hydraulic Roller Cam; Made In The USA;T-6; V8; Cylinder Heads; 61625 |
| Description_LAB | RPM Small-Block Ford 351 Cleveland Cylinder Head Hydraulic Roller Cam |
| Description_MKT | The Edelbrock #61625 Performer RPM cylinder head is designed for use with 351C, 351M & 400M Ford engine applications. The Edelbrock #61625 Performer RPM head is perfect for street performance, daily drivers, street rods and muscle cars where seat-of-the-pants performance is needed. This cylinder head delivers great throttle response and power from 1500 to 6500 rpm. They also feature the highest quality intake and exhaust valves and valve springs. For use on pre-pollution controlled vehicles only. |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 7in.} |

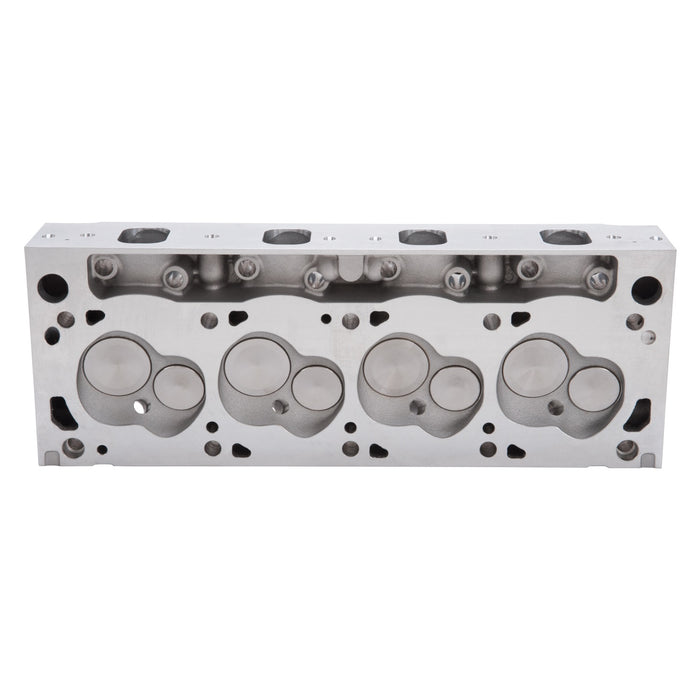

| Description_TRA | "Compact charge" kidney shape combustion chamber design |
| Description_TRA | 2.05" intake and 1.60" exhaust valves |
| Description_TRA | Bare heads will have valve guides and seats installed, but will require final sizing and a valve job to match the valves you will be using. |
| Description_TRA | Deck thickness: 5/8" |
| Description_TRA | EQUIPPED WITH SPRINGS FOR USE IN HYDRAULIC ROLLER CAMSHAFT APPLICATIONS |
| Description_TRA | Intake and exhaust ports based on 2V design |
| Description_TRA | Match with Edelbrock head gasket sets. |
| Description_TRA | Match with Edelbrock RPM Air-Gap manifold #7564 |
| Description_TRA | Optimized spark plug location provides improved header clearance |
| Description_TRA | Pushrod diameter: 5/16" (width of slot in guide plate). |
| Description_TRA | Recommended spark plugs 14mm x 3/4" reach with flat gasket seat (Champion RC12YC). |
| Description_TRA | Rocker stud diameter: 7/16" |
| Description_TRA | Valve sizes are recommended, not maximum. |
| Description_TRA | Very streetable 190cc intake runners |
| Description_TRA | • Match with Edelbrock head gasket sets. • Bare heads will have valve guides and seats installed; but will require final sizing and a valve job to match the valves you will be using. • Recommended spark plugs 14mm x 3/4in. reach with flat gasket seat (Champion RC12YC). • Deck thickness: 5/8in. • Rocker stud diameter: 7/16in. • Pushrod diameter: 5/16in. (width of slot in guide plate). • Valve sizes are recommended; not maximum. • EQUIPPED WITH SPRINGS FOR USE IN HYDRAULIC ROLLER CAMSHAFT APPLICATIONS • Very streetable 190cc intake runners • 2.05in. intake and 1.60in. exhaust valves • Compact charge kidney shape combustion chamber design • Intake and exhaust ports based on 2V design • Optimized spark plug location provides improved header clearance • Match with Edelbrock RPM Air-Gap manifold #7564 |
| EGR Port | No |
| Exhaust Port Location | Standard |
| Exhaust Runner Volume | 90 |
| Exhaust Valve Diameter | 1.60 |
| Family | Performer RPM |
| Grade Type | Performance |
| Guide Material | Manganese Bronze |
| Guide Plate Material | Hardened Steel |
| Guide Plates Included | Yes |
| Head Casting Number | N/A |
| height | 9.0 |
| Horsepower | 350-500 |
| Intake Runner Volume | 190 |
| Intake Valve Diameter | 2.05 |
| length | 26.0 |
| LTL | N |
| Material | Aluminum |
| Push Rod Diameter | (Suggested) 0.3125 |
| Quantity | Sold Individually |
| Retainer Included | Yes |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Seat Angle | Exhaust 45 deg/Intake 45 |
| Seat Material | Ductile Iron |
| Series | Performer RPM |
| Valve Angle | 9.5 |
| Valve Included | Yes |
| Valve Spring Diameter | 1.55 |
| Valve Spring Maximum Lift | 0.580 |
| Valve Springs Included | Yes |
| Valve Stem Diameter | 0.3438 |
| weight | 35.4 |
| width | 11.0 |
