Description

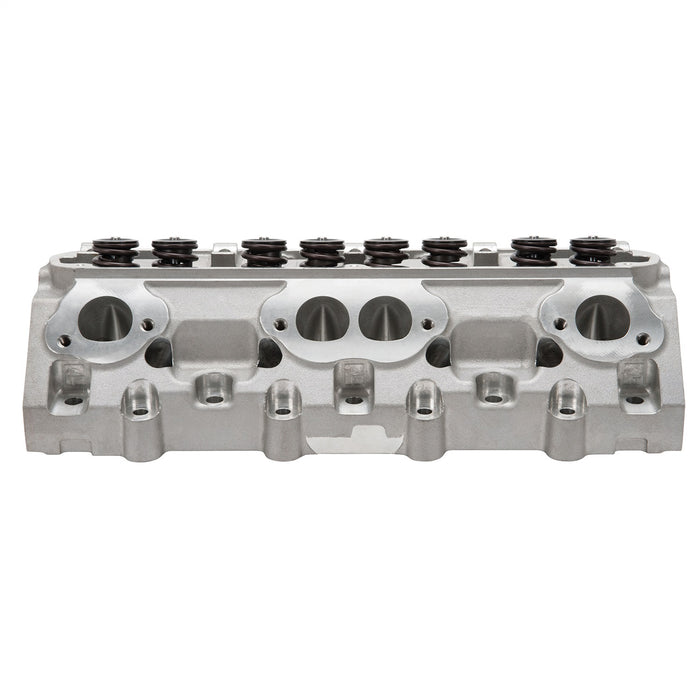

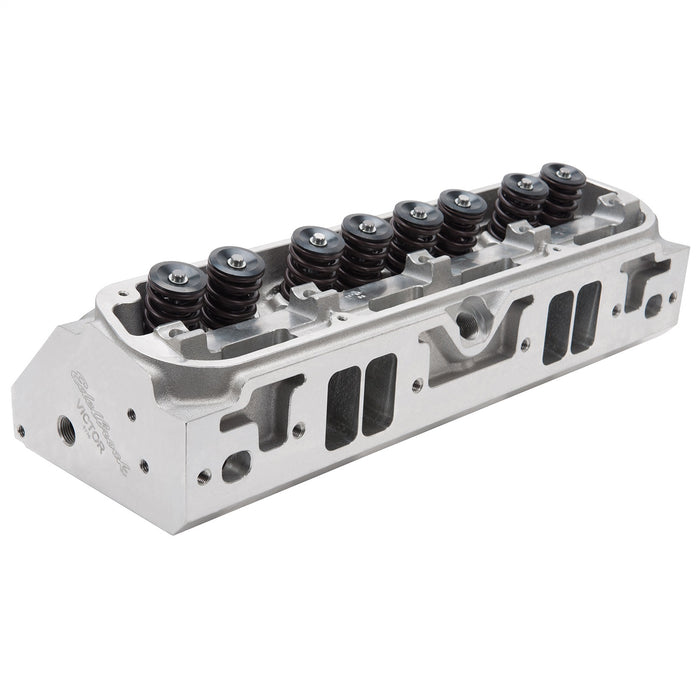

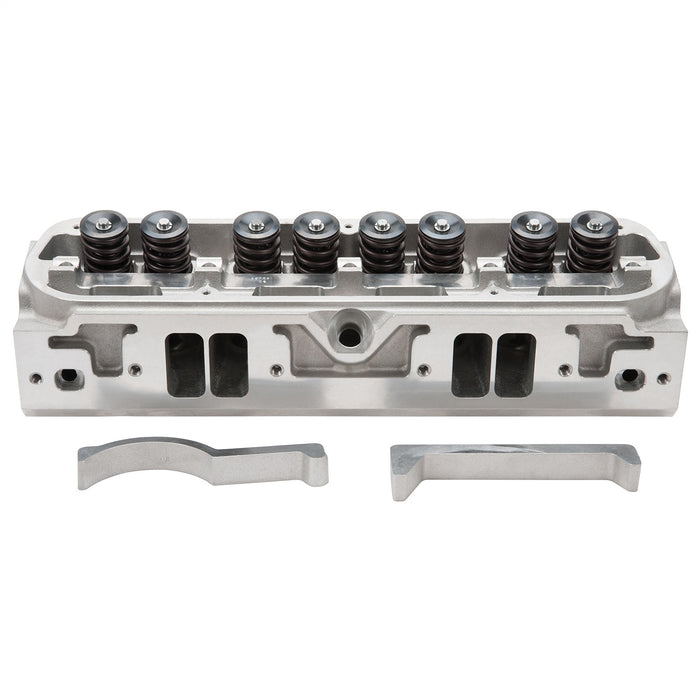

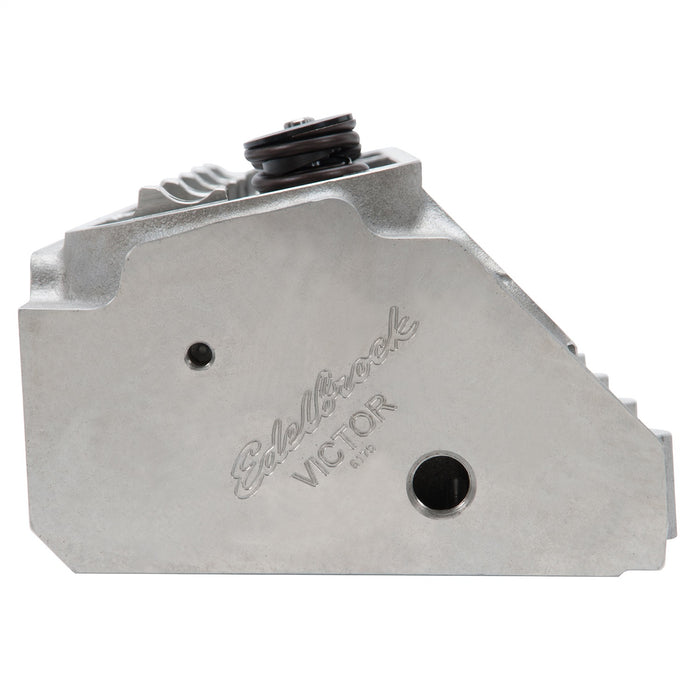

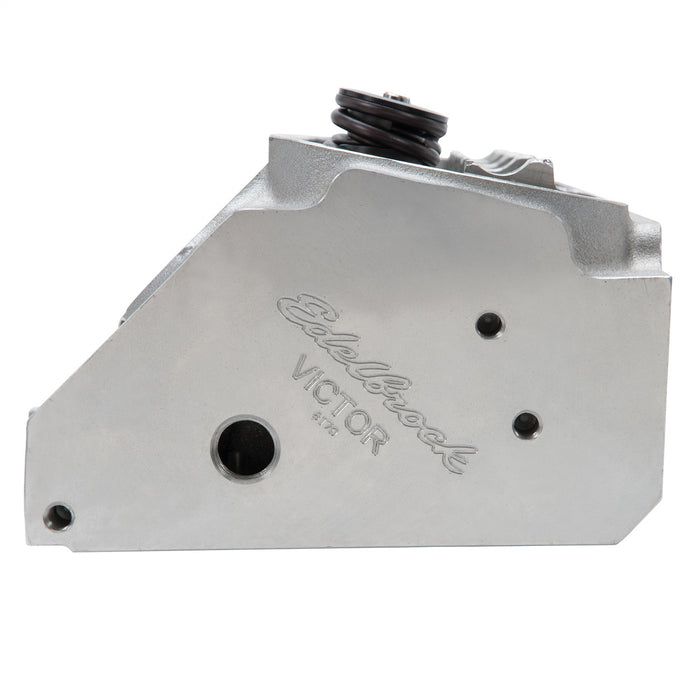

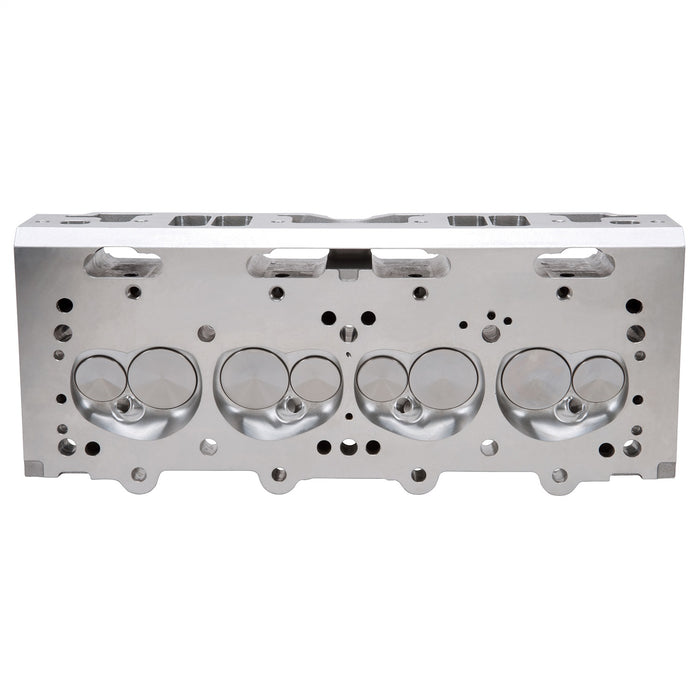

These Edelbrock #61729 Victor Series cylinder head is for use on 1967-1991, 318-360 c.i.d. Chrysler LA engines. They feature fully CNC ported 58cc combustion chambers and have an intake port volume of 225cc. This cylinder head is an in-line valve design incorporating a 16deg valve angle (stock is 18deg) for improved air flow and increased power levels over heavily ported stock versions. They also feature the Chrysler W5 bolt pattern and have raised exhaust ports. The intake port has also been raised approximately 3/4" and the flange has also been extended to accommodate a stock (race) intake manifold such as our Super Victor #2815. Finally, a 5.56" overall length valve (+0.600" from stock) and raised rocker cover permit larger port cross-sections than in the stock head. Four versions are available; bare, bare with valves, complete (for hydraulic/flat tappet cams and solid roller cams) and Pro Port Raw. End-seal spacers are provided.
Specifications
| Camshaft Type | Solid Roller |
| CNC Ported | No |
| Combustion Chamber Volume | 60 |
| Construction Type | Complete |
| Cylinder Head Type | 16 Degree |
| Deck Thickness | 0.625 |
| Description_ABR | Cyl. Head |
| Description_ASM | Chrysler:Small-Block:273 (4.5L)/318 (5.2L)/340 (5.6L)/360 (5.9L) |
| Description_DEF | Engine Cylinder Head |
| Description_DES | CYLINDER HEAD |
| Description_EXT | Edelbrock part #61729 Victor Series cylinder heads are for use on 1967-1991, 318-360 c.i.d. Chrysler LA engines. They feature fully CNC ported 58cc combustion chambers and have an intake port volume of 225cc. |
| Description_EXT | Edelbrock part #61729 Victor Series cylinder heads are for use on 1967-1991; 318-360 c.i.d. Chrysler LA engines. They feature fully CNC ported 58cc combustion chambers and have an intake port volume of 225cc. |
| Description_FAB | Cast With Extra Material In The Ports And Chambers |
| Description_FAB | Fully Race-Oriented Designed |
| Description_FAB | HIP Processed For Improved Quality And Strength |
| Description_FAB | Raised Exhaust Ports To Improve Flow Efficiency |
| Description_FAB | Supplied w/Reamed/Semi Finished Valve Stems Guides |
| Description_FAB | Works With Existing Edelbrock NASCAR SB2 Manifold |
| Description_INV | Edelbrock SB Chrysler Cylinder Head |
| Description_KEY | Edelbrock; SBC; Small Block Chevy; Head; 350; 327; 400; V8; Cylinder Heads; 61729 |
| Description_LAB | Victor Small-Block Chrysler Cylinder Head W/ Solid Roller Camshaft |
| Description_LAB | Victor Small-Block Chrysler Cylinder Head W/Solid Roller Camshaft |
| Description_MKT | bare, bare with valves, complete (for hydraulic/flat tappet cams and solid roller cams) and Pro Port Raw. End-seal spacers are provided. |
| Description_MKT | These Edelbrock #61729 Victor Series cylinder head is for use on 1967-1991, 318-360 c.i.d. Chrysler LA engines. They feature fully CNC ported 58cc combustion chambers and have an intake port volume of 225cc. This cylinder head is an in-line valve design incorporating a 16deg valve angle (stock is 18deg) for improved air flow and increased power levels over heavily ported stock versions. They also feature the Chrysler W5 bolt pattern and have raised exhaust ports. The intake port has also been raised approximately 3/4" and the flange has also been extended to accommodate a stock (race) intake manifold such as our Super Victor #2815. Finally, a 5.56" overall length valve (+0.600" from stock) and raised rocker cover permit larger port cross-sections than in the stock head. Four versions are available |
| Description_MKT | These Edelbrock #61729 Victor Series cylinder head is for use on 1967-1991, 318-360 c.i.d. Chrysler LA engines. They feature fully CNC ported 58cc combustion chambers and have an intake port volume of 225cc. This cylinder head is an in-line valve design incorporating a 16deg valve angle (stock is 18deg) for improved air flow and increased power levels over heavily ported stock versions. They also feature the Chrysler W5 bolt pattern and have raised exhaust ports. The intake port has also been raised approximately 3/4" and the flange has also been extended to accommodate a stock (race) intake manifold such as our Super Victor #2815. Finally, a 5.56" overall length valve (+0.600" from stock) and raised rocker cover permit larger port cross-sections than in the stock head. Four versions are available; bare, bare with valves, complete (for hydraulic/flat tappet cams and solid roller cams) and Pro Port Raw. End-seal spacers are provided. |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 2in.} |
| Description_TRA | EQUIPPED WITH SPRINGS FOR USE IN HYDRAULIC ROLLER CAMSHAFT APPLICATIONS |
| Description_TRA | These heads are designed to accommodate stock Big Block Mopar Wedge Rocker arm assemblies (.150" minimum intake offset). |
| Description_TRA | • EQUIPPED WITH SPRINGS FOR USE IN HYDRAULIC ROLLER CAMSHAFT APPLICATIONS • These heads are designed to accommodate stock Big Block Mopar Wedge Rocker arm assemblies (.150in. minimum intake offset). |
| EGR Port | No |
| Emission | Non-Emissions |
| Engine Make/Size | Mopar 318-360 |
| Exhaust Port Location | +.500 |
| Exhaust Runner Volume | 62 |
| Exhaust Valve Diameter | 1.60 |
| Family | Victor |
| finish | Satin |
| Grade Type | Performance |
| Guide Material | Manganese Bronze |
| Guide Plate Material | Hardened Steel |
| Guide Plates Included | No |
| Head Casting Number | N/A |
| height | 7.19 |
| Horsepower | 500-650 |
| Intake Runner Volume | 225 |
| Intake Valve Diameter | 2.15 |
| length | 22.19 |
| LTL | N |
| Material | Aluminum |
| Preparation | Bolt On (Not Required) |
| Quantity | Sold Individually |
| Retainer Included | Yes |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Seat Angle | Exhaust 45 deg/Intake 45 |
| Seat Material | Ductile Iron |
| Series | Victor |
| Type | Complete |
| Usage | Racing |
| Valve Angle | 16 |
| Valve Included | Yes |
| Valve Spring Diameter | 1.55 |
| Valve Spring Maximum Lift | 0.670 |
| Valve Springs Included | Yes |
| Valve Stem Diameter | 0.3438 |
| WARNING CA Proposition 65 | Yes |
| WARNING CA Proposition 65 Message | WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov. |
| weight | 50.0 |
| width | 10.12 |
