Availability:
Only 4 left!
Edelbrock 61779 { Sellable : Yes }
by Edelbrock
SKU ds_BDVJ_61779
Proudly Canadian
Albertan Owned
Secure Payments
Financing Available
Trusted Brands
Top-Quality Suppliers
Original price
$1,669.96
-
Original price
$1,669.96
Original price
$1,669.96
$1,669.96
$1,669.96
-
$1,669.96
Current price
$1,669.96
Description

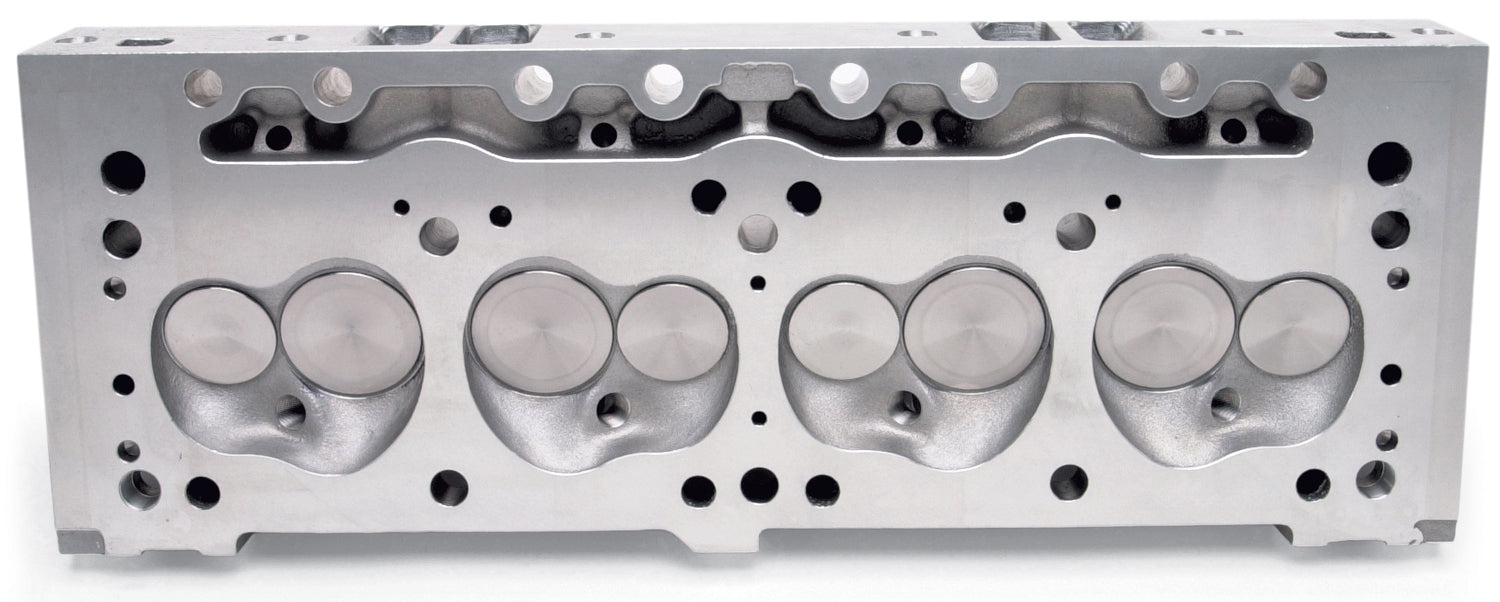

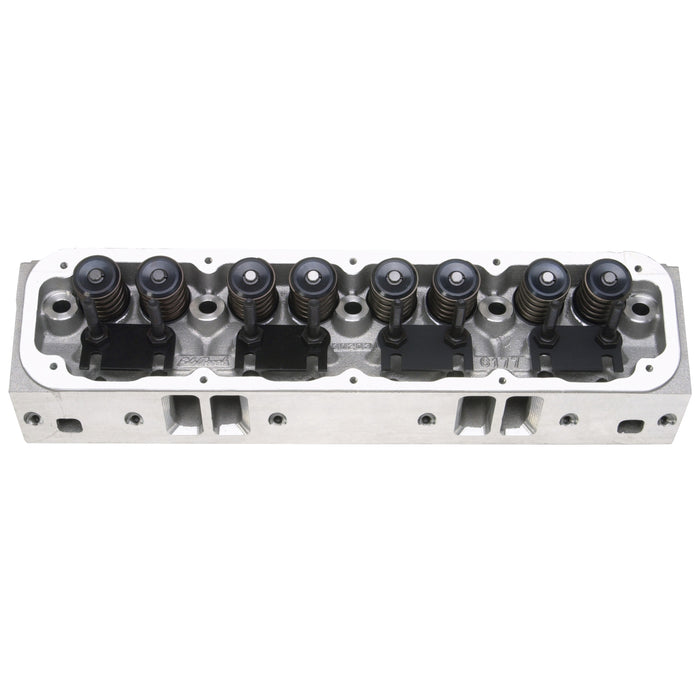

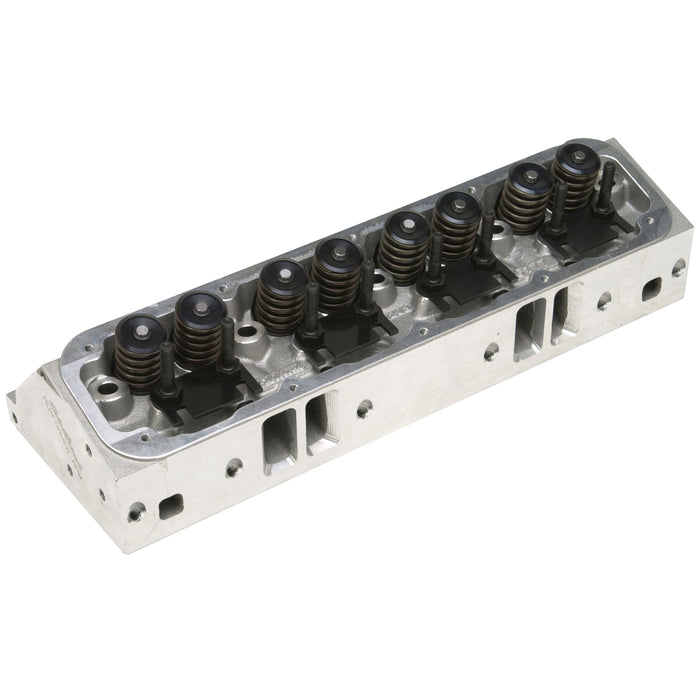

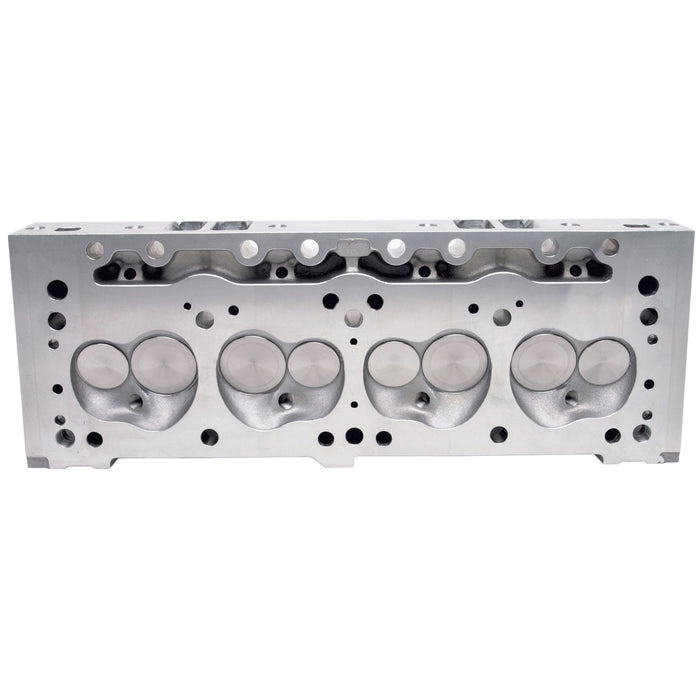

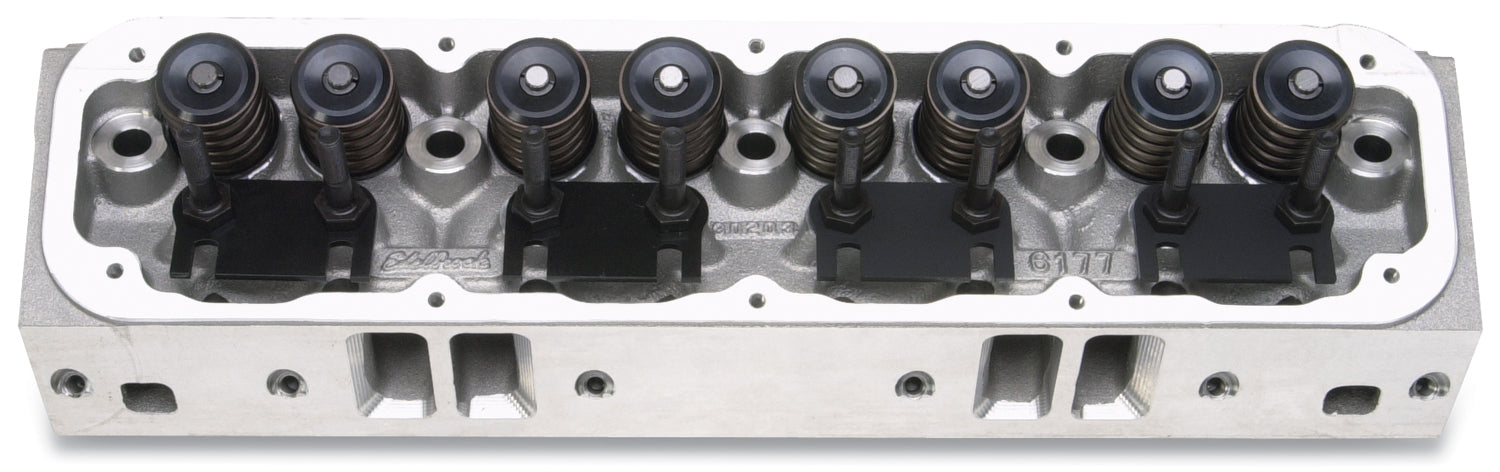

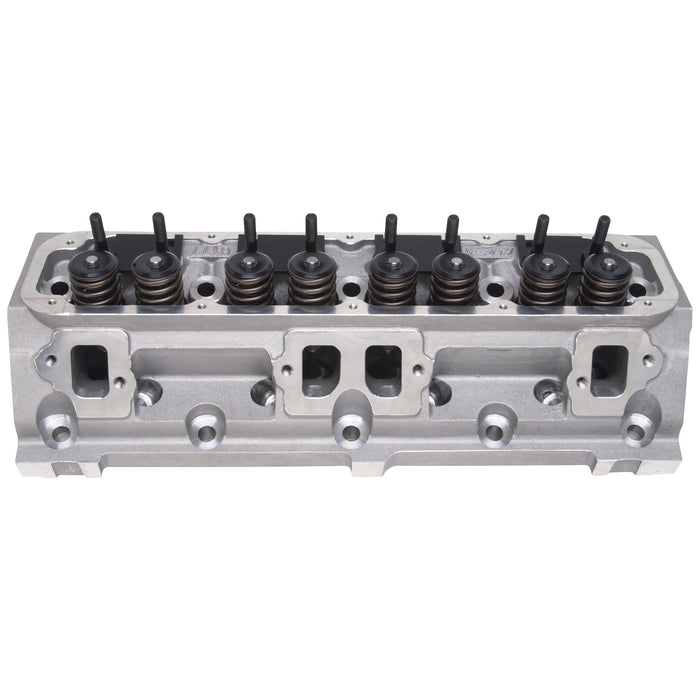

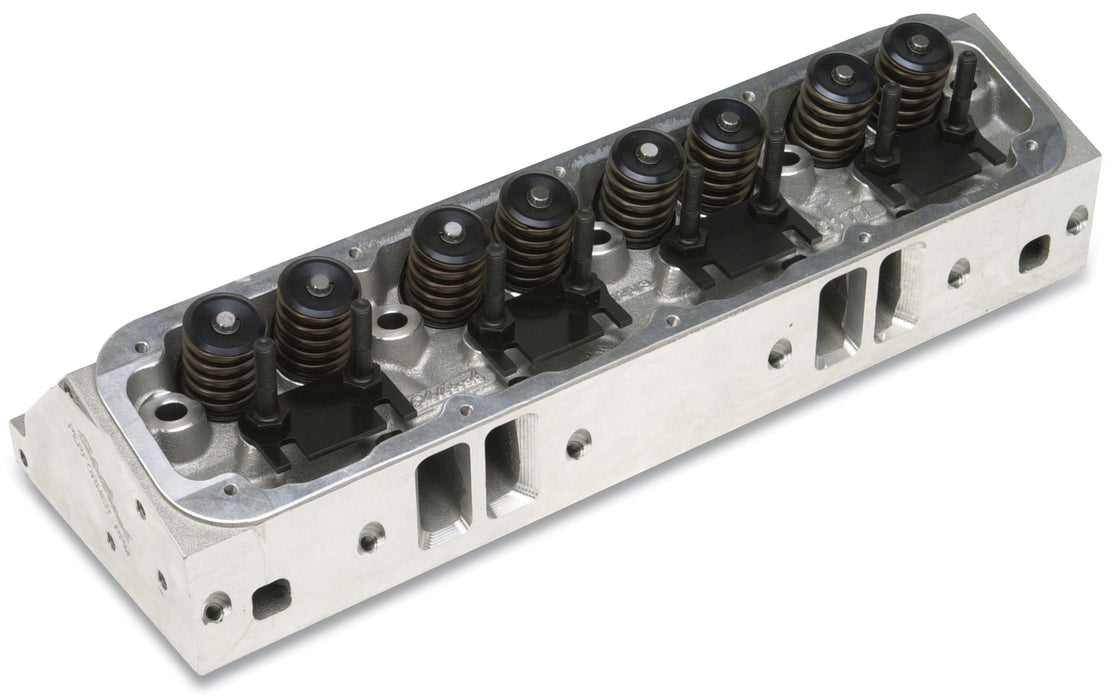

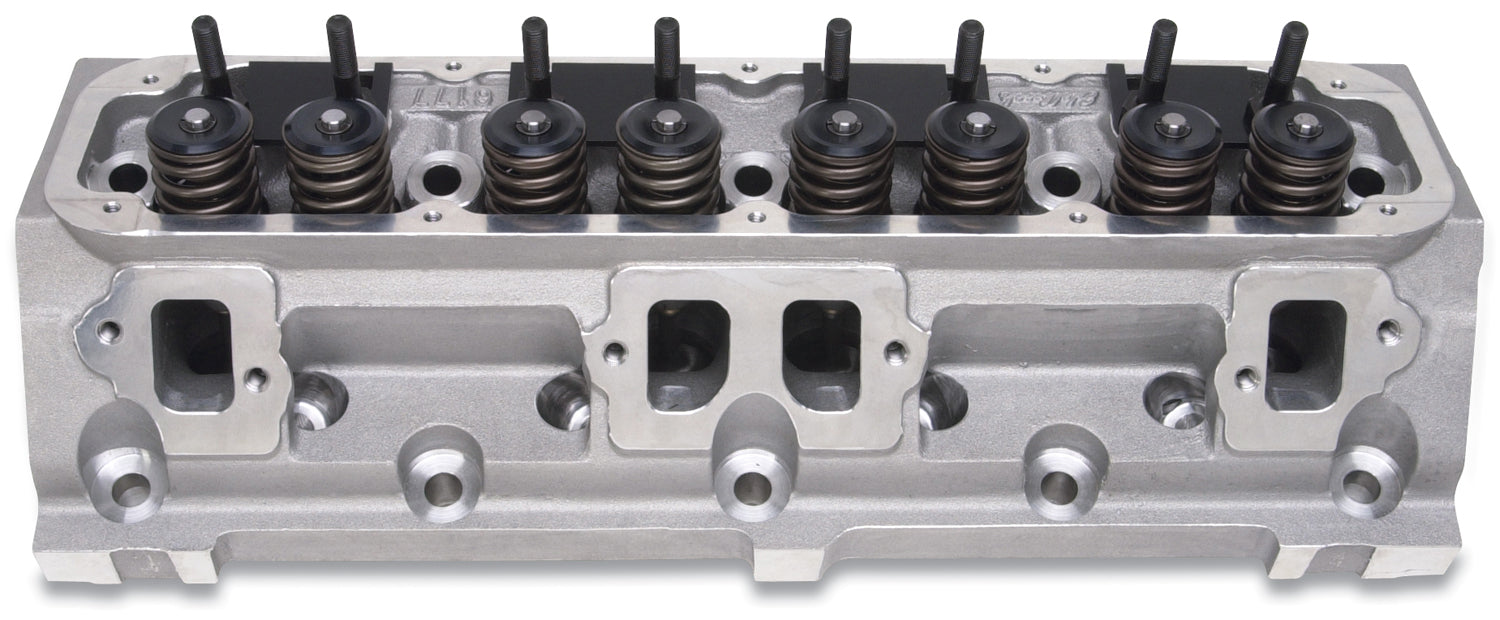

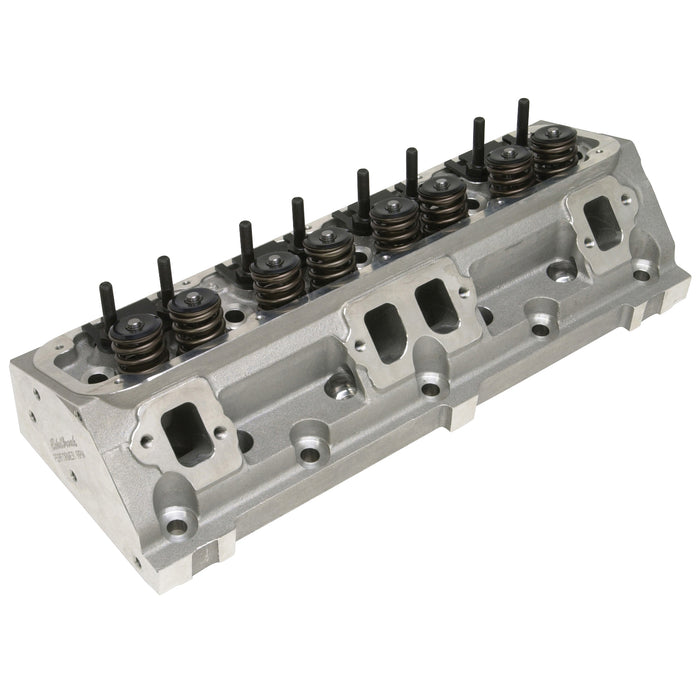

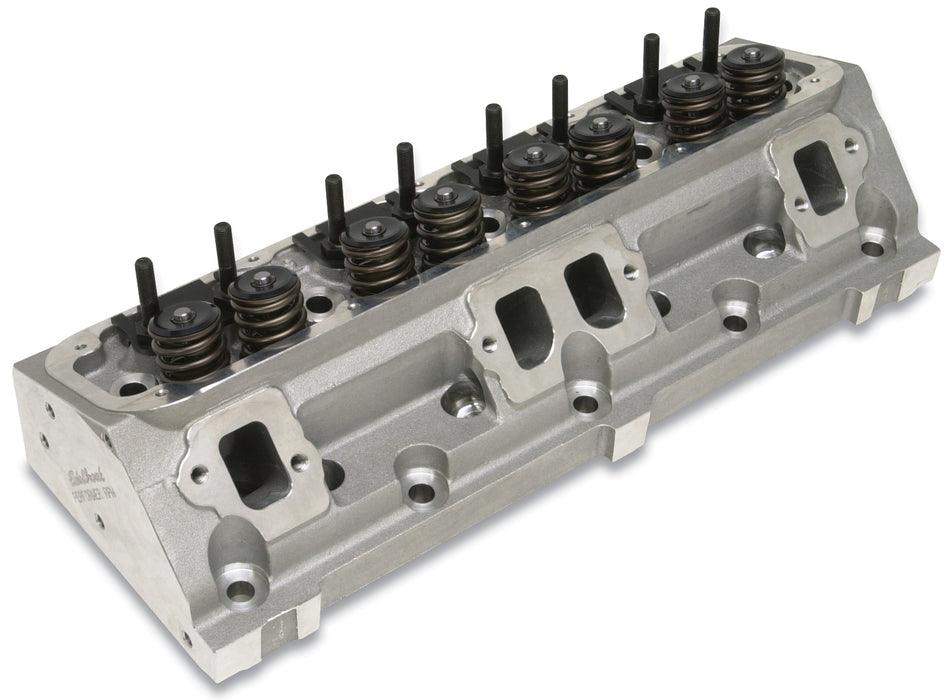

The Edelbrock #61779 Performer RPM cylinder head is designed for use with 1992 & later 5.2L (318 c.i.d.) and 1993 & later 5.9L (360 c.i.d.) Chrysler Magnum style V8 applications. The Edelbrock #61779 Performer RPM head is perfect for street performance, daily drivers, street rods and muscle cars where seat-of-the-pants performance is needed. This cylinder head delivers great throttle response and power from 1500 to 6500 rpm. They also feature the highest quality intake and exhaust valves and valve springs. For use on pre-pollution controlled vehicles only.
Specifications
| Camshaft Type | Flat Tappet |
| CNC Ported | No |
| Combustion Chamber Volume | 58 |
| Construction Type | Complete |
| Cylinder Head Type | Standard |
| Deck Thickness | 0.625 |
| Description_ABR | Cyl. Head |
| Description_ASM | Chrysler:Small-Block:273 (4.5L)/318 (5.2L)/340 (5.6L)/360 (5.9L) |
| Description_DEF | Engine Cylinder Head |
| Description_DES | CYLINDER HEAD |
| Description_EXT | Edelbrock part #61779 Performer RPM cylinder heads are designed for use with 1992 & later 5.2L (318 c.i.d.) and 1993 & later 5.9L (360 c.i.d.) Chrysler Magnum style V8 applications. |
| Description_EXT | Edelbrock part #61779 Performer RPM cylinder heads are designed for use with 1992 later 5.2L (318 c.i.d.) and 1993 later 5.9L (360 c.i.d.) Chrysler Magnum style V8 applications. |
| Description_FAB | For Bare Version of This Head Use PN[61769] |
| Description_FAB | Must Use Adjustable Aftermarket Rocker Arms |
| Description_FAB | Not For Emission Controlled Applications |
| Description_FAB | Out-of-the-Box Bolt-On Performance |
| Description_FAB | Requires Hardened Push Rods |
| Description_FAB | Stock Magnum Intake/Exhaust Flange/Port Locations |
| Description_FAB | Uses 2.02 in. Intake / 1.60 in. Exhaust Valves |
| Description_INV | Edelbrock SB Chrysler Cylinder Head |
| Description_KEY | Edelbrock; SBC; Head; Small Block Chevy; V8; Cylinder Heads; 61779; 350; 327; 400 |
| Description_LAB | RPM Small-Block Chrysler Magnum Cylinder Head Hydraulic Flat Tappet |
| Description_MKT | The Edelbrock #61779 Performer RPM cylinder head is designed for use with 1992 & later 5.2L (318 c.i.d.) and 1993 & later 5.9L (360 c.i.d.) Chrysler Magnum style V8 applications. The Edelbrock #61779 Performer RPM head is perfect for street performance, daily drivers, street rods and muscle cars where seat-of-the-pants performance is needed. This cylinder head delivers great throttle response and power from 1500 to 6500 rpm. They also feature the highest quality intake and exhaust valves and valve springs. For use on pre-pollution controlled vehicles only. |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 5in.} |
| Description_TRA | Accepts small-block Chevy adjustable 1.6 ratio rockers and classic valve covers #4177 and #41773 |
| Description_TRA | Cylinder heads exhaust flanges in stock location to allow use of stock exhaust if desired |
| Description_TRA | Deck thickness: 5/8" |
| Description_TRA | EQUIPPED WITH SPRINGS FOR USE IN HYDRAULIC FLAT TAPPET CAMSHAFT APPLICATIONS |
| Description_TRA | Match with Edelbrock head gasket sets. |
| Description_TRA | Match with the Edelbrock RPM Air-Gap Magnum manifold #7577 |
| Description_TRA | Pushrod diameter: 5/16" (width of slot in guide plate). |
| Description_TRA | Recommended spark plugs are Champion RC12YC or equivalent 14mm x 3/4" reach with flat gasket seat. |
| Description_TRA | Requires hardened pushrods, #9638. |
| Description_TRA | Rocker stud diameter: 3/8" |
| Description_TRA | • EQUIPPED WITH SPRINGS FOR USE IN HYDRAULIC FLAT TAPPET CAMSHAFT APPLICATIONS • Match with the Edelbrock RPM Air-Gap Magnum manifold #7577 • Cylinder heads exhaust flanges in stock location to allow use of stock exhaust if desired • Accepts small-block Chevy adjustable 1.6 ratio rockers and classic valve covers #4177 and #41773 • Requires hardened pushrods; #9638. • Match with Edelbrock head gasket sets. • Recommended spark plugs are Champion RC12YC or equivalent 14mm x 3/4in. reach with flat gasket seat. • Deck thickness: 5/8in. • Rocker stud diameter: 3/8in. • Pushrod diameter: 5/16in. (width of slot in guide plate). |
| EGR Port | No |
| Emission | Non-Emissions |
| Engine Make/Size | Mopar 318/360 Magnum |
| Exhaust Port Location | Standard |
| Exhaust Runner Volume | 75 |
| Exhaust Valve Diameter | 1.60 |
| Family | Performer RPM |
| finish | Cast Aluminum |
| Grade Type | Performance |
| Guide Material | Manganese Bronze |
| Guide Plate Material | Hardened Steel |
| Guide Plates Included | Yes |
| Head Casting Number | N/A |
| height | 9.5 |
| Horsepower | 350-500 |
| Intake Runner Volume | 176 |
| Intake Valve Diameter | 2.02 |
| length | 26.0 |
| LTL | N |
| Material | Aluminum |
| Preparation | Bolt On (Not Required) |
| Quantity | Sold Individually |
| Retainer Included | Yes |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Seat Angle | Exhaust 45 deg/Intake 45 |
| Seat Material | Ductile Iron |
| Series | Performer RPM |
| Type | Complete |
| Usage | Street/Performance |
| Valve Angle | 18 |
| Valve Included | Yes |
| Valve Spring Diameter | 1.46 |
| Valve Spring Maximum Lift | 0.580 |
| Valve Springs Included | Yes |
| Valve Stem Diameter | 0.3438 |
| WARNING CA Proposition 65 | Yes |
| WARNING CA Proposition 65 Message | WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov. |
| weight | 32.6 |
| width | 11.0 |
