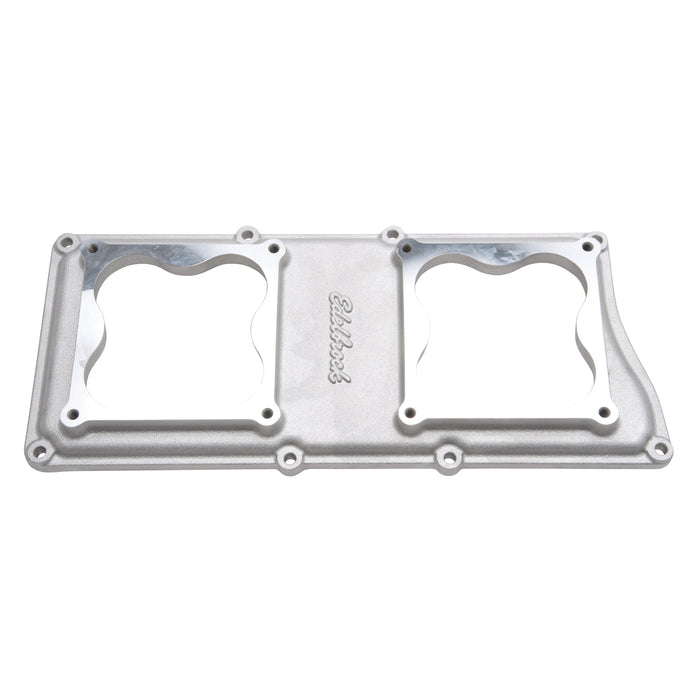

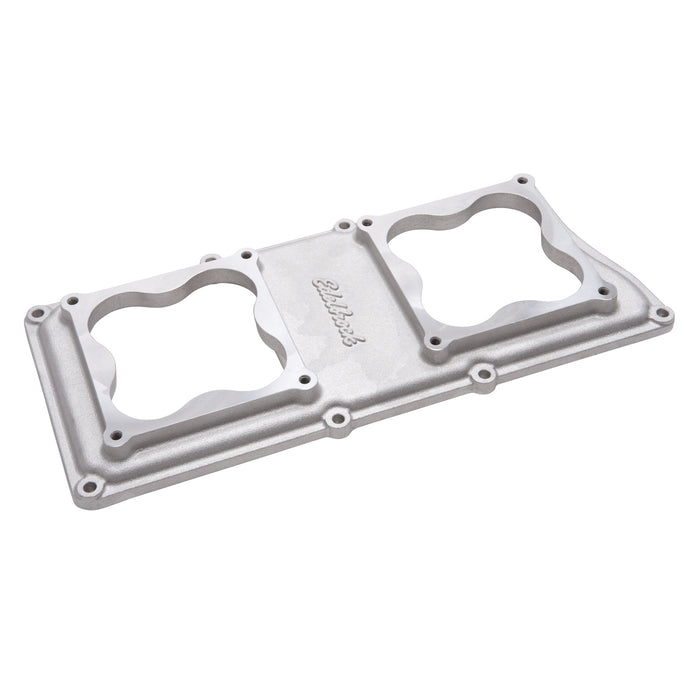

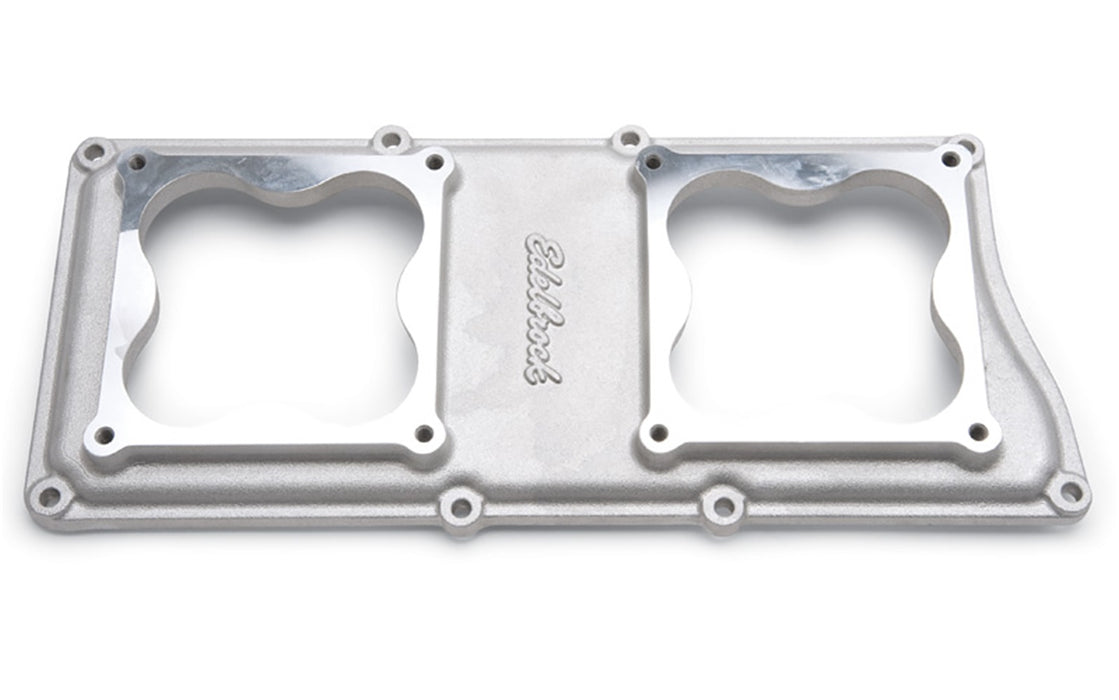

Edelbrock 7086 Edelbrock Tunnel Ram Top Only 2X4 4500 Intake Manifold Big Block Chevy
by Edelbrock
SKU ds_BDVJ_7086
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$399.52
-
Original price
$399.52
Original price
$399.52
$399.52
$399.52
-
$399.52
Current price
$399.52
Description
Edelbrock part #7086 Victor Tunnel Ram top is for use with 4500 series carburetors (mounted in-line) and our Victor Tunnel Ram base manifold only on Big-Block Chevy applications. The Edelbrock Victor Tunnel Ram top also features a natural aluminum finish for a classic look. For the ultimate "Made in USA" quality, every Edelbrock intake manifold is cast and machined in the USA.
Specifications
| Basic Operating RPM Range | 4500-8500 |
| Center Maximum Height | 1.330 |
| CNC Ported | No |
| Color | Satin |
| Description_ABR | Intake Mnfld |
| Description_ASM | Chevrolet:Big-Block Race |
| Description_DEF | Engine Intake Manifold |
| Description_DES | INTAKE MANIFOLD TOP |
| Description_EXT | Edelbrock Tunnel Ram Top Only 2X4 4500 Intake Manifold Big Block Chevy |
| Description_FAB | Ideal Modern High-Power Engines |
| Description_FAB | Machined Fuel Rail Ends |
| Description_FAB | Manufactured From Die-Cast Aluminum |
| Description_INV | Tunnel Ram Top Only 2X4 4500 Intake BBC |
| Description_KEY | 7086; Chevy; Chevrolet; Edelbrock; Intake Manifold; Intake; Manifold; Single-Plane; Tunnel-Ram; Satin |
| Description_LAB | Tunnel Ram Big Block Chevy Top Only 2X4 4500 Intake |
| Description_MKT | Edelbrock part #7086 Victor Tunnel Ram top is for use with 4500 series carburetors (mounted in-line) and our Victor Tunnel Ram base manifold only on Big-Block Chevy applications. The Edelbrock Victor Tunnel Ram top also features a natural aluminum finish for a classic look. For the ultimate "Made in USA" quality, every Edelbrock intake manifold is cast and machined in the USA. |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 2in.} |
| Description_TRA | EFI applications will require Edelbrock fuel rail kit #3659. |
| Description_TRA | Fits Edelbrock #7085 or #70855 Chevy Big Block tunnel ram base manifolds |
| Description_TRA | For 4500 Series carb or throttle body. |
| Description_TRA | Gaskets and hardware Included |
| Description_TRA | Replacement top-to-bottom gasket, #7355, is available separately if needed. |
| Description_TRA | Throttle bodies can be mounted in the traditional fore and aft position |
| Description_TRA | Top ONLY |
| Description_TRA | Use Edelbrock linkage kit #7077 for carbs |
| Description_TRA | • Fits Edelbrock # 7085 or # 70855 Chevy Big Block tunnel ram base manifolds • Top ONLY • For 4500 Series carb or throttle body. • Gaskets and hardware Included • EFI applications will require Edelbrock fuel rail kit # 3659. • Replacement top-to-bottom gasket; # 7355; is available separately if needed. • Use Edelbrock linkage kit # 7077 for carbs • Throttle bodies can be mounted in the traditional fore and aft position |
| EGR Port | No |
| Flange Type | 4150 Dual-Quad |
| Front Maximum Height | 0.010 |
| Gasket Or Seal Included | No |
| Grade Type | Performance |
| height | 2.38 |
| length | 21.0 |
| LTL | N |
| Material | Aluminum |
| Rear Maximum Height | 0.010 |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Series | Dual-Quad/Multi Carb |
| Single Or Dual Plane Type | Single |
| Vehicle Model | Chevrolet |
| weight | 5.3 |
| width | 10.38 |
