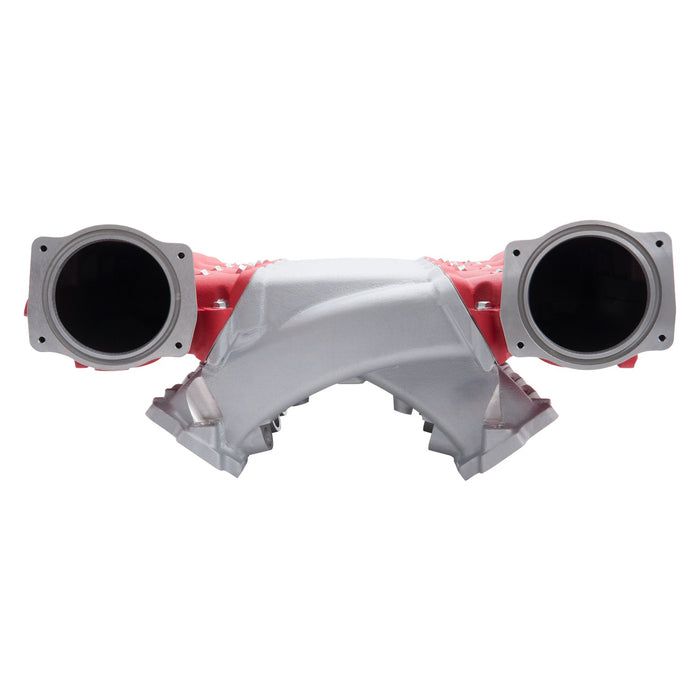

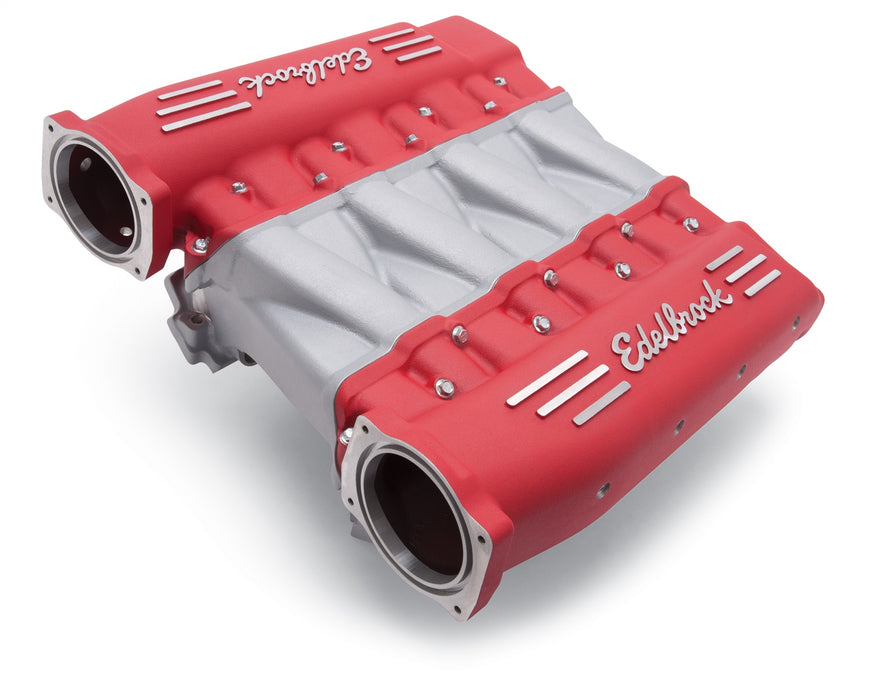

Edelbrock 7141 Edelbrock Cross-Ram GM LS3 Rectangular Port Intake Manifold LS Engines Red
by Edelbrock
SKU ds_BDVJ_7141
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$2,595.70
-
Original price
$2,595.70
Original price
$2,595.70
$2,595.70
$2,595.70
-
$2,595.70
Current price
$2,595.70
Description

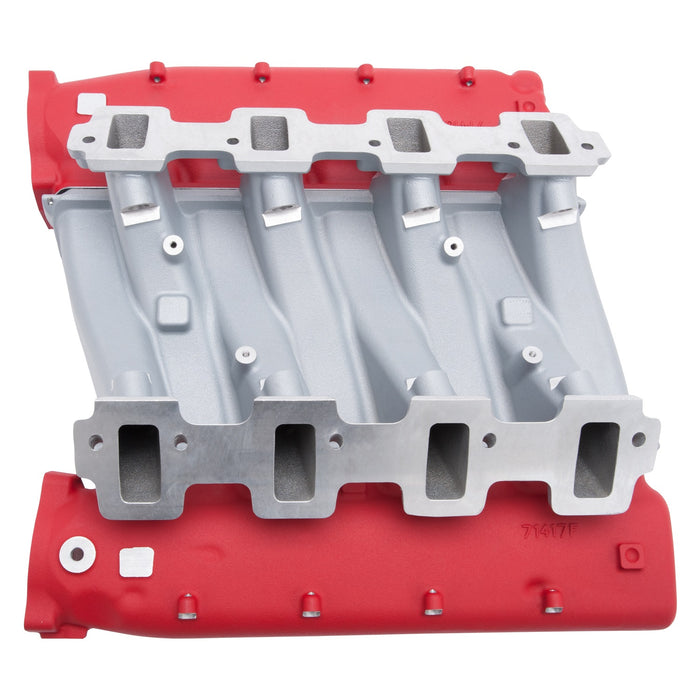

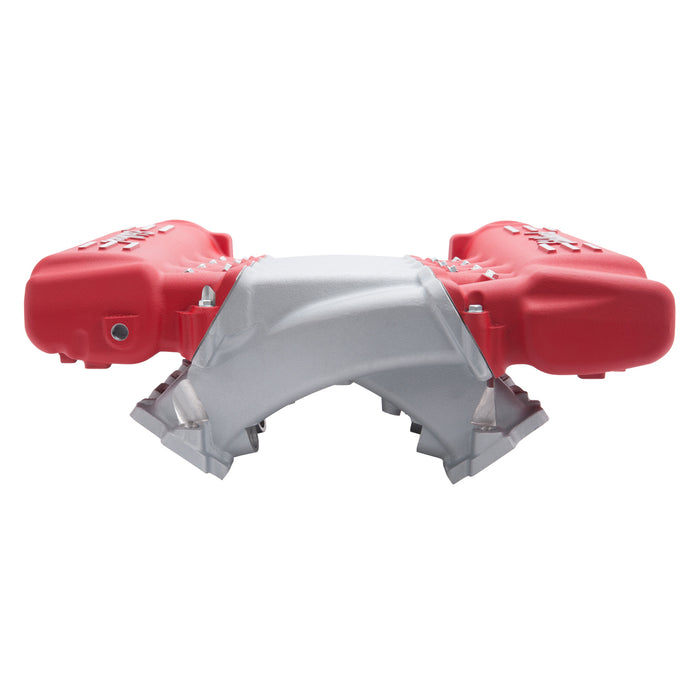

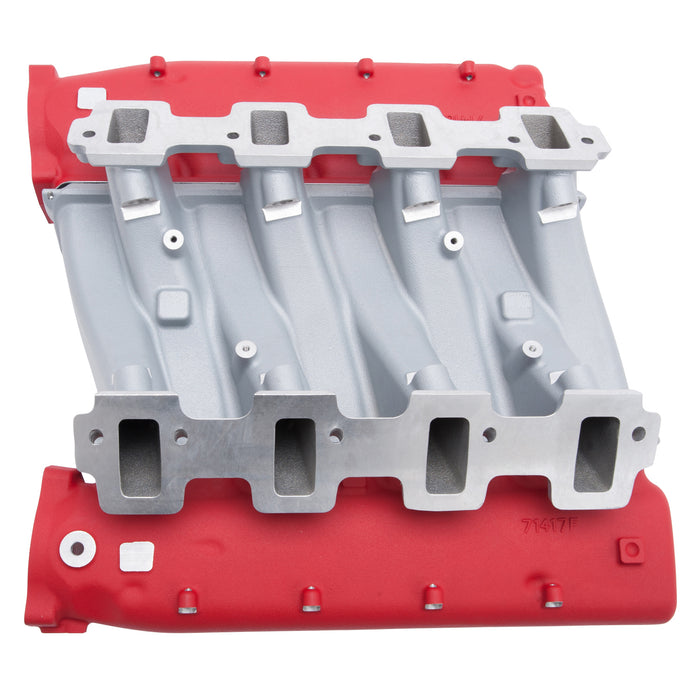

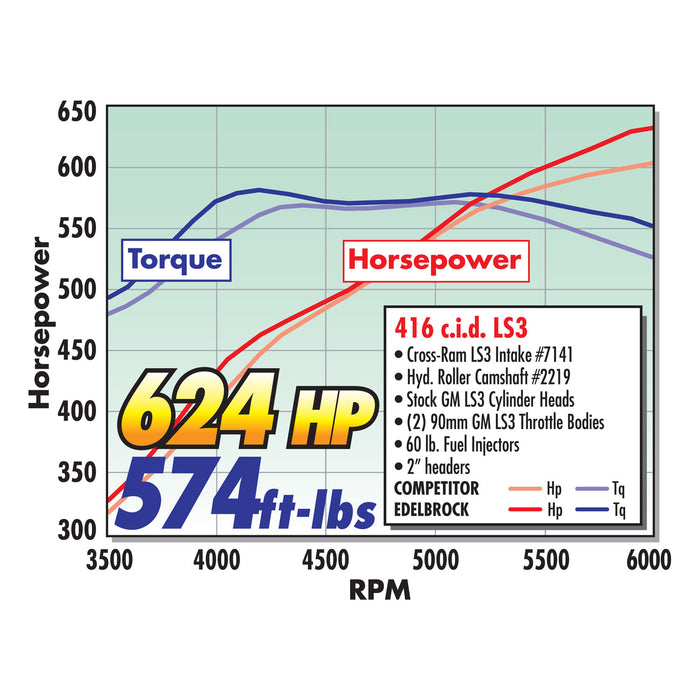

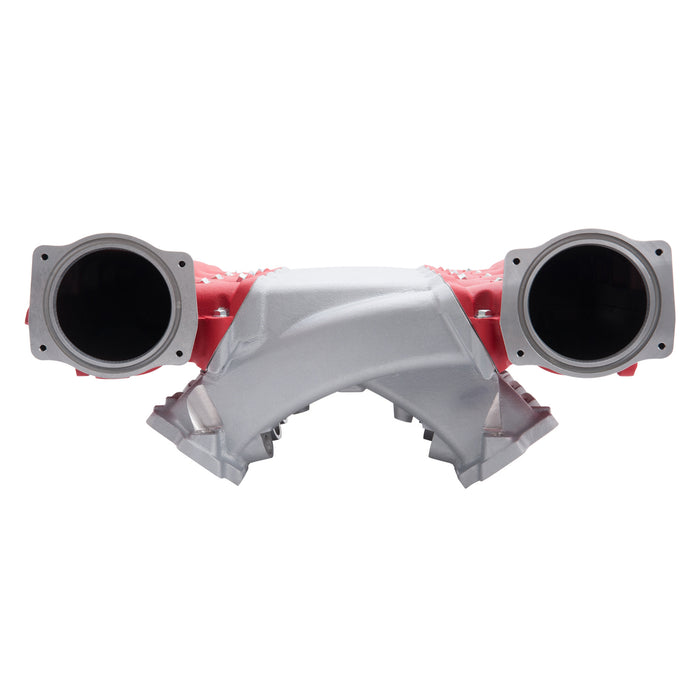

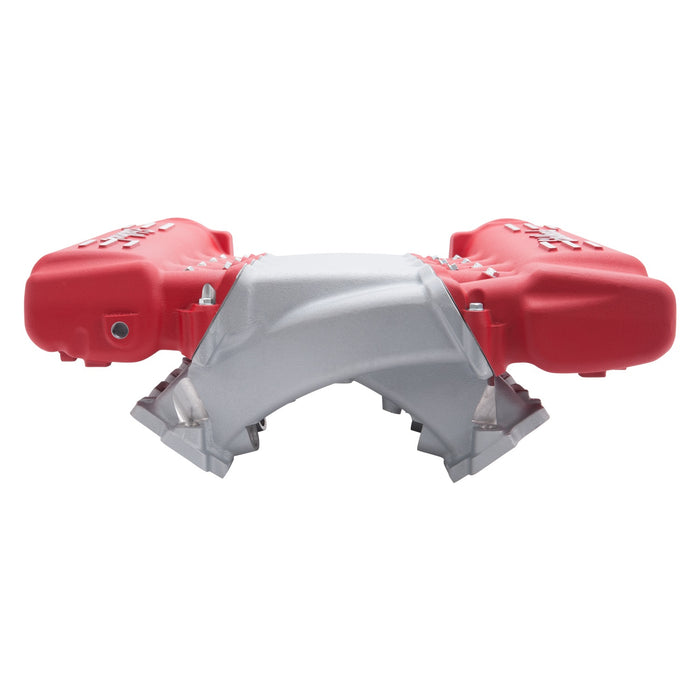

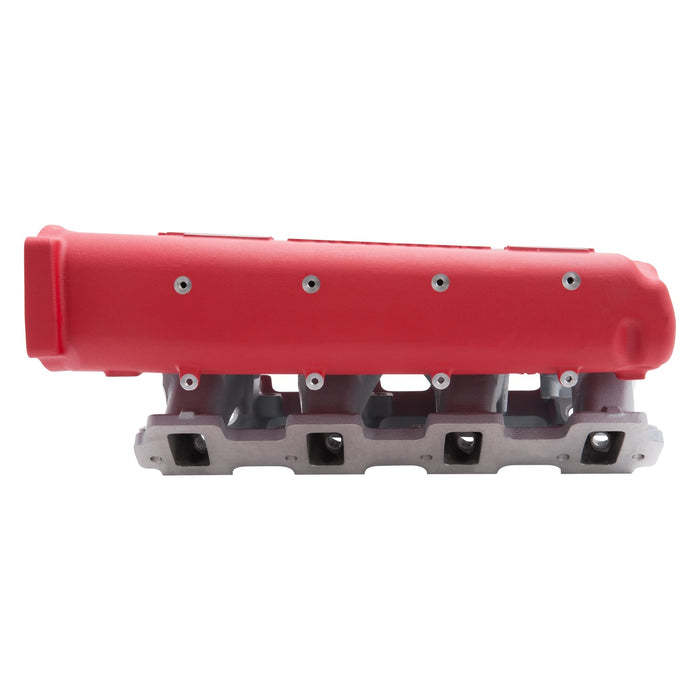

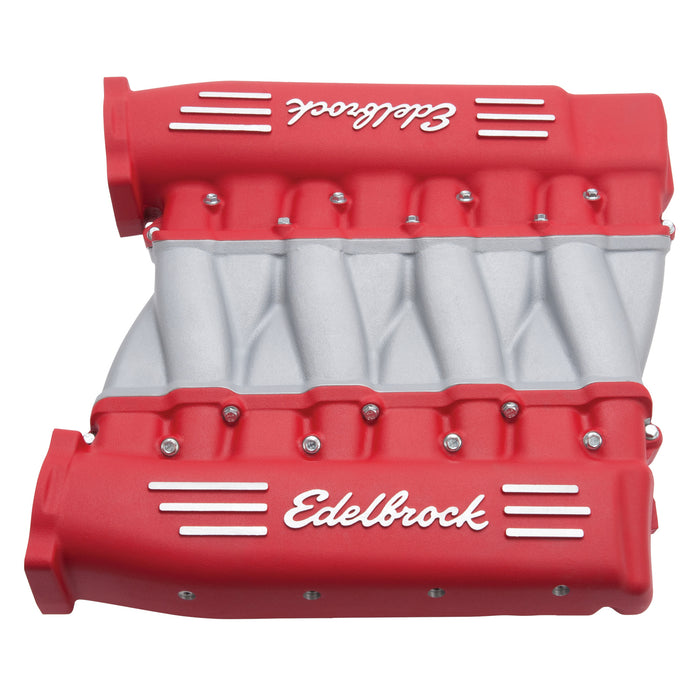

Edelbrock part #71413 LS3 Cross-Ram intake manifold is designed for Gen IV engines with LS3, L92 and L76 rectangular port cylinder heads. The Cross-Ram LS3 is ideal for anybody looking to combine great looks and outstanding performance between 1,500 - 7,000 rpm. The unique dual-plenum design features 13" long runners with flanges that will accept two, 90mm GM LS3 throttle bodies. The cross-ram dual-plenum design is ideal for twin turbo applications. When matched with high flowing air filters and inlet tubes, the dual-plenum system gives neck-snapping performance with plenty of options for engine builders and tuners. Dyno testing resulted with gains of 27 horsepower and 28 ft-lbs. of torque over a popular aftermarket manifold.
Specifications
| Cylinder Head Type | Chevy Small Block |
| Description_ABR | Intake Mnfld |
| Description_ASM | Chevrolet:Small-Block Gen IV L76:364 (6.0L) |
| Description_ASM | Chevrolet:Small-Block Gen IV L76:364 (6.0L);Chevrolet:Small-Block Gen IV L77:364 (6.0L);Chevrolet:Small-Block Gen IV L92:376 (6.2L);Chevrolet:Small-Block Gen IV L94:376 (6.2L);Chevrolet:Small-Block Gen IV L99:376 (6.2L);Chevrolet:Small-Block Gen IV L9H:37 |
| Description_ASM | Chevrolet:Small-Block Gen IV L77:364 (6.0L) |
| Description_ASM | Chevrolet:Small-Block Gen IV L92:376 (6.2L) |
| Description_ASM | Chevrolet:Small-Block Gen IV L94:376 (6.2L) |
| Description_ASM | Chevrolet:Small-Block Gen IV L99:376 (6.2L) |
| Description_ASM | Chevrolet:Small-Block Gen IV L9H:376 (6.2L) |
| Description_ASM | Chevrolet:Small-Block Gen IV LS3:376 (6.2L) |
| Description_DEF | Engine Intake Manifold |
| Description_DES | MANIFOLD |
| Description_EXT | Edelbrock Cross-Ram GM LS3 Rectangular Port Intake Manifold LS Engines Red |
| Description_FAB | Dual Plenum Design |
| Description_FAB | Great Looks And Outstanding Performance |
| Description_FAB | Ideal For Twin Turbo Applications |
| Description_FAB | Increased Flow |
| Description_FAB | Increases Horsepower |
| Description_INV | Cross-Ram LS3 Intake Manifold Red |
| Description_KEY | 7141; Chevy; Chevrolet; Edelbrock; Intake Manifold; Intake; Manifold; EFI; Pro-Flo XT; Satin |
| Description_LAB | Cross-Ram Small Block Chevy LS3 Intake Manifold |
| Description_MKT | Edelbrock part #71413 LS3 Cross-Ram intake manifold is designed for Gen IV engines with LS3, L92 and L76 rectangular port cylinder heads. The Cross-Ram LS3 is ideal for anybody looking to combine great looks and outstanding performance between 1,500 - 7,000 rpm. The unique dual-plenum design features 13" long runners with flanges that will accept two, 90mm GM LS3 throttle bodies. The cross-ram dual-plenum design is ideal for twin turbo applications. When matched with high flowing air filters and inlet tubes, the dual-plenum system gives neck-snapping performance with plenty of options for engine builders and tuners. Dyno testing resulted with gains of 27 horsepower and 28 ft-lbs. of torque over a popular aftermarket manifold. |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 9in.} |
| Description_TRA | Fuel Rail Recommendations: Use Edelbrock fuel rail kit #3654 |
| Description_TRA | Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Description_TRA | Installation Notes: Uses LS3/L76 style individual port o-ring seals GM PN19256623 or Edelbrock #7395. |
| Description_TRA | Manifold height: A-9.35", B-8.01", C-17.50", D-2.65" E-0 Deg vertical x 5 Deg inward |
| Description_TRA | Plenum gaskets use Edelbrock #7271. |
| Description_TRA | Port exit dimensions: 1.19" x 2.48" |
| Description_TRA | Throttle Body Recommendations: 2x GM LS3 90mm |
| Description_TRA | Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA | • Throttle Body Recommendations: 2x GM LS3 90mm • Fuel Rail Recommendations: Use Edelbrock fuel rail kit # 3654 • Installation Notes: Uses LS3/L76 style individual port o-ring seals GM PN19256623 or Edelbrock # 7395. • Plenum gaskets use Edelbrock # 7271. • Manifold height: A-9.35in.; B-8.01in.; C-17.50in.; D-2.65in. E-0deg. vertical x 5deg. inward • Port exit dimensions: 1.19in. x 2.48in. • Use RTV sealant to properly seal end seals; such as Edelbrock High Temp Silicone sealant # 1076; DO NOT USE END SEALS GASKETS. • Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Emission | N/A |
| Engine Make/Size | Chevy LS3 |
| height | 13.0 |
| length | 24.0 |
| LTL | N |
| Number of Carbs | None; For Fuel Injection |
| Position | N/A |
| RPM Range | 1500-7000 |
| Usage | Street/Hi-Performance |
| WARNING CA Proposition 65 | Yes |
| WARNING CA Proposition 65 Message | WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov. |
| weight | 42.0 |
| width | 15.0 |
