Edelbrock 7159 Edelbrock Performer RPM Large Port Intake Manifold for Chevrolet W-Series
by Edelbrock
SKU ds_BDVJ_7159
Proudly Canadian
Albertan Owned
Secure Payments
Financing Available
Trusted Brands
Top-Quality Suppliers
Sold out
Original price
$804.67
-
Original price
$804.67
Original price
$804.67
$804.67
$804.67
-
$804.67
Current price
$804.67
Description

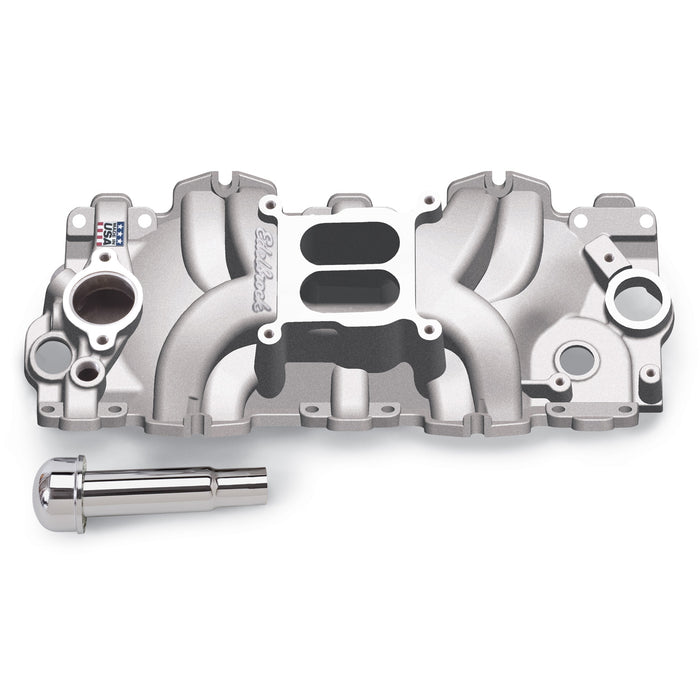

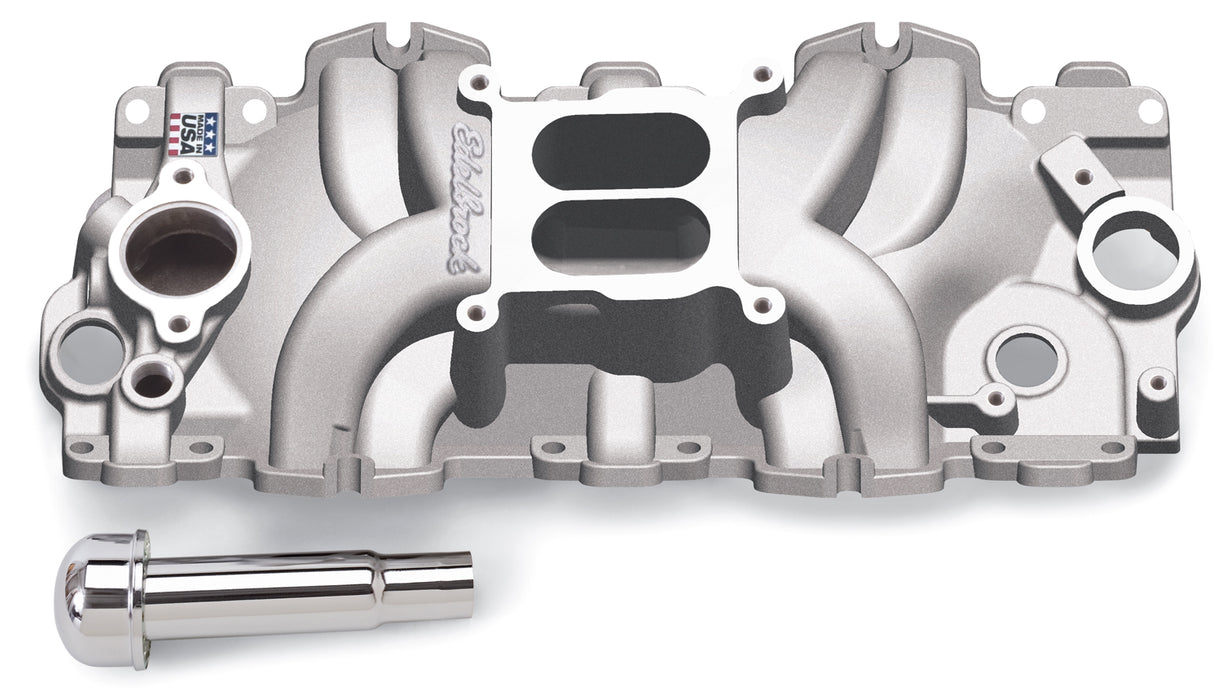

Edelbrock part #7159 Performer RPM intake manifold is designed to fit 1958-1965 Chevrolet 348/409 "W" big-block engines with factory large port or with our Performer RPM "W"-series heads #60809 or #60819. Includes Oil Fill Tube (not installed) and matching push-in breather cap. The Oil Fill Tube and Breather are also available separately as #4803. For square-bore carburetors only.
Specifications
| Description_ABR | Intake Mnfld |
| Description_ASM | Chevrolet:W Big-Block:348 (5.7L)/409 (6.7L) |
| Description_DEF | Engine Intake Manifold |
| Description_DES | INTAKE MANIFOLD |
| Description_EXT | Edelbrock Performer RPM Large Port Intake Manifold for Chevrolet W-Series |
| Description_FAB | Designed for 1500 to 6500 RPM Performance |
| Description_FAB | For Small Port Cast Iron Heads |
| Description_FAB | Polish is Hand-Buffed for Brilliant Shine |
| Description_INV | RPM Dual Quad 409 Large Port Intake |
| Description_KEY | 7159; Chevy; Chevrolet; Edelbrock; Intake Manifold; Intake; Manifold; Dual-Plane; Performer RPM; Satin |
| Description_LAB | Performer RPM Big Block Chevy W-Engine Large Port Intake Manifold |
| Description_MKT | Edelbrock part #7159 Performer RPM intake manifold is designed to fit 1958-1965 Chevrolet 348/409 "W" big-block engines with factory large port or with our Performer RPM "W"-series heads #60809 or #60819. Includes Oil Fill Tube (not installed) and matching push-in breather cap. The Oil Fill Tube and Breather are also available separately as #4803. For square-bore carburetors only. |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 3in.} |
| Description_TRA | Carb pad height: 4.62" |
| Description_TRA | Carb recommendations: Edelbrock AVS2 or Performer Series 600-800 cfm. |
| Description_TRA | Carburetor size (CFM) should be selected based on your specific engine combination. |
| Description_TRA | DO NOT OVERTIGHTEN NPT/Pipe fittings, this may cause the aluminum to crack around the fitting boss. NPT/Pipe thread is a tapered thread. |
| Description_TRA | Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Description_TRA | Manifold Dimensions: A-4.35", B-5.54" |
| Description_TRA | NPT/Pipe thread fittings require the use of Teflon tape or paste on threads to ensure proper seal. |
| Description_TRA | Port exit dimensions: 2.39" x 1.16" |
| Description_TRA | Proper installation is the responsibility of the installer. Improper installation will void your warranty and may result in poor performance and engine or vehicle damage. |
| Description_TRA | Recommended intake gasket: Edelbrock #7240 or Fel-Pro MS9788B |
| Description_TRA | Sealant must be used on intake bolt threads if the threads extend into lifter valley or coolant passage. |
| Description_TRA | To ensure maximum performance and a proper seal, Edelbrock gaskets which are specifically designed and manufactured for use with Edelbrock parts must be used. |
| Description_TRA | Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA | • Recommended intake gasket: Edelbrock # 7240 or Fel-Pro MS9788B • Port exit dimensions: 2.39in. x 1.16in. • Manifold Dimensions: A-4.35in.; B-5.54in. • Carb pad height: 4.62in. • Carb recommendations: Edelbrock AVS2 or Performer Series 600-800 cfm. • Carburetor size (CFM) should be selected based on your specific engine combination. • Use RTV sealant to properly seal end seals; such as Edelbrock High Temp Silicone sealant # 1076; DO NOT USE END SEALS GASKETS. • Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. • Sealant must be used on intake bolt threads if the threads extend into lifter valley or coolant passage. • NPT/Pipe thread fittings require the use of Teflon tape or paste on threads to ensure proper seal. • DO NOT OVERTIGHTEN NPT/Pipe fittings; this may cause the aluminum to crack around the fitting boss. NPT/Pipe thread is a tapered thread. • To ensure maximum performance and a proper seal; Edelbrock gaskets which are specifically designed and manufactured for use with Edelbrock parts must be used. • Proper installation is the responsibility of the installer. Improper installation will void your warranty and may result in poor performance and engine or vehicle damage. |
| height | 6.75 |
| length | 23.75 |
| LTL | N |
| weight | 20.4 |
| width | 12.25 |
