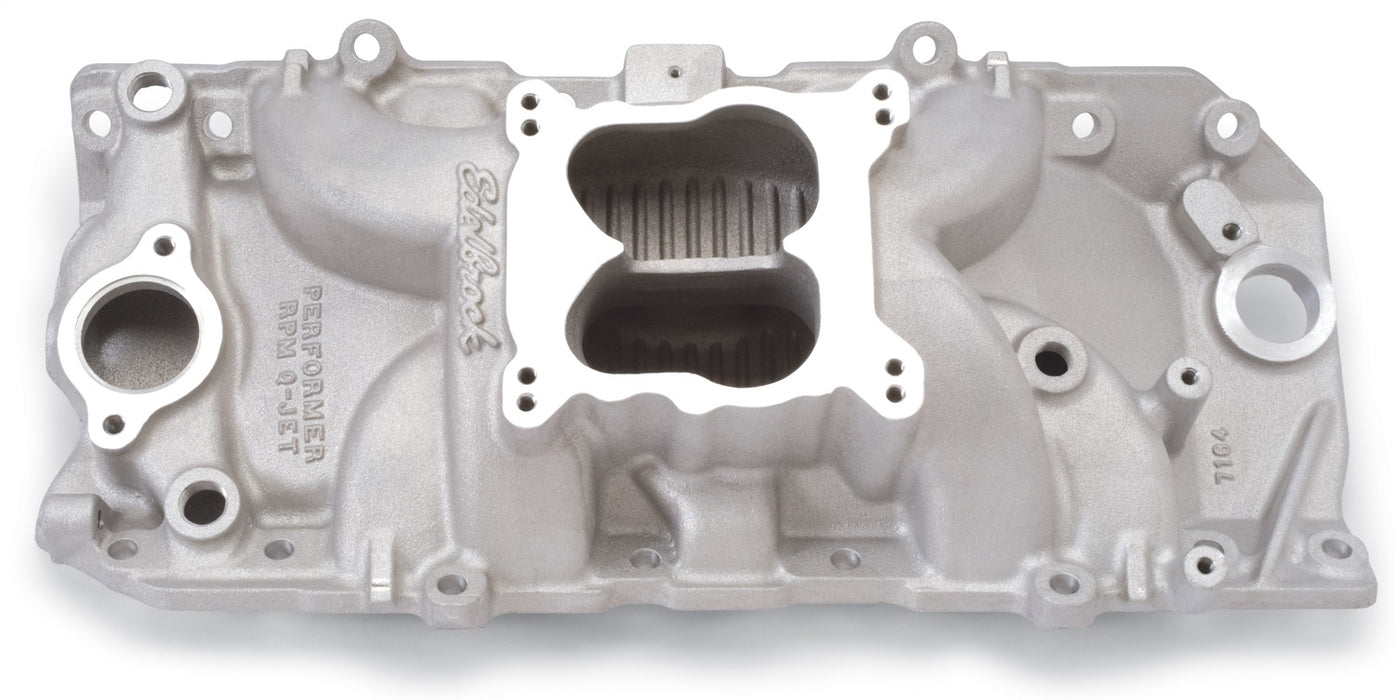

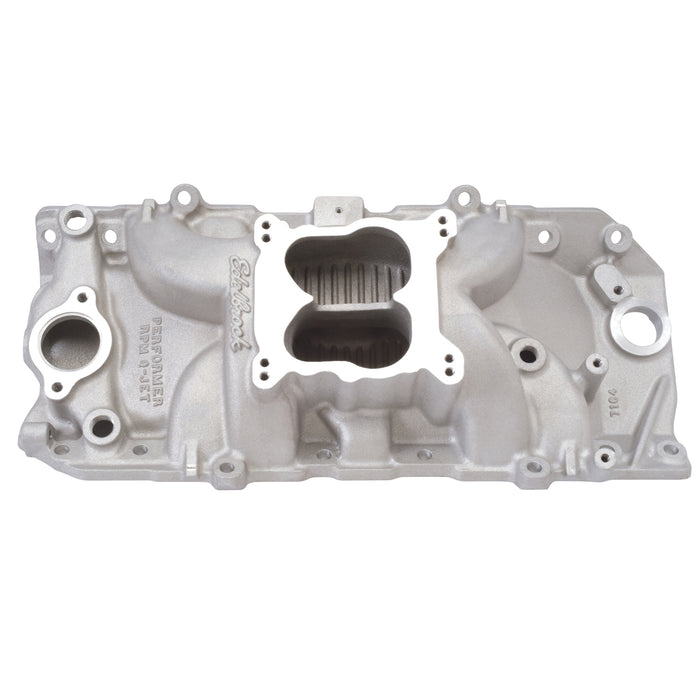

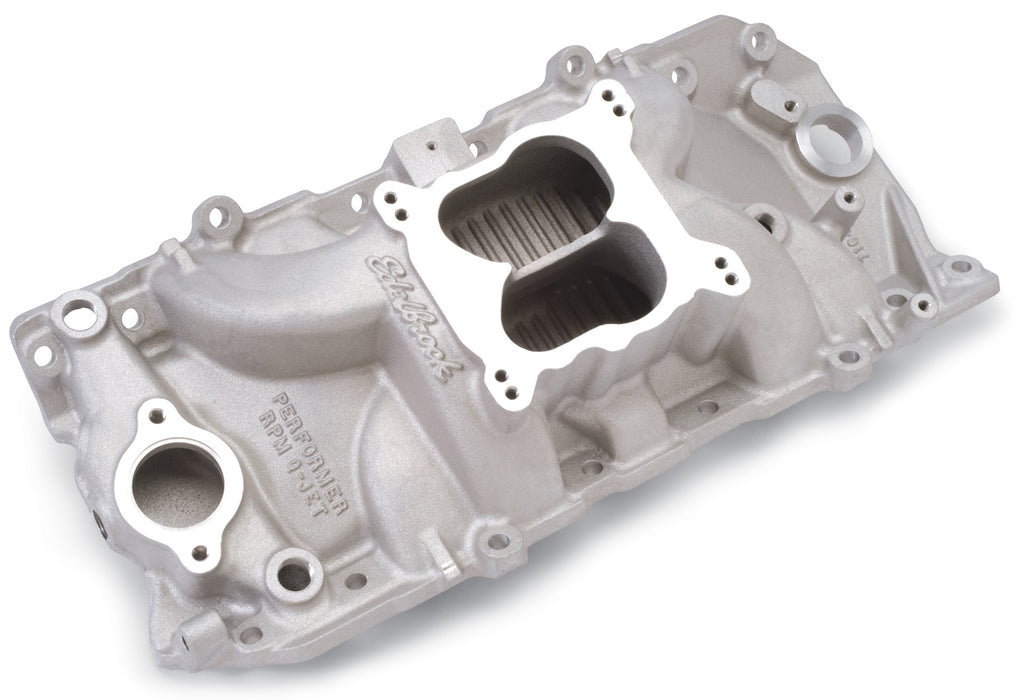

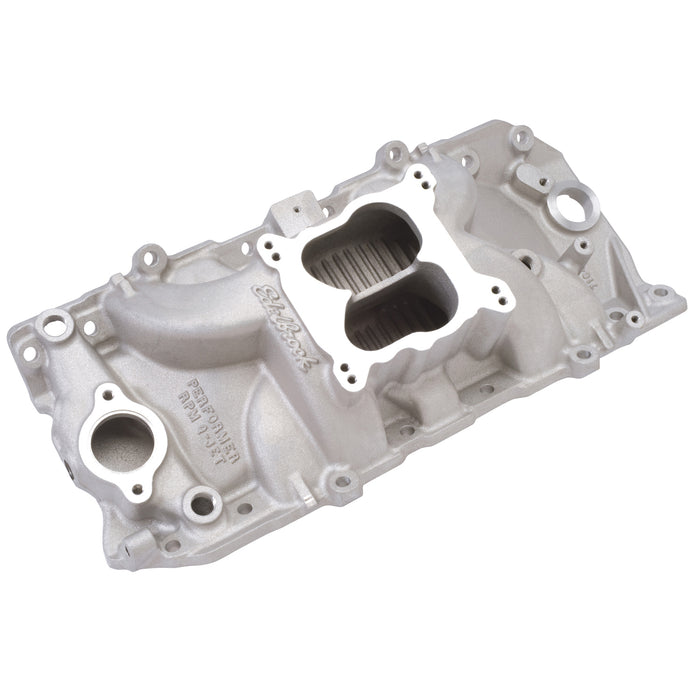

Edelbrock 7164 Edelbrock Performer RPM Q-Jet Intake Manifold for Chevrolet 396-502 Big-Block V8
by Edelbrock
SKU ds_BDVJ_7164
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Original price
$624.71
-
Original price
$624.71
Original price
$624.71
$624.71
$624.71
-
$624.71
Current price
$624.71
Description
Edelbrock part #7164 Performer RPM Q-Jet intake manifold is designed for street 396-502 c.i.d. Chevy V8's with large oval-port (1975 and earlier) heads. This intake manifold is designed works with spread-bore carbs, but also works with Edelbrock square-bore carbs without adapter. No provisions for hot air style chokes. Accepts divorced choke, late-model waterneck, air-conditioning, alternator and HEI equipment.
Specifications
| Description_ABR | Intake Mnfld |
| Description_ASM | Chevrolet:Big-Block Mark IV:396 (6.6L)/402 (6.6L)/427 (7.0L)/454 (7.4L)/502 (8.2L) |
| Description_DEF | Engine Intake Manifold |
| Description_DES | INTAKE MANIFOLD |
| Description_EXT | Edelbrock Performer RPM Q-Jet Intake Manifold for Chevrolet 396-502 Big-Block V8 |
| Description_FAB | Best for the Ultimate in Street High-Performance |
| Description_FAB | Designed for Spread Bore Q-Jet Carburetors |
| Description_FAB | Dual-Plane High-Rise Intake w/180 Deg. Firing Order |
| Description_FAB | Edelbrock Total Power Package Maximizes Gains |
| Description_FAB | Larger Plenum and Runners Maximizes Other Upgrades |
| Description_FAB | Produces Incredible Top-End Horsepower |
| Description_FAB | Retains Good Throttle Response and Acceleration |
| Description_INV | Performer RPM BBC Q-Jet Oval Port Intake |
| Description_KEY | 7164; Chevy; Chevrolet; Edelbrock; Intake Manifold; Intake; Manifold; Dual-Plane; Performer RPM; Satin |
| Description_LAB | Performer RPM Big Block Chevy Oval Port Q-Jet Intake Manifold |
| Description_MKT | Edelbrock part #7164 Performer RPM Q-Jet intake manifold is designed for street 396-502 c.i.d. Chevy V8's with large oval-port (1975 and earlier) heads. This intake manifold is designed works with spread-bore carbs, but also works with Edelbrock square-bore carbs without adapter. No provisions for hot air style chokes. Accepts divorced choke, late-model waterneck, air-conditioning, alternator and HEI equipment. |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 7in.} |
| Description_TRA | Carb pad height: 5.22" |
| Description_TRA | Carb recommendations: Edelbrock AVS2 or Performer Series 650-800 cfm. Use bracket #8031 for 1972-78. |
| Description_TRA | Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Description_TRA | Manifold height: A-4.45", B-6.0" |
| Description_TRA | Port exit dimensions: 1.60"w x 1.94"t. |
| Description_TRA | Recommended intake gasket: Edelbrock #7203 |
| Description_TRA | Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA | Will not fit under stock hood of Corvette, 1964-67 Chevelle, or 1967-81 Camaro. |
| Description_TRA | • Recommended intake gasket: Edelbrock # 7203 • Manifold height: A-4.45in.; B-6.0in.; Carb pad height: 5.22in. • Carb recommendations: Edelbrock AVS2 or Performer Series 650-800 cfm. Use bracket # 8031 for 1972-78. • Port exit dimensions: 1.60in.w x 1.94in.t. • Will not fit under stock hood of Corvette; 1964-67 Chevelle; or 1967-81 Camaro. • Use RTV sealant to properly seal end seals; such as Edelbrock High Temp Silicone sealant # 1076; DO NOT USE END SEALS GASKETS. • Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| height | 7.5 |
| length | 23.62 |
| LTL | N |
| weight | 20.25 |
| width | 14.75 |
