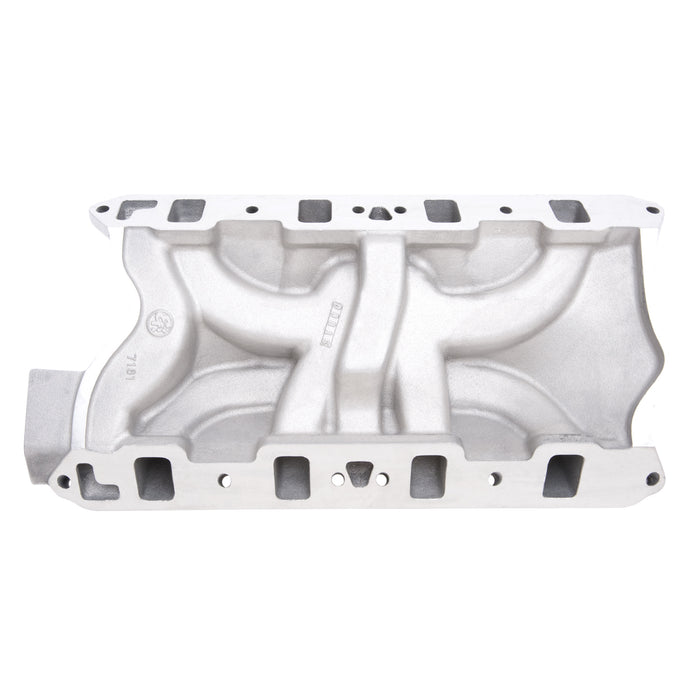

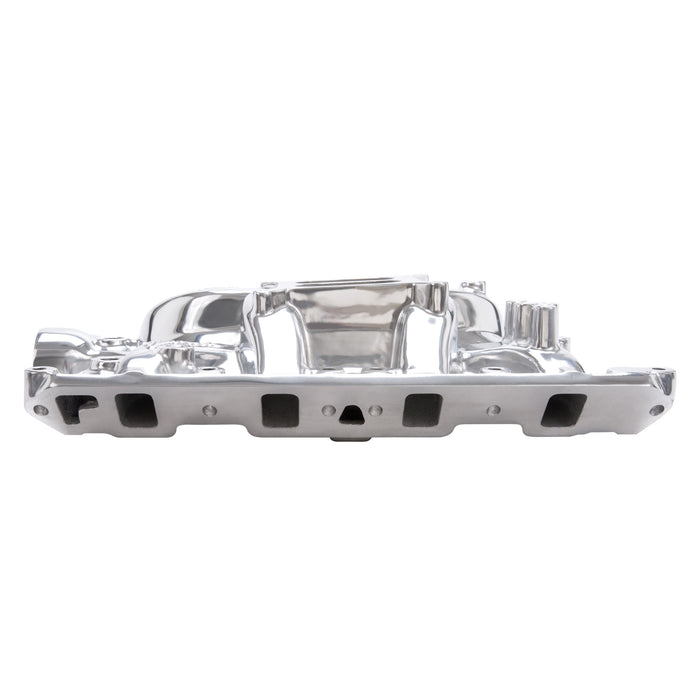

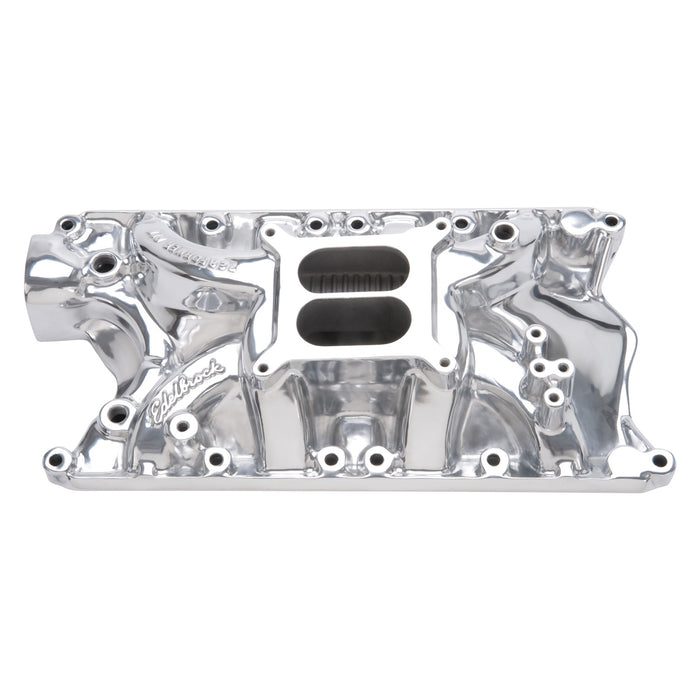

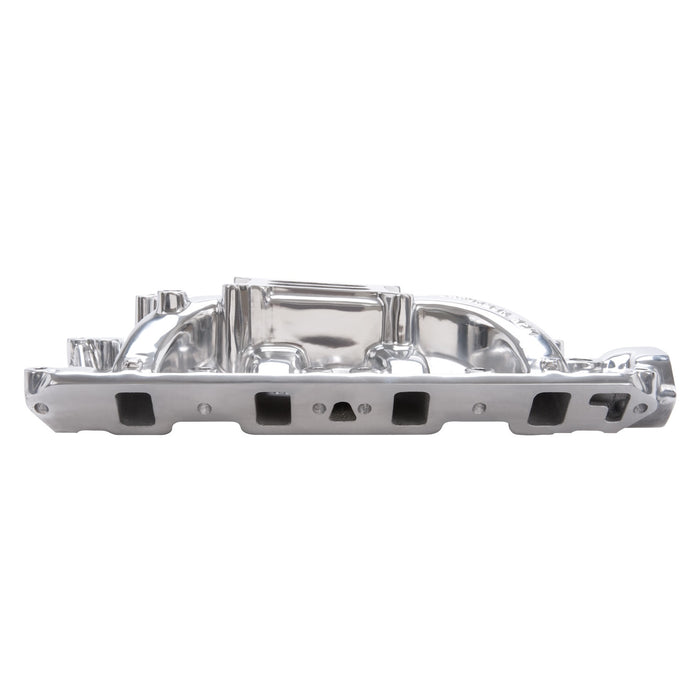

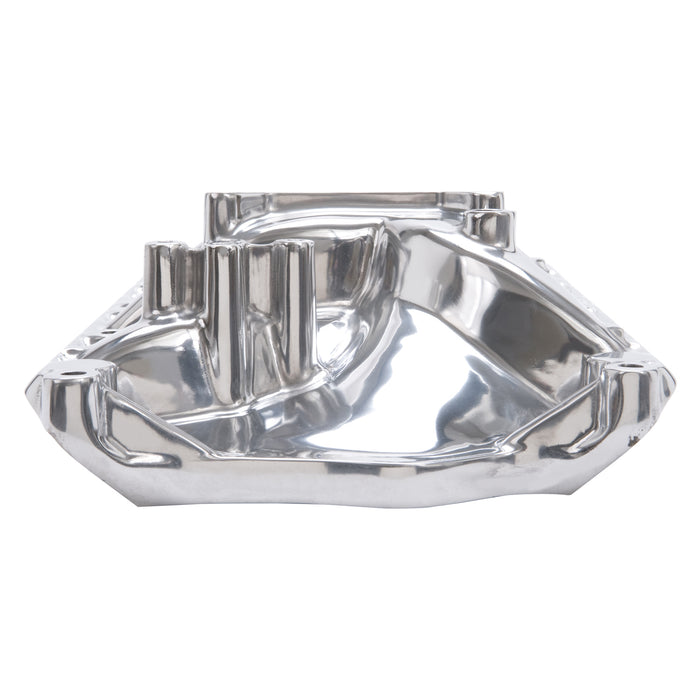

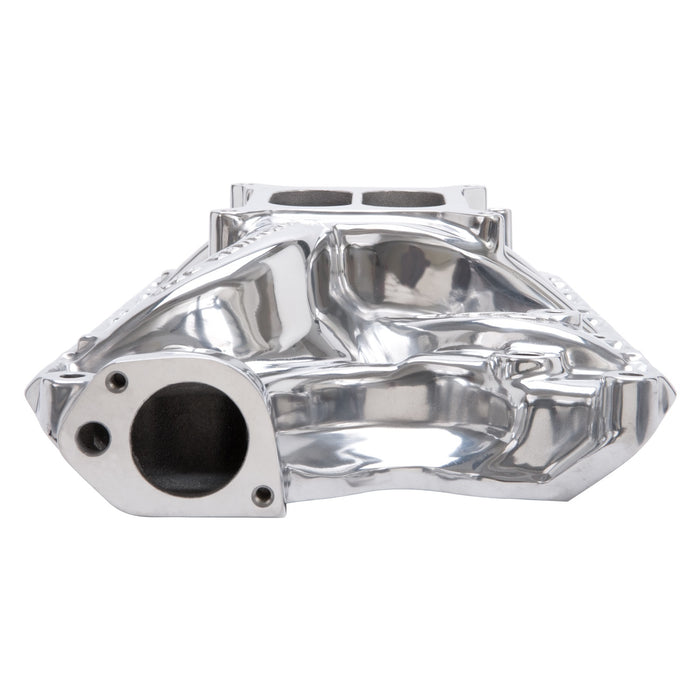

Edelbrock 71811 Edelbrock Performer RPM Intake Manifold for 351 Ford Small Block Windsor engines
Proudly Canadian
Albertan Owned
Secure Payments
Financing Available
Trusted Brands
Top-Quality Suppliers
Description
Specifications
Basic Operating RPM Range | 1500-6500 |
Center Maximum Height | 4.800 |
CNC Ported | No |
Cylinder Head Type | Standard |
Description_ABR | Intake Mnfld |
Description_ASM | Ford:Small-Block Windsor:351 (5.8L) |
Description_DEF | Engine Intake Manifold |
Description_DES | INTAKE MANIFOLD |
Description_EXT | Edelbrock Performer RPM Intake Manifold for 351 Ford Small Block Windsor engines |
Description_FAB | Best for the Ultimate in Street High-Performance |
Description_FAB | Designed for 1500 to 6500 RPM Street-Driven Power |
Description_FAB | Dual-Plane High-Rise Intake w/180 Deg. Firing Order |
Description_FAB | Excellent Top End Power |
Description_FAB | Retains Good Throttle Response and Acceleration |
Description_INV | Polished RPM 351W 9.5 Deck Intake |
Description_KEY | 71811; Ford; Edelbrock; Intake Manifold; Intake; Manifold; Dual-Plane; Performer RPM; Polished |
Description_LAB | Performer RPM Small Block Ford 351W Polished Intake Manifold |
Description_MKT | Edelbrock part #71811 Performer RPM 351W intake manifold is designed for 1969 and later 351 Windsor Ford V8 high-performance engines with Edelbrock Performer RPM cylinder heads, modified OEM cylinder heads or equivalent. The dual-plane design offers good throttle response with excellent top-end power for the street. Includes bosses for rear water crossover. Will fit 1964-1/2 to 1970 Mustangs. Will not fit under stock hood of 1974-78 or 1979-95 Mustangs. Aftermarket 4-bbl carbs are not compatible with Ford Auto Overdrive Transmission (AOD) unless used with Lokar bracket SRK-4000, for more info call (865) 966-2269 or go to www.lokar.com. This manifold offers a polished finish for a brilliant shine and classic look. |
Description_SHO | { Sellable : Yes } |
Description_SHP | { eo : 6in.} |
Description_TRA | Carb pad height: 4.80" |
Description_TRA | Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
Description_TRA | Manifold height: A-4.30", B-5.30" |
Description_TRA | Port exit dimensions: 1.12" x 1.86" |
Description_TRA | Use 12-bolt intake gasket set Edelbrock #7220 recommended. For van installations use OEM Ford "van" intake gasket set |
Description_TRA | Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
Description_TRA | will fit early 16-bolt head with Ford 16-bolt intake gasket set. |
Description_TRA | • Use 12-bolt intake gasket set Edelbrock #7220 recommended. For van installations use OEM Ford van intake gasket set; will fit early 16-bolt head with Ford 16-bolt intake gasket set. • Manifold height: A-4.30in.; B-5.30in. • Carb pad height: 4.80in. • Port exit dimensions: 1.12in. x 1.86in. • Use RTV sealant to properly seal end seals; such as Edelbrock High Temp Silicone sealant #1076; DO NOT USE END SEALS GASKETS. • Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
EGR Port | No |
Emission | Without EGR |
Engine Make/Size | Ford 5.8L/351W |
finish | Polished |
Flange Type | 4150 |
Front Maximum Height | 4.300 |
Gasket Or Seal Included | No |
Grade Type | Performance |
height | 6.75 |
length | 23.75 |
LTL | N |
Material | Aluminum |
Number of Carbs | One |
Position | N/A |
Rear Maximum Height | 5.300 |
RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
RPM Range | 1500-6500 |
Series | Performer RPM |
Single Or Dual Plane Type | Dual |
Usage | Street/Hi-Performance |
Vehicle Model | Ford |
WARNING CA Proposition 65 | Yes |
WARNING CA Proposition 65 Message | WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov. |
weight | 18.8 |
width | 12.25 |
