Edelbrock 7501 { Sellable : Yes }

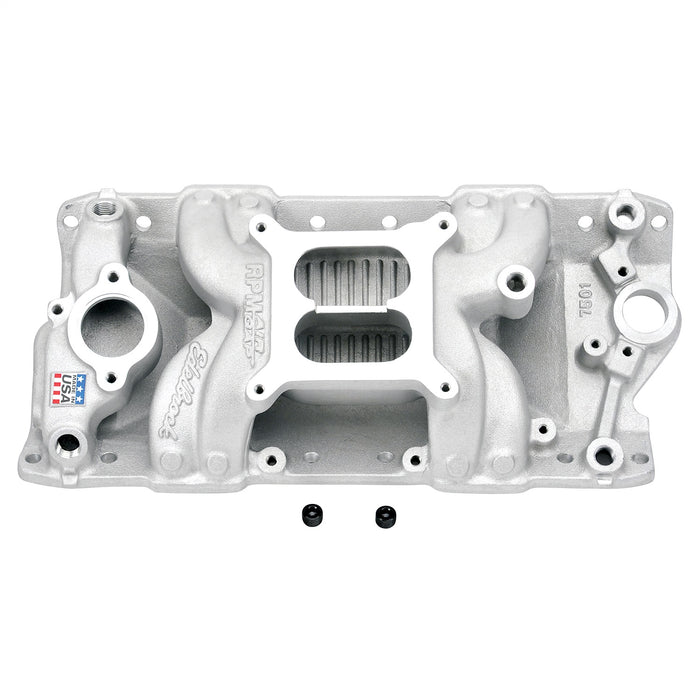

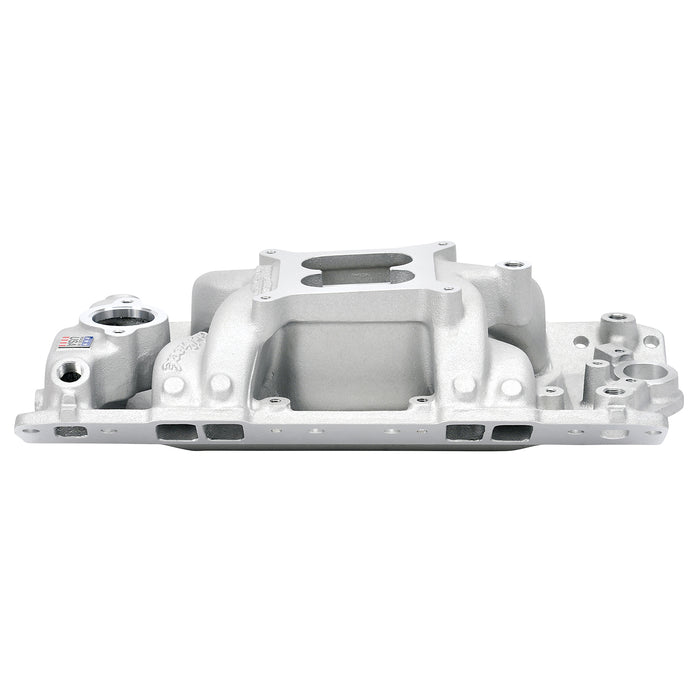

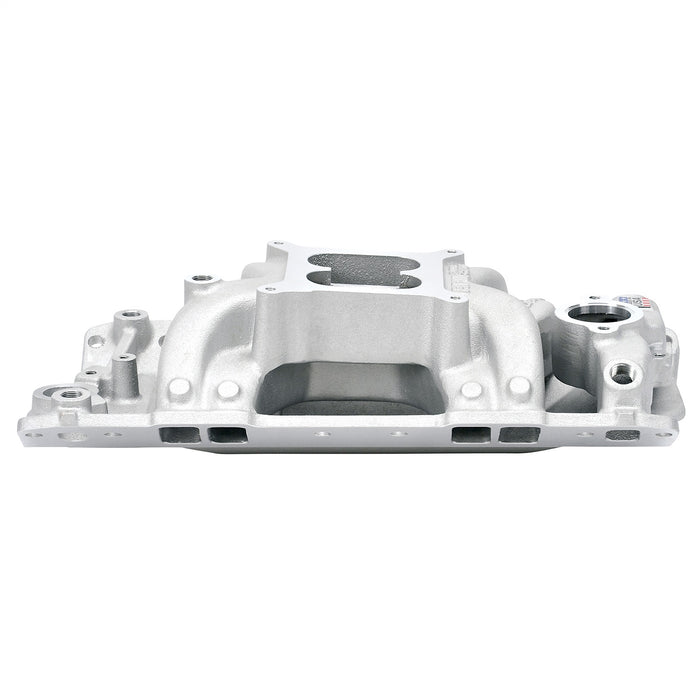

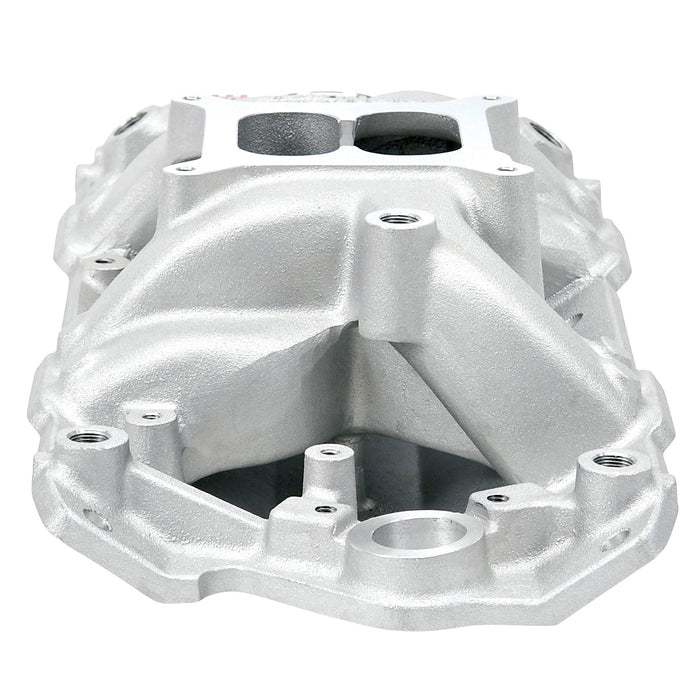

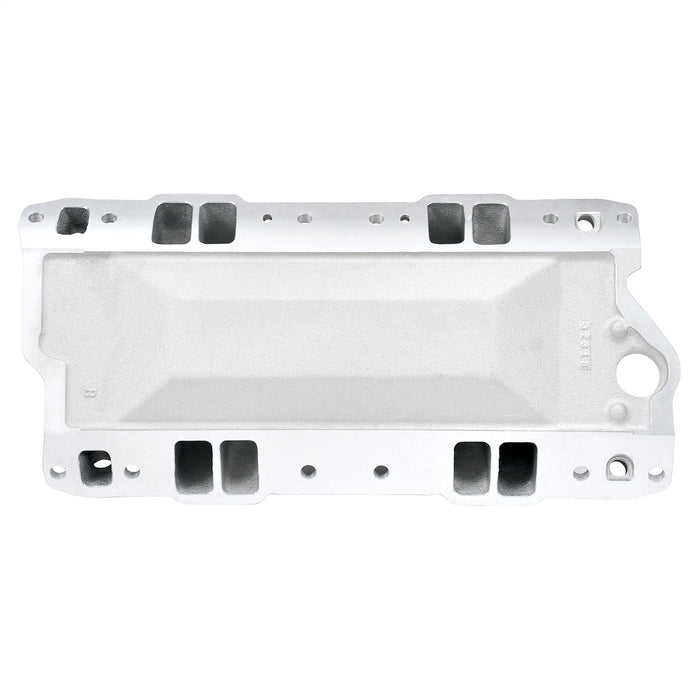

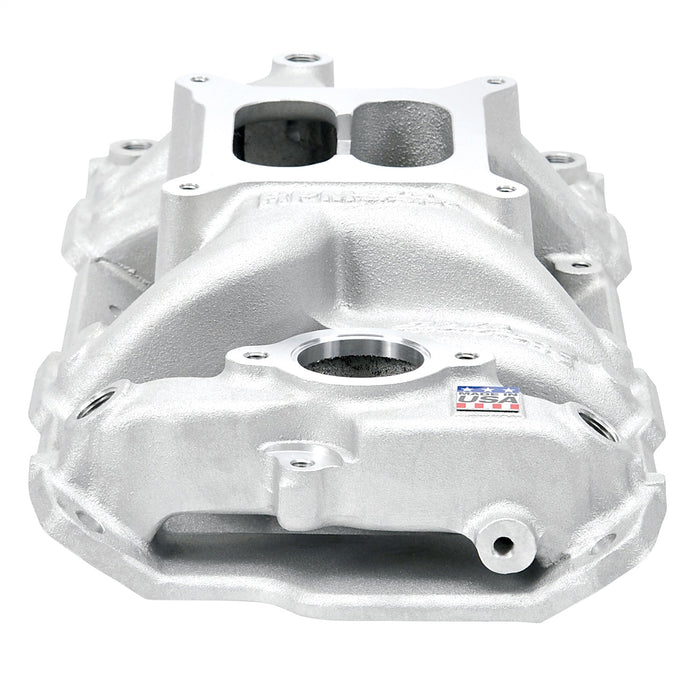

Edelbrock part #7501 RPM Air-Gap #7501 intake manifold is designed for 1955-86 262-400 c.i.d. Chevrolet V8 applications. The award-winning RPM Air-Gap intake manifold incorporates the same race-winning technology that's used on our Victor Series competition intakes. The air-gap design features an open air space that separates the runners from the hot engine oil resulting in a cooler, denser charge for more power.

Installation Instructions

Installation Instructions

Basic Operating RPM Range	1500-6500
Center Maximum Height	4.720
CNC Ported	No
Cylinder Head Type	Standard
Description_ABR	Intake Mnfld
Description_ASM	Chevrolet:Small-Block Gen I:262 (4.3L)-400 (6.6L)
Description_DEF	Engine Intake Manifold
Description_DES	INTAKE MANIFOLD
Description_EXT	Edelbrock Performer RPM AIR-GAP Intake Manifold For Chevrolet 262-400 Small-Block V8
Description_FAB	Based on Performer RPM-Series with Unique Air Gap
Description_FAB	Bright Silver Chrome Finish That Will Not Discolor
Description_FAB	Designed for 1500 to 6500 RPM Street-Driven Power
Description_FAB	Dual-Plane High-Rise Intake
Description_FAB	For Square Bore Carburetors Only
Description_INV	RPM Air-Gap SBC Intake Manifold
Description_KEY	7501; Chevy; Chevrolet; Edelbrock; Intake Manifold; Intake; Manifold; Dual-Plane; Performer RPM; Air-Gap; Satin
Description_LAB	Performer RPM Small Block Chevy AIR-Gap Intake Manifold
Description_MKT	Edelbrock part #7501 RPM Air-Gap #7501 intake manifold is designed for 1955-86 262-400 c.i.d. Chevrolet V8 applications. The award-winning RPM Air-Gap intake manifold incorporates the same race-winning technology that's used on our Victor Series competition intakes. The air-gap design features an open air space that separates the runners from the hot engine oil resulting in a cooler, denser charge for more power.
Description_SHO	{ Sellable : Yes }
Description_SHP	{ eo : 7in.}
Description_TRA	Carb pad height: 4.27"
Description_TRA	Carb recommendations: Edelbrock AVS2 or Performer Series 650-800 cfm. Use bracket #8031 or #8036 for 1972-78.
Description_TRA	DO NOT OVERTIGHTEN NPT/Pipe fittings, this may cause the aluminum to crack around the fitting boss. NPT/Pipe thread is a tapered thread.
Description_TRA	Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum.
Description_TRA	Manifold ht: A-4.20", B-5.25" (.70" taller than #2101)
Description_TRA	NPT/Pipe thread fittings require the use of Teflon tape or paste on threads to ensure proper seal.
Description_TRA	Port exit dimensions: 1.14" x 1.95"
Description_TRA	Proper installation is the responsibility of the installer. Improper installation will void your warranty and may result in poor performance and engine or vehicle damage.
Description_TRA	Recommended intake gasket: Edelbrock #7201.
Description_TRA	Sealant must be used on intake bolt threads if the threads extend into lifter valley or coolant passage.
Description_TRA	Use #8504 Edelbrock bolt kit
Description_TRA	Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS.
Description_TRA	Will not fit under stock Corvette hood.
Description_TRA	• Manifold ht: A-4.20in.; B-5.25in. (.70in. taller than # 2101) • Carb pad height: 4.27in. • Carb recommendations: Edelbrock AVS2 or Performer Series 650-800 cfm. Use bracket # 8031 or # 8036 for 1972-78. • Port exit dimensions: 1.14in. x 1.95in. • Recommended intake gasket: Edelbrock # 7201. • Use RTV sealant to properly seal end seals; such as Edelbrock High Temp Silicone sealant # 1076; DO NOT USE END SEALS GASKETS. • Use # 8504 Edelbrock bolt kit • Sealant must be used on intake bolt threads if the threads extend into lifter valley or coolant passage. • NPT/Pipe thread fittings require the use of Teflon tape or paste on threads to ensure proper seal. • DO NOT OVERTIGHTEN NPT/Pipe fittings; this may cause the aluminum to crack around the fitting boss. NPT/Pipe thread is a tapered thread. • Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. • Will not fit under stock Corvette hood. • Proper installation is the responsibility of the installer. Improper installation will void your warranty and may result in poor performance and engine or vehicle damage.
EGR Port	No
Emission	Without EGR
Engine Make/Size	Chevy Small Block (262-400)
finish	Satin
Flange Type	4150
Front Maximum Height	4.200
Gasket Or Seal Included	No
Grade Type	Performance
height	7.5
length	23.62
LTL	N
Material	Aluminum
Number of Carbs	One
Position	N/A
Rear Maximum Height	5.250
RGL	WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
RPM Range	1500-6500
Series	RPM Air-Gap
Single Or Dual Plane Type	Dual
Usage	Street/Hi-Performance
Vehicle Model	Chevrolet
WARNING CA Proposition 65	Yes
WARNING CA Proposition 65 Message	WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov.
weight	19.3
width	14.75
