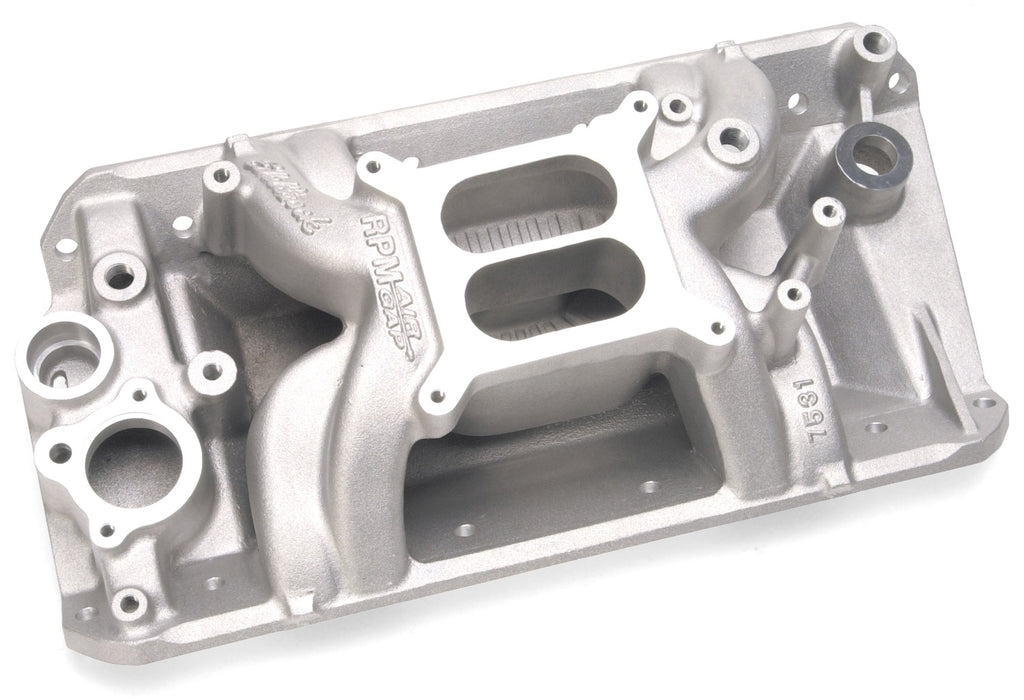

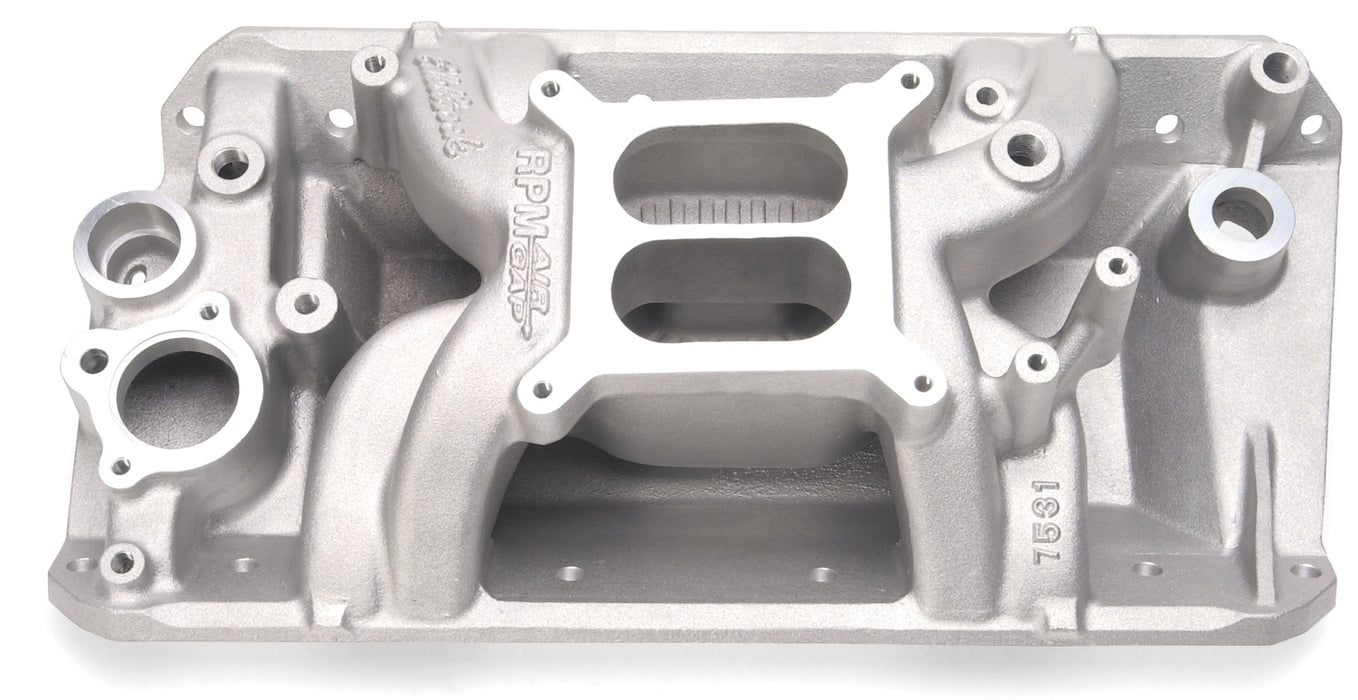

Edelbrock 7531 Edelbrock RPM Air-Gap AMC Intake Manifold for AMC 304-360-401 Small-Block V8

Edelbrock part #7531 RPM Air-Gap AMC intake manifold is designed for 1970-91 304-401 c.i.d. V8 applications. The RPM Air-Gap intake manifold incorporate the same race-winning technology as our Victor Series competition intakes. The air-gap design features an open air space that separates the runners from the hot engine oil for a cooler, denser charge and more power. Includes standard oil fill and PCV provisions as well as early air conditioning support bracket accessory bosses. For square-bore carbs. No provision for exhaust-heated chokes. No exhaust crossover.

Installation Instructions

Description_ABR	Intake Mnfld
Description_ASM	AMC:-:304 (5.0L)-401 (6.6L)
Description_DEF	Engine Intake Manifold
Description_DES	INTAKE MANIFOLD
Description_EXT	Edelbrock RPM Air-Gap AMC Intake Manifold for AMC 304-360-401 Small-Block V8
Description_FAB	Air Gap Causes Cool and Dense Mixture More Power
Description_FAB	Based on Performer RPM-Series with Unique Air Gap
Description_FAB	Designed for 1500 to 6500 RPM Street-Driven Power
Description_FAB	Dual-Plane High-Rise Intake w/180 Deg. Firing Order
Description_FAB	Includes Std Oil Fill/PCV
Description_FAB	Not For Exhaust Heat Chokes No Exhaust Crossover
Description_FAB	Produces Incredible Top-End Horsepower
Description_FAB	Retains Good Throttle Response and Acceleration
Description_INV	RPM AMC Air-Gap 1970-91 Intake Manifold
Description_KEY	7531; AMC; Jeep; Edelbrock; Intake Manifold; Intake; Manifold; Dual-Plane; Performer RPM; Performer RPM AIR-GAP; Satin
Description_LAB	RPM Air-Gap AMC 304/360/401 Intake Manifold
Description_MKT	Edelbrock part #7531 RPM Air-Gap AMC intake manifold is designed for 1970-91 304-401 c.i.d. V8 applications. The RPM Air-Gap intake manifold incorporate the same race-winning technology as our Victor Series competition intakes. The air-gap design features an open air space that separates the runners from the hot engine oil for a cooler, denser charge and more power. Includes standard oil fill and PCV provisions as well as early air conditioning support bracket accessory bosses. For square-bore carbs. No provision for exhaust-heated chokes. No exhaust crossover.
Description_SHO	{ Sellable : Yes }
Description_SHP	{ eo : 5in.}
Description_TRA	Carb pad height: 5.11"
Description_TRA	Carb recommendations: Edelbrock AVS2 or Performer Series 600-800 cfm.
Description_TRA	Edelbrock bracket #8034 required for 1979 and later vehicles
Description_TRA	Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum.
Description_TRA	Has two center bolt holes offset
Description_TRA	Manifold height: A-4.45", B-5.77"
Description_TRA	Must use factory style metal valley tray
Description_TRA	Port exit dimensions: 1.04" x 2.10"
Description_TRA	Recommended intake gasket: Fel-Pro MS96011
Description_TRA	Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS.
Description_TRA	• Recommended intake gasket: Fel-Pro MS96011 • Must use factory style metal valley tray • Has two center bolt holes offset • Manifold height: A-4.45in.; B-5.77in. • Carb pad height: 5.11in. • Carb recommendations: Edelbrock AVS2 or Performer Series 600-800 cfm. • Port exit dimensions: 1.04in. x 2.10in. • Edelbrock bracket # 8034 required for 1979 and later vehicles • Use RTV sealant to properly seal end seals; such as Edelbrock High Temp Silicone sealant # 1076; DO NOT USE END SEALS GASKETS. • Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum.
height	7.5
length	23.62
LTL	N
weight	23.2
width	14.75
