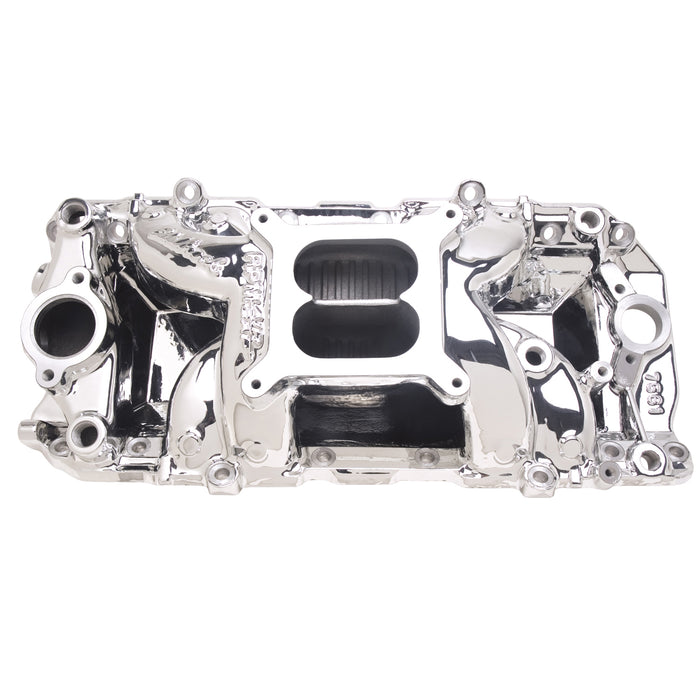

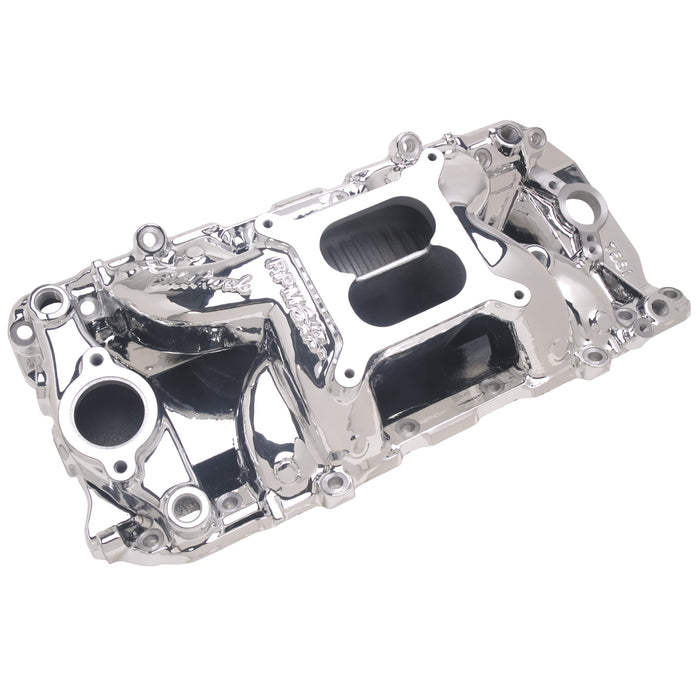

Edelbrock 75614 Edelbrock RPM Air-Gap 2-O Intake Manifold for Chevrolet 396-502 Big-Block V8

Edelbrock part #75614 RPM Air-Gap 2-O intake manifold is designed for street 396-502 c.i.d. Chevy V8's with large oval-port cylinder heads (1975 and earlier) or Edelbrock Performer/Performer RPM heads. The RPM Air-Gap incorporates the same race-winning technology that's been used on our Victor Series competition intakes for decades. The Air-Gap design features an open air space that separates the runners from the hot engine oil resulting in a cooler, denser charge for more power. Includes rear water outlets, two distributor clamp locations and nitrous bosses. Accepts all late model alternator and A/C brackets for the street. For square bore carburetors only. Will not fit under stock hood of Corvette, 1964-67 Chevelle or 1967-81 Camaro. No provision for exhaust heated chokes and no exhaust crossover. This manifold offers our long lasting bright chrome like EnduraShine finish that matches chrome and polished accessories.

Center Maximum Height	5.220
CNC Ported	No
Description_ABR	Intake Mnfld
Description_ASM	Chevrolet:Big-Block:396 (6.5L)-502 (8.2L)
Description_DEF	Engine Intake Manifold
Description_EXT	Edelbrock RPM Air-Gap 2-O Intake Manifold for Chevrolet 396-502 Big-Block V8
Description_INV	Eshine RPM Air-Gap Oval Port Intake
Description_LAB	RPM Air-Gap Big Block Chevy 2-O Endurashine Intake Manifold
Description_MKT	Edelbrock part #75614 RPM Air-Gap 2-O intake manifold is designed for street 396-502 c.i.d. Chevy V8's with large oval-port cylinder heads (1975 and earlier) or Edelbrock Performer/Performer RPM heads. The RPM Air-Gap incorporates the same race-winning technology that's been used on our Victor Series competition intakes for decades. The Air-Gap design features an open air space that separates the runners from the hot engine oil resulting in a cooler, denser charge for more power. Includes rear water outlets, two distributor clamp locations and nitrous bosses. Accepts all late model alternator and A/C brackets for the street. For square bore carburetors only. Will not fit under stock hood of Corvette, 1964-67 Chevelle or 1967-81 Camaro. No provision for exhaust heated chokes and no exhaust crossover. This manifold offers our long lasting bright chrome like EnduraShine finish that matches chrome and polished accessories.
Description_TRA	Carb pad height: 5.22"
Description_TRA	Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum.
Description_TRA	Manifold height: A-4.45", B-6.0"
Description_TRA	Port exit dimensions: 1.60" x 1.94"
Description_TRA	Recommended intake gasket: Edelbrock #7203
Description_TRA	Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS.
finish	EnduraShine
Front Maximum Height	4.450
Gasket Or Seal Included	No
Grade Type	Performance
height	7.5
length	23.625
Material	Aluminum
Rear Maximum Height	6.000
RGL	WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Single Or Dual Plane Type	Dual Plane
weight	22.6
width	14.75
