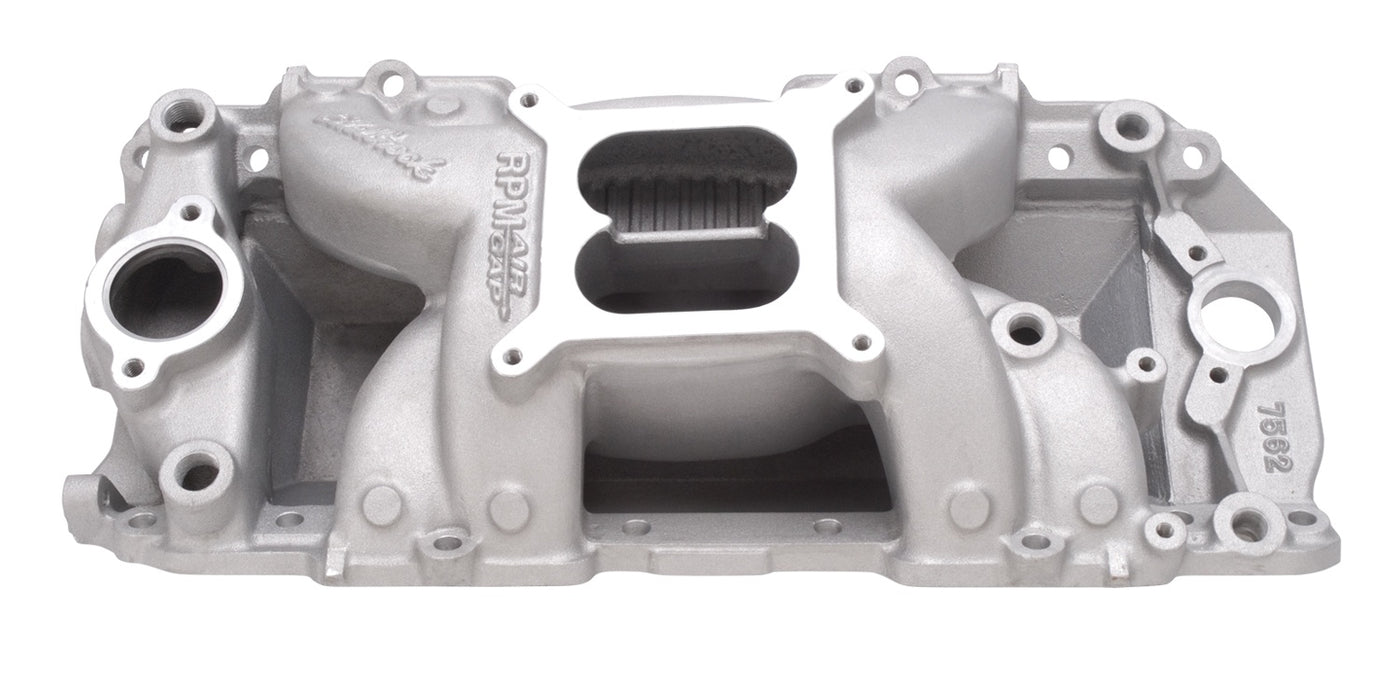

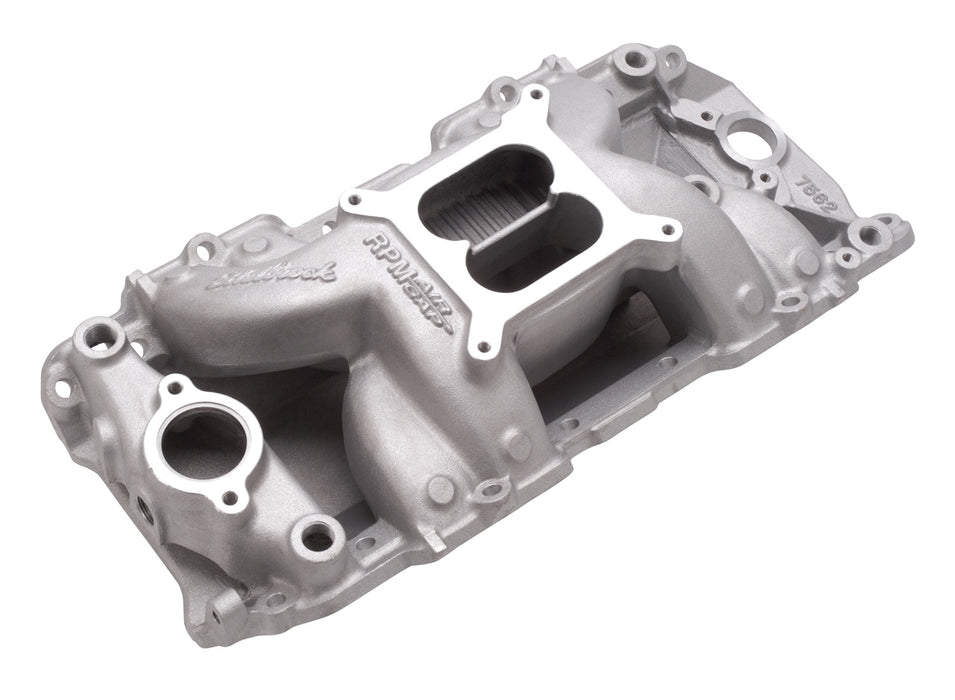

Edelbrock 7562 Edelbrock Performer RPM 2-R Intake Manifold for Chevrolet 396-502 Big-Block V8
by Edelbrock
SKU ds_BDVJ_7562
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Original price
$705.66
-
Original price
$705.66
Original price
$705.66
$705.66
$705.66
-
$705.66
Current price
$705.66
Description
Edelbrock part #7562 RPM Air-Gap 2-R intake manifold is designed for street 396-502 c.i.d. Chevrolet V8's with high-performance rectangular-port heads. The open air space separates the runners from the hot engine oil, and as a result, the air/fuel mixture stays cooler for a denser charge and more power Includes rear water outlets, two distributor clamp locations and nitrous bosses. Accepts all late model alternator and A/C brackets for the street.
Specifications
| Basic Operating RPM Range | 1500-6500 |
| Center Maximum Height | 5.220 |
| CNC Ported | No |
| Description_ABR | Intake Mnfld |
| Description_ASM | Chevrolet:Big-Block Mark IV:396 (6.5L)-502 (8.2L) |
| Description_DEF | Engine Intake Manifold |
| Description_DES | INTAKE MANIFOLD |
| Description_EXT | Edelbrock Performer RPM 2-R Intake Manifold for Chevrolet 396-502 Big-Block V8 |
| Description_FAB | Based on Performer RPM-Series with Unique Air Gap |
| Description_FAB | Designed for 1500 to 6500 RPM Street-Driven Power |
| Description_FAB | Dual-Plane High-Rise Intake w/180 Deg. Firing Order |
| Description_FAB | Edelbrock Total Power Package Maximizes Gains |
| Description_FAB | Larger Plenum and Runners Maximizes Other Upgrades |
| Description_FAB | Produces Incredible Top-End Horsepower |
| Description_FAB | Retains Good Throttle Response and Acceleration |
| Description_INV | RPM Air-Gap BBC Rectangular Port Intake |
| Description_KEY | 7562; Chevy; Chevrolet; Edelbrock; Intake Manifold; Intake; Manifold; Dual-Plane; Performer RPM; Performer RPM AIR-GAP; Satin |
| Description_LAB | RPM Air-Gap Big Block Chevy 2-R Intake Manifold |
| Description_MKT | Edelbrock part #7562 RPM Air-Gap 2-R intake manifold is designed for street 396-502 c.i.d. Chevrolet V8's with high-performance rectangular-port heads. The open air space separates the runners from the hot engine oil, and as a result, the air/fuel mixture stays cooler for a denser charge and more power Includes rear water outlets, two distributor clamp locations and nitrous bosses. Accepts all late model alternator and A/C brackets for the street. |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 7in.} |
| Description_TRA | Carb pad height: 5.22" |
| Description_TRA | Carb recommendations: Edelbrock AVS2 or Performer Series 750-800 cfm. Use bracket #8031 for 1972-78. |
| Description_TRA | Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Description_TRA | Manifold height: A-4.45", B-6.0" |
| Description_TRA | Port exit dimensions: 1.56" x 2.24" |
| Description_TRA | Recommended intake gasket: Edelbrock #7202. |
| Description_TRA | Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA | Will not fit under stock hood of Corvette, 1964-67 Chevelle or 1967-81 Camaro. |
| Description_TRA | • Recommended intake gasket: Edelbrock # 7202. • Manifold height: A-4.45in.; B-6.0in. • Carb pad height: 5.22in. • Carb recommendations: Edelbrock AVS2 or Performer Series 750-800 cfm. Use bracket # 8031 for 1972-78. • Port exit dimensions: 1.56in. x 2.24in. • Will not fit under stock hood of Corvette; 1964-67 Chevelle or 1967-81 Camaro. • Use RTV sealant to properly seal end seals; such as Edelbrock High Temp Silicone sealant # 1076; DO NOT USE END SEALS GASKETS. • Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| EGR Port | No |
| finish | Satin |
| Flange Type | 4150 |
| Front Maximum Height | 4.450 |
| Gasket Or Seal Included | No |
| Grade Type | Performance |
| height | 6.75 |
| length | 23.75 |
| LTL | N |
| Material | Aluminum |
| Rear Maximum Height | 6.000 |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Series | RPM Air-Gap |
| Single Or Dual Plane Type | Dual |
| Vehicle Model | Chevrolet |
| weight | 21.95 |
| width | 12.25 |
