Availability:
4+ in stock
Edelbrock 8843 { Sellable : Yes }
by Edelbrock
SKU ds_BDVJ_8843
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Original price
$519.81
-
Original price
$519.81
Original price
$519.81
$519.81
$519.81
-
$519.81
Current price
$519.81
Description

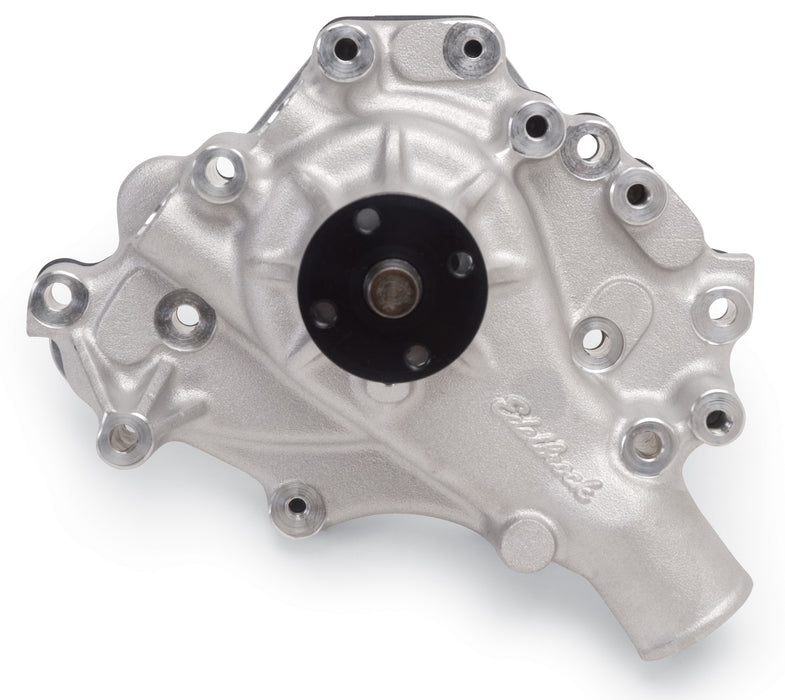

Edelbrock #8843 Water Pump Ford 1970-78 302 & 1970-87 351w v8 ideal to prevent overheating in street rods and street machines, as well as in tow rigs and motorhomes. Using state-of-the-art racing technology, Edelbrock has designed these "super cooling" Water Pumps to provide maximum flow, maximum pressure and equal distribution to both sides of the block within 1%. Available for most popular applications, these high performance pumps flow in only one direction for optimum efficiency. The casting's computer-designed internal passages and precision powdered metal impeller produce the maximum flow rate possible.
Specifications
| Casting Number | 8843 |
| Description_ABR | Water Pump |
| Description_ASM | Ford:Small-Block:302 (5.0L)/351W (5.8L) |
| Description_DEF | Engine Water Pump |
| Description_DES | WATER PUMP |
| Description_EXT | Edelbrock #8843 Water Pump Ford 1970-78 302 & 1970-87 351w V8 Ideal to prevent overheating in street rods and street machines |
| Description_EXT | Edelbrock #8843 Water Pump Ford 1970-78 302 1970-87 351w V8 Ideal to prevent overheating in street rods and street machines |
| Description_FAB | Equal Distribution to Both Sides of Block |
| Description_FAB | Impeller Is Larger Than Others For Max Pressure |
| Description_FAB | Impeller Vanes Dramatically Increase Flow Rates |
| Description_FAB | Internal Passages Are Balanced for Maximum Flow |
| Description_FAB | Maximum Cooling for Street and Racing Engines |
| Description_FAB | Only Flows In One Direction For Optimum Efficiency |
| Description_INV | Water Pump Ford 1970-78 302 1970-87 351w |
| Description_KEY | Edelbrock; Water Pump; Ford; Small Block Ford; SBF; 1970-78; 351w cid; 8843 |
| Description_LAB | Water Pump for Small-Block Ford 351W in Satin Finish |
| Description_MKT | Edelbrock #8843 Water Pump Ford 1970-78 302 & 1970-87 351w v8 ideal to prevent overheating in street rods and street machines, as well as in tow rigs and motorhomes. Using state-of-the-art racing technology, Edelbrock has designed these "super cooling" Water Pumps to provide maximum flow, maximum pressure and equal distribution to both sides of the block within 1%. Available for most popular applications, these high performance pumps flow in only one direction for optimum efficiency. The casting's computer-designed internal passages and precision powdered metal impeller produce the maximum flow rate possible. |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 0in.} |
| Description_TRA | Be sure that the fan bolts don't protrude through the hub so far that they hit the water pump housing |
| Description_TRA | Check closely for any interference with drive belts |
| Description_TRA | Consult service manual for specific procedures, if necessary |
| Description_TRA | Incorrect alignment or an unbalanced condition puts excessive strain on the pump's shaft and/or bearing and will result in early failure of the shaft and/or bearing. The balance of the assembly depends primarily upon the concentricity of the fan clutch with the pump shaft. Concentricity is not assured when universal type clutches are used. The universal fan clutch has a 3/4" pilot hole, so an adapter must be used when installing a water pump with a 5/8" shaft. This adapter bushing is supplied with the unit. These adapter bushings add to the machine tolerances of the assembly, so special care must be taken to maintain concentricity with the shaft and the clutch fan. The use of aftermarket (non-OEM) fan spacers are not recommended and will void the warranty of the water pump. |
| Description_TRA | Installation is the same as for original equipment water pumps |
| Description_TRA | Reassemble backing plate and install on engine using RTV silicone |
| Description_TRA | Remove two screws from backing plate and apply RTV silicone to gasket just before installation |
| Description_TRA | some filing for clearance may be necessary with some applications |
| Description_TRA | The distance from the flange surface to the hub should measure 5.75". |
| Description_TRA | • Installation is the same as for original equipment water pumps • Consult service manual for specific procedures; if necessary • Remove two screws from backing plate and apply RTV silicone to gasket just before installation • Reassemble backing plate and install on engine using RTV silicone • Be sure that the fan bolts don t protrude through the hub so far that they hit the water pump housing • Check closely for any interference with drive belts; some filing for clearance may be necessary with some applications • The distance from the flange surface to the hub should measure 5.75in. Incorrect alignment or an unbalanced condition puts excessive strain on the pump s shaft and/or bearing and will result in early failure of the shaft and/or bearing. The balance of the assembly depends primarily upon the concentricity of the fan clutch with the pump shaft. Concentricity is not assured when universal type clutches are used. The universal fan clutch has a 3/4in. pilot hole; so an adapter must be used when installing a water pump with a 5/8in. shaft. This adapter bushing is supplied with the unit. These adapter bushings add to the machine tolerances of the assembly; so special care must be taken to maintain concentricity with the shaft and the clutch fan. The use of aftermarket (non-OEM) fan spacers are not recommended and will void the warranty of the water pump. |
| Fan Clutch Included | No |
| height | 8.25 |
| Housing Material | Aluminum |
| Hub Height | 5.70 |
| Hub Hole Quantity | 6 |
| Impeller Material | Powdered Metal |
| Impeller Rotation | Standard |
| Impeller Vane Quantity | 6 |
| Includes Back Housing | Yes |
| Installation Warnings | Yes |
| length | 13.75 |
| LTL | N |
| Mounting Hardware Included | No |
| Mounting Hole Quantity | 10 |
| Outlet Quantity | 1 |
| Pulley Included | No |
| Related Cooling Fan Components | No |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Thermostat And Housing Included | No |
| Water Pump Drive Type | V-Belt |
| weight | 10.05 |
| width | 9.0 |
