Availability:
4+ in stock
Edelbrock 9266 { Sellable : Yes }
by Edelbrock
SKU ds_BDVJ_9266
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Original price
$64.92
-
Original price
$64.92
Original price
$64.92
$64.92
$64.92
-
$64.92
Current price
$64.92
Description

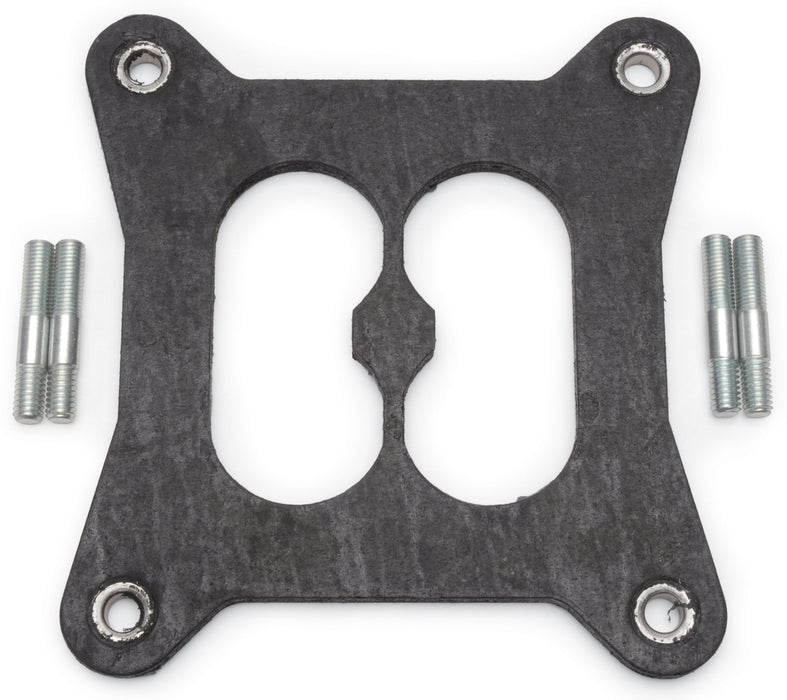

The Edelbrock Square-bore Heat Insulator Gasket #9266 is designed to prevent percolation on Edelbrock Performer Series Carburetors exposed to extreme under hood temperatures. This gasket features a divided center which will allow dual plane Performer and RPM manifolds to seal properly to the carburetor. Prior to installation, check air cleaner-to-hood clearance to ensure that additional height of heat insulator gasket will Not cause interference. Remove air cleaner and all attachments to the carburetor such as fuel line, throttle linkage, and vacuum lines. Be sure to note the position or tag each piece to facilitate re-installation. Remove the carburetor and set it aside, then remove the old base gasket and any additional plates, such as Edelbrock square-bore adapter #2732. Remove the short carb studs and install the longer studs. Install the #9266 heat insulator gasket directly against the manifold, then replace the carb and all other connections. Note that gasket #9266 is rigid enough to replace square-bore adapter plate #2732, if required.
Specifications
| Barrel Quantity | 4 |
| Description_ABR | Carb Insulat |
| Description_DEF | Carburetor Heat Insulator |
| Description_DES | HEAT INSULATOR |
| Description_EXT | The Edelbrock Square-bore Heat Insulator Gasket #9266 is designed to prevent percolation on Edelbrock Performer Series carburetors exposed to extreme under hood temperatures. |
| Description_EXT | The Edelbrock Square-bore Heat Insulator Gasket #9266 is designed to prevent percolation on Edelbrock Performer Series carburetors exposed to extreme under hood temperatures.? |
| Description_FAB | Comes w/Extended Carb Studs |
| Description_FAB | For Extreme Underhood Temps |
| Description_FAB | Helps Prevents Fuel Percolation |
| Description_FAB | Square Bore Applications Only |
| Description_INV | Divided Heat Insulator |
| Description_KEY | Edelbrock; Gasket; Heat; Insulator; Carburetor; Carb; Installation; Replacement; Percolation; Performer Series; Thunder Series; AVS; AVS2; Square bore |
| Description_LAB | Carburetor Heat Insulator #9266 Divided Square Bore |
| Description_MKT | The Edelbrock Square-bore Heat Insulator Gasket #9266 is designed to prevent percolation on Edelbrock Performer Series Carburetors exposed to extreme under hood temperatures. This gasket features a divided center which will allow dual plane Performer and RPM manifolds to seal properly to the carburetor. Prior to installation, check air cleaner-to-hood clearance to ensure that additional height of heat insulator gasket will Not cause interference. Remove air cleaner and all attachments to the carburetor such as fuel line, throttle linkage, and vacuum lines. Be sure to note the position or tag each piece to facilitate re-installation. Remove the carburetor and set it aside, then remove the old base gasket and any additional plates, such as Edelbrock square-bore adapter #2732. Remove the short carb studs and install the longer studs. Install the #9266 heat insulator gasket directly against the manifold, then replace the carb and all other connections. Note that gasket #9266 is rigid enough to replace square-bore adapter plate #2732, if required. |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 0in.} |
| height | 8.75 |
| length | 12.5 |
| LTL | N |
| Material | Nitrile Rubber Composite |
| Quantity | Sold Individually |
| Recommended Use | Edelbrock Carburetors |
| RGL | WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Shape | Square Bore |
| Thickness | 0.320 |
| Type | Divided Center |
| WARNING CA Proposition 65 | Yes |
| WARNING CA Proposition 65 Message | WARNING: This product can expose you to Chromium; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov. |
| weight | 12.75 |
| width | 12.5 |
