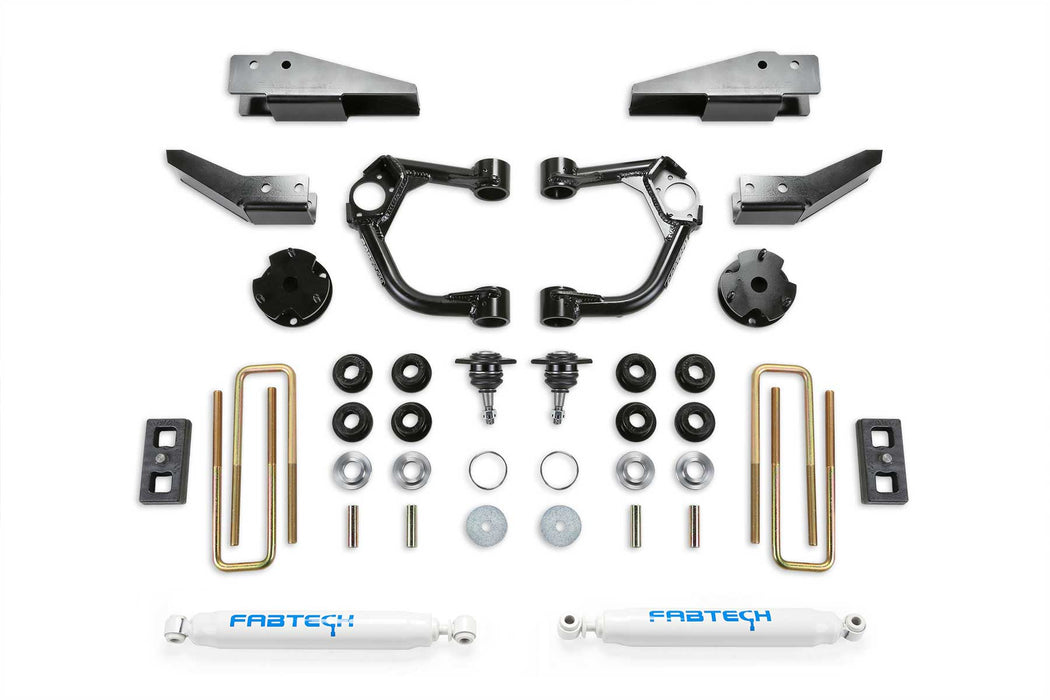

Fabtech K2323 Ball Joint Control Arm Lift System
by Fabtech
SKU ds_BKBN_K2323
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Original price
$1,118.26
-
Original price
$1,118.26
Original price
$1,118.26
$1,118.26
$1,118.26
-
$1,118.26
Current price
$1,118.26
Description
Fabtech's Upper Control Arm system provides a 3.5" lift over stock with increased wheel travel and no suspension bind at full droop. Lift is accomplished with steel spacers that utilize the factory Coilover shocks for a stock ride. The replacement Upper Control Arms address the geometry of the front suspension with the new ride height for proper alignability. Heavy duty ball joints allow for extended suspension travel to eliminate binding. The system has been designed for proper CV axle angle and plunge thus eliminating the need to reposition the front differential. Rear lift comes from 1.5" blocks and u-bolts.This 3.5" Upper Control Arm system allows clearance of 31" tires without the removal or cutting of the factory Intrusion Beams located in the front fenderwell. The Intrusion Beams are an integral part of the front collision safety impact feature of the Ranger and limits tire clearance to a 31" tire with a 3.5" lift. For Ranger owners that want to run a 33" tire, Fabtech offers optional replacement Offset Intrusion Beams. They directly replace the factory units helping to retain the safety feature of the Beams while allowing clearance of 33" tires. These 1/4" thick steel Beams are offset to allow full steer with 33/12.50R tires w/ a 5" back space wheel.
Specifications
| Description_ASC | TIRE SIZE - 33/12.50R18 WHEEL - 18X9 W/5" BS W/MINOR TRIMMING; TIRE SIZE - 33/12.50R20 WHEEL - 20X9 W/5" BS W/MINOR TRIMMING; 47. FITS SUPERCREW ONLY. |
| Description_ASC | TIRE SIZE-33/12.50R18 WHEEL-18X9 W/5in. BS W/MINOR TRIMMING; TIRE SIZE-33/12.50R20 WHEEL-20X9 W/5in. BS W/MINOR TRIMMING; 47. FITS SUPERCREW ONLY. |
| Description_DEF | Suspension Lift Kit |
| Description_DES | 3.5" BJ UCA SYS W/ PERF SHKS 2019-20 FORD RANGER 4WD W/ INTRUSION BEAM KIT |
| Description_DES | Ball Joint Control Arm Lift System |
| Description_DES | BJ UCA KIT |
| Description_DES | OFFSET INTRUSION BEAM KIT |
| Description_DES | PERFORMANCE SHOCK |
| Description_EXT | 3.5" BJ UCA SYS W/ PERF SHKS 2019-20 FORD RANGER 4WD W/ INTRUSION BEAM KIT. |
| Description_EXT | Ball Joint Control Arm Lift System; 3.5 in. Lift; w/Rear Performance Shocks /Intrusion Beam Kit; Incl. PN [FTS22293/FTS22296/FTS7265]; |
| Description_FAB | 2 to 3 Hours Installation |
| Description_FAB | No Cutting Required |
| Description_FAB | No Drilling Required |
| Description_FAB | No Driveshaft Modification |
| Description_FAB | No Loss Of Ground Clearance |
| Description_FAB | No Welding Required |
| Description_FAB | Simplified Design With Fast Install |
| Description_FAB | Steering Knuckles Retain Proper ESC |
| Description_INV | Fabtech-3.5" BJ UCA SYS W/ P |
| Description_LAB | Proposition 65 |
| Description_MKT | Fabtech's Upper Control Arm system provides a 3.5" lift over stock with increased wheel travel and no suspension bind at full droop. Lift is accomplished with steel spacers that utilize the factory Coilover shocks for a stock ride. The replacement Upper Control Arms address the geometry of the front suspension with the new ride height for proper alignability. Heavy duty ball joints allow for extended suspension travel to eliminate binding. The system has been designed for proper CV axle angle and plunge thus eliminating the need to reposition the front differential. Rear lift comes from 1.5" blocks and u-bolts.This 3.5" Upper Control Arm system allows clearance of 31" tires without the removal or cutting of the factory Intrusion Beams located in the front fenderwell. The Intrusion Beams are an integral part of the front collision safety impact feature of the Ranger and limits tire clearance to a 31" tire with a 3.5" lift. For Ranger owners that want to run a 33" tire, Fabtech offers optional replacement Offset Intrusion Beams. They directly replace the factory units helping to retain the safety feature of the Beams while allowing clearance of 33" tires. These 1/4" thick steel Beams are offset to allow full steer with 33/12.50R tires w/ a 5" back space wheel. |
| Description_MKT | This quality 2019 Ford Ranger Upper Control Arm system is perfect for owners looking to increase ride height to run slightly larger tires than factory. The system will provide additional wheel travel with no suspension bind at full droop. Lift is accomplished with steel spacers that utilize the factory Coilover shocks for a stock like ride. Fabtech's Upper Control Arms address the geometry of the front suspension with the new ride height for proper align ability. Heavy duty ball joints allow for extended suspension travel to eliminate binding. The system has been designed for proper CV axle angle and plunge thus eliminating the need to reposition the front differential. Included in this system is Fabtech's Offset Intrusion Beam Kit that allows use of 33in tires. The factory Intrusion Beams are located in the front fenderwells, forward and back of the tire. They limit the size of the tire you can install while being an integral part of the front collision safety impact feature of the vehicle. Rather than modifying or removing the Beams for tire clearance, Fabtech provides replacement Offset Intrusion Beams. They are constructed of 1/4in thick steel and are a welded box design for maximum strength. They allow full steer with 33/1250R tires w/ a 5in back space wheel. Rear lift comes from 1.5in blocks and u-bolts. |
| Description_SHO | 3.5" BJ UCA SYS W/ P |
| Description_SHO | LftKt-Suspw/Shock |
| height | 15.5 |
| length | 24.0 |
| LTL | N |
| weight | 75.0 |
| width | 18.26 |
