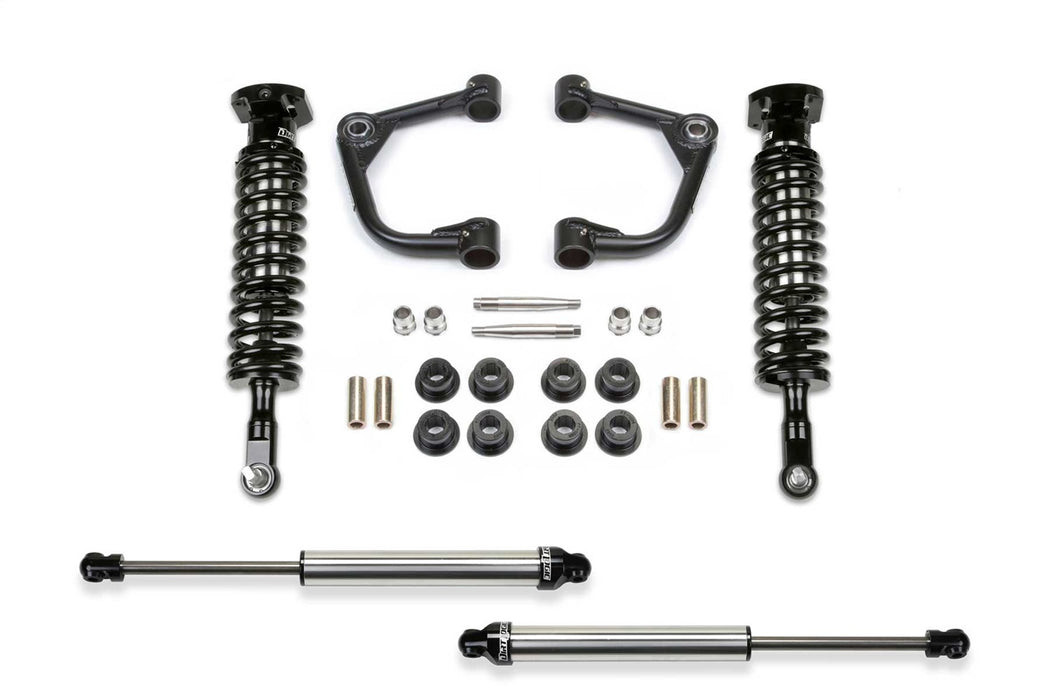

Fabtech K2374DL Uniball UCA Lift System w/Shocks
by Fabtech
SKU ds_BKBN_K2374DL
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Original price
$40,151.46
-
Original price
$40,151.46
Original price
$40,151.46
$40,151.46
$40,151.46
-
$40,151.46
Current price
$40,151.46
Description
Obtain increased wheel travel and mild lift height with this heavy duty Upper Control Arm system. The tubular Upper Control Arms feature 1.25 OD. .120 wall thick chromoly tube construction with 1 diameter Stainless Steel Uniballs that attach to the factory spindle without drilling. These heavy duty UCAs have been designed to work in conjunction with Fabtechs legendary Dirt Logic 2.5 Coilover shocks for a complete front suspension system upgrade. The F150s offroad suspension performance will be greatly enhanced due to the extensive ride tuning of the stainless steel Dirt Logic 2.5 Coilovers and rear Dirt Logic 2.25s.
Specifications
| California Proposition 65 | WARNING: Cancer & Reproductive Harm and image |
| Description_ASC | TIRE SIZE - 275/65R18 WHEEL - 18X9 W/5" BS W/MINOR TRIMMING; TIRE SIZE - 33/12.50R18 WHEEL - 18X9 W/5" BS W/MINOR TRIMMING; TIRE SIZE - 285/55R20 WHEEL - 20X9 W/5" BS W/MINOR TRIMMING; TIRE SIZE - 33/12.50R20 WHEEL - 20X9 W/5" BS W/MINOR TRIMMING; 227. DOES NOT FIT MODELS EQUIPPED WITH CCD (CONTINUOUSLY CONTROLLED DAMPING) SYSTEM |
| Description_ASC | TIRE SIZE-275/65R18 WHEEL-18X9 W/5in. BS W/MINOR TRIMMING; TIRE SIZE-33/12.50R18 WHEEL-18X9 W/5in. BS W/MINOR TRIMMING; TIRE SIZE-285/55R20 WHEEL-20X9 W/5in. BS W/MINOR TRIMMING; TIRE SIZE-33/12.50R20 WHEEL-20X9 W/5in. BS W/MINOR TRIMMING; 227. DOES NOT FIT MODELS EQUIPPED WITH CCD (CONTINUOUSLY CONTROLLED DAMPING) SYSTEM |
| Description_DEF | Suspension Lift Kit |
| Description_DES | 0-2" F150 UNIBALL UCA KIT |
| Description_DES | 2" UNIBALL UCA SYS W/ DL 2.5 & 2.25 2021 FORD F150 4WD |
| Description_DES | 2.25DLSS N/R |
| Description_DES | 2.5DLSS C/O N/R 15 F150 4WD 2" PAIR PACKAGED |
| Description_DES | Uniball UCA Lift System w/Shocks |
| Description_EXT | 2" UNIBALL UCA SYS W/ DL 2.5 & 2.25 2021 FORD F150 4WD. |
| Description_EXT | Uniball UCA Lift System w/Shocks; 2 in. Lift w/Front Dirt Logic 2.5 Coilovers And Rear Dirt Logic 2.25 Shocks; |
| Description_FAB | 17-4 Stainless Steel Heat Treated Uniball Pin |
| Description_FAB | Arms Are Direct Replacements For Factory Arms |
| Description_FAB | Arms Eliminate Upper Ball Joint |
| Description_FAB | Arms Super Strong 1 in. ID Stainless American Uniball |
| Description_FAB | For Suspensions That Require Additional Strength/Alignability |
| Description_INV | Fabtech-2" UNIBALL UCA SYS W |
| Description_LAB | Proposition 65 |
| Description_MKT | Fabtech?s high quality F150 lift kit offers increased front suspension travel for enhanced offroad capabilities with clearance to run 33" tall tires. The stance of the vehicle will become more level front to rear for an aggressive look. The factory F150 upper control arms are replaced with Fabtech?s Uniball Upper Control Arms that provide additional wheel travel with an extra degree of caster compared to stock arms. The increased caster helps to balance steering effort with oversized tires. The Fabtech upper control arms are constructed of the finest material with .120? wall 1.25? OD 4130 Chromoly steel tubing. Fabtech arms will add rigidity and strength to the F150 suspension. High quality 1" FK Stainless PTFE lined Uniball bearings are utilized in place of the small factory ball joints and allow for increased travel without bind. These super stout F150 upper control arms are designed for longevity in rugged offroad conditions while providing a more positive on road feel. The Fabtech upper control arms have been designed to work in conjunction with the Dirt Logic 2.5 Coilover shocks to provide additional front wheel travel. The rear suspension receives Dirt Logic 2.25 shocks for a balanced ride. All Dirt Logics are constructed with a stainless steel body and a NitroSteel piston rod for maximum corrosion resistance in the harshest conditions. These Dirt Logics have been extensively tested and tuned to provide a superior ride quality both on and offroad. This system is perfect for those that want increased suspension performance with a low lift height. A great choice for daily drivers that want a clean look with the ability to hit the trails on weekends. |
| Description_MKT | Obtain increased wheel travel and mild lift height with this heavy duty Upper Control Arm system. The tubular Upper Control Arms feature 1.25 OD. .120 wall thick chromoly tube construction with 1 diameter Stainless Steel Uniballs that attach to the factory spindle without drilling. These heavy duty UCAs have been designed to work in conjunction with Fabtechs legendary Dirt Logic 2.5 Coilover shocks for a complete front suspension system upgrade. The F150s offroad suspension performance will be greatly enhanced due to the extensive ride tuning of the stainless steel Dirt Logic 2.5 Coilovers and rear Dirt Logic 2.25s. |
| Description_SHO | 2" UNIBALL UCA SYS W |
| Description_SHO | LftKt-Suspw/Shock |
| height | 15.5 |
| length | 35.75 |
| Lift/Drop Height | 2 in. |
| LTL | N |
| Title | Fabtech 2" UNIBALL UCA SYS W/ DL 2.5 & 2.25 2021 FORD F150 4WD |
| WARNING CA Proposition 65 | Yes |
| WARNING CA Proposition 65 Message | Warning: Cancer and Reproductive Harm-www.P65Warnings.ca.gov. |
| weight | 97.0 |
| width | 23.75 |
