FAST 301436 Driveshaft Speed Sensor Kit for 2.1875" Yoke
by FAST
SKU ds_DXKP_301436
Availability:
Out of stock
Sold out
Original price
$346.73
-
Original price
$346.73
Original price
$346.73
$346.73
$346.73
-
$346.73
Current price
$346.73
Description

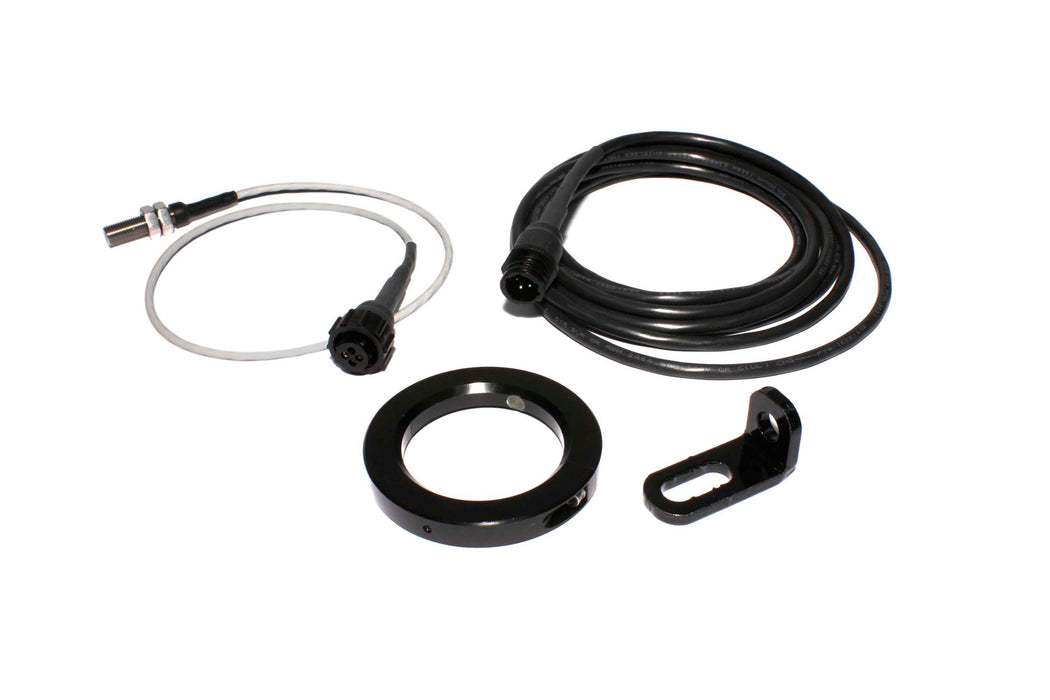

The XFI Driveshaft Speed Sensor Kit from FAST accurately measures driveshaft speed to provide better data for the traction control unit. Two magnets are fitted to the collar around the pinion yoke, which attaches to the driveshaft. When the magnet passes the pickup, it sends a signal to the XFI unit. The XFI uses that signal to calculate driveshaft RPM and also driveshaft acceleration. As a result, the XFI Driveshaft Speed Sensor Kit provides a much more accurate data reading than attempting to determine driveshaft speed solely through engine RPM. Perfect for drag race applications, this unit also provides a MPH reading, and, if the user enters tire size, miles per gallon.
Resources
Installation InstructionsResources
Installation InstructionsSpecifications
| C.A.R.B. EO Number | N/A |
| C.A.R.B. Exempt? | No |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Description_DEF | Vehicle Speed Sensor |
| Description_DES | Driveshaft Speed Sensor Kit for 2.1875" Yoke |
| Description_DES | Replacement Magnet for 301436 and 301437 |
| Description_DES | Replacement P/U for 301436 and 301437 |
| Description_EXT | This driveshaft speed sensor kit is designed for pinion yokes that have a 2.1875" diameter. This collar must fit perfectly around the pinion yoke for an accurate measurement. |
| Description_INV | Driveshaft Speed Kit |
| Description_MKT | The XFI Driveshaft Speed Sensor Kit from FAST accurately measures driveshaft speed to provide better data for the traction control unit. Two magnets are fitted to the collar around the pinion yoke, which attaches to the driveshaft. When the magnet passes the pickup, it sends a signal to the XFI unit. The XFI uses that signal to calculate driveshaft RPM and also driveshaft acceleration. As a result, the XFI Driveshaft Speed Sensor Kit provides a much more accurate data reading than attempting to determine driveshaft speed solely through engine RPM. Perfect for drag race applications, this unit also provides a MPH reading, and, if the user enters tire size, miles per gallon. |
| Description_SHO | Speed Sensor |
| Description_SHP | No |
| height | 2.75 |
| length | 11.75 |
| LTL | N |
| Title | Driveshaft Speed Sensor Kit for 2.1875" Yoke |
| weight | 1.1 |
| width | 6.25 |
