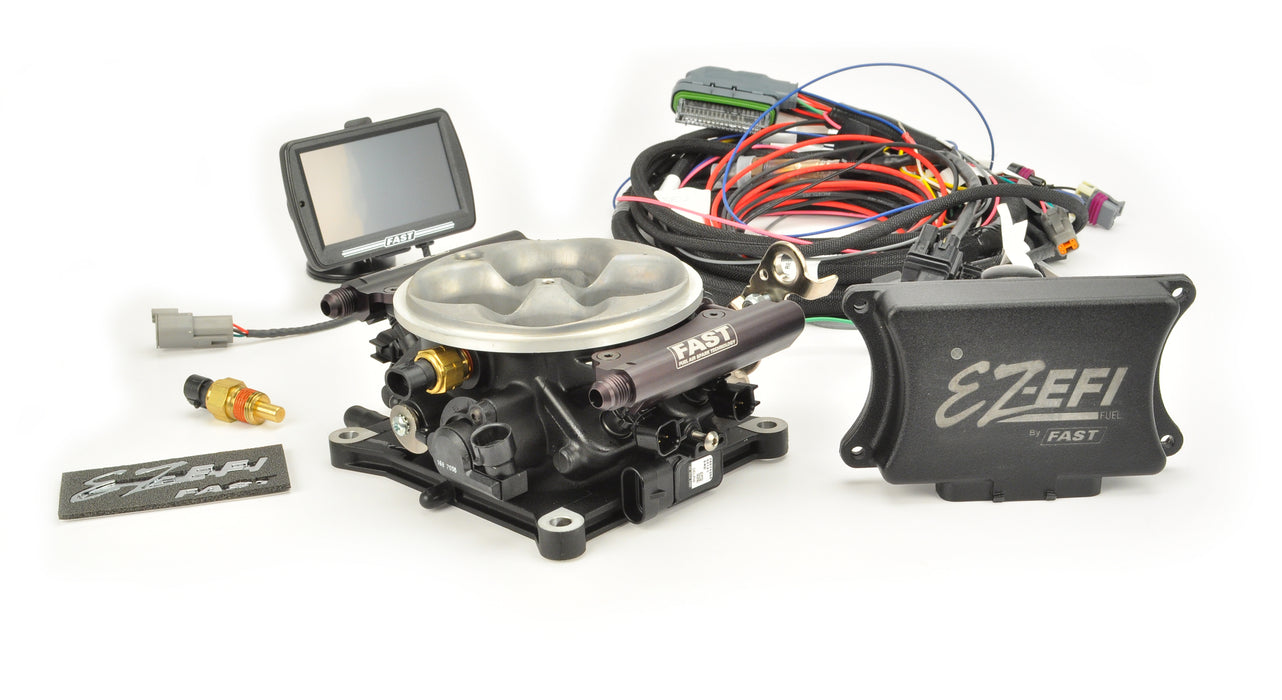

FAST 30226-06KIT EZ Fuel Self-Tuning Throttle Body Injection Kit
by FAST
SKU ds_DXKP_30226-06KIT
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Original price
$1,907.98
-
Original price
$1,907.98
Original price
$1,907.98
$1,907.98
$1,907.98
-
$1,907.98
Current price
$1,907.98
Description
The next generation of the world's simplest self tuning fuel injection system is here. Designed for all applications making up to 650 horsepower, the EZ-EFI Fuel system easily bolts onto any carbureted or multi-port application in a single afternoon, making it the easiest EFI system you will ever install. Simply hook up the system, answer the questions from the Setup Wizard on the color touchscreen hand-held unit, and the system will tune itself as you drive. The hand-held includes a variety of display dashes, a clean and easy to use interface and an LED indicator that can alert users to any errors (including overheating) or be used as a shift light. An updated wiring harness features a premium loom, added protective fuses and a streamlined design, while the ECU hardware has been updated to provide added protection against electrical/ignition noise and hardware damage. FAST EZ-EFI Fuel now features a die cast and black powder-coated four-injector throttle body with integrated fuel rails. It provides even better fuel distribution and more airflow than the original, and NO manifold replacement is needed. In addition to matching any 4150-style carbureted manifold, the EZ-EFI Fuel Self Tuning Fuel Injection System also works with your original carb-style throttle linkage and features OEM sensors, including standard GM versions available at any auto parts store. What?s more, it works with all ignition setups ? including HEI. EZ-EFI Fuel can be installed easily in an afternoon and is a ?must have? for your street rod or muscle car. For more aggressive applications, the EZ-EFI Dual Quad Upgrade Kit is capable of supporting 1200+ horsepower engines with dual quad carburetor-type manifolds. In addition, the Multi-Port Retro-Fit EZ-EFI allows owners of multi-port fuel injected applications to experience the benefits of EFI with no limit on horsepower because the system is based on each customer?s supplied injectors.
Resources
Installation InstructionsResources
Installation InstructionsSpecifications
| Able to Control Boost? | No |
| Able to control ignition timing? | No |
| Boost Compatible? | No |
| C.A.R.B. EO Number | N/A |
| C.A.R.B. Exempt? | No |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Can Support Internal Datalogging? | No |
| Compatible w/ E85 Fuel | No |
| Compatible w/ Returnless Fuel System? | No |
| Description_DEF | Fuel Injection System |
| Description_DES | 02 Sensor Plug |
| Description_DES | 3/8 ID Split Braid Wire Loom |
| Description_DES | 4150 Flange Gasket |
| Description_DES | Bosch LSU4 Wideband Oxygen Sensor |
| Description_DES | Brass Adapter Bushing for Coolant Temperature Sensor |
| Description_DES | Coolant Temperature Sensor |
| Description_DES | EZ EFI 1.0 Computer |
| Description_DES | EZ Fuel 4150 Flange Throttle Body |
| Description_DES | EZ Fuel Self-Tuning Throttle Body Injection Kit |
| Description_DES | EZ-EFI Fuel Hand-Held Unit |
| Description_DES | EZ-EFI Fuel Main Harness |
| Description_DES | EZ-EFI Hand-Held Cable |
| Description_DES | Rubber Grommet for EZ Efi Kits |
| Description_DES | Suction Cup Mount for EZ-EFI Touch-Screen Hand-Held |
| Description_DES | Tachometer Adapter/RPM Module for FAST EZ Fuel and EZ Fuel + Ignition |
| Description_DES | Weld-In Oxygen Sensor Bung |
| Description_EXT | Bolt-On Self-Tuning Throttle Body Injection System for 4150 Flange Carburetor Manifolds with Touchscreen Hand-Held |
| Description_INV | EZ-EFI Fuel |
| Description_MKT | The next generation of the world's simplest self tuning fuel injection system is here. Designed for all applications making up to 650 horsepower, the EZ-EFI Fuel system easily bolts onto any carbureted or multi-port application in a single afternoon, making it the easiest EFI system you will ever install. Simply hook up the system, answer the questions from the Setup Wizard on the color touchscreen hand-held unit, and the system will tune itself as you drive. The hand-held includes a variety of display dashes, a clean and easy to use interface and an LED indicator that can alert users to any errors (including overheating) or be used as a shift light. An updated wiring harness features a premium loom, added protective fuses and a streamlined design, while the ECU hardware has been updated to provide added protection against electrical/ignition noise and hardware damage. FAST EZ-EFI Fuel now features a die cast and black powder-coated four-injector throttle body with integrated fuel rails. It provides even better fuel distribution and more airflow than the original, and NO manifold replacement is needed. In addition to matching any 4150-style carbureted manifold, the EZ-EFI Fuel Self Tuning Fuel Injection System also works with your original carb-style throttle linkage and features OEM sensors, including standard GM versions available at any auto parts store. What?s more, it works with all ignition setups ? including HEI. EZ-EFI Fuel can be installed easily in an afternoon and is a ?must have? for your street rod or muscle car. For more aggressive applications, the EZ-EFI Dual Quad Upgrade Kit is capable of supporting 1200+ horsepower engines with dual quad carburetor-type manifolds. In addition, the Multi-Port Retro-Fit EZ-EFI allows owners of multi-port fuel injected applications to experience the benefits of EFI with no limit on horsepower because the system is based on each customer?s supplied injectors. |
| Description_SHO | EZ-EFI Tbody |
| Description_SHP | No |
| Fuel Injection Series | EZ-EFI Fuel |
| height | 7.8 |
| Individual Cylinder Corrections? | No |
| Injection Type | Throttle Body Injection |
| Knock Retard Compatibility? | No |
| Laptop Datalogging Support | No |
| length | 21.2 |
| LTL | N |
| Mounting Flange Style | 4150 |
| Nitrous Compatible? | No |
| Requires Separate Personal Computer? | No |
| Title | EZ Fuel Self-Tuning Throttle Body Injection Kit |
| Uses Fuel Pressure Sensor? | No |
| weight | 14.8 |
| width | 11.3 |
