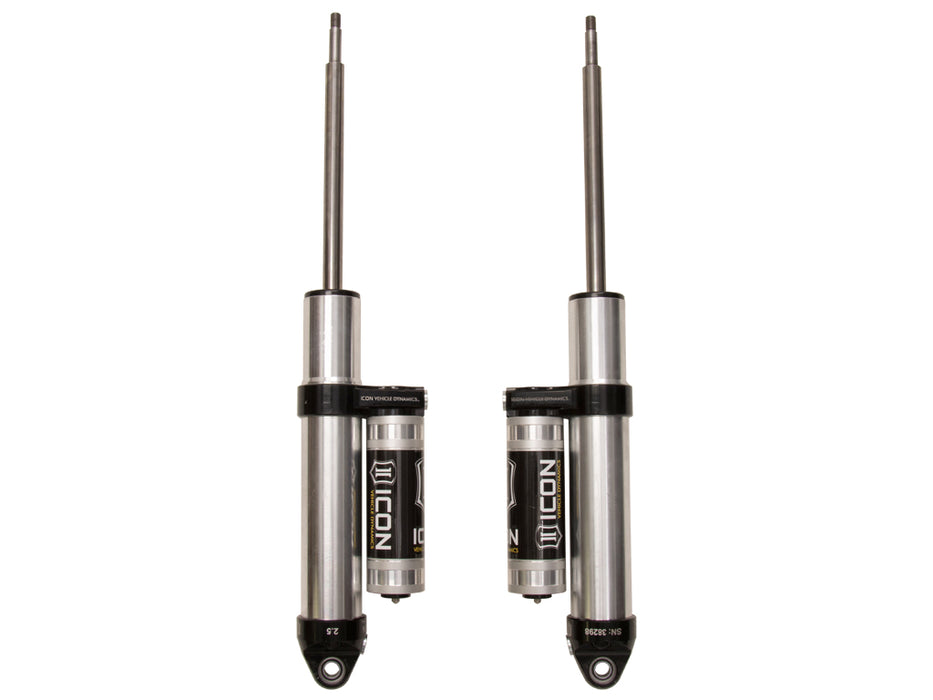

ICON Vehicle Dynamics 217704P 2014-UP RAM 2500 0" COIL / 3" AIR RIDE REAR 2.5 VS PIGGYBACK SHOCK PAIR

ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. If you are looking for a more user defined tune, consider looking into the Compression Damping Control Valve (CDCV) shocks.

Attributed Description	ICON Vehicle Dynamics; Shock Absorber Set; Adjustable: No; Boot Included: No; Bore Diameter: 2.25 IN; Compressed Length: 16.13 IN; Fully Open Length: 25.16 IN; Gas Charged: Yes; Lower Mount Type: Eyelet; Mounting Hardware Included: Yes; Shock Absorber Body End Measuring Point: Center of Eyelet; Shock Absorber Rod End Measuring Point: Shoulder of Stem; Stroke Length Rear: 9.0 IN; Tube Outside Diameter: 2.50 IN; Upper Mount Type: Stem; External Reservoir: Yes
California Proposition 65	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Cylinder Color	Silver
Cylinder Material	Aluminum
Damping Type	Oil
Description_DEF	Suspension Shock Absorber Set
Description_DES	14-UP RAM 2500 0" COIL / 3" AIR RIDE REAR 2.5 VS PB PAIR
Description_EXT	2014-UP RAM 2500 0" COIL / 3" AIR RIDE REAR 2.5 VS PIGGYBACK SHOCK PAIR
Description_FAB	100% Rebuildable
Description_FAB	100% Revalveable
Description_FAB	6061 aircraft grade aluminum CNC machined components
Description_FAB	7/8” diameter induction hardened, chrome plated shock shaft
Description_FAB	ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
Description_FAB	Nitrogen charged monotube design with piggyback reservoir
Description_FAB	One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
Description_FAB	One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
Description_FAB	Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
Description_FAB	PTFE lined spherical bearings and application specific mounting hardware
Description_FAB	Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
Description_INV	14-UP RAM 2500 0 COIL/3 AIR RIDE 2.5 PR
Description_MKT	ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. If you are looking for a more user defined tune, consider looking into the Compression Damping Control Valve (CDCV) shocks.
Description_SHO	REAR SHOCK ABSORBERS
Description_TRA	ICON 2014-Up Ram 2500 0 Lift Coil/3” Lift Air Ride, Rear, 2.5 VS PB Shocks, Pair, 217704P
External Reservoir	Yes
Grade Type	Performance
height	9.0
length	39.0
LTL	N
Shaft Diameter	0.875
Shaft Material	Chrome
Title	14-UP RAM 2500 0" COIL / 3" AIR RIDE REAR 2.5 VS PB PAIR
weight	20.0
width	10.0
