ICON Vehicle Dynamics 93500 2015-UP FORD F-150 & 2017-UP FORD SUPERDUTY ICON INTELLIGENT CONTROL INSTALL KIT

The IIC App brings all of this technology together by offering a user-friendly interface to monitor, record, and adjust the system’s performance via Bluetooth connection. Users can easily alter the shocks’ baseline settings for firmness, as well as adjust the sensitivity of vertical “G-Boost” and lateral “Corner Boost” with a few simple taps from their favorite iOS device. The App includes several preconfigured ‘Drive Modes’ (Normal, Desert, and Haul) but also offers the ability for users to create an unlimited number of unique presets using their own custom settings. To top it all off, you can record data from your trip including time, speed, distance and G-Forces for your very own ICONIC Overview.

California Proposition 65	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Description_ASC	TECH NOTE: Also requires installation of CDEV front and rear shock absorbers

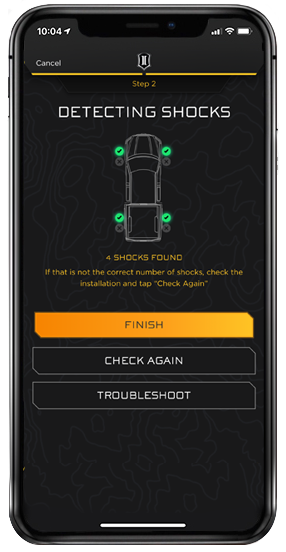

Description_ASC	TECH NOTE: IIC currently operates 4 CDEV equipped shocks, 2 fronts (coilover or OE location) and 2 rears. Connectivity for optional CDEV secondary front shocks in OE location in addition to CDEV coilovers coming soon!
Description_DEF	Active Suspension Control Module
Description_DES	15-UP F-150 & 17-UP FSD IIC INSTALL KIT
Description_EXT	2015-UP FORD F-150 & 2017-UP FORD SUPERDUTY ICON INTELLIGENT CONTROL INSTALL KIT

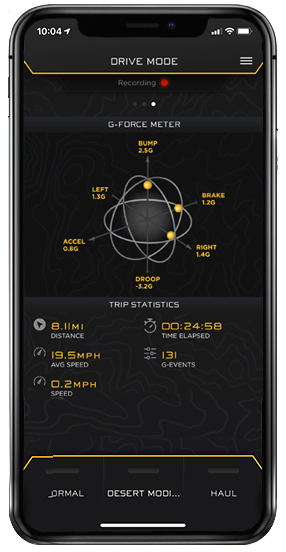

Description_FAB	Also functions as a data logger for time, speed, distance, and G-force allowing you to record data from your trips
Description_FAB	Application specific mounting brackets, hardware and wire harnesses

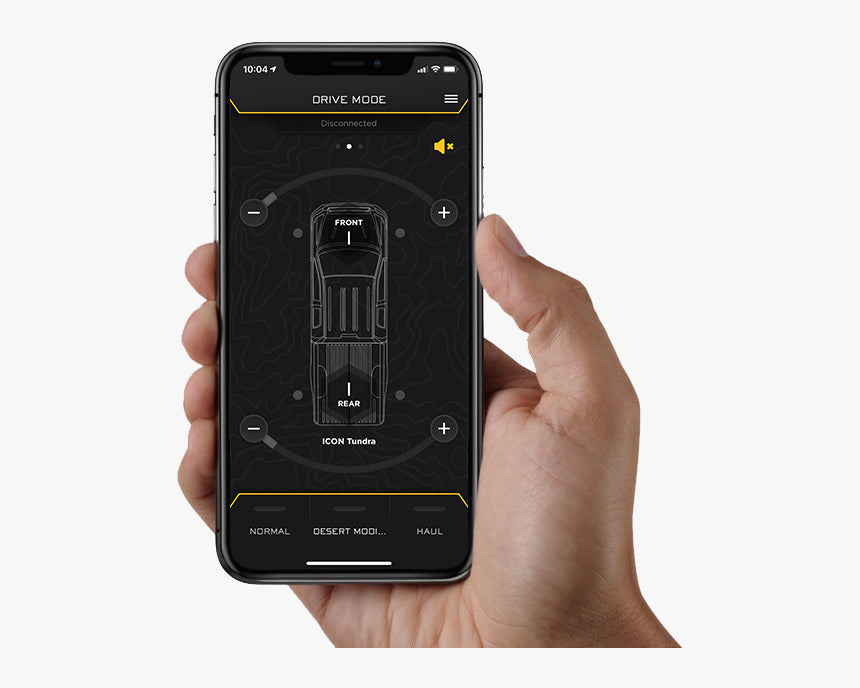

Description_FAB	Mobile app offers preconfigured “Drive Modes” as well as the ability to create custom presets
Description_FAB	Offers selectable active shock damping adjustment as well as manual adjustment of baseline settings without exiting vehicle
Description_FAB	Onboard sensors monitor G-forces and movement of vehicle chassis
Description_FAB	Performs calculations based on sensor inputs, custom algorithms, and user defined settings at a rate of over 1000 times per second
Description_FAB	Sends necessary damping adjustments to CDEV shocks that react in under 40 milliseconds
Description_FAB	User interface provided by IIC Mobile App via Bluetooth connection to iOS device
Description_INV	F-150 & FSD IIC INSTALL KIT
Description_MKT	ICON Intelligent Control (IIC) is the computer that monitors, analyzes, and processes data in real-time. Information from the onboard G-force sensor and Gyroscope perform calculations based on algorithms and user-defined settings to predict terrain and wheel position. IIC has the capability to collect information at over 1000 times per second, process the data and make adjustments, then deliver those changes to Compression Damping Electronic Valve (CDEV) in the shock absorbers in under 40 milliseconds. IIC also works as a data driver to connect the user to ICON’s proprietary mobile App interface for monitoring and adjusting shock settings. The IIC is mounted to the 2017-UP Ford Super Duty and the 2015-UP Ford F-150 using application specific mounting brackets, hardware and wire harnesses, ensuring an easy and clean looking install.
Description_MKT	The IIC App brings all of this technology together by offering a user-friendly interface to monitor, record, and adjust the system’s performance via Bluetooth connection. Users can easily alter the shocks’ baseline settings for firmness, as well as adjust the sensitivity of vertical “G-Boost” and lateral “Corner Boost” with a few simple taps from their favorite iOS device. The App includes several preconfigured ‘Drive Modes’ (Normal, Desert, and Haul) but also offers the ability for users to create an unlimited number of unique presets using their own custom settings. To top it all off, you can record data from your trip including time, speed, distance and G-Forces for your very own ICONIC Overview.
Description_SHO	IIC INSTALL KIT
height	5.0
length	19.0
LTL	N
Title	15-UP F-150 & 17-UP FSD IIC INSTALL KIT
weight	4.0
width	9.0
