ICON Vehicle Dynamics K53053T 03-09 4RUNNER/FJ 0-3.5" STAGE 3 SUSPENSION SYSTEM W TUBULAR UCA

This system features upper control arms with ICON's patented Delta Joint. The Delta Joint is a heavy-duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application - exposure to the elements. The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint. Metal on metal construction and a greaseable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation. What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint.

Add-On Part	198000 - 2 PIN COILOVER SPANNER WRENCH KIT
Add-On Part	198001 - BILLET SPANNER WRENCH KIT
California Proposition 65	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Description_ASC	APPLICATION NOTE #47: 700LB/IN EXPEDITION COIL AVAILABLE FOR HEAVIER EQUIPPED VEHICLES
Description_ASC	APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
Description_ASC	OEM Wheels & Tires Fitment: Yes
Description_ASC	Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
Description_ASC	Recommended Aftermarket Wheels: ICON Alloys | 17x8.5" w/ 4.75” Backspace / 0mm Offset
Description_ASC	Recommended Aftermarket Wheels: ICON Alloys | 18x9" w/ 5.00” Backspace / 0mm Offset
Description_ASC	Recommended Aftermarket Wheels: ICON Alloys | 20x9" w/ 5.00” Backspace / 0mm Offset
Description_ASC	Ships in multiple boxes
Description_DEF	Suspension Lift Kit
Description_DES	03-09 4RUNNER/FJ 0-3.5" STAGE 3 SUSPENSION SYSTEM W TUBULAR UCA
Description_DES	07-09 FJ/03-09 4RNR/03-09 GX EXT TRAVEL 2.5 VS IR COILOVER KIT
Description_DES	07-UP FJ/03-UP 4RNR/03-UP GX 1-3" REAR 2.0 VS IR
Description_DES	07-UP FJ/03-UP 4RNR/03-UP GX REAR 2" SPRING KIT
Description_DES	07-UP FJ/03-UP 4RNR/03-UP GX TUBULAR UCA DJ KIT
Description_DES	07-UP FJ/03-UP 4RNR/08-UP LC 200/03-UP GX TUBULAR LOWER TRAILING ARM KIT
Description_EXT	2003-2009 4RUNNER/2007-2009 FJ CRUISER 0-3.5" LIFT STAGE 3 SUSPENSION SYSTEM WITH TUBULAR UCA
Description_FAB	2.0 Aluminum Series rear internal reservoir shocks with 5/8" shafts
Description_FAB	6061 aircraft grade aluminum CNC machined components
Description_FAB	Adjustable coilovers provide 0-3.5" of front lift height
Description_FAB	Bolt-on system means no cutting or welding necessary for install
Description_FAB	Corrosion resistant CAD plated coilover shock body with 7/8" shaft
Description_FAB	Extended Travel coilovers matched with ICON UCA provides increased front droop travel
Description_FAB	FK Rod End bearings for extended longevity and minimal deflection
Description_FAB	Increased wheel travel and ride quality over stock
Description_FAB	Tubular rear lower links offer increased strength, improved geometry, and pinion angle adjustment
Description_FAB	Vehicle specific tuned front and rear shocks for superior shock damping and control
Description_INV	4RUNNER/FJ STAGE 3 SUSP SYS TUBE UCA

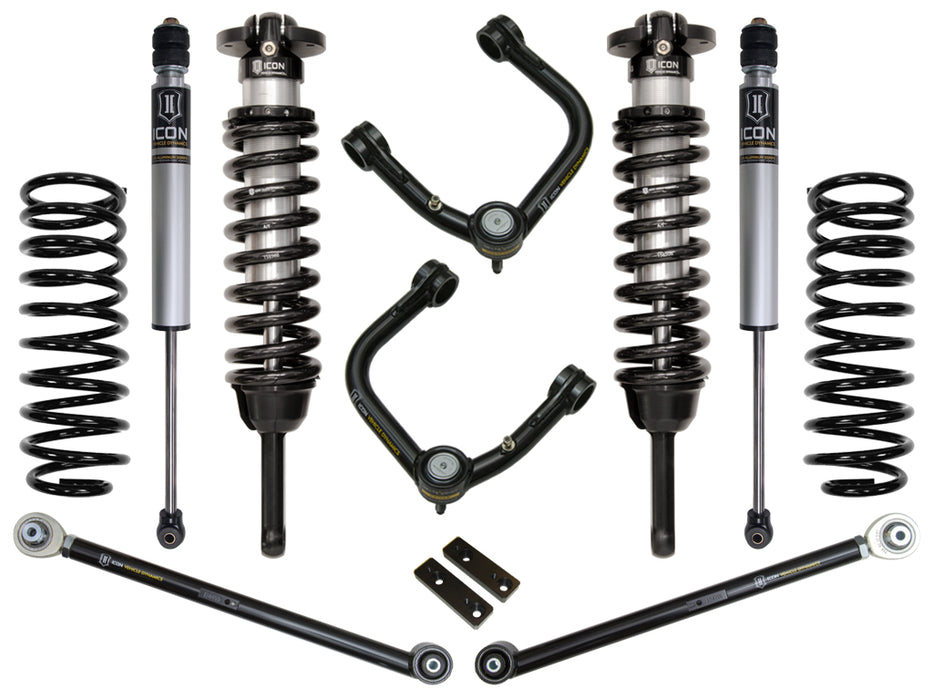

Description_MKT	The Stage 3 suspension system for the 2003-2009 Toyota 4Runner/2007-2009 FJ Cruiser includes the components found in the Stage 2 system along with an ICON Tubular Steel Rear Lower Link kit. Extended travel ICON 2.5 Series coilover shocks and a tubular steel Delta Joint upper control arm kit provide a significant upgrade to the 4Runner’s front suspension. The rear of the vehicle is improved with our 2" lift coil springs, ICON 2.0 Aluminum Series shocks, and the additional rear lower links. ICON's tubular steel lower links are much stronger than the OE units, feature a low maintenance multi-durometer bushing, and can be adjusted for optimum pinion angle. On top of it all, these links have been designed to provide correct roll steer geometry for the best possible handling on and off-road.
Description_MKT	This system features upper control arms with ICON's patented Delta Joint. The Delta Joint is a heavy-duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application - exposure to the elements. The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint. Metal on metal construction and a greaseable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation. What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint.
Description_SHO	SUSPENSION SYSTEM
Description_TRA	ICON 03-09 4Runner/FJ Cruiser 0-3.5" Lift Stage 3 Suspension System, Tubular UCA, K53053T
height	6.0
length	27.0
LTL	N
Spring Rate	650
Title	03-09 4RUNNER/FJ 0-3.5" STAGE 3 SUSPENSION SYSTEM W TUBULAR UCA
weight	131.0
width	12.0
