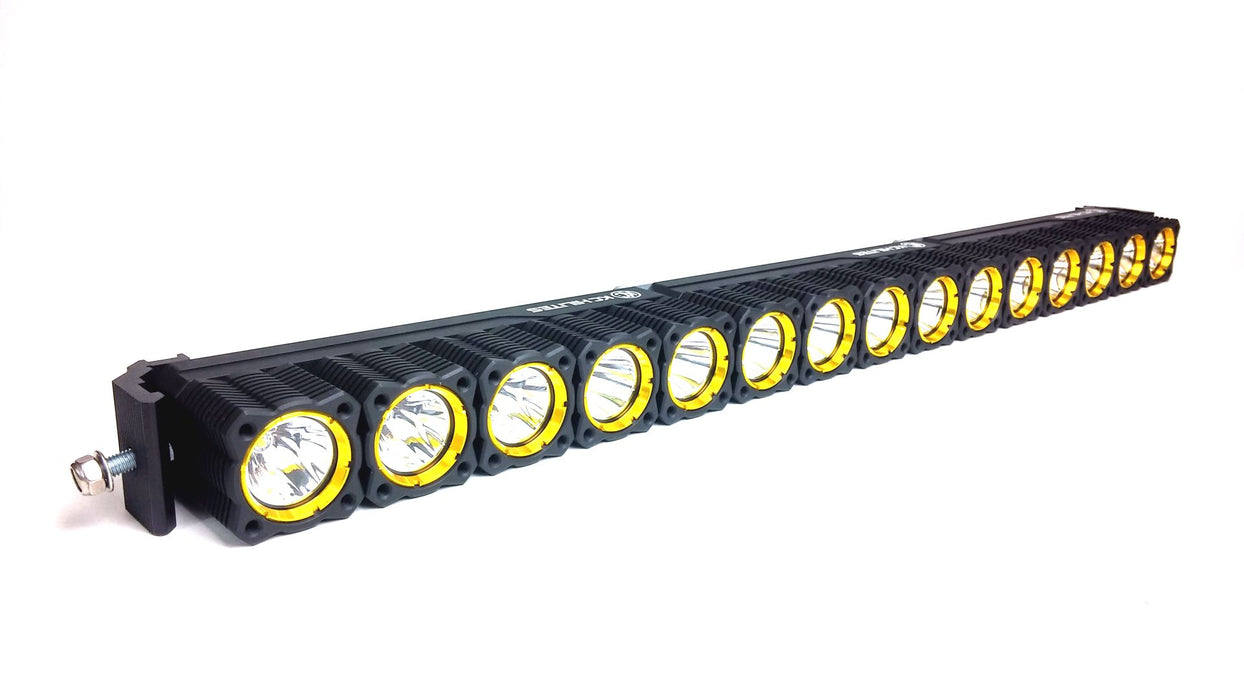

KC Hilites 276 FLEX LED; 30in. Bar Combo System 150w (ea)

SKU ds_BFHB_276
Availability:
Out of stock
Sold out
Original price $1,532.97 - Original price $1,532.97
Original price $1,532.97
$1,532.97
$1,532.97 - $1,532.97
Current price $1,532.97
Description
FEATURES-150W 30" KC FLEX LED Light Bar-Uses 15 x 10W FLEX LED Cores-Die-Cast Aluminum Housing-KC Precision Reflector Optics-Patent Pending Pass Through Power Bus-Combo Spot and Spread BeamLIGHT PERFORMANCE-RAW Lumens: 14,625 lm-LUX @ 10 meters: 2,700 lx-Candela: 270,000 cd-Beam Distance (Meters): 1,039mSPECIFICATIONS-Wattage: 150W-LED Source: CREE XM-L2-Amp Draw: 15.0A-Voltage: 9V-18V-IP Rating: IP68-Product Dimensions: W - 31.375" x H - 2.45" x D - 3.25"Parts Included with 30" FLEX LED Arrays-Wiring Harness with Waterproof ConnectorsOPTICAL PERFORMANCE AND LED EFFICIENCYCombining KC precision injected reflector optics and efficient LEDs the 30" KC FLEXLED Light Bar delivers 2,700 lx @10m of race performance light output and optical clarity.EXPANDABILITY FOR CUSTOM LIGHT ARRAYSArrays are available as a standalone unit, complete with a side mount adapters and a u-bracket. The patent pending power system allows multiple Arrays to be linked and even stacked together to create single and multiple-row LED light systems. PASS THROUGH POWER BUSPatent pending Power Backplane to streamline linking of KC FLEX LED arrays by simplifying wiring setups.COMBO BEAM PATTERN AND ADVANTAGESCombo Beam- A combo beam pattern, with perfectly angled Spot & Spread reflectors, for maximum forward distance and improved peripheral illumination along road edges.BAJA 1000 RACE TESTED STRENGTH & DURABILITYUsing IP68 rated Die-Cast Aluminum Flex Housings and Light Cores our 30" KC FLEX LED Arrays are tested and approved by race teams for extreme durability in harsh terrains and weather conditions.

Specifications

Description_ASC FEATURES
-150W 30in. KC FLEX LED Light Bar
-Uses 15 x 10W FLEX LED Cores
-Die-Cast Aluminum Housing
-KC Precision Reflector Optics
-Patent Pending Pass Through Power Bus
-Combo Spot and Spread Beam

LIGHT PERFORMANCE
-RAW Lumens: 14;625 lm
-LUX @ 10 meters: 2;700 lx
-Candela: 270;000 cd
-Beam Distance (Meters): 1;039m

SPECIFICATIONS
-Wattage: 150W
-LED Source: CREE XM-L2
-Amp Draw: 15.0A
-Voltage: 9V-18V
-IP Rating: IP68
-Product Dimensions: W-31.375in. x H-2.45in. x D-3.25in.

Parts Included with 30in. FLEX LED Arrays
-Wiring Harness with Waterproof Connectors

OPTICAL PERFORMANCE AND LED EFFICIENCY
Combining KC precision injected reflector optics and efficient LEDs the 30in. KC FLEXLED Light Bar delivers 2;700 lx @10m of race performance light output and optical clarity.

EXPANDABILITY FOR CUSTOM LIGHT ARRAYS
Arrays are available as a standalone unit; complete with a side mount adapters and a u-bracket. The patent pending power system allows multiple Arrays to be linked and even stacked together to create single and multiple-row LED light systems.

PASS THROUGH POWER BUS
Patent pending Power Backplane to streamline linking of KC FLEX LED arrays by simplifying wiring setups.

COMBO BEAM PATTERN AND ADVANTAGES
Combo Beam-A combo beam pattern; with perfectly angled Spot/Spread reflectors; for maximum forward distance and improved peripheral illumination along road edges.

BAJA 1000 RACE TESTED STRENGTH/DURABILITY
Using IP68 rated Die-Cast Aluminum Flex Housings and Light Cores our 30in. KC FLEX LED Arrays are tested and approved by race teams for extreme durability in harsh terrains and weather conditions.
Description_DES FLEX LED; 30in. Bar Combo System 150w (ea)
Description_EXT 30in. KC FLEX Array LED Light Bar System outputs 150w from bright CREE LEDs in a combo spot and spread beam pattern. 15-core aluminum design and a patent pending power bus for endless linking and stacking. System includes wiring harness.
Description_FAB Aluminum Housings
Description_FAB IP68 Rated
Description_FAB KC Flex Array LED
Description_INV LED Light Bar
Description_MKT FEATURES-150W 30" KC FLEX LED Light Bar-Uses 15 x 10W FLEX LED Cores-Die-Cast Aluminum Housing-KC Precision Reflector Optics-Patent Pending Pass Through Power Bus-Combo Spot and Spread BeamLIGHT PERFORMANCE-RAW Lumens: 14,625 lm-LUX @ 10 meters: 2,700 lx-Candela: 270,000 cd-Beam Distance (Meters): 1,039mSPECIFICATIONS-Wattage: 150W-LED Source: CREE XM-L2-Amp Draw: 15.0A-Voltage: 9V-18V-IP Rating: IP68-Product Dimensions: W - 31.375" x H - 2.45" x D - 3.25"Parts Included with 30" FLEX LED Arrays-Wiring Harness with Waterproof ConnectorsOPTICAL PERFORMANCE AND LED EFFICIENCYCombining KC precision injected reflector optics and efficient LEDs the 30" KC FLEXLED Light Bar delivers 2,700 lx @10m of race performance light output and optical clarity.EXPANDABILITY FOR CUSTOM LIGHT ARRAYSArrays are available as a standalone unit, complete with a side mount adapters and a u-bracket. The patent pending power system allows multiple Arrays to be linked and even stacked together to create single and multiple-row LED light systems. PASS THROUGH POWER BUSPatent pending Power Backplane to streamline linking of KC FLEX LED arrays by simplifying wiring setups.COMBO BEAM PATTERN AND ADVANTAGESCombo Beam- A combo beam pattern, with perfectly angled Spot & Spread reflectors, for maximum forward distance and improved peripheral illumination along road edges.BAJA 1000 RACE TESTED STRENGTH & DURABILITYUsing IP68 rated Die-Cast Aluminum Flex Housings and Light Cores our 30" KC FLEX LED Arrays are tested and approved by race teams for extreme durability in harsh terrains and weather conditions.
Description_SHO FLEX LEDs
height 6.5
length 32.0
weight 15.0
width 6.5
