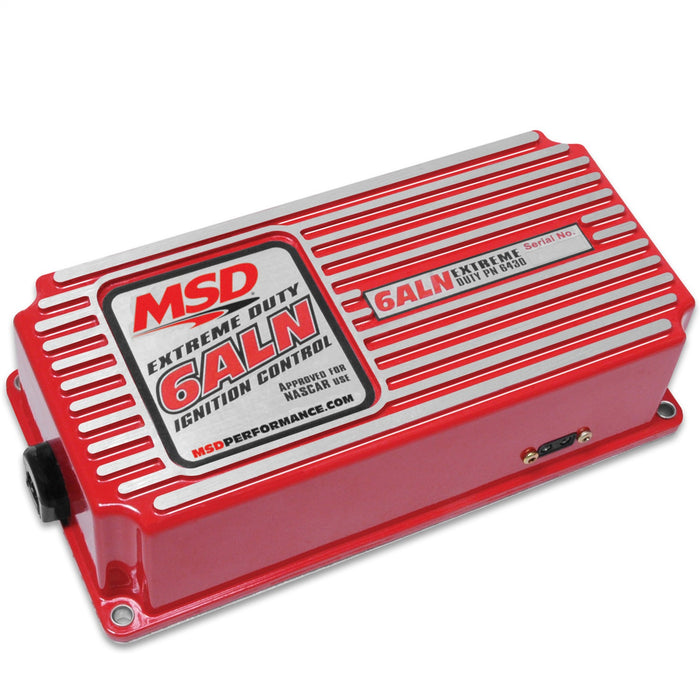

MSD 6430 6ALN Series Multiple Spark Ignition Controller
by MSD
SKU ds_BCCX_6430
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Original price
$771.98
-
Original price
$771.98
Original price
$771.98
$771.98
$771.98
-
$771.98
Current price
$771.98
Description
The MSD 6TN and MSD 6ALN were designed with NASCAR racing in mind. In fact, both of the capacitive discharge high power ignitions are NASCAR approved. The N series ignitions feature the mandatory 6-Pin weathertight connector to meet NASCAR's ignition wiring rule, 20-6.1. This special connector provides a tight, positive locking connection with individual seals to keep dirt and moisture away from each connection. All of the MSD's primary wiring meets MIL-86A specifications with special tinned conductors for superior crimps. Inside the strong cast aluminum housing, the multiple sparking CD circuits are encased in a clear two part silicone elastomer for the ultimate in vibration protection. A special clear base plate is also installed for easy tech inspection. The 6TN is equipped with a special 4-pin connector that plugs directly into an MSD soft touch rev control, PN 8738, while the 6ALN has a built-in rev control.
Resources
Installation InstructionsResources
Installation InstructionsResources
Installation InstructionsSpecifications
| Description_ASC | Holley Performance Emission Code 4: This part is legal for sale or use on Racing Use Only Vehicles. The following vehicles are considered Racing Use Only Vehicles: Racing Use Only Vehicles are vehicles that are used exclusively for competition that are not registered and that may never be used on the street. WARNING: It is against the law to install this part on an Emissions Controlled Vehicle |
| Description_DEF | Ignition Control Module |
| Description_DES | 6ALN Series Multiple Spark Ignition Controller |
| Description_EXT | 6ALN Series Multiple Spark Ignition Controller; Extreme Duty; 4/Even Fire V6/8 Cylinder; w/RPM Modules; w/Built-In Rev. Limiter; Not Compatible w/Distributorless Systems; |
| Description_FAB | 110 Millijoules Per Spark Up To 15000 RPM |
| Description_FAB | 470 Primary Voltage Output To Coil |
| Description_FAB | 6-pin Weathertight Connector; Mandatory For NASCAR Use |
| Description_FAB | Built-In Soft Touch Rev Control Is Adjustable w/Rpm Modules |
| Description_FAB | Circuit board is encased in a clear two part silicone elastomer |
| Description_FAB | Clear plastic base plate for easy tech inspection |
| Description_FAB | Multiple spark; capacitive discharge ignition control |
| Description_FAB | Multiple sparks for 20 degrees of crankshaft rotation |
| Description_FAB | Programmable for 4/6/8 cyl. by cutting red/blue wire loops |
| Description_FAB | Supplied w/3000/6000/7000/8000 Amp Rpm Modules |
| Description_FAB | Supplied w/Rubber Shock Mounts |
| Description_FAB | Works on 12-18 volt electrical system |
| Description_INV | MSD 6ALN;Ignition Control; Severe Duty |
| Description_LAB | Proposition 65 |
| Description_MKT | The MSD 6TN and MSD 6ALN were designed with NASCAR racing in mind. In fact, both of the capacitive discharge high power ignitions are NASCAR approved. The N series ignitions feature the mandatory 6-Pin weathertight connector to meet NASCAR's ignition wiring rule, 20-6.1. This special connector provides a tight, positive locking connection with individual seals to keep dirt and moisture away from each connection. All of the MSD's primary wiring meets MIL-86A specifications with special tinned conductors for superior crimps. Inside the strong cast aluminum housing, the multiple sparking CD circuits are encased in a clear two part silicone elastomer for the ultimate in vibration protection. A special clear base plate is also installed for easy tech inspection. The 6TN is equipped with a special 4-pin connector that plugs directly into an MSD soft touch rev control, PN 8738, while the 6ALN has a built-in rev control. |
| Description_SHO | IgnCntrlModule |
| height | 2.9 |
| length | 10.8 |
| LTL | N |
| RPM | 15000 |
| WARNING CA Proposition 65 | Yes |
| WARNING CA Proposition 65 Message | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| weight | 3.55 |
| width | 9.8 |
