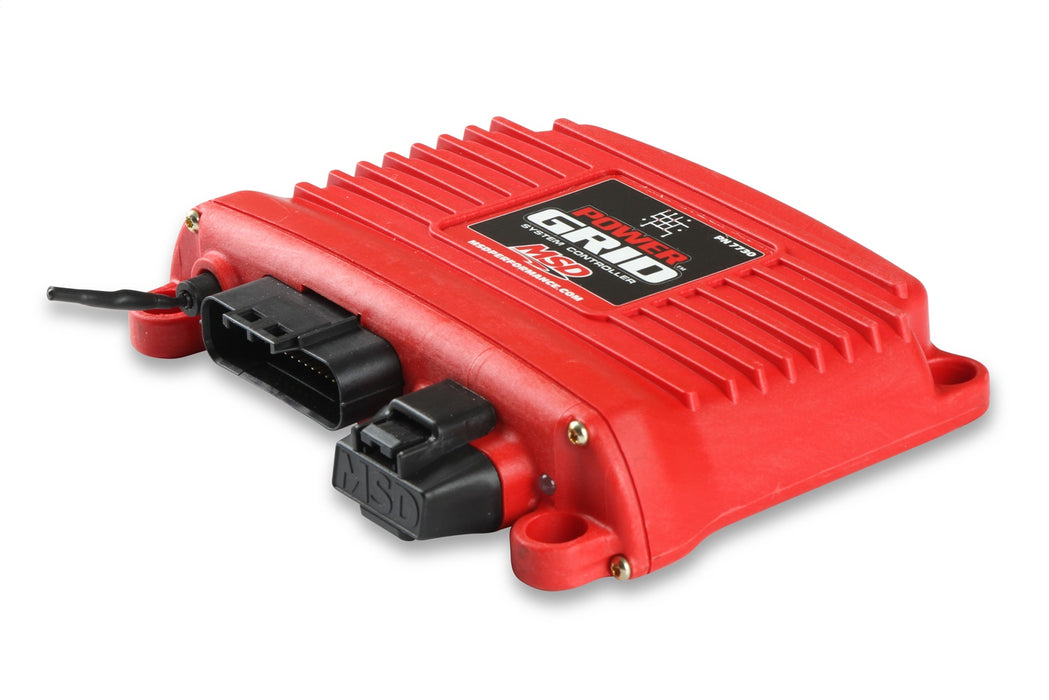

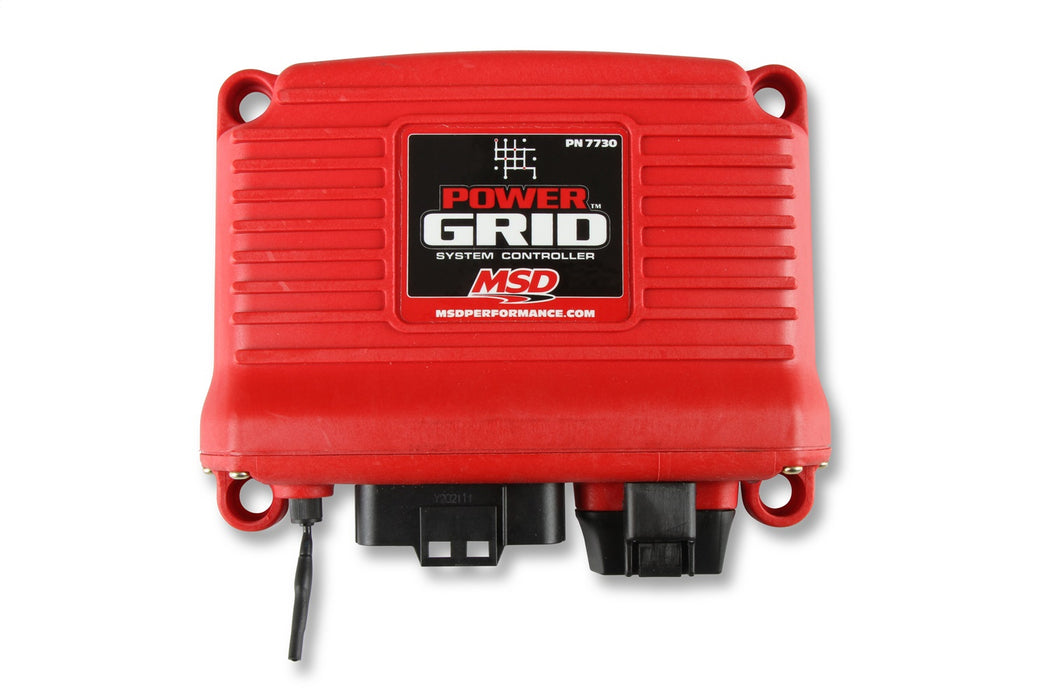

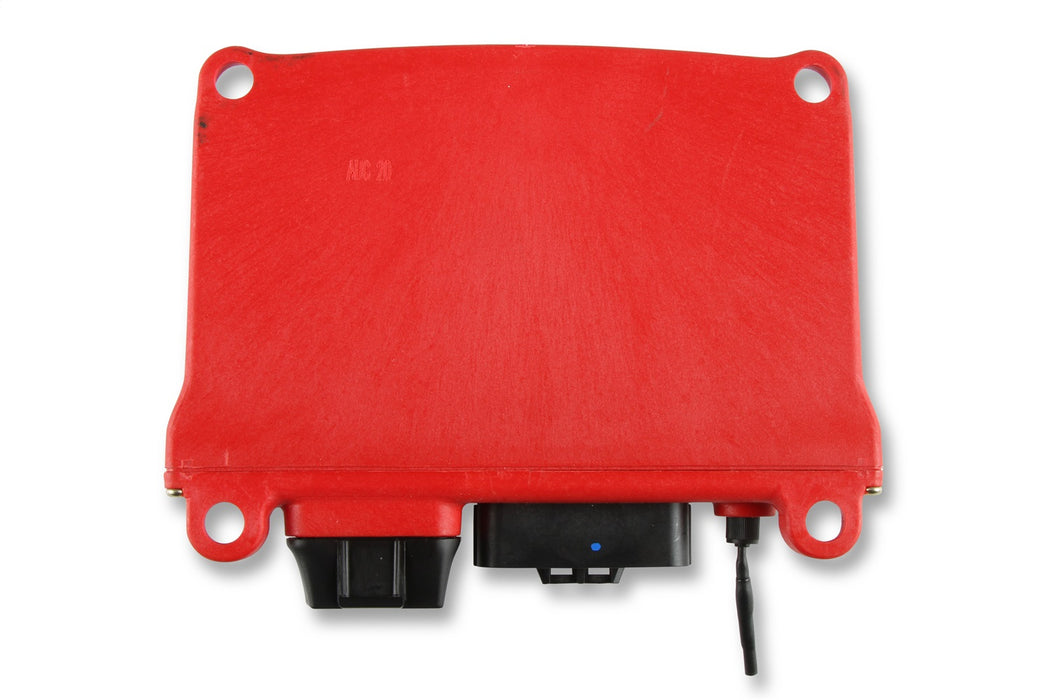

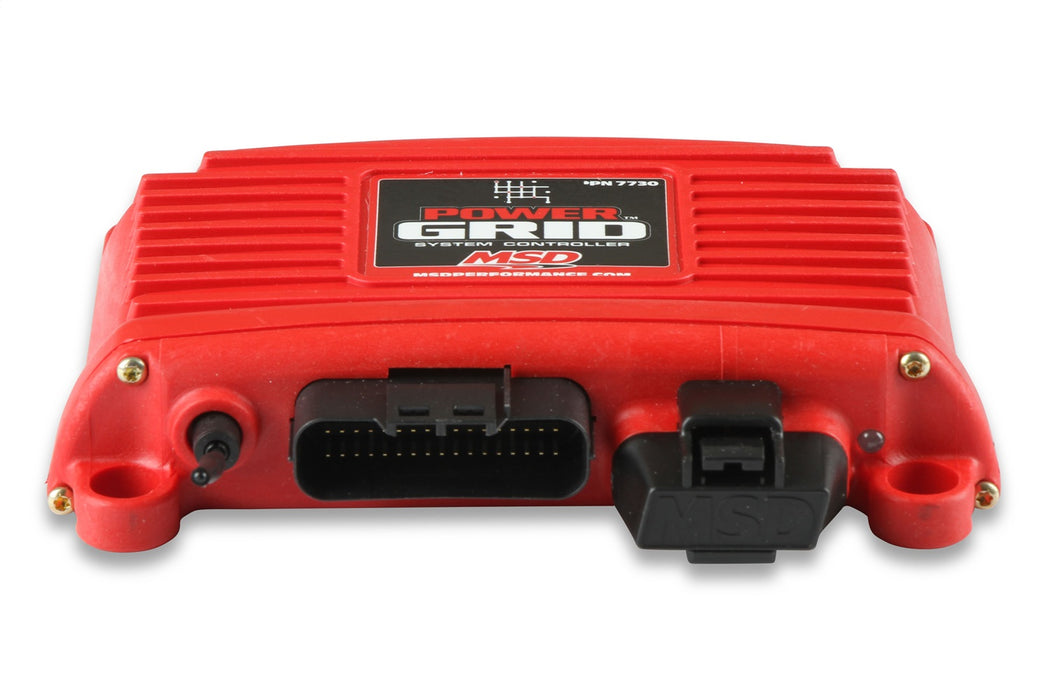

MSD 7730 Power Grid Ignition System™ Controller

MSD set the standard in programmable ignition systems. In fact, every NHRA pro stock championship in the last few years has been with an MSD programmable 7. Drag radial, twin turbo outlaw cars and 10.5-tire classes all rely on the advanced programming of MSD's programmable 7 ignitions. Wait until they see the power grid. The power grid ignition system is the next evolution of our programmable 7-series ignition controls. The grid incorporates an efficient 32 bit micro controller and an all new software program, called MSD View, and is USB compatible. The windows based software is designed with tabs to help racers easily select different programming windows and parameters. Also, the data acquisition files of the ignition are now captured on a micro SD card for ease of storage and reviewing. The power grid ignition incorporates CAN-Bus technology which reduces the amount of wiring and simplifies the addition of accessory modules. All modules connect via CAN-Bus technology.

Resources

Installation Instructions

Resources

Installation Instructions

Description_ASC	Holley Performance Emission Code 4: This part is legal for sale or use on Racing Use Only Vehicles. The following vehicles are considered Racing Use Only Vehicles: Racing Use Only Vehicles are vehicles that are used exclusively for competition that are not registered and that may never be used on the street. WARNING: It is against the law to install this part on an Emissions Controlled Vehicle
Description_DEF	Ignition Performance Module
Description_DES	Power Grid Ignition System™ Controller
Description_EXT	Power Grid Ignition System™ Controller; Not Legal For Use Or Sale On Pollution Controlled Vehicles; Red;
Description_FAB	Advanced individual cylinder timing based on gear or time
Description_FAB	Crank Trigger system highly recommended
Description_FAB	Five Retard Stages For Nitrous
Description_FAB	Four steps of rpm limits for burnout; spool; launch and overrev
Description_FAB	Ignition Data Acquisition Accepts Multiple Runs
Description_FAB	Output switch set on rpm; pressure or time
Description_FAB	Shift Light Settings For Each Gear
Description_FAB	Timing Based On Engine RPM And Gear Value
Description_FAB	USB Connection For Ease Of Programming
Description_INV	Programmable Controller ; Power Grid
Description_LAB	Proposition 65
Description_MKT	MSD set the standard in programmable ignition systems. In fact, every NHRA pro stock championship in the last few years has been with an MSD programmable 7. Drag radial, twin turbo outlaw cars and 10.5-tire classes all rely on the advanced programming of MSD's programmable 7 ignitions. Wait until they see the power grid. The power grid ignition system is the next evolution of our programmable 7-series ignition controls. The grid incorporates an efficient 32 bit micro controller and an all new software program, called MSD View, and is USB compatible. The windows based software is designed with tabs to help racers easily select different programming windows and parameters. Also, the data acquisition files of the ignition are now captured on a micro SD card for ease of storage and reviewing. The power grid ignition incorporates CAN-Bus technology which reduces the amount of wiring and simplifies the addition of accessory modules. All modules connect via CAN-Bus technology.
Description_SHO	IgnPrfMd
height	2.9
length	11.05
LTL	N
WARNING CA Proposition 65	Yes
WARNING CA Proposition 65 Message	WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
weight	3.22
width	10.0
