Description

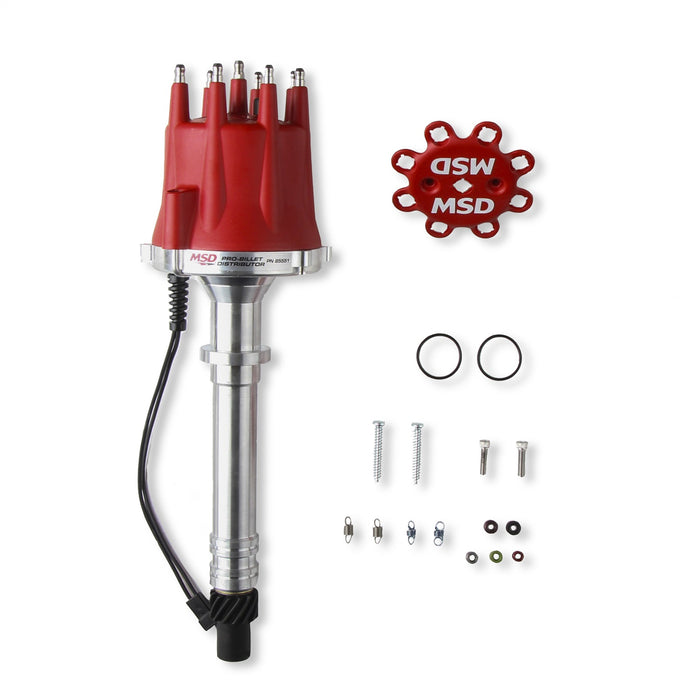

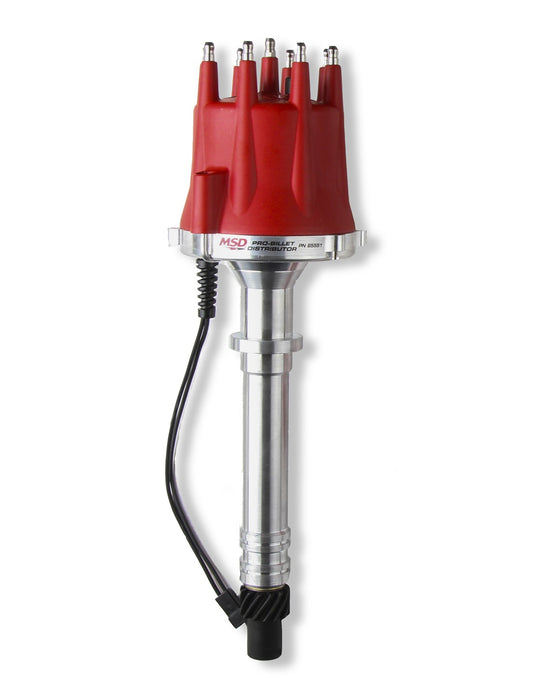

This is our most popular performance distributor! The housing is machined from a billet of 6061-T6 aluminum on a state-of-the-art CNC machine producing exact tolerances. For high RPM stability, a .500 In. steel shaft is supported by a sealed ball bearing and a long sintered bushing. This shaft also receives a QPQ coating for friction reduction and resistance to corrosion. A precision machined reluctor is attached to the shaft which triggers the magnetic pick-up mounted in the housing. This high output magnetic pick-up is the most accurate way to trigger your ignition. Plus, with no moving parts to wear or adjust, the pick-up is maintenance free! Just above the pick-up is MSD's adjustable mechanical advance assembly. Different springs and stop bushings are supplied so you can tune an advance curve to match your application.
Resources
Installation InstructionsSpecifications
| Description_ASC | Holley Performance Emission Code 1: This part is legal for sale and use on Emissions Controlled Vehicles; in all 50 states; when used in accordance with the manufacturers application guide because it has a California Air Resources Board (CARB) Executive Order (EO) number. The following vehicles are considered Emissions Controlled Vehicles: 1966 and newer U.S. manufactured California Certified vehicles/1968 and newer U.S. manufactured Federally Certified vehicles/1968 and newer Foreign manufactured vehicle |
| Description_ASC | The Pro-Billet Standard distributor has a 2 pin magnetic pick up and requires a MSD ignition control. The Ready To Run distributor has a 3 pin connector and does not require an external ignition box. The Ready to Run model has an ignition module built in. |
| Description_DES | Pro-Billet Distributor |
| Description_EXT | Pro-Billet Distributor; Incl. Cap/Race Rotor; Use w/MSD 6/7/8/10 Series Ignition; Iron Gear; Red; |
| Description_FAB | Advance plate and weights are fine blanked from chrome moly steel |
| Description_FAB | Advance weight pins are staked and tig welded to the plate |
| Description_FAB | CNC machined billet aluminum housing and billet aluminum base |
| Description_FAB | Mech. advance assem. can be locked out for crank trigger systems |
| Description_FAB | Must Be Used w/An MSD Ignition Control |
| Description_FAB | Nylon pads ensure smooth operation of the advance weights |
| Description_FAB | O-ring seals can be installed for oil press. control (Mods only) |
| Description_FAB | QPQ coated for friction reduction |
| Description_FAB | QPQ coated polished steel shaft; guided by sealed ball bearings |
| Description_FAB | Special oil tract improves lubrication to the dist./cam gear |

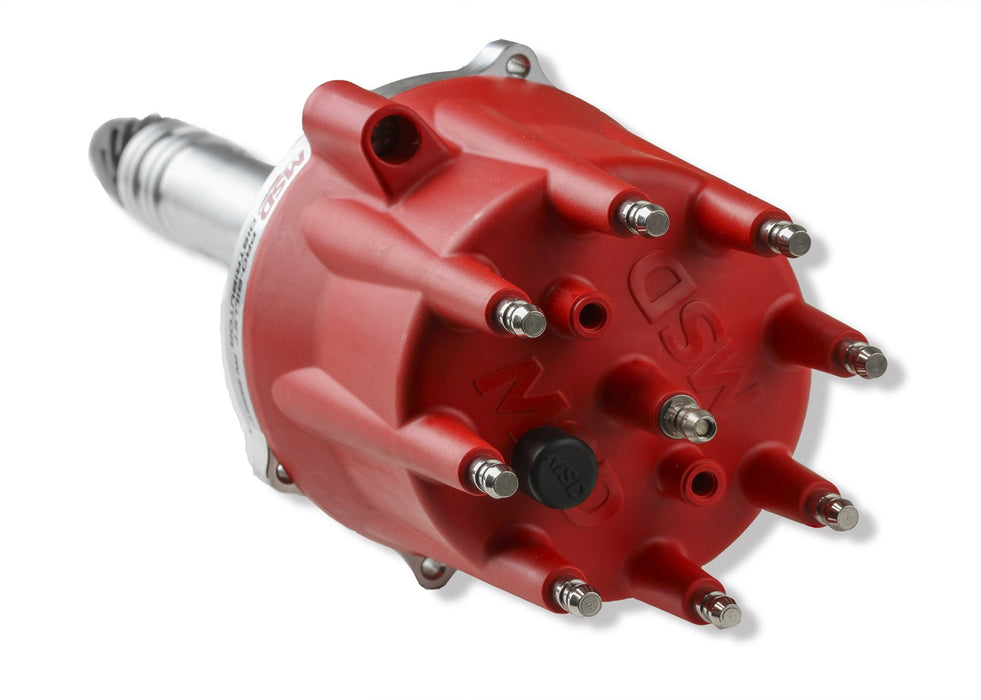

| Description_FAB | Supplied w/HEI style distributor cap/rotor (accepts Cap-A-Dapts) |
| Description_FAB | Will not accept a vacuum advance canister |
| Description_INV | Distr.; Chevy V8;Pro-Billet;w/Cap; Rotor |
| Description_LAB | Proposition 65 |
| Description_MKT | This is our most popular performance distributor! The housing is machined from a billet of 6061-T6 aluminum on a state-of-the-art CNC machine producing exact tolerances. For high RPM stability, a .500 In. steel shaft is supported by a sealed ball bearing and a long sintered bushing. This shaft also receives a QPQ coating for friction reduction and resistance to corrosion. A precision machined reluctor is attached to the shaft which triggers the magnetic pick-up mounted in the housing. This high output magnetic pick-up is the most accurate way to trigger your ignition. Plus, with no moving parts to wear or adjust, the pick-up is maintenance free! Just above the pick-up is MSD's adjustable mechanical advance assembly. Different springs and stop bushings are supplied so you can tune an advance curve to match your application. |
| Description_SHO | Distributor |
| Distributor Type | Magnetic Pickup |
| Engine Make/Size | Chevy Big Block (396-454) |
| Engine Make/Size | Chevy Small Block (262-400) |
| height | 6.9 |
| length | 17.9 |
| LTL | N |
| WARNING CA Proposition 65 | Yes |
| WARNING CA Proposition 65 Message | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| weight | 4.3 |
| width | 7.0 |
